Aprašymas
Trumpai apie prekę

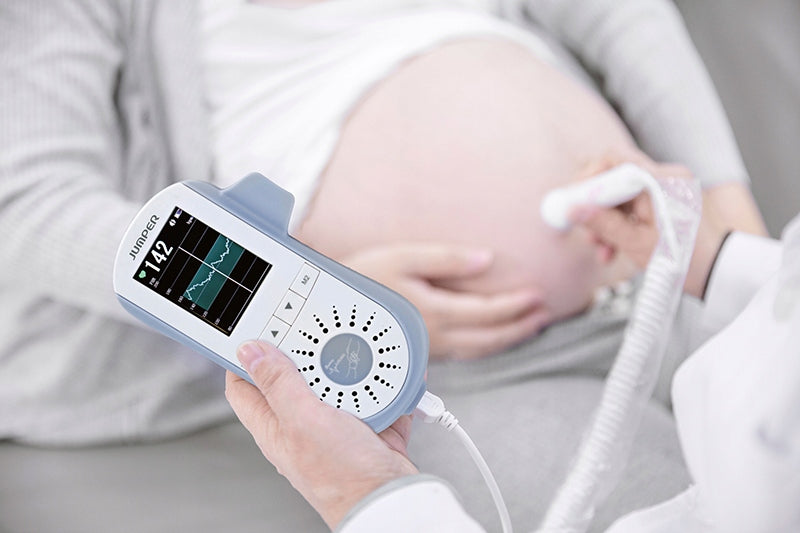

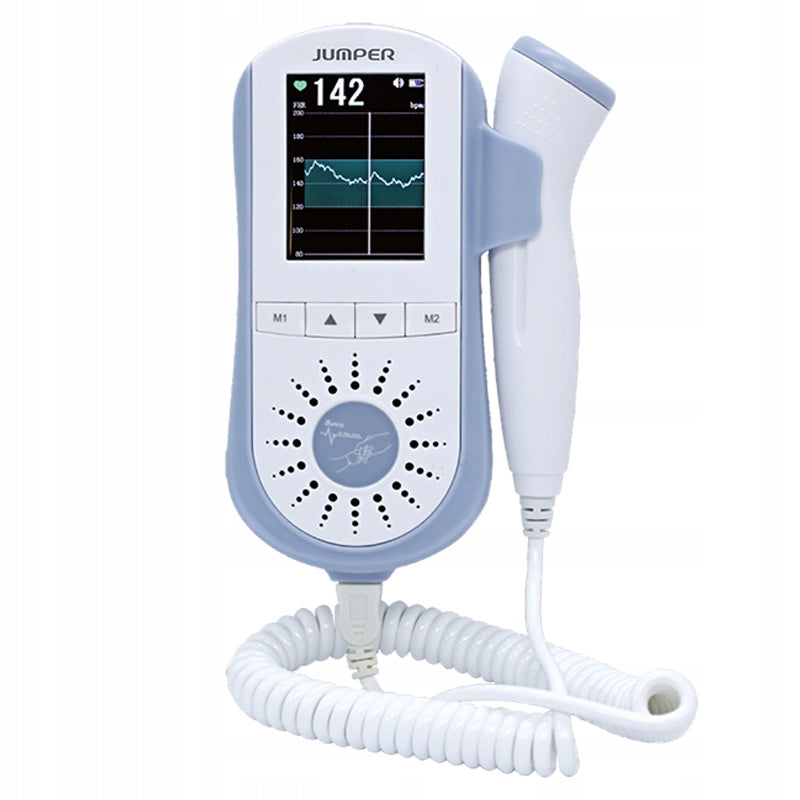

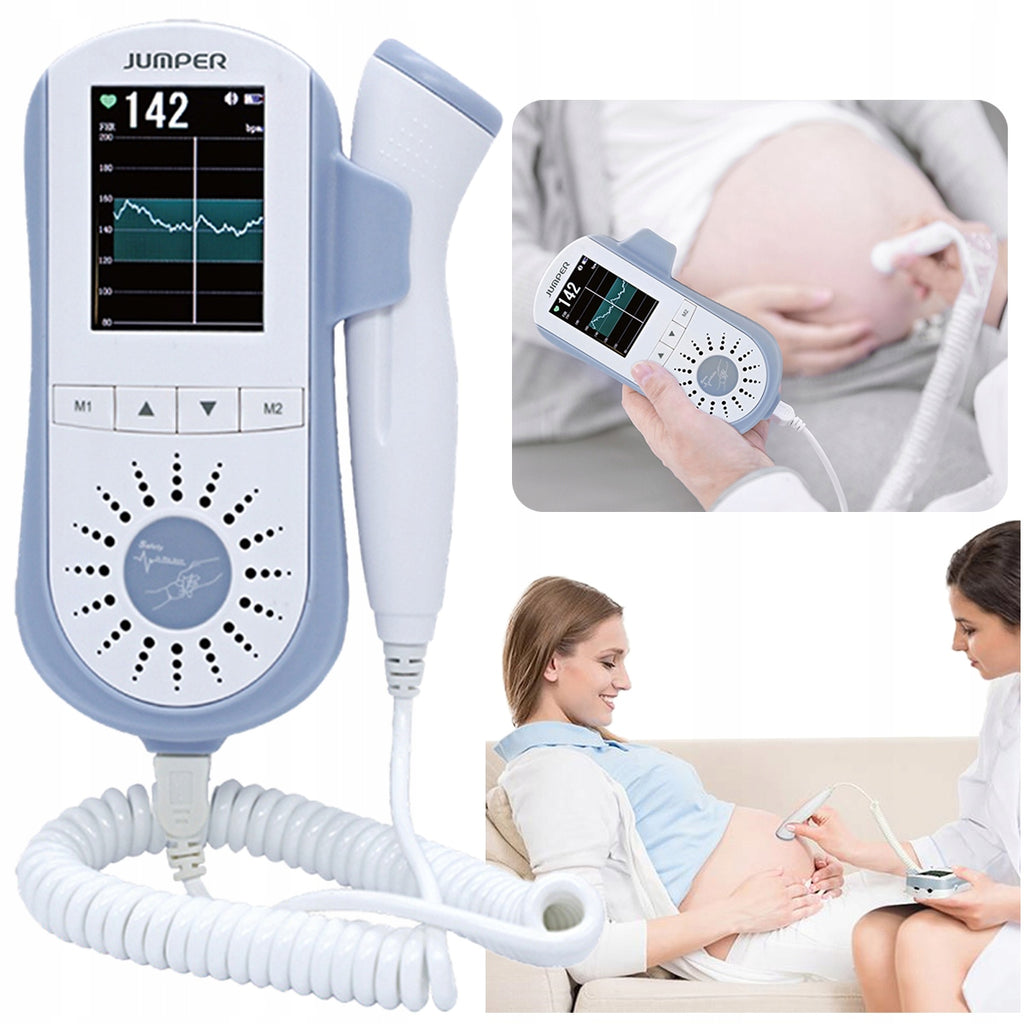

Prekė: Vaisiaus širdies ritmo detektorius JUMPER JPD-100E2, 2,5 MHz. Kategorija: Vaisiaus širdies ritmo detektoriai.
- Gamintojas: Jumper
- Modelis: JPD-100E2
- medical device ensures correct measurements
- allows you to monitor the child's heart rate
- is used in gynecological and obstetric practice
- suitable for use after 16 weeks of pregnancy
- lightweight, portable, portable
- has a built-in speaker and headphone input
- head frequency 2,5 MHz
- measurement in real time
It will work both at home, as well as in gynecological wards, maternity and birth schools.
Pregnancy without stress and anxiety
The time between visits is long for every expectant mother. Being able to hear your child’s heartbeat is an invaluable feeling every time. With this device, you can experience these unforgettable moments in the comfort of your home - not only in the doctor's office.
Fetal heart rate detector JPD-100E is a class IIa medical device - ensures precise measurement
- FHR – fetal heart rate measurement
- chart of the baby's heartbeat curve
- colour easy-to-read display
- two Doppler modes of operation
- Built-in speaker and headphone input
- smooth volume control
- waterproof extremely precise head
Fetal heart rate (FHR) is extremely important and provides a basis for checking whether the fetus is healthy.
Registering changes in FHR helps detect signs of fetal hypoxia. Fetal monitoring at home mainly involves listening to the fetal heartbeat and checking for FHR changes that help significantly increase fetal safety. Reference fetal heart rate range: 110bpm-160bpm
✅ The fetus moves in the abdomen of a pregnant woman and therefore the position of detection of the fetal heartbeat may change.
Depending on the stage of pregnancy, the heart rate is felt in different places on the abdomen. Patiently and calmly determine the position of the baby in the stomach.
- Early stage - before 24. A week of pregnancy, the fetal heartbeat can be detected in the middle of the abdomen or in its area below the navel.
- Middle vase after 26. The week of pregnancy, the fetal heartbeat can apparently be detected at the site where the fetal back is located. Fetal movement is usually the movement of the fetal limbs. When fetal movement is often felt on the right side of the abdomen, the fetal heartbeat can usually be detected on the left side of the abdomen and vice versa.
- Final phase - the position of the head and the position of the buttocks can also affect the detection of the fetal heartbeat. If the fetus is in the head position, the fetal heartbeat can be detected on the left or right under the navel. If the fetus is in the gluteal position, the fetal heartbeat can be detected on the left or right side above the navel.
✅ It is normal that the child's heart rate is variable - it varies depending on what you do.
The fetus will react to changing your position, e.g. from sitting to lying down. Activity can also trigger strong mom emotions, sounds that reach the baby, as well as food (e.g. sweets).
✅ FHR changes most during the following periods:
- Within 30 minutes after waking up pregnant woman
- Within 60 minutes after lunch pregnant women
- Within 30 minutes before falling asleep, pregnant women (normal)
✅ Extremely sensitive PROBE made in Doppler technology.
- Medical precision
- Probe frequency 2,5MHz
- Heart rate measurement range: 50BPM-210BPM (strokes per minute)
✅ Color LCD display showing fetal heart rate and heart rate wave
Display can be switched to 2 different views
- Standard interface (curve mode) - view No. 1
- Interface with large font (value mode) - view no. 2
✅ Display interface
- Measured FHR value
- Battery indicator
- Volume control symbol
- Course of FHR
- Fetal heartbeat signal waveform
When the FHR measurement value exceeds the range of 110-160bpm, the font color will turn red.
- Headphone jack
- "Do Not Disturb" Mode (DND)
- M1 mode button
- Volume up button
- Light sensor
- Probe socket
- M2 mode button
- Volume down button
- 2,5 MHz ultrasonic probe
- Place for batteries
- Switch
- Medical Fetal Heart Rate Detector JPD-100E JUMPER
- 3xAAA batteries
- User manual in Polish
Technical specification
- Acoustic Operating Frequency: 2,5 MHz ± 10%
- Overall sensitivity (200 mm from the probe surface): not less than 90 dB
- Spatial/temporal peak sound pressure: < 0,1 Mpa Ultrasound output power: ≤ 20 mW
- Effective surface of the active element of the ultrasonic transducer: 1,57 cm2
- FHR measurement range: 50 – 210 bpm
- Precision: ± 2 bpm
- Power Supply: 3x A AA battery
- Operating mode: continuous (the device can work continuously for more than 6h)
- Dimensions: 147,0 mm x 101,9 mm x 31,6 mm
- Weight: 250 g ± 5 g
- The device is CE0482 certified
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | JPD-100E2 |
| Parametry | Brand | Jumper |
| Parametry | Medical device | yes |
| Parametry | Medical device type | medical device or in-vitro diagnostic medical device |
| Parametry | Manufacturer of a medical device | JUMPER |
| Parametry | Medical device class | IIa |
| Parametry | Display | LCD |
| Parametry | Power supply | battery |
| Parametry | Fetal heart rate measurement | 50–210 BPM |
| Parametry | EAN (GTIN) | 6951740520256 |
| Parametry | Packaging status | original |
| Parametry | Communications | heart rate,backlight,battery indicator,operating mode indicator |
| Parametry | Accessories included | batteries,speaker,cable |
| Parametry | Ports | miniJack,miniUSB |
