Vaizdo domofono rinkinys NICE LOOK WG

Trumpai apie prekę

Prekė: Vaizdo domofono rinkinys NICE LOOK WG. Kategorija: Rinkiniai.

• Gamintojas: Nice
• Modelis: LOOK WG

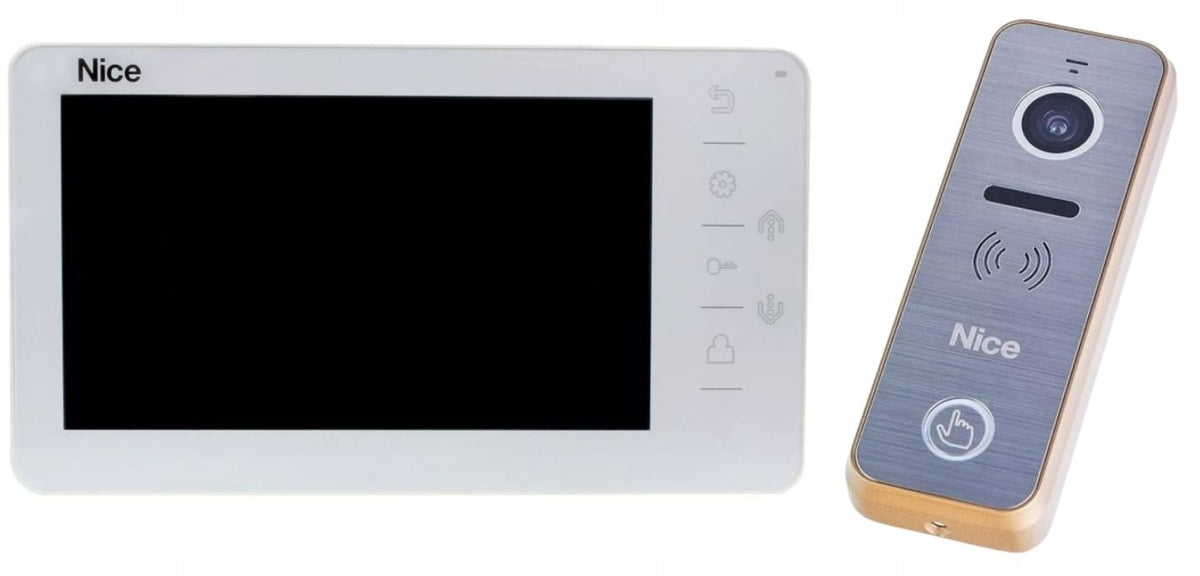

Set Composition:

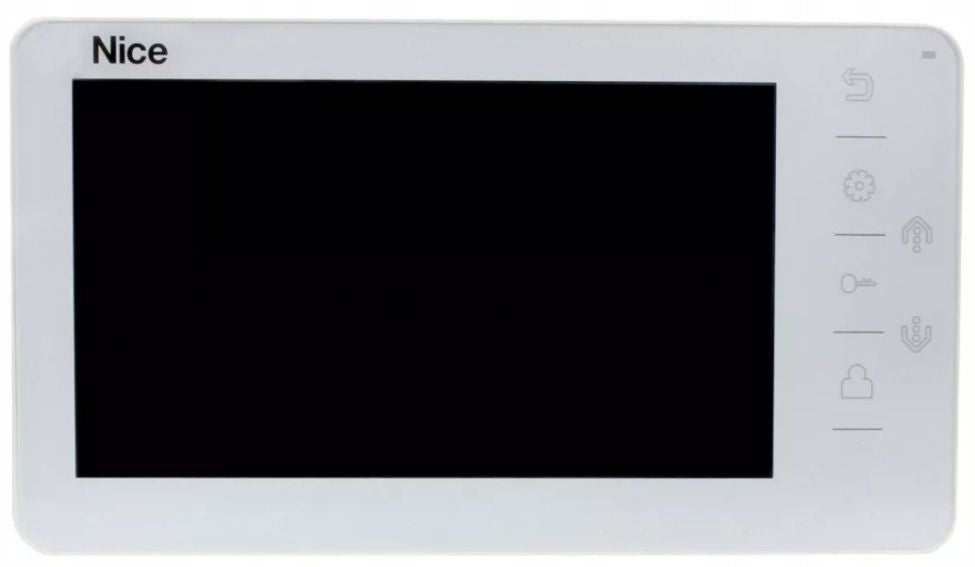

• Monitor Nice LOOK W

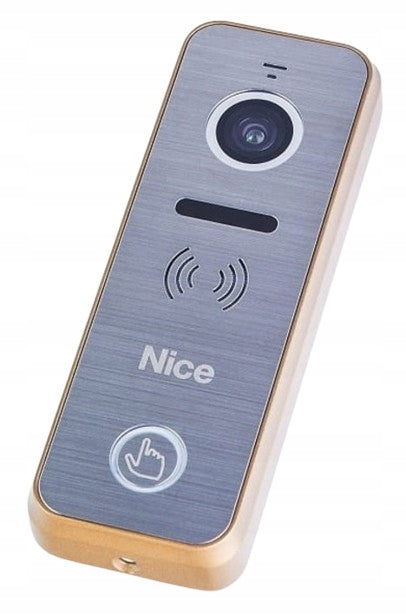

• Talk panel Nice EYE G with angle handle
• NC05 module for controlling automation for gates
• Power supply
• Mounting accessories
• Instruction in Polish

Easy to use: Large 7” high-resolution color display with touch function buttons and built-in speaker, guarantees easy operation.

Functional: Two talk panels and two CCTV cameras can be connected to one monitor, and in a more advanced configuration up to three additional slave monitors.

Easy installation: Monitor mounted on a special mount. The talk panel with angle allows installation in hard-to-reach places.

Do not disturb function. When the function is activated, sound signaling during calling, intercom connection and broadcasting will be disabled.

Technical specification:

• 7” high resolution LCD display.
• Headphoneless device, perfect for internal communication.
• 12 polyphonic bells.
• Electric strike and automatic gate control.
• Possibility to connect two talk panels, two CCTV cameras and three additional monitors.
• Real-time monitoring of input or CCTV cameras.
• Language selection - Polish, English.
• Adjustable brightness, contrast, volume, display.
• Multiplication of the connection – in a system with at least two monitors.
• Intercom call.
• Listening to another monitor.
• Comfortable buttons.
• Modern look.

• High protection class IP66 ensures reliability in adverse weather conditions.
• Aluminum housing gives the panels a modern and durable look, while providing resistance to mechanical damage.
• The wide viewing angle of the 110˚ camera provides a large field of observation in front of the panel.
• Small size allows for installation in places with limited space, an additional angle panel allows you to point the camera in the desired direction.

Technical data:

• Installation: surface-mounted
• Operating temperature: -30°C + 60°C
• Power Consumption: 2,5W
• Supply Voltage: 10-15V DC
• Viewing angle: 110°
• Protection class: IP66
• Weight: 164 g
• Dimensions: 48 x 133 x 15,5 mm
• Wiring structure: Up to 50 m (4x0,5 mm²), Up to 75 m (4x0,75 mm²), Up to 100 m (4x1,0 mm²)

The set also includes an angle bracket for oblique mounting.

The NC05 module allows you to transmit the control signal from the video monitor to the control panel or lighting controller. We connect it to the GND and DATA contacts from the P3 connector of the video monitor. It can be placed anywhere on the bus connecting video monitors. No additional power required.
