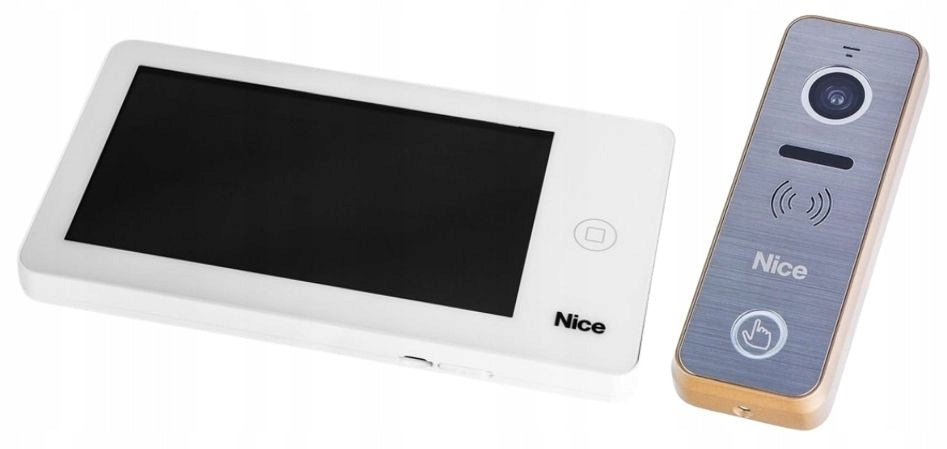

Vaizdo domofonų rinkinys NICE PRO WG

Trumpai apie prekę

Prekė: Vaizdo domofonų rinkinys NICE PRO WG. Kategorija: Rinkiniai.

• Gamintojas: Nice
• Modelis: PRO WG

Set Composition:

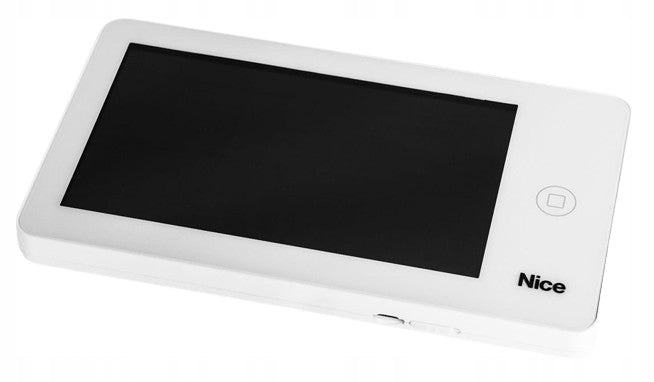

• Monitor Nice PRO W

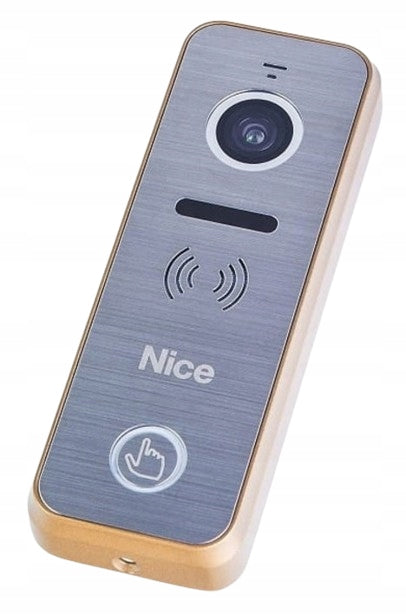

• Talk panel Nice EYE G with angle handle
• NC05 module for controlling automation for gates
• Power supply
• Mounting accessories
• Instruction in Polish

Automatic message in case of absence. The possibility of mounting a micro SD card allows you to use an automatic answering machine for guests during the absence of household members. .

Multimedia: The video monitor has the function of playing photos, video and music. In addition, as a screensaver, you can set a calendar with a clock.

DVR recorder: The system allows you to automatically record images from the selected camera or call panel. Recording can be activated by detecting motion.

Technical specification:

• 7” high resolution LCD touch screen display.
• Hands-free device, perfect for internal communication.
• 7 polyphonic bells with the ability to upload your own bells.
• Electric strike and automatic gate control (optional).
• Possibility to connect two talk panels, two CCTV cameras and three additional monitors.
• Real-time monitoring of input or CCTV cameras.
• Language selection - Polish, English, German, Spanish, Czech, Russian, Arabic.
• Adjustable brightness, contrast, volume, display.
• Functions: "Privacy". Multiplication of the connection – in a system with at least two monitors. Intercom call. Listening to another monitor.
• Built-in micro SD card reader.
• Ability to take photos from the external panel.
• Multimedia player (music, movies, photo frame).
• Voice recorder (recording sound from the room).

• High protection class IP66 ensures reliability in adverse weather conditions.
• Aluminum housing gives the panels a modern and durable look, while providing resistance to mechanical damage.
• The wide viewing angle of the 110˚ camera provides a large field of observation in front of the panel.
• Small size allows for installation in places with limited space, an additional angle panel allows you to point the camera in the desired direction.

Technical data:

• Installation: surface-mounted
• Operating temperature: -30°C + 60°C
• Power Consumption: 2,5W
• Supply Voltage: 10-15V DC
• Viewing angle: 110°
• Protection class: IP66
• Weight: 164 g
• Dimensions: 48 x 133 x 15,5 mm
• Wiring structure: Up to 50 m (4x0,5 mm²), Up to 75 m (4x0,75 mm²), Up to 100 m (4x1,0 mm²)

The set also includes an angle bracket for oblique mounting.

The NC05 module allows the control signal to be transmitted from the video monitor to the control panel or lighting controller. We connect it to the GND and DATA contacts from the P3 connector of the video monitor. It can be placed anywhere on the bus connecting video monitors. No additional power required.
