ANALOG MINITORING RECORDER FOR 4 HYBRID CAMERAS 5in1 XVR BNC AHD 5MP
ANALOG MINITORING RECORDER FOR 4 HYBRID CAMERAS 5in1 XVR BNC AHD 5MP Packaging status original
ANALOG MINITORING RECORDER FOR 4 HYBRID CAMERAS 5in1 XVR BNC AHD 5MP Manufacturer code 77-825#
Paslinkite virš paveikslėlio, kad priartintumėte Spustelėkite paveikslėlį, kad priartintumėte
ANALOG MINITORING RECORDER FOR 4 HYBRID CAMERAS 5in1 XVR BNC AHD 5MPANALOG MINITORING RECORDER FOR 4 HYBRID CAMERAS 5in1 XVR BNC AHD 5MP Packaging status originalANALOG MINITORING RECORDER FOR 4 HYBRID CAMERAS 5in1 XVR BNC AHD 5MP Manufacturer code 77-825#

Vaizdo įrašymo įrenginys 4 hibridinėms kameroms XVR BNC AHD 5MP

Kaina:
€76,30
Sandėlys:
Yra sandėlyje

Aprašymas

Trumpai apie prekę

Prekė: Vaizdo įrašymo įrenginys 4 hibridinėms kameroms XVR BNC AHD 5MP. Kategorija: Garso įrašymo įrenginiai.

  • Gamintojas: Blow
  • Modelis: BL-X04051

✔ Home ✔ To the company ✔ To the store ✔ To the warehouse ✔ Per plot

❗ ✅ Simple operation ❗ ✅ Intuitive mobile application ❗ ✅ Computer program ❗ ✅ ONVIF - Possible integration of other manufacturers!

The XVR series recorder supports up to 5 types of CCTV cameras, i.e. AHD, HD-CVI, HD-TVI, Analog and IP devices. Recorders provide not only high functionality and reliability, but also the comfort of everyday work with the monitoring system - intuitive menu, easy and quick access to recordings and the possibility of remote configuration.

  • Recorder for monitoring
  • 9 IP channels / 4 BNC channels
  • Supported resolutions: 5MP, 3MP, 1080p, 960H, 720p
  • Output connectors: VGA, HDMI
  • FullHD image output
  • Operating System: Linux
  • Supported systems: IP, CVI,TVI,AHD,CVBS
  • P2P cloud: Yes - BitVision
  • Emergency notifications in the mobile application
  • Motion detection with notifications
  • Support for intelligent events!
  • Alarm when motion is detected: Yes
  • Phone app: Yes (BitVision)
  • Software for Windows/iOS
  • Remote preview using an application or computer
  • Play recordings using a smartphone or computer
  • 1 x SATA
  • Disk capacity: Maximum 8TB
  • ONVIF

Analog: 4* (TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H)

Analog + IP: 2* Analog (TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H) + 4* IP (maximum 2MP)

IP only: 9*5MP/4MP/3Mp/1080P/960P/720P (Maximum throughput ≤ 48Mb)

Thanks to the BitVision mobile application or the iVMS-320 computer software, you get the ability to set basic parameters, remote preview and playback of recordings - all you need is an Internet connection. Regardless of the place and time, you can preview any monitored fragment within the range of the recorder. Using a web browser, it is possible to configure advanced settings of the recorder parameters.

The BLOW recorder has a built-in ONVIF protocol. Thanks to this, it can be easily integrated with cameras and devices from other manufacturers, supporting the same standard.

The recorder has 2 available ONVIF profiles:

  • Profile S - responsible for data transmission between network devices. The S profile also includes PTZ control, audio input, streaming, and relay outputs.
  • Profile T - responsible for m.in for operating rotary cameras, receiving and sending alarms and using H.265 compression

Loop recording allows you to continuously film images from cameras, no matter what disk you have mounted. The oldest files will be constantly overwritten, so you will get continuous recording.

The recorder allows you to mount one HDD with a maximum total capacity of 8TB. Thanks to this solution, we will provide space for video recordings from a very long period.

Real screenshots from the device

Video:

  • Camera Connection Mode:

Analog Mode:

Analog: 4* (TVI/AHD: 5MP@12fps; AHD/TVI/CVI: 4MP@15fps; AHD/TVI: 3MP@18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H)

Analog + IP: 2* Analog (TVI/AHD: 5MP@12fps; AHD/TVI/CVI: 4MP@15fps; AHD/TVI: 3MP@18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H) + 4* IP (2MP Maximum)

IP Only: 9*5MP/4MP/3MP/1080P/960P/720P (Maximum Bandwidth ≤ 48Mb)

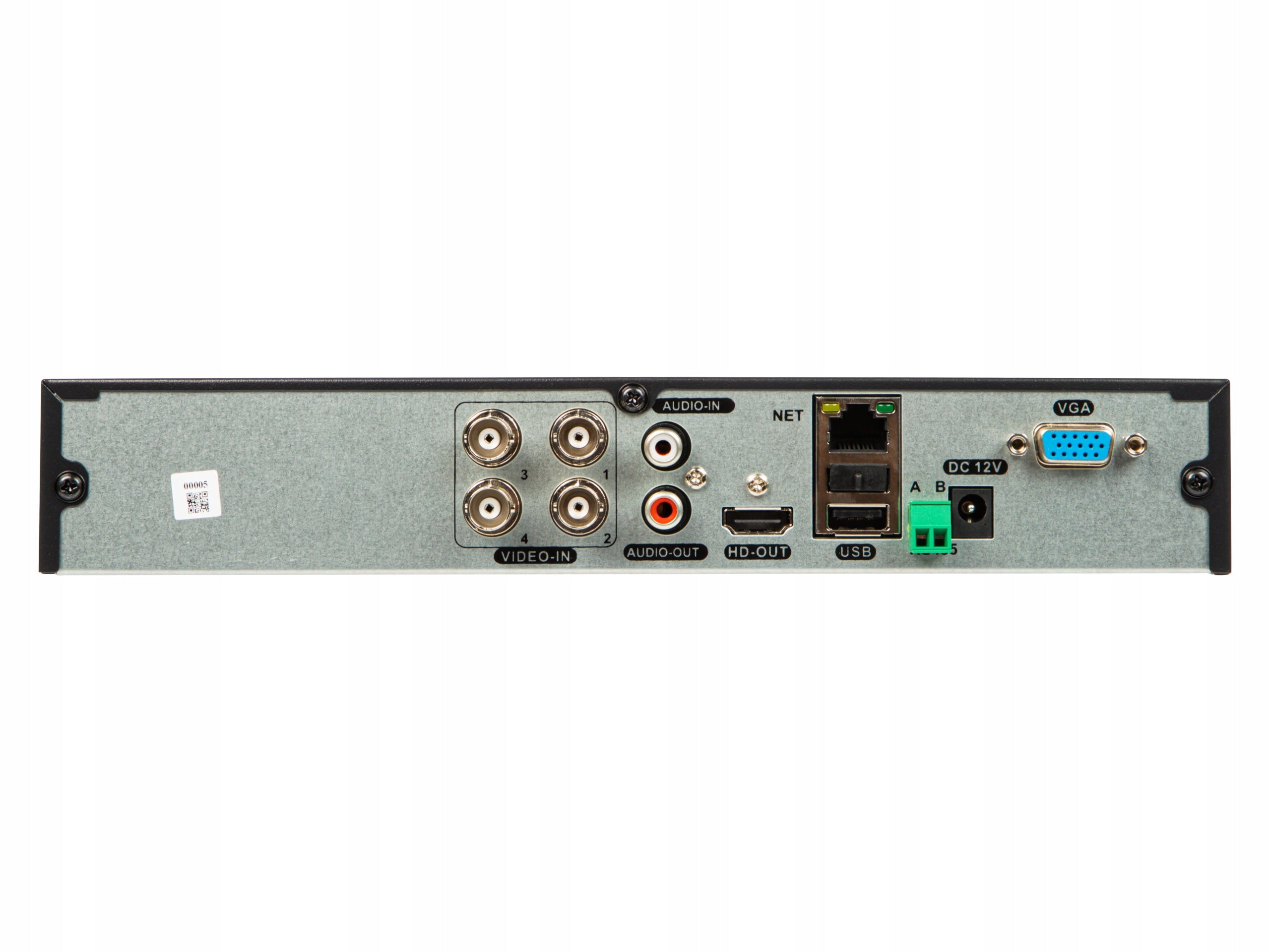

  • Input: 4CH BNC
  • Systems: Analog/AHD/CVI/TVI 2.0/TVI 3.0/IP
  • Outputs: 1 x VGA, 1 x HDMI

Audio:

  • Output: 1 RCA Port (Line Out, 1kΩ)
  • Input: 2 RCA Ports
  • Two-Way Audio: No

Alarm:

  • Sensor Inputs: /
  • Output: /
  • Detection: For 4 Channels | MD Zones: 396 (22x18) / For 9 Channels in IP Mode
  • Events: Recording, Email, FTP, Snapshot, and On-Screen Notifications

PTZ (Pan, Tilt, Zoom):

  • Interface: RS485
  • Protocols: Pelco-D, Pelco-P
  • Baud Rate: 110~921600
  • Addresses: 0~255

Display:

  • HDMI: 1024x768/60Hz, 1280x720/60Hz, 1280x1024/60Hz, 1920x1080/60Hz
  • VGA: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz
  • Screen Split: 16 Channels / 9 Channels / 8 Channels / 4 Channels / 1 Channel
  • Digital Zoom: Yes
  • OSD (On-Screen Display): Camera Name, Time, Video Loss, Alarm, Motion Detection, Recording

Recording:

  • Video Compression: H.265/H.264
  • Resolution: 5MP_Lite(1296×1952), 4MP_Lite(1280×1440), 3MP_Lite(1024×1536), 1080N(960×1080), 720P(1280×720), 960H(P:960×576/N:960×480)
  • Recording Speed:

Analog:

PAL: 5MP_Lite(1296×1944 4*8fps), 4MP_Lite(1280×1440 4*15fps), 3MP_Lite(1024×1536 4*18fps), 1080N(960x1080 4*18fps), 720P(1280×720 4*20fps), 960H(960×480 4*25fps)

NTSC: 5MP_Lite(1296×1944 4*8fps), 4MP_Lite(1280×1440 4*15fps), 3MP_Lite(1024×1536 4*18fps), 1080N(960x1080 4*18fps), 720P(1280×720 4*20fps), 960H(960×480 4*30fps)

IP Only (H.265):

PAL: 5MP@8×25fps, 4MP@12x25fps, 3MP@12×25fps, 1080P@12×25fps, 960P@12×25fps, 720P@12×25fps, D1@12×25fps

NTSC: 5MP@8×30fps, 4MP@12×30fps, 3MP@12×30fps, 1080P@12×30fps, 960P@12×30fps, 720P@12×30fps, D1@12×30fps

  • Recording Mode: Manual / Timed / Motion Detection / Smart Alarm
  • Backup Mode: USB Device / Network / FTP

Network:

  • Interface: 1 x RJ-45 10/100M
  • POE: /
  • Bandwidth: 50MB
  • Network Functions, Supported Protocols: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
  • DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN
  • Web Browser: IE 8 – 11, Chrome (IE-TAB or version lower than ver44), Firefox (IE-TAB or version lower than ver53)
  • CMS Software: Windows 7 / Windows 8 / Windows 10 / MAC OS
  • Onvif: Yes, Profile S and T
  • P2P Cloud: Yes / BitVision
  • Mobile Device: iPhone, iPad, Android, Android Pad

Hard Drive:

  • Interface: 1 x SATA (2.5" / 3.5")
  • Capacity: Up to 8TB Total

General information:

  • USB Interface: 3 x USB 2.0,
  • Power Supply: DC 12V, 2000mA
  • Working environment: -10℃~45℃
  • Dimensions: 260 x 215 x 43 mm
  • Weight: 2 kg (without hard drive)

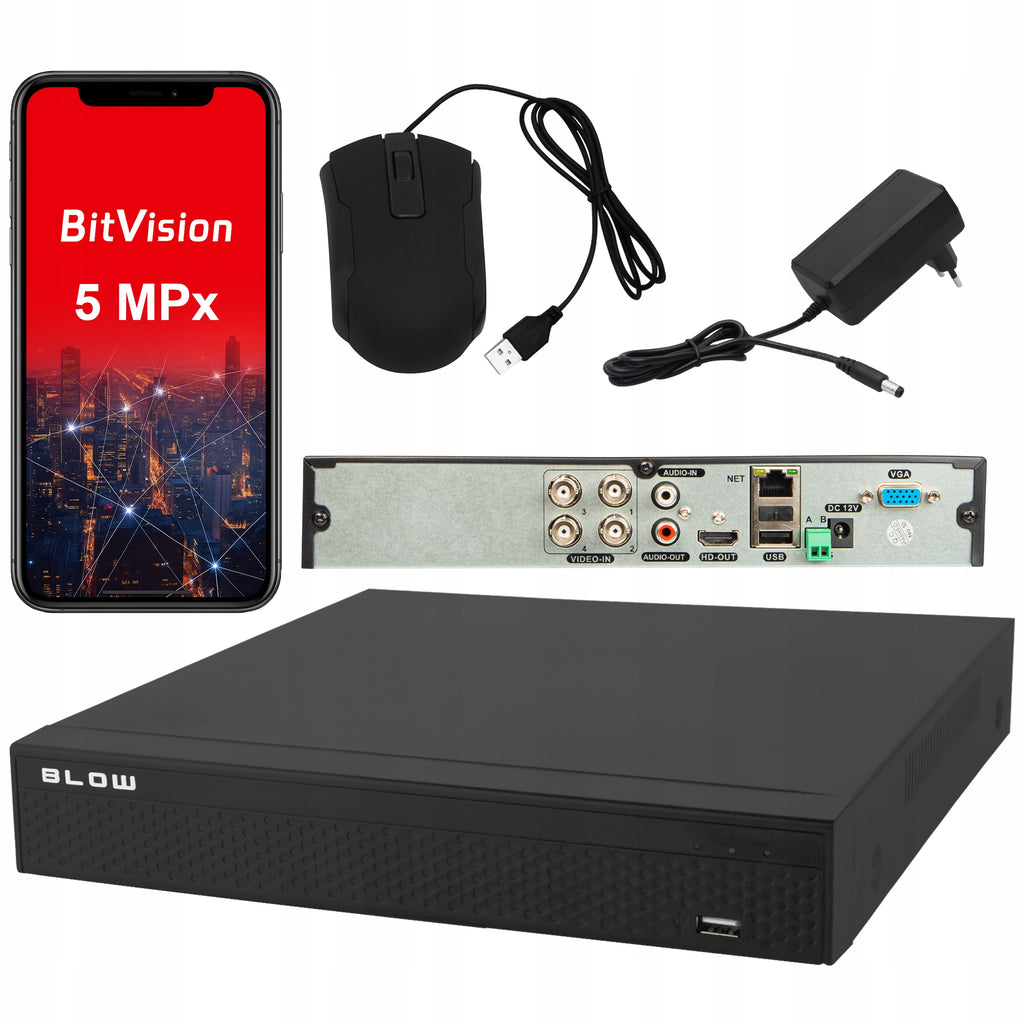

  • Package Contents: Recorder, Power Supply, Manual, Mouse

CE and RoHS certified

BLOW products are CE and RoHS certified. These certificates confirm compliance with fully stringent European Union standards regarding, among others, health safety and environmental protection.

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer code 77-825#
Parametry Brand Blow
Parametry Model BL-X04051
Parametry Product weight with unit packaging 2.2 kg
Parametry Product width 26 cm
Parametry Product height 4.3 cm
Parametry Product depth 21.5 cm
Parametry Product weight 2 kg
Parametry Number of supported cameras 4
Parametry Maximum recording resolution 5 Mpx
Parametry Installed disk capacity 0 TB
Parametry Maximum number of supported drives 1
Parametry Maximum capacity of drives 8 TB
Parametry Video compression H.265
Parametry Number of USB ports 3
Parametry Network interface RJ-45 10/100
Parametry EAN (GTIN) 5900804120452
Parametry Packaging status original
Parametry Batteries included no
Parametry Technology AHD,IP
Parametry Video outputs BNC,HDMI,VGA
Parametry Functions phone app,motion detection,alarm inputs/outputs,advanced search,digital zoom
Parametry Certificates of conformity CE,WEEE
