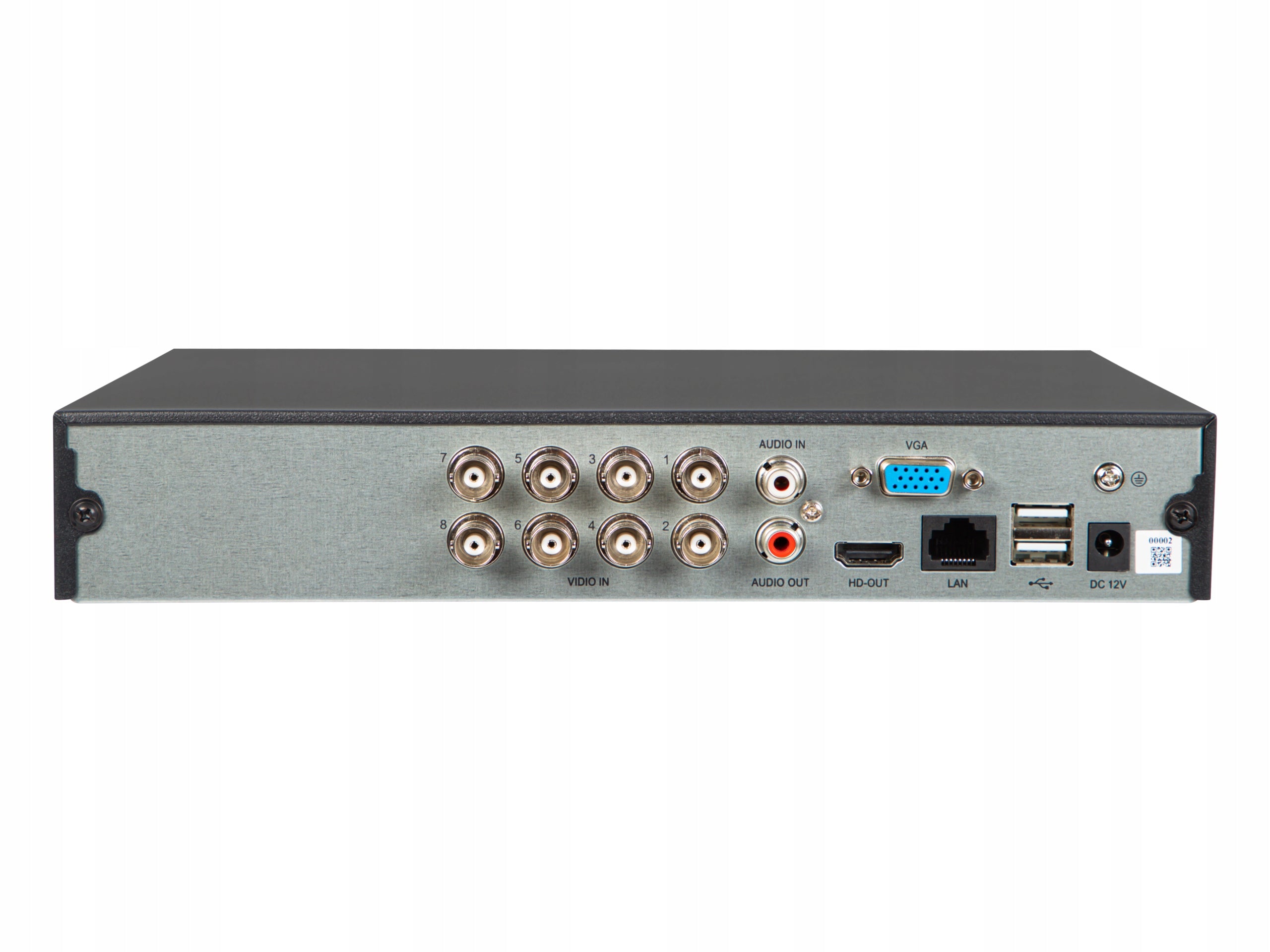

ANALOG MONITORING RECORDER FOR 8 HYBRID CAMERAS 5in1 XVR BNC AHD 5MP
ANALOG MONITORING RECORDER FOR 8 HYBRID CAMERAS 5in1 XVR BNC AHD 5MP Packaging status original
ANALOG MONITORING RECORDER FOR 8 HYBRID CAMERAS 5in1 XVR BNC AHD 5MP Manufacturer code 77-824#
Paslinkite virš paveikslėlio, kad priartintumėte Spustelėkite paveikslėlį, kad priartintumėte
ANALOG MONITORING RECORDER FOR 8 HYBRID CAMERAS 5in1 XVR BNC AHD 5MPANALOG MONITORING RECORDER FOR 8 HYBRID CAMERAS 5in1 XVR BNC AHD 5MP Packaging status originalANALOG MONITORING RECORDER FOR 8 HYBRID CAMERAS 5in1 XVR BNC AHD 5MP Manufacturer code 77-824#

Vaizdo įrašymo įrenginys 8 hibridinėms kameroms XVR BNC AHD 5MP

Kaina:
€84,20
Sandėlys:
Yra sandėlyje

Aprašymas

Trumpai apie prekę

Prekė: Vaizdo įrašymo įrenginys 8 hibridinėms kameroms XVR BNC AHD 5MP. Kategorija: Garso įrašymo įrenginiai.

  • Gamintojas: Blow
  • Modelis: BL-X08051

✔ Home ✔ To the company ✔ To the store ✔ To the warehouse ✔ Per plot

❗ ✅ Simple operation ❗ ✅ Intuitive mobile application ❗ ✅ Computer program ❗ ✅ ONVIF - Possible integration of other manufacturers!

The XVR series recorder supports up to 5 types of CCTV cameras, i.e. AHD, HD-CVI, HD-TVI, Analog and IP devices. Recorders provide not only high functionality and reliability, but also the comfort of everyday work with the monitoring system - intuitive menu, easy and quick access to recordings and the possibility of remote configuration.

  • Recorder for monitoring
  • 16 IP channels / 8 BNC channels
  • Supported resolutions: 5MP, 3MP, 1080p, 960H, 720p
  • Output connectors: VGA, HDMI
  • FullHD image output
  • Operating System: Linux
  • Supported systems: IP, CVI,TVI,AHD,CVBS
  • P2P cloud: Yes - BitVision
  • Emergency notifications in the mobile application
  • Motion detection with notifications
  • Support for intelligent events!
  • Alarm when motion is detected: Yes
  • Phone app: Yes (BitVision)
  • Software for Windows/iOS
  • Remote preview using an application or computer
  • Play recordings using a smartphone or computer
  • 1 x SATA
  • Disk capacity: Maximum 8TB
  • ONVIF

Thanks to the BitVision mobile application or the iVMS-320 computer software, you get the ability to set basic parameters, remote preview and playback of recordings - all you need is an Internet connection. Regardless of the place and time, you can preview any monitored fragment within the range of the recorder. Using a web browser, it is possible to configure advanced settings of the recorder parameters.

The BLOW recorder has a built-in ONVIF protocol. Thanks to this, it can be easily integrated with cameras and devices from other manufacturers, supporting the same standard.

The recorder has 2 available ONVIF profiles:

  • Profile S - responsible for data transmission between network devices. The S profile also includes PTZ control, audio input, streaming, and relay outputs.
  • Profile T - responsible for m.in for operating rotary cameras, receiving and sending alarms and using H.265 compression

The recorder allows you to add both IP and analog cameras. This is ideal when the old DVR is eligible for replacement and we want to improve or expand the number of cameras. Available channel modes:

Analog: 8* (TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H)

Analog + IP: 2*Analog (5MP) + 7*IP (5MP), 4*Analog + 5*IP, 6*Analog + 3*IP

IP only: 16*5MP/4MP/3Mp/1080P/960P/720P (Maximum bandwidth ≤ 50Mb)

Loop recording allows you to continuously film images from cameras, no matter what disk you have mounted. The oldest files will be constantly overwritten, so you will get continuous recording.

The recorder allows you to mount one HDD with a maximum total capacity of 8TB. Thanks to this solution, we will provide space for video recordings from a very long period.

Real screenshots from the device

Recorder

  • Processor: ARM Cortex A7
  • System: Linux
  • Input: 9 channels (3840*2160, 2592*1944, 2048*1536) etc.
  • Output: 1 VGA, 1 HDMI

Audio

  • Input: 1 RCA port, support 9 channels
  • Output: 1 RCA Port (Linear)
  • Throughput: 64 kbps
  • Compression standard: G711u, G711a, ADPCM_DVI4
  • Intercom: Support

Alarm

  • Sensor: /
  • Output: 1 channel
  • Motion Detection 9 Channels, MD: 396 (22*18)
  • Events: Recording, Email, FTP, Snapshot, Buzzer and Alarm Notification, Alarm Output


  • HDMI: 4K (3840*2160), 1920*1080, 1280*1024, 1280*720, 1024*768
  • VGA: 1920*1080/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
  • Screen split: 9CH/8CH/6CH/4CH/1CH
  • Digital ZOOM: Yes
  • OSD (ON Screen Display): Camera name, time, recording status, motion detection, event alarm

Recording

  • Compression: H.265/H.264/H.265+/H.264+
  • Resolution: 4K (3840×2160), 5MP (2592×1944), 4MP (2688×1520/2560×1440), 3MP (2048×1536),
  • 1080P (1920×1080), 960P (1280×960), 720P (1280×720)
  • PAL recording: 4K@8×25fps, 5MP@9×25fps, 4MP@9×25fps,3MP@9×25fps, 1080P@9×25fps,
  • 960P@9×25fps, 720P@9×25fps, D1@9×25fps
  • NTSC: 4K@8×30fps, 5MP@9×30fps, 4MP@9×30fps,3MP@9×30fps, 1080P@9×30fps,
  • 960P@9×30fps, 720P@9×30fps, D1@9×30fps
  • Recording Mode: Manual \ Schedule \ Motion Detection \ Smart Events

Playback and recording

  • Local playback: 1CH 4K@30fps, 1CH 5MP@30fps, 2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 6CH960P@30fps, 8CH 720P@30fps, 9CH D1@30fps
  • Decoding: 4CH 1080P @30fpfs
  • Remote Playback: Yes
  • Search Time, Motion Detection, Alarms, Tag Search, Smart Events, Event Log
  • Playback Features: Play, Pause, Fast Scrolling, Previous Frame, Next Frame, Digital Zoom, Clip, Sound
  • Backup USB device / Network

Disk (Not included)

  • Installed disk: /
  • Interface: 1 ×SATA (3,5”)
  • Capacity: Up to 8TB
  • eSATA: /

Network

  • Interface: 1×RJ45 10M/100M
  • Bandwidth: 80 Mb
  • Network protocols: TCP/IP, http, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, DTP, DDNS, P2P, PPPOE ONVIF ONVIF S, ONVIF T
  • Browser: Edge, IE8-11, Google Chrome, Firefox, Safari
  • CMS: Yes, iVMS320
  • Cloud Support: Yes
  • Smartphone: Yes, BitVision
  • PoE: No
  • WiFi UI: /

General information

  • Language: Polish, English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean
  • USB: 2×USB 2.0
  • RS485: /
  • Power Supply: DC12V/1500mA
  • Operating temperature:-10°C ~ 50°C
  • Dimensions (W×D×H): 260*230*43 (mm)
  • Weight: 2 kg (without disk)

CE and RoHS certified

BLOW products are CE and RoHS certified. These certificates confirm compliance with fully stringent European Union standards regarding, among others, health safety and environmental protection.

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer code 77-824#
Parametry Brand Blow
Parametry Model BL-X08051
Parametry Product weight with unit packaging 0.15 kg
Parametry Product width 26 cm
Parametry Product height 4.3 cm
Parametry Product depth 21.5 cm
Parametry Product weight 2 kg
Parametry Number of supported cameras 8
Parametry Maximum recording resolution 5 Mpx
Parametry Installed disk capacity 0 TB
Parametry Maximum number of supported drives 1
Parametry Maximum capacity of drives 8 TB
Parametry Technology IP
Parametry Video compression H.265+
Parametry Number of USB ports 3
Parametry Network interface RJ-45 10/100
Parametry EAN (GTIN) 5900804120445
Parametry Packaging status original
Parametry Video outputs BNC,HDMI,VGA
Parametry Functions phone app,motion detection,alarm inputs/outputs,advanced search,digital zoom
Parametry Certificates of conformity CE,WEEE
