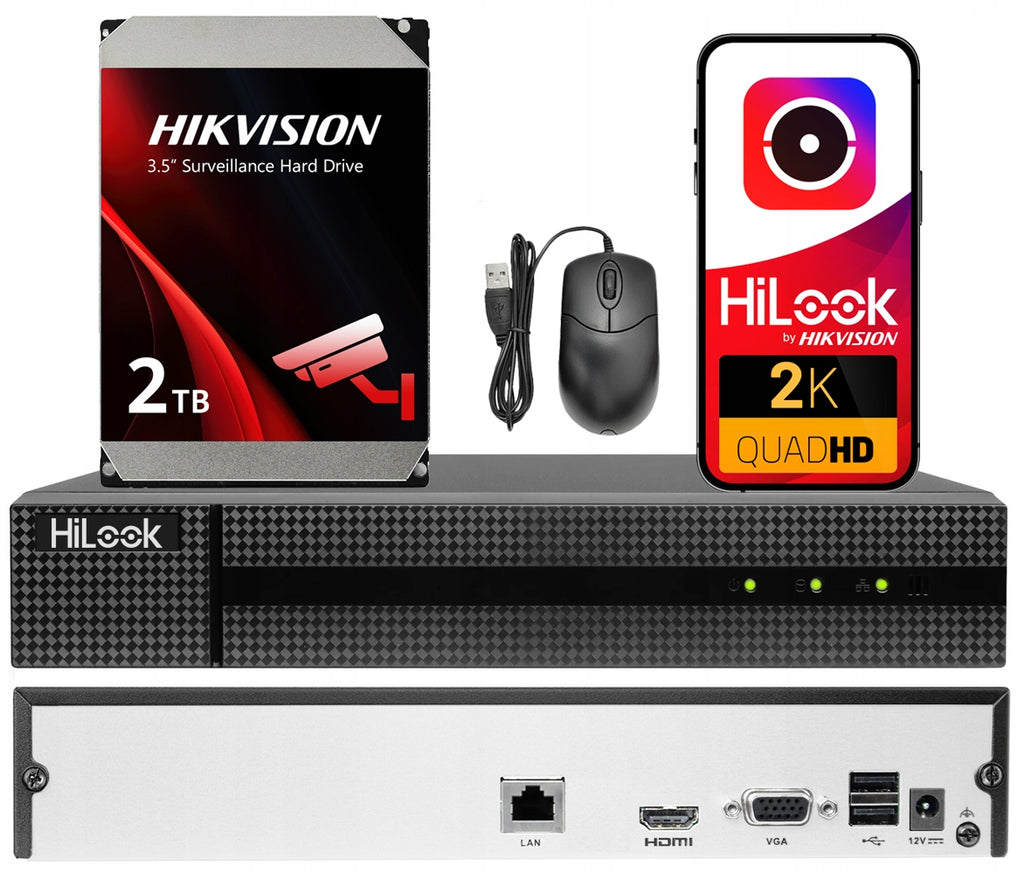

Vaizdo įrašymo įrenginys 8 HiLook IP kameroms, iki 6 Mpx, NVR-108MH-D, 2TB kietasis diskas

Trumpai apie prekę

Prekė: Vaizdo įrašymo įrenginys 8 HiLook IP kameroms, iki 6 Mpx, NVR-108MH-D, 2TB kietasis diskas. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: Hikvision
• Modelis: NVR-108MH-D-2TB-HDD

Up to 6Mpx | 8 IP Channels | 1 HDD Slot | H.265/H.264 Compression | HikConnect/HiLook App

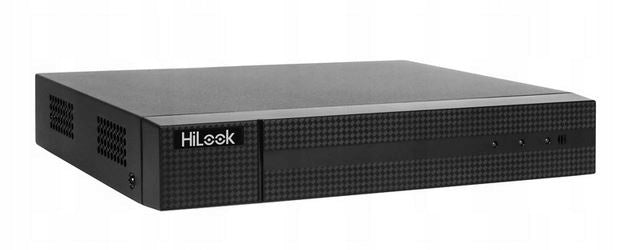

The NVR-108MH-D model is an 8-channel IP recorder from the HiLook series, dedicated to work in IP CCTV installations.

Hikvision products from the HiLook line are innovative solutions in the field of CCTV monitoring, offering advanced functionality and reliability at an affordable price.

• Number of channels: 8
• Recording resolution: to 6Mpx
• Bitrate in/out: 60/60 Mbps
• Video outputs: 1x HDMI, 1x VGA
• USB ports: 2x USB 2.0
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Ethernet interface: 1x RJ45 10 / 100 Mbps
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Preview/remote support: HIK-Connect/HiLook App, iVMS-4200 (lite)
• Storage for HDDs: 1 (up to 6TB)
• Power Supply: 12 VDC
• Power consumption: 18 W (without 10W disk)
• Dimensions: 265 x 225 x 48mm
• Weight: ≤ 1 kg

The disk in the set is a model from the series Hikvision Surveillance, dedicated to monitoring, characterized by a higher service life.

• Capacity: 2TB
• Cache: 64 MB
• Interface: Smart SATA 6 Gb/s
• Size: 3,5”
• Fig. /min: 5700 rpm /min

HiLook/ Hikvision monitoring systems can be controlled, configured and operated using the intuitive HikConnect/HiLook App for smartphones and tablets and the iVMS-4200 software for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The recorder supports motion detection from network cameras. This function allows you to send immediate notifications to the user (in the application or program) about detecting changes in the camera image, and also allows you to search the recordings for detected movement in the area protected by monitoring.

The HiLook IP recorder is equipped with an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

Video/Audio

• IP video input: 8
• Video compression: H.265+/ H.265/ H.264+/ H.264/ MPEG4
• Recording resolution: 6MP / 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Bitrate in/out: 60/60 Mbps
• Types of streams: AudioAudio&Video

Display

• Decoding: 4CH @1080p(30fps) / 2ch @4Mp(30fps) / 1ch @6Mp (30fps)
• VGA output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Synchronous playback: 4 channels
• VCA analysis: supported - line crossing / intrusion

Network

• Network interface: 1x RJ45 10M/100M self-adaptive Ethernet
• Supported camera protocols: TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Remote view: Hik-Connect app, HiLookVision
• Remote configuration: iVMS-4200, iVMS-4200 lite, Browser WEB

General

• Number of disks supported: 1x HDD Sata
• Max Disk capacity: up to 6TB
• USB ports: 2x USB 2.0
• Power Supply: 12 VDC
• Power consumption (without HDD): ≤10W without PoE
• Temp. work: -10 °C to 55 °C
• Admissible humidity: 10% is 90%
• Dimensions: 265 × 225 × 48 mm
• Weight: ≤ 1kg
