Vaizdo įrašymo įrenginys Hikvision AcuSense DS-7608NXI-K1(D), 8 kanalai, iki 12MPx

Trumpai apie prekę

Prekė: Vaizdo įrašymo įrenginys Hikvision AcuSense DS-7608NXI-K1(D), 8 kanalai, iki 12MPx. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: Hikvision
• Modelis: DS-7608NXI-K1(D)/PL

The Hikvision DS-7608NXI-K1(D) recorder is a professional digital device designed for extensive video surveillance systems. The device works within the framework of modern IP technology, and its main task is to effectively record video and sound from up to eight IP cameras at a maximum resolution of 4000×3000 (12Mpx).

The recorder comes from the latest series of AcuSense EasyIP 4.0 recorders, where a special algorithm was used that allows filtering alarms on all channels.

• Compression: H.265+/H.265/H.264/MJPEG
• Bitrate: max. 80 Mbps
• Recording/playback: up to 12 Mpx
• Video inputs: HDMI/VGA
• Audio: CINCH
• List of supported functions: face recognition, motion detection 2.0,
• PTZ camera control - Intelligent 3D positioning with PTZ camera
• Privacy masks: capture recordings only from designated areas
• Digital image magnification: zoom in for a more detailed image
• 2 USB 2.0 ports: 1 port on the front panel + 1 port on the back
• Supported hard drives: 1x10TB SATA;
• Working in the P2P cloud: allows you to instantly establish a direct connection to your computer or mobile device (iOS or Android)
• Remote preview: HikConnect and iVMS-4200, Web browser
• Passive cooling: no additional fans are needed
• Compatible with ONVIF
• Dimensions: 320 x 243 x 48 mm

• MOTION DETECTION 2.0*
• Human/Vehicle Analysis
• Yes, motion detection based on human and vehicle classification on 8 channels
• *Facial recognition and Motion Detection 2.0 cannot be enabled simultaneously.

• VIDEO
• IP Camera Support: 8x

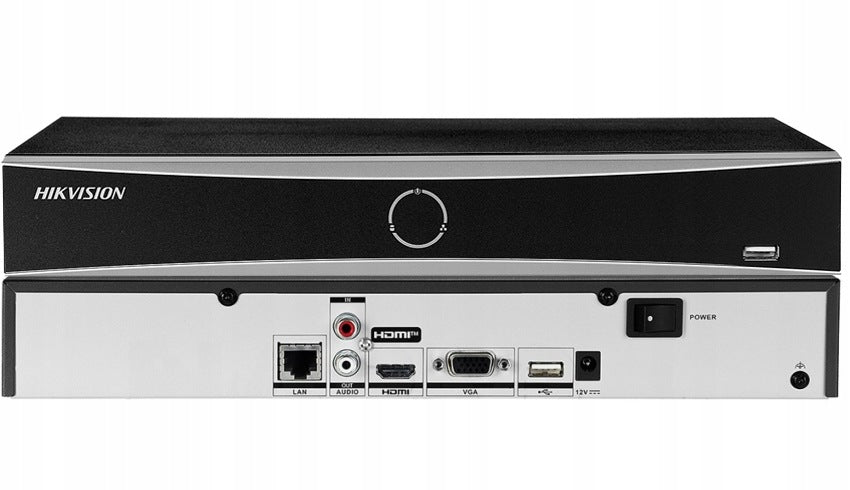

• Output: 1x HDMI, 1x VGA - simultaneous operation on two independent monitors
• Screen Resolution
• VGA: 1920×1080 / 60 Hz, 1280×1024 / 60 Hz, 1280×720 / 60 Hz
• HDMI: 4K (3840×2160) / 30 Hz, 2K (2560×1440) / 60 Hz, 1920×1080 / 60 Hz, 1600×1200 / 60 Hz, 1280×1024 / 60 Hz, 1280×720 / 60 Hz, 1024×768 / 60 Hz

• AUDIO
• Compression: G.711ulaw / G.711alaw / G.722 / G.726 / AAC
• Two-Way Audio: Yes
• Input: 1x RCA (2.0 Vp-p, 1 kΩ), 16x from IP cameras
• Output: 1x RCA (line level, 1 kΩ)

• RECORDING
• Compression: H.265+ / H.265 / H.264+ / H.264
• Recording Resolution: 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Decoding Performance
• AI Enabled: 1-ch @ 12MP (30 fps) / 1-ch @ 8MP (30 fps) / 3-ch @ 4MP (30 fps) / 6-ch @ 1080p (30 fps)
• AI Disabled: 1-ch @ 12MP (30 fps) / 2-ch @ 8MP (30 fps) / 4-ch @ 4MP (30 fps) / 8-ch @ 1080p (30 fps)
• Maximum Incoming Bandwidth: 80 Mbps
• Maximum Outgoing Bandwidth: 80 Mbps
• Simultaneous Playback: 8-ch
• Dual Stream Recording: Yes
• Stream Type: Video, Video & Audio
• Recording Modes: Manual, Continuous, Alarm, Motion, Motion or Alarm, Motion and Alarm, Schedule

• DETECTION AND ALARM
• Event Monitoring: Video loss alarm, motion detection, VCA, video tampering, HDD full, HDD error, network disconnect, IP conflict, illegal login, abnormal recording
• Alarm Trigger Actions: Audible warning, full screen, send email, notify monitoring center
• Privacy Zones: 4 definable zones per channel

• ARCHIVING AND PLAYBACK
• Search Mode: By date, channel, recording type, event (motion detection), time, camera number
• Archiving: USB / internal or external HDD / network download / NAS (NFS), SAN (iSCSI) / ANR function
• Recording Mode: Manual, continuous, motion detection, stop
• HDD: 1x SATA (max. 10 TB)
• Disk Diagnostics: Yes, S.M.A.R.T.

• NETWORK
• Ethernet: 1x RJ45 10/100/1000 Mbps
• Supported Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPTM, HTTP, HTTPS
• Max. Number of Remote Connections: 128
• Remote Viewing
• Browsers: Internet Explorer, Google Chrome, Firefox, Safari
• Mobile Devices: iOS, Android
• Remote Management: iVMS-4200, Hik-Central

• ADDITIONAL PORTS
• USB
• Front Panel: 1x (2.0)
• Rear Panel: 1x (2.0)

• OTHER
• Power Supply: DC 12 V / 1.5 A
• Power Consumption: ≤10 W (without HDD)
• Humidity: 10 ~ 90%
• Operating Temperature: -10°C ~ +55°C
• Weight: ≤1 kg (without HDD)
• Dimensions (W/D/H): 320×240×48 mm - 1U

Specifications
