Aprašymas
Trumpai apie prekę
Prekė: Vaizdo įrašymo įrenginys Hikvision DS-7604NI-Q1/4, 4 PoE kanalai, iki 8MP, 4K, valdymas programėle. Kategorija: Garso įrašymo įrenginiai.
- Gamintojas: Hikvision
- Modelis: DS-7604NI-Q1/4P(E)
4-channel / 4x PoE / up to 8Mpx / 1 HDD slot / Hikconnect app / Motion detection 2.0

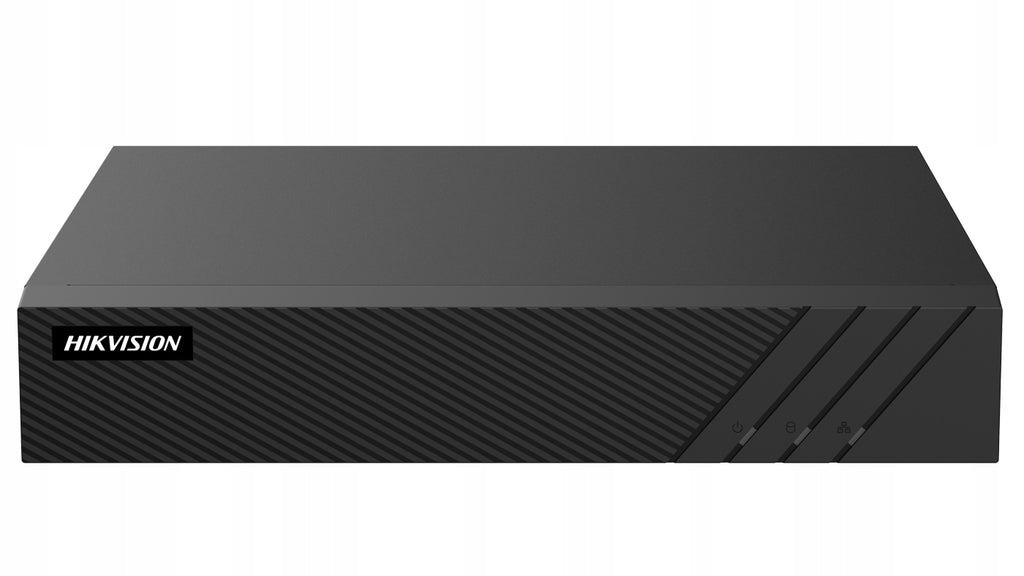

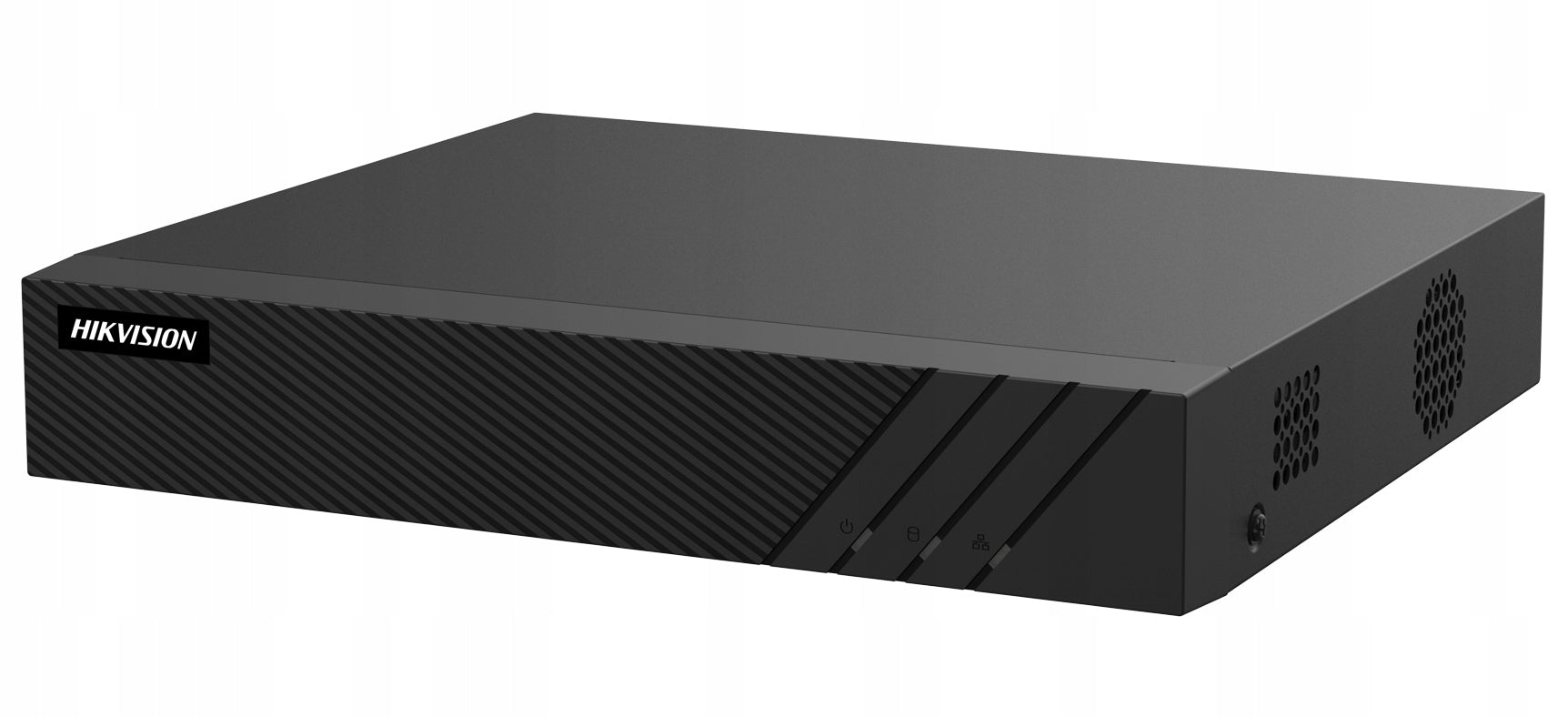

PoE Recorder from High Definition Cameras
The DS-7604NI-Q1/4P network recorder is a 4-channel IP model by Hikvision, designed to support IP CCTV systems, equipped with an integrated 4-port PoE switch. The device has the ability to record images from max. 4 high definition IP cameras - up to 4K @3840 × 2160p.
Most important features:
- Support up to 4 IP cameras - up to 8Mpx resolution
- Built-in PoE switch to power the cameras directly from the recorder
- Support mobile application via P2P cloud
- Motion detection function 2.0 for 1 channel
- Support hard drives up to 8TB
Technical parameters:
- Number of channels: 4 IP channels with PoE power supply
- Resolution supported: up to 8Mpx (4K 3840×2160)
-
Decoding:
AI&4K Off: 8-ch@1080p(30fps)
AI/4K On: 6-ch@1080p(30fps)
- Motion detection: Yes, supported
- Intelligent image analysis (motion detection 2.0): on 1 channels, human/vehicle motion filtering
- Video outputs: 1xHDMI, 1xVGA
- Video compression: H265+,H265,H264+,H.264
- USB connectors: 2x USB 2.0
- Max. number of disks: 1
- Max. Disk capacity: 8TB
- Mobile app: HikConnect or HiLook App
- PoE power budget: < 50W
- Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
- Ethernet speed: RJ45 10M/100M
- Power Supply: 48VDC
- Dimensions: 263× 223 × 48 mm

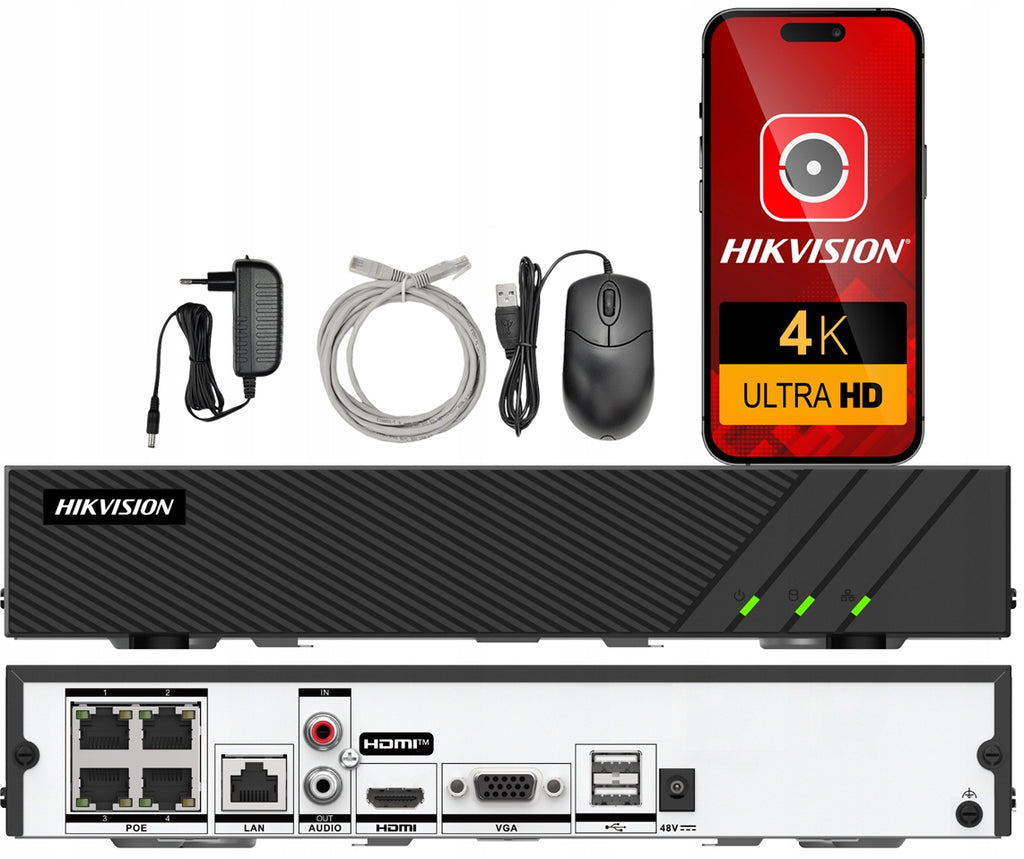

Includes power supply and mouse.
Hikvisio monitoring systems can be controlled, configured and operated using the intuitive HikConnect mobile application for smartphones and tablets and the iVMS-4200 software for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:
- live image preview
- remote playback of recordings
- creating motion detection scenarios and rules
- control of rotary cameras
- receiving notifications about events within the system
The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.
The recorder supports motion detection from network cameras. This function allows you to send immediate notifications to the user (in the application or program) about detecting changes in the camera image, and also allows you to search the recordings for detected movement in the area protected by monitoring.
The advantage of the recorder is the proprietary technology Hikvision Motion Detection 2.0, allowing to filter false motion detection alarms and classify objects on video recordings (human/vehicle).
Detection mode 2.0 is available 1 channel of the recorder.
- IP video input: 4-channels
- Resolution: to 8MPx
- Bitrate in/out: 40 / 80 Mbps
- HDMI Output: 1ch, 4K (4096 x 2160)/30Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- VGA output: 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1280×720 /60Hz
- Recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Video compression: H.265/H.265+/H.264/H.264+/MPEG4
- Live view/playback resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Simultaneous playback: 4-channels
-
Image decoding:
AI&4K Off: 8-ch@1080p(30fps)
AI/4K On: 6-ch@1080p(30fps)
- Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Motion detection: supported
- Intelligent image analysis: filtering human/vehicle alarms on 1 channel
- SATA interface: 1
- Capacity: up to 8 TB
- Network interface: RJ-45 10/100Mbps Ethernet
- Number of PoE ports: 4
- Power budget: < 50W
- USB connectors: 2 × USB 2.0
- Power Supply: 48 VDC
- Working temperature: -10 ºC to +55 ºC
- Dimensions: 263× 223 × 48 mm
- Weight: ~1 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | DS-7604NI-Q1/4P(E) |
| Parametry | Brand | Hikvision |
| Parametry | Model | DS-7604NI-Q1/4P(E) |
| Parametry | Product weight with unit packaging | 1.3 kg |
| Parametry | Product width | 31.5 cm |
| Parametry | Product height | 4.8 cm |
| Parametry | Product depth | 24 cm |
| Parametry | Product weight | 1 kg |
| Parametry | Number of supported cameras | 4 |
| Parametry | Maximum recording resolution | 8 Mpx |
| Parametry | Installed disk capacity | 0 TB |
| Parametry | Maximum number of supported drives | 1 |
| Parametry | Maximum capacity of drives | 8 TB |
| Parametry | Technology | IP |
| Parametry | Video compression | H.265+ |
| Parametry | Number of USB ports | 2 |
| Parametry | Network interface | RJ-45 10/100 |
| Parametry | EAN (GTIN) | 6936422184438 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
| Parametry | Video outputs | HDMI,VGA |
| Parametry | Other ports | Audio IN/OUT,SATA III do dysku,Switch 4x PoE |
| Parametry | Functions | phone app,motion detection,advanced search,PoE power supply,digital zoom |
