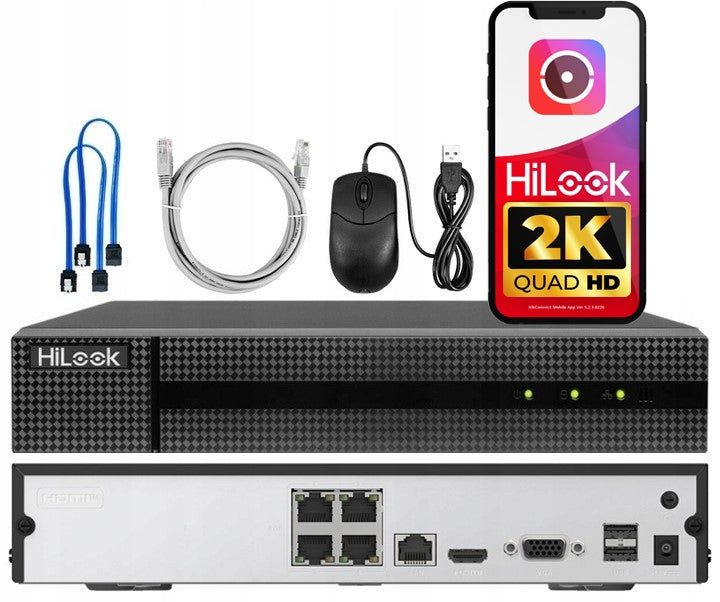

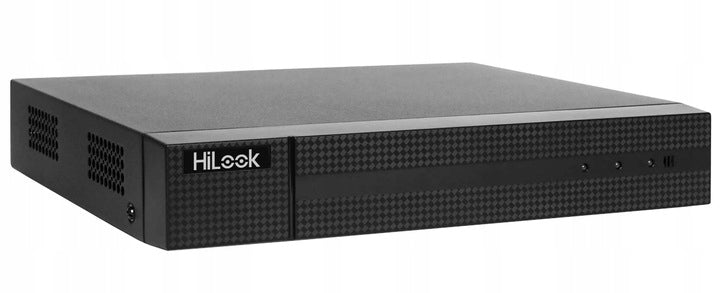

Vaizdo įrašymo įrenginys HiLook NVR-4CH-4MP/4P, 4 PoE IP kameroms, 4 Mpx

Trumpai apie prekę

Prekė: Vaizdo įrašymo įrenginys HiLook NVR-4CH-4MP/4P, 4 PoE IP kameroms, 4 Mpx. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: no brand
• Modelis: NVR-4CH-4MP/4P

4-channel / Switch 4x PoE / up to 4Mpx / 1 HDD slot / in-app support

The most important features of the recorder:

• support for up to 4 IP cameras, with a resolution of max. up to 4Mpx
• configuration and operation of the device is intuitive - through graphic menu, PC program and mobile application
• has the ability to install 1 HDD drive to a capacity of up to 6TB
• enables connection and power supply via PoE 4 cameras
• is equipped with H.265 data compression technology, saving disk space

Technical parameters:

• Model: NVR-4CH-4MP/4P
• Number of channels: 4 IP channels with PoE power supply
• Resolution supported: up to 4Mpx 2560x1440p
• Decoding: 1-ch @ 4 MP / 2-ch @ 1080p
• Motion detection: Yes, supported
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 6TB
• Mobile app: HiLook App
• Remote operation: IVMS-4200, WEB Interface, application
• Switch PoE: Built-in
• PoE power budget: < 50W
• Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
• Ethernet speed: RJ45 10M/100M
• Power Supply: 48VDC

Includes power supply and mouse.

HiLook monitoring systems can be controlled, configured and operated using the intuitive HiLook App mobile application for smartphones and tablets and the iVMS-4200 program for PC computers. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The recorder supports motion detection from network cameras. This function allows you to send immediate notifications to the user (in the application or program) about detecting changes in the camera image, and also allows you to search the recordings for detected movement in the area protected by monitoring.

The presented HiLook PoE recorder supports an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

Video/Audio

• IP video input: 4
• Video compression: H.265+/ H.265/ H.264+/ H.264/ MPEG4
• Recording resolution: 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Bitrate in/out: 40/60 Mbps
• Types of streams: AudioAudio&Video

Display

• Display resolution: 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• VGA output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Synchronous playback: 4 channels
• VCA analysis: supported

Network

• Network interface: 1x RJ45 10M/100M self-adaptive Ethernet
• Supported camera protocols: TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Remote view: Hik-Connect app, HiLookVision
• Remote configuration: iVMS-4200, iVMS-4200 lite, Browser WEB

Intelligent image analysis

• Line Crossing: On 4 channels
• Intrusion into the area: On 4 channels
• Smart search and playback: Yes

PoE

• Number of PoE ports: x4
• Power budget: 50W
• PoE standard: IEEE 802.3 af/at

General

• Number of disks supported: 1x HDD Sata
• Max. Disk capacity: up to 6TB
• USB ports: 2x USB 2.0
• Power Supply: 48 VDC
• Power consumption (without HDD): ≤10W without PoE
• Temp. work: -10 °C to 55 °C
• Admissible humidity: 10% is 90%
• Dimensions: 265 × 225 × 48 mm
• Weight: ≤ 1kg

⚠ CHOOSE CONSCIOUSLY⚠

Monitoring systems are an investment in security – not only property, but also data. Therefore, we encourage you to consciously choose equipment from reputable manufacturers such as Hikvision. Unlike cheap, unverified OEM devices, Hikvision products provide:

✅ Regular device firmware updates to ensure compliance with the latest cybersecurity standards

✅ Stability and reliability of operation HikConnect - mobile application no.1 in the CCTV monitoring systems industry

✅ Advanced data encryption (AES-256, HTTPS, TLS 1.2/1.3) – guarantee of confidentiality of transmission

✅ Meeting strict ISO standards, including ISO 27701 (Personal Information Security Management) and CSA-Star (Cloud Data Security Guarantee)

By choosing Hikvision, you can be sure that your monitoring system meets the highest standards of quality, data protection, and reliability.
