Vaizdo registratorius su trimis kameromis, veidrodiniu ekranu, GPS navigacija, Android ir Carplay

Trumpai apie prekę

Prekė: Vaizdo registratorius su trimis kameromis, veidrodiniu ekranu, GPS navigacija, Android ir Carplay. Kategorija: Vaizdo registratoriai.

• Gamintojas: Home Automation
• Modelis: HA421

✅ GPS antenna

✅ Three cameras,

✅ Wireless smartphone screen

via Android Auto/Car Play,

(allows you to run Android Auto/Car Play compatible apps from your phone on the DVR screen)

Independent GPS Antenna

It provides a record of all driving parameters on the recorded video. It gives the date and time from the GPS system and the speed and coordinates of the vehicle even when the smartphone is not paired or loses Internet coverage.

Three cameras

• Front 1440P
• Additional (Side/Indoor/External) 1080P
• Rear (reverse)1080P

It is possible to set the recording resolution manually:

Option 1: Front (1440P), Rear (1080P), Side (1080P)

Option 2: All three cameras in 1080P resolution

Android Auto / Car Play

The technology supports:

• Apps compatible with this technology (Google Maps, Yanosik and other navigation apps, Spotify, YouTube Music, Tidal, Messenger, WhatsApp, Skype, radio apps, Audible)
• Phone calls and text messages (e.g. voice reading and dictation of messages);
• Google Assistant, which can be used to operate applications by voice, which increases the user experience.

.

Menu in Polish

Instruction in Polish

HA321 at a glance:

DVR, Rear-view mirror (camera cable 6m or 10m extra charge),video recorder, reverse camera, dead zone camera, front camera,touch screen 11,26 incha, camera,automatic start, audio recording, 3-axis overload sensor - G-Sensor,WiFi wireless communication, Bluetooth, loop recording,built-in microphone and speaker, TF/SD memory card reader 128GB max. , mini USB connector, excellent night vision, front camera viewing angle 170° (2K QHD), rear 150° (1080P), internal 150° (1080P), HDR, WDR

Even without the built-in ANDROID system, you can enjoy the Internet, navigation and other applications on the screen of the presented device. In addition, it is always good to have a recorder, automatic reversing camera and a dead zone camera, all without giving up the cabin rearview mirror, to which every driver is very accustomed. The product is mounted on the cabin mirror and fully replaces it because when the screen is turned off, it reflects the image just like a traditional mirror. However, it opens up many new possibilities, makes it impossible for the driver to obscure any obstacles. Neither splashed with rain or snow, nor dirty rear window, or packed up to the roof car will not be an obstacle to have a full-screen, twelve-inch view of what is happening behind the car.

Third camera

It can be ordered in a version for use inside or outside the vehicle.

✅ Internal version

An additional, third camera effectively eliminates the problem of the 'dead zone' when driving if it is mounted with the lens facing outwards, but it can also be mounted in another way depending on your needs. Parents traveling with young children can provide a constant view of the branch, just like an electronic nanny used at home.Taxi drivers often need monitoring at the back of the cabin to prevent vandalism or indicate its perpetrator. Carriers and suppliers are able to constantly monitor the condition of the transported goods and its security features, which makes it possible to prevent damage to the cargo. In addition, the product supports the connection in Android Auto or Car Play technology with the phone, which gives invaluable help to the driver who can use his favorite road applications directly on the screen of the device, instead of on a smartphone.

The additional indoor camera is not waterproof and is only designed to work inside the vehicle cabin.

✅ External version

In the event that an additional camera is to be mounted on the outside of the vehicle (in a similar way as the reversing camera from the set), use the IP67 waterproof housing, which please indicate during the order.

Useful as:

• camera mounted under the front bumper in vehicles with a long bonnet (long distance from the driver to the front bumper)
• for tall vehicles monitoring the environment from the highest roof site
• for checking the condition of goods for open crates / cargo platforms, tow trucks and dump trucks

Additional outdoor camera is waterproof and has IP67 rating.

Multimedia Station - Wireless Screen - Player

✅ Android Auto and Carplay

The product supports the ability to pair with a smartphone using:

1. Android Auto (⚠ Android smartphones and the Android Auto app installed) - connect the HE512 to your smartphone to access navigation, play music using Siri or Google voice assistant, allowing you to make phone calls and much more.

2. Apple Carplay (⚠ Any iPhone with Carplay) - makes it easy to access iPhone features including calls, notifications, messages, maps, media, and more.

3. MIrror Link (⚠ Android and iPhone) - transfers the image from the smartphone screen to the device screen one to one.

IMPORTANT!!!

Android Auto works correctly on phones running Android 11 and above (also on some Samsung smartphones running Android 10)

⚠ In the highest models of premium phones, e.g. Samsung galaxy S25 ultra, very often you need to go into the programming options of the phone and allow Android Auto wirelessly.

✅ Remote control application - eLook

WiFi technology enables wireless transmission of Audio-Video streams from cameras and remote operation of a device within network range using a smartphone or other device based on Android or iOS.

In order to establish a connection, simply scan the QR code displayed on the screen, install the application and connect your smartphone to the WiFi network emitted by the device.

The perfect solution when sleeping inside a motorhome or truck, we want to know what is going on around. It is then necessary to ensure that the cigarette lighter socket is constantly energized, because often the car computer disconnects it above a certain time after turning off the ignition.

✅ Automatic start of recording.

The recorder starts automatically and starts recording when the car ignition is turned on and automatically turns off when the ignition is turned off (with a delay of several seconds). The recorder must be constantly connected to the power supply from the car cigarette lighter socket.

✅ Loop recording and recording security.

Loop recording is one of the main and most important features of car DVRs. The system records three video channels at all times in a loop on a micro SD card in separate folders (the oldest recordings are overwritten by the latest ones) and secures the recording in memory automatically when an overload is detected (sharp braking, collision, sudden steering) by a three-axis shock sensor (G-Sensor). Security consists in copying a file to a protected folder whose contents are not overwritten by the recording loop.

The length of a single recording can be set to 1/3/5 min.

All dangerous situations will be recorded automatically and will remain available for inspection as evidence if necessary, without the need for any interference from you.

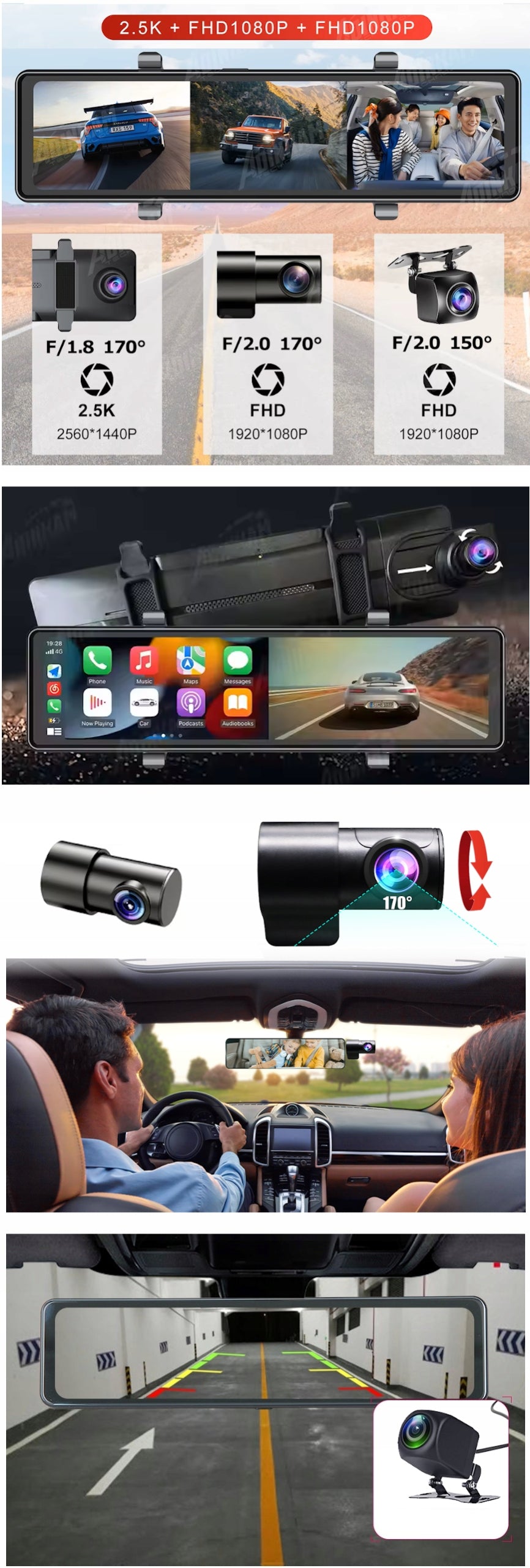

✅ Three cameras

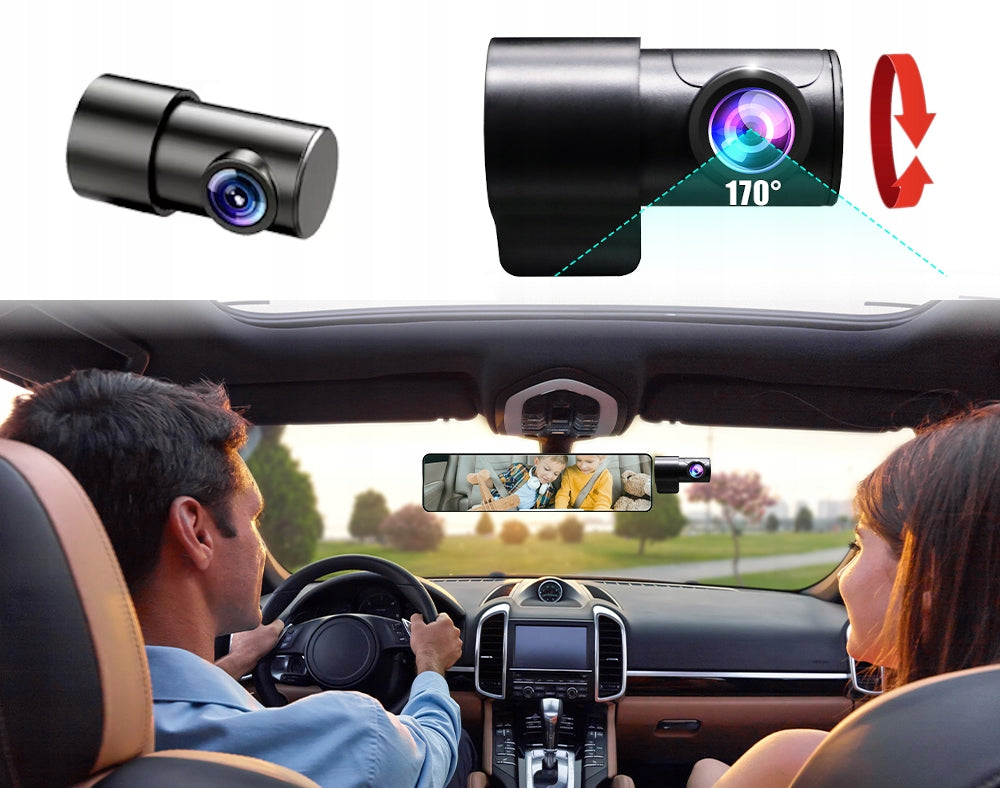

170° and 150° wide-angle lenses: The convex lens greatly expands the driver’s field of view and allows you to capture every road event from a wider perspective. It allows you to record details even outside the driver's eye area.

The 170° front camera is built on a Sony 1/2.8" CMOS sensor made in Exmor technology captures an image with a resolution of 2.5K or 1440P (3840×2160) is placed on a ball joint that can be extended on the guide side by 3.5cm.

Additional indoor/outdoor camera 150° (FullHD resolution, 1080p), in the internal version, is mounted using 3M double-sided adhesive foam. It can be placed on the internal plastic elements to observe the interior of the car or on the glass, where it can monitor both the area inside and outside the vehicle thanks to the rotary head. The external version is mounted identically to the rear-view camera (reverse) by screwing to any body element or using a dedicated license plate frame with an integrated camera socket.

The reverse/reverse camera 150° (FullHD resolution, 1080p) is mounted inside on the headliner, or outside at the rear of the car, where a dedicated license plate frame with a camera mounting socket can be used to prevent its destruction or unscrewing by unauthorized persons. The rearview camera has an IP67 rating, which means it is resistant to rain and even temporary flooding, but you need to watch out for it at the pressure washer.

By connecting the rearview camera to the reversing light (+12V DC), the rearview camera image is automatically displayed on the screen when the parking manoeuvre begins. The display then shows a correspondingly enlarged part of the rearview camera frame along with parking auxiliary lines. By moving your finger up-down across the screen, you can view the hidden part of the frame. The position of both the left and right auxiliary lines is possible for any configuration independently of each other.

In the settings it is possible to turn on/off the right/left mirror mode for the image from all cameras

Recordings from all cameras are recorded throughout the operation of the device in separate folders on the SD card.

✅ 12 inch full screen panoramic image from cameras. It allows you to monitor the road in front of and behind the car in 16:9 format, and when switched to stand-by mode, it becomes a wide rearview mirror with very good image quality.

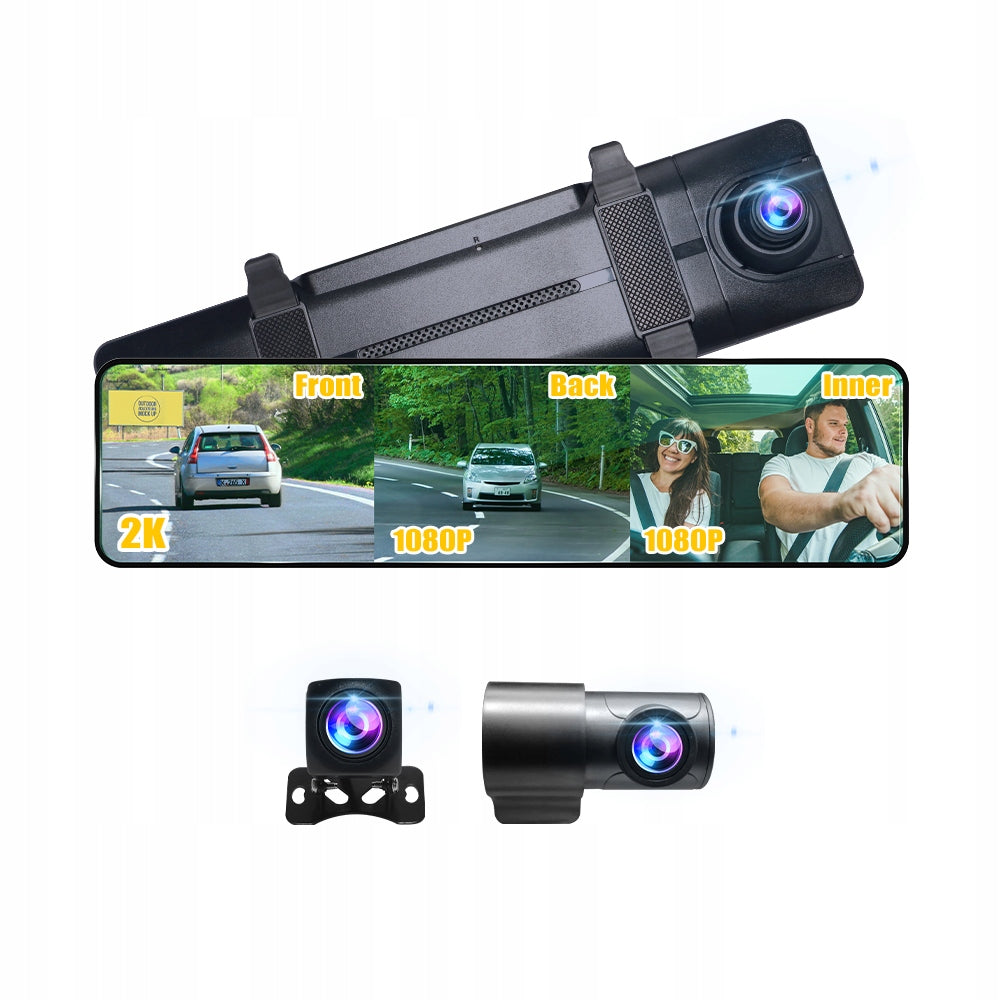

✅ Screen split.

Full screen image from the front camera, or full screen image from the rear camera or from the inside camera, and:

Division 1:1: front/rear, front/additional, rear/additional

Image from any cameras on every half of the screen

Division 1:1:1: front/back/additional

Image from three cameras at the same time, on one third of the screen from each. Recording of all video channels.

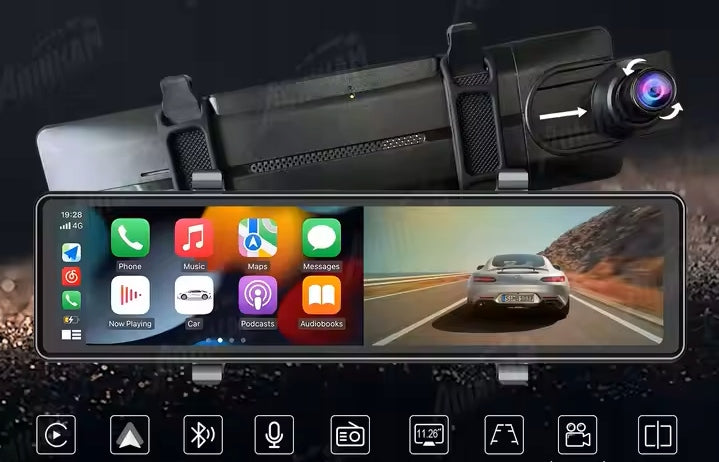

In Android Auto/CarPlay mode, the preview of any camera can also be seen on 1/3 of the screen.

✅ Touch screen in capacitive technology on the entire surface of the mirror. Six times the range of view compared to a traditional rearview mirror. Instead of external tiny buttons that are always wrong, operate with clear, large and intuitive touch screen icons.

✅ GPS antenna

In the event of a collision or police control, information about the exact position of the vehicle or its speed at a given moment is often needed, which is why the recorder is also equipped with the ability to record these parameters. Each recorded frame of video material (from each camera) is accompanied by information about the speed and GPS coordinates of the vehicle along with a satellite-synchronized timestamp.

Regardless of the availability of the network on the paired phone, thanks to its own GPS antenna, all location and speed information will be recorded.

Note: GPS signal is available in the open. Canopies can suppress electromagnetic waves

✅ Night mode

The highest image quality is ensured by specialized cameras from SONY, from the IMX series (F/1.8, F/2.0) and WDR (Wide Dynamic Range) and HDR systems.

The best video sensors available on the market for consumer electronics from Sony IMX series guarantee the highest quality of recorded image.

HDR-WDR in car cameras works by using appropriate algorithms to analyze image exposure and dynamically changing the values of underexposed and overexposed pixels of monitored scenes to show underexposed elements in the image. Thanks to this, we have the ability to accurately record the scene despite high contrast. Thanks to the wide lens and WDR technology, the device performs well even in difficult lighting conditions. The extended dynamic range of the image allows for a clear and detailed image, thanks to the skilful leveling of both too bright and darkened fragments of the recording. Thanks to the WDR function, it is possible to maintain the readability of the entire observed scene.

✅ Stereo sound output

Hands-free phone functions and listening to music from the device can be realized using:

• FM transmission from the device to the car radio,
• Using the built-in speaker
• Bluetooth connections (hands-free, audio accessories connection)

* BlueTooth is necessary to maintain the connection of the smartphone with the device in Android Auto, Carplay or Mirror Link mode, so then it is not possible to transmit sound via BT

• Screen size: full screen, rectangular, 12 inch screen touch HD LCD IPS, 1920x380P
• Front resolution: 2,5K 1440P@30fps (F:1.6),
• Back resolution: FHD 1080P@30fps (F:1.8), cable: 6m/10m (extra charge)
• Kam.3 resolution: FHD 1080P@30fps
• Processor: Allwinner A53
• External memory: max. 128GB micro SD, Class 10
• Video compression: H.264
• Static Image Recording Format: JPG
• Camera Viewing Angle: Front-170°, Rear-150°, Kam. 3-150°
• Speaker and Microphone: Built-in
• Number of Video Channels: 3
• WiFi communication: YES
• Bluetooth communication: YES
• GPS antenna: YES
• Temperature range: -20°C to 70°C

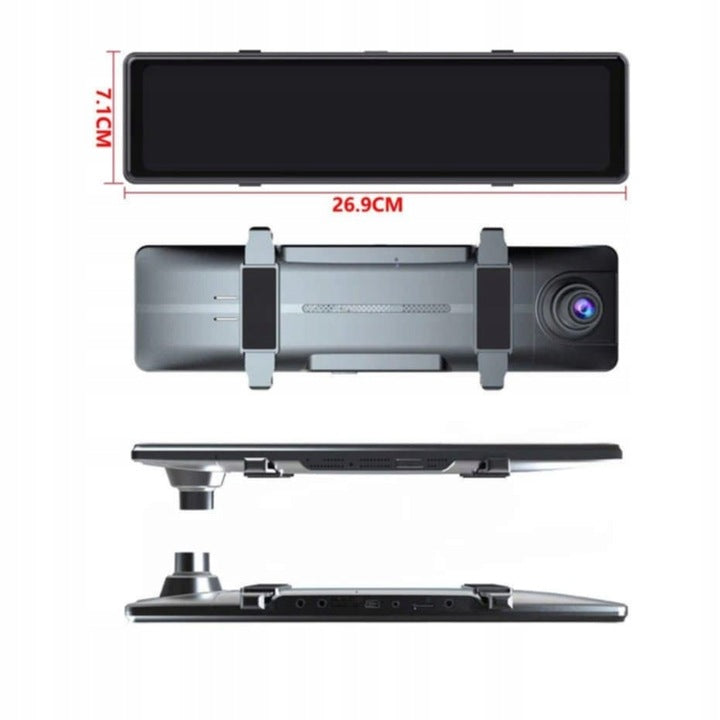

• Product Dimensions [mm]: 269 x 71 x 20

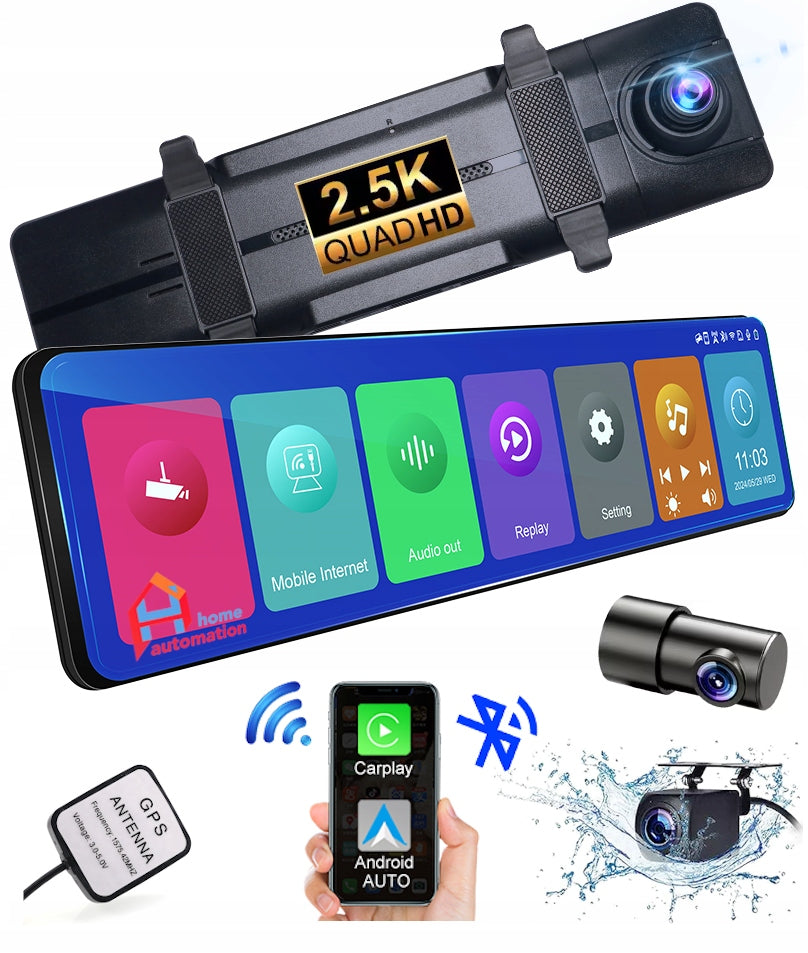

Set Contents:

1. Video Recorder / Monitor CarPlayer HA321
2. Fastening bands
3. GPS antenna
4. Additional internal* LUB external camera * (5,5m cable)
5. Rearview camera with 5,5m cable
6. Car power supply (3m cable) with additional camera input
7. User manual

* Note: Please inform us when purchasing about the selected version of the additional camera. Without this information, any version will be sent.

Connection of power supply and rear camera:

Car power supply:

The plug fits into the car cigarette lighter socket. The beam has an additional 4-pin connector, allowing you to connect a third camera.

Rear camera

The camera is connected to the device using a cable terminated with a mini Jack 3,5mm plug from the screen side and a 4-pin connector from the camera side. Although our camera is waterproof (IP67 class), the same connector is not, so it is necessary to protect the connector from moisture with the included shrink cover.

The camera can be installed inside the car on the headliner behind the rear window (darkened windows are not an obstacle) or outside, in any convenient place, or using a dedicated license plate frame with a socket for mounting the camera, available in a separate offer.

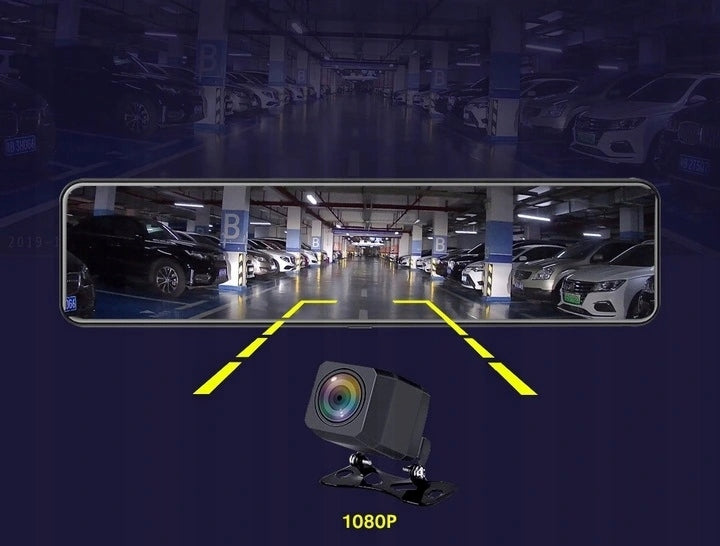

The reversing camera mode together with the auxiliary lines is activated automatically on the screen when the reverse gear is turned on, provided that the activation cable is connected to the +12V DC reversing light in the car.

Side camera / internal

An additional camera equipped with a short 15cm cable should be connected directly to the connector located in the power beam, if it will serve as a vehicle interior monitoring camera and will be mounted close to the screen.

In the event that an additional camera is to be mounted further away, e.g. as a side camera for blind spot monitoring on the outside of the vehicle, an extension of 5,5m is included in the kit. The camera is then glued to a fixed, corner side window from the inside, or to a permanent element of the interior finish, and the moving lens directs to the outside.
