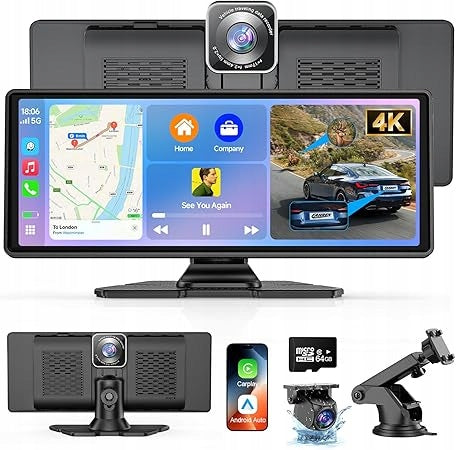

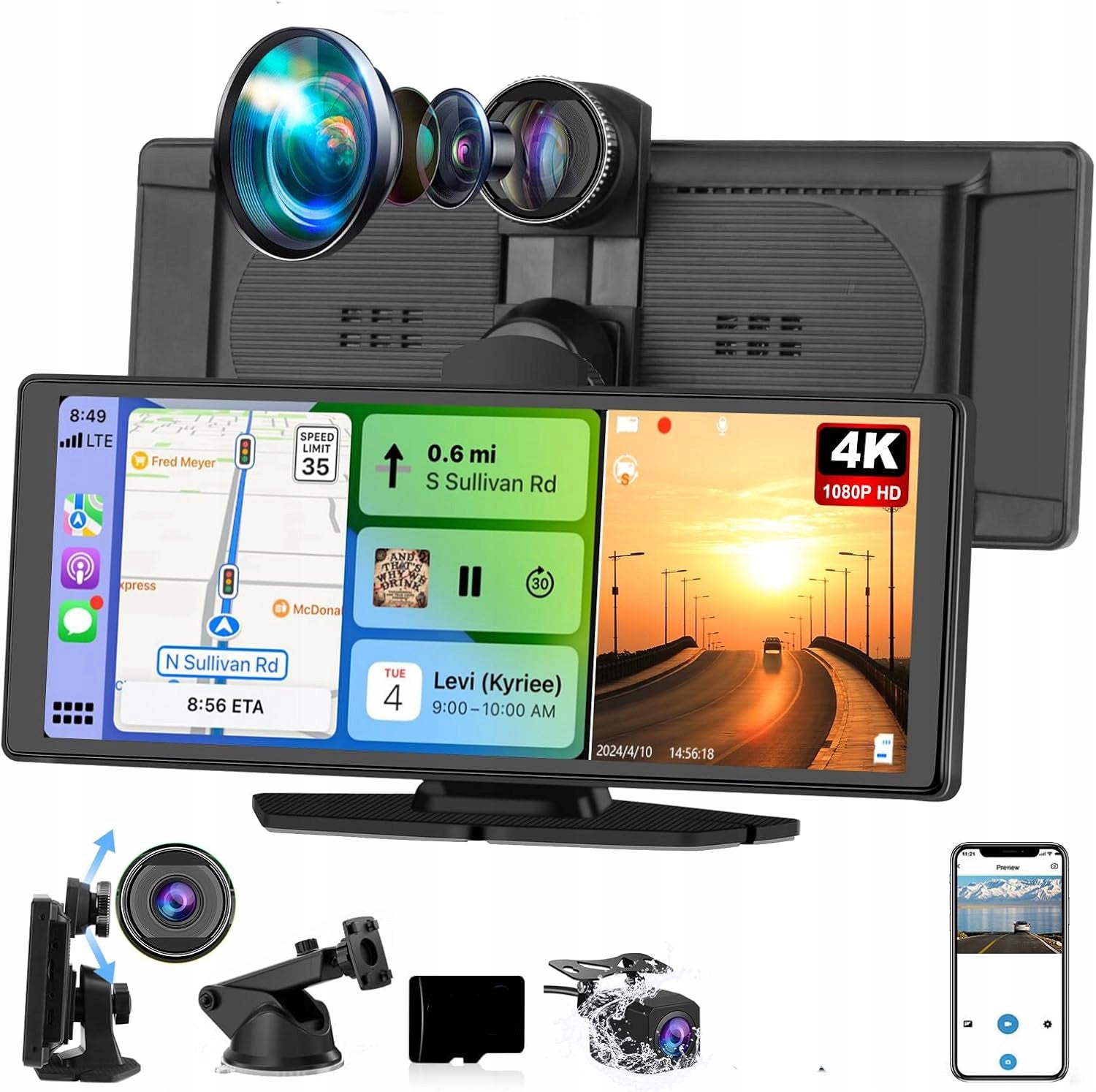

Vaizdo registratorius su UHD 4K, GPS navigacija, WiFi, Android, priekinė ir galinė kamera

Trumpai apie prekę

Prekė: Vaizdo registratorius su UHD 4K, GPS navigacija, WiFi, Android, priekinė ir galinė kamera. Kategorija: Vaizdo registratoriai.

• Gamintojas: no brand
• Modelis: 4K Kamera Android Auto CarPlay

✅ Video Recorder / Car driving recorder with a resolution of up to 4K (2160P) !

✅ Full HD automatic reversing camera

✅ Wireless monitor for car

✅ Apple CarPlay / AirPlay / Android Auto / Samsung MirrorLink

✅ Car media player

✅ Hands-free

✅ Parking Monitoring

✅ Touch screen 10.26 inches

Package includes:

• Recorder with front camera
• Rear camera 6 m,
• Power supply for 12V socket (cigarette lighters)
• Mounting brackets
• AUX cable
• User manual
• Original Box (Colorful)

⭐ The most important parameter of the video recorder is the resolution of the recording, which is why our HE521 recorder, unlike similar products, provides very high recording quality parameters thanks to 4K resolution (rear: Full HD) and high-quality camera optics.

Any dangerous situation on the road, crash, scratch or act of vandalism in the parking lot will be recorded as evidence in the form of a clear video revealing the culprit.

☝ 4K recording is a clear picture of the recorded situation and registration numbers of the perpetrator’s car.

⭐ Wireless Monitor

Using your smartphone, navigation, voice commands, watching videos and listening to music without taking your phone out of your pocket without having to reconnect (details below).

⭐ The reversing camera is automatic and turns on when the reverse gear is turned on and the rear view, unlike the image in the rearview mirror, is not obscured by any obstacles. A splashed with rain, dirty rear window or a car packed up to the roof will not be an obstacle to have a full-screen, ten-inch view of what is happening behind the car, and the function of an automatic, wireless screen for a smartphone will eliminate forever the need to move and mount the phone in the car.

⭐ The screen will turn on itself when you turn the ignition and connect to your smartphone itself, allowing you to use the phone app remotely, including of course from navigation.

⭐ The sound output can be directed at the cable or paired wirelessly with an external audio system, which gives great comfort of listening to music and the functionality of the hands-free phone.

☝ Every situation on the road is recorded by both cameras and can be found manually in the loop of recorded recordings using the time of the event or its location. When the SD card is full, the oldest recordings are overwritten by the latest ones.

☝ The film may block the driver or automatically protect itself against overwriting by fresher recordings after a shock caused by a sharp braking or collision.

1. Automatic start of recording - The recorder starts automatically and starts recording when the car ignition is turned on and automatically turns off when the ignition is turned off (with a delay of several seconds). The recorder must be constantly connected to the power supply from the car cigarette lighter socket.

2. Reverse camera with cable 6 or 10 meters (surcharge) - real-time image, undisturbed weather conditions, vehicle length not important.

3. 10-inch, full-format touch screen provides crystal clear images without any lag. HDR, WDR and Auto Adjusting Brightness Streaming Mirror systems make the user experience amazing.

4. Recording in 4K, The front camera captures 2160P and the rear camera 1080P. The wide dynamic range of the systems controlling the adaptation of image parameters allow you to record optimally even in poor visibility by adjusting the exposure time to make the recording readable.

In order to reduce the volume of a single recording and save space on the SD card, the resolution of the front camera is possible to manually set: HD/FullHD/QHD/4K.

5. The 150° wide-angle lens significantly expands the driver’s field of view and allows you to capture every road event from a wider perspective. It allows you to record details even outside the driver's eye area.

6. WDR night mode (Wide Dynamic Range). This function works in car cameras by using appropriate algorithms to analyze image exposure and dynamically changing the values of underexposed and overexposed pixels of monitored scenes in order to show underexposed elements in the image. Thanks to this, we have the ability to accurately record the scene despite high contrast. Thanks to the wide lens and WDR technology, the device performs well even in difficult lighting conditions. The extended dynamic range of the image allows for a clear and detailed image, thanks to the skilful leveling of both too bright and darkened fragments of the recording. Thanks to the WDR function, it is possible to maintain the readability of the entire observed scene.

7. Recording in a loop

The system records both video channels at all times in a loop on the micro SD card (the oldest recordings are overwritten by the latest) and secures the recording in memory automatically when shock or impact is detected by the shock sensor (G-sensor). Security consists in copying a file to a protected folder whose contents are not overwritten by the recording loop.

The length of a single recording can be set to 1/3/5 min.

8. Parking mode

Securing the recording in parking mode occurs after noticing a twitch or shock caused by an event, where the sensitivity of activating the alarm is possible to set.

Watching the parking guard requires drawing a very small amount of electricity from the battery, ranging from a dozen to several dozen mA, but even such a small amount will cause the battery to discharge after a few days, which is why the parking menu assumes a maximum parking time of 10 hours, after which the device is completely disconnected from the power supply from the car.

9. Automatic monitoring and start

The power supply has an ACC initiation input, which connected to +12V DC after the ignition provides switching off, on and going into parking standby depending on the position of the car ignition.

☝Alternatively, the ACC cable can be permanently connected to +12VDC together with the BAT+ power supply cable. This will cause continuous recording of images from both cameras but loss of the device’s automatic shutdown function. This involves greater current consumption (several hundred mA) with the screen on, which can be lowered (to below 100mA) by activating the screensaver or manually turning off the screen with the button for parking time.

⚠ To ensure proper operation of the device in parking mode, it is necessary to connect the power supply in the fuse box using a dedicated power supply.

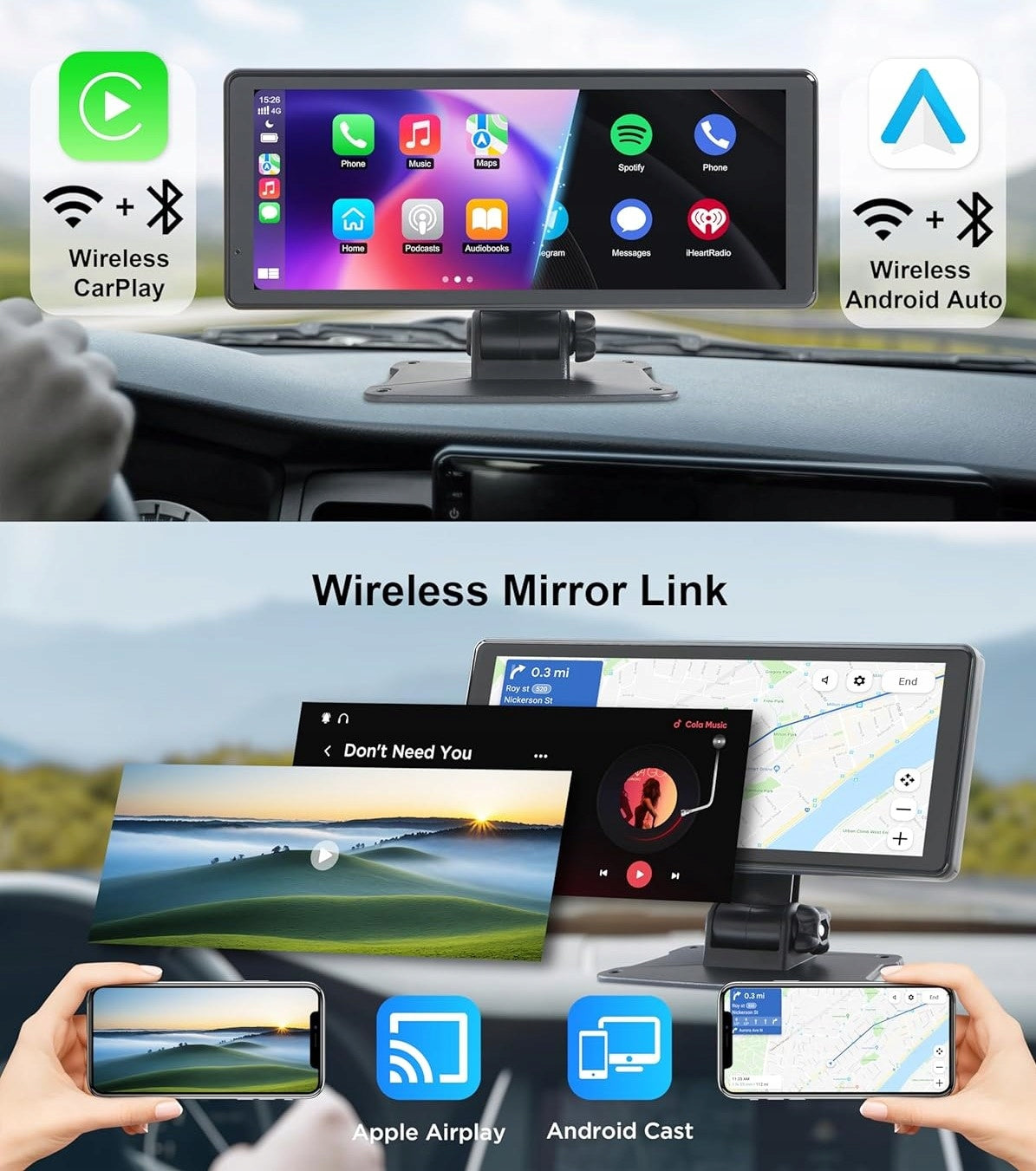

Wireless screen for smartphone

After activating the phone connection, applications from the phone are available on the screen of the device and you can freely use navigation, multimedia, the Internet or phone calls

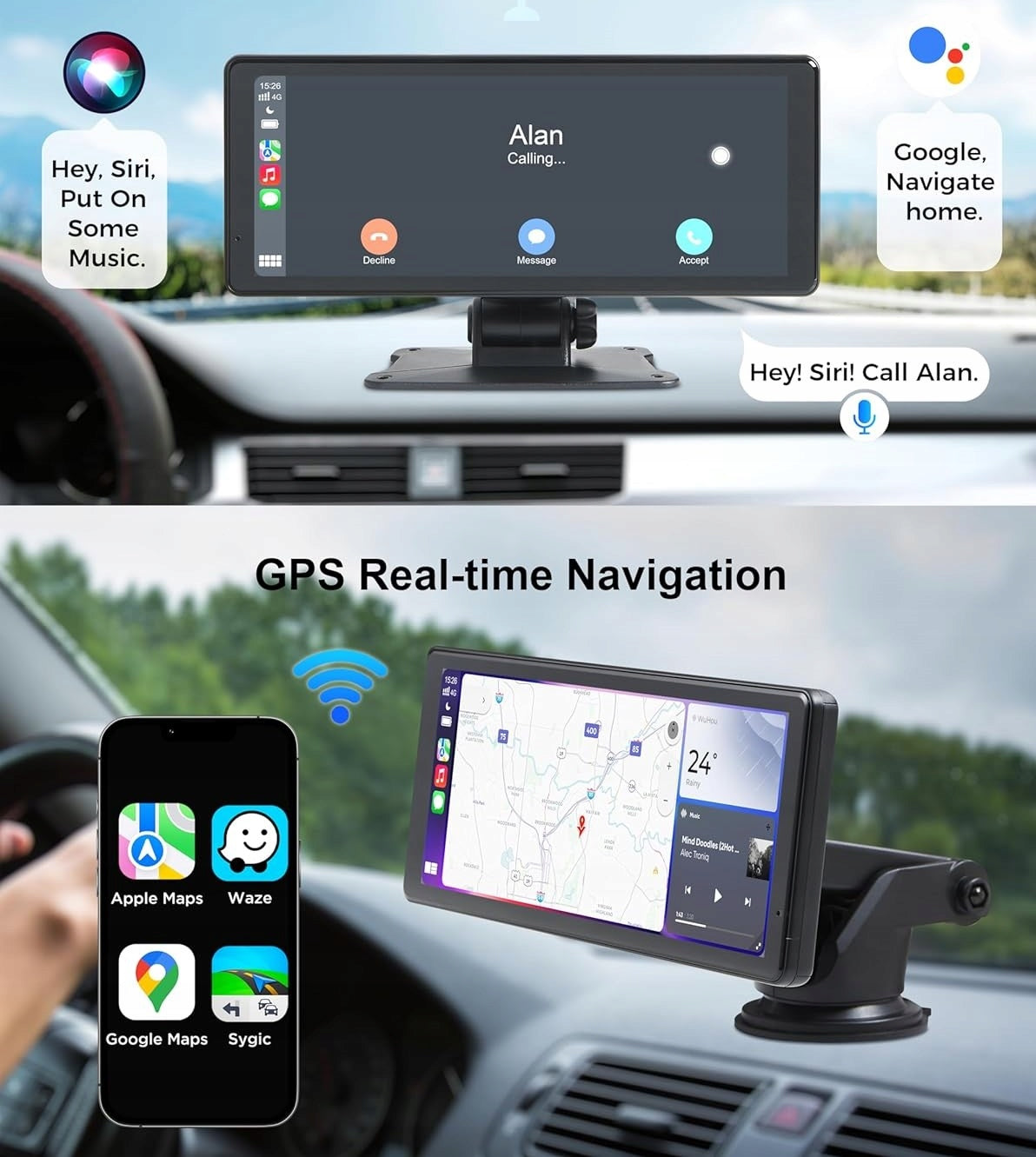

1. Android Auto (⚠ Android smartphones and the Android Auto app installed) - connect the HE502 to your smartphone to access navigation, play music using Siri or Google voice assistant, allowing you to make phone calls and much more.

2. Apple Carplay (⚠ Any iPhone with Carplay) - makes it easy to access iPhone features including calls, notifications, messages, maps, media, and more.

3. MIrror Link (⚠ Android and iPhone) - transfers the image from the smartphone screen to the device screen one to one.

☝In remote connection mode to your phone via Android Auto, a preview from any camera is constantly available.

Applications compatible with Android Auto and Carplay include:

• ➡ phone calls and text messages (e.g. voice reading and dictation of messages);
• ➡ instant messaging (e.g. Messenger, WhatsApp, or Skype);
• ➡ applications, navigation, Google Maps, Yanosik;
• ➡ playing music (from phone memory or e.g. Spotify, Tidal, Deezer, and Google Play Music).

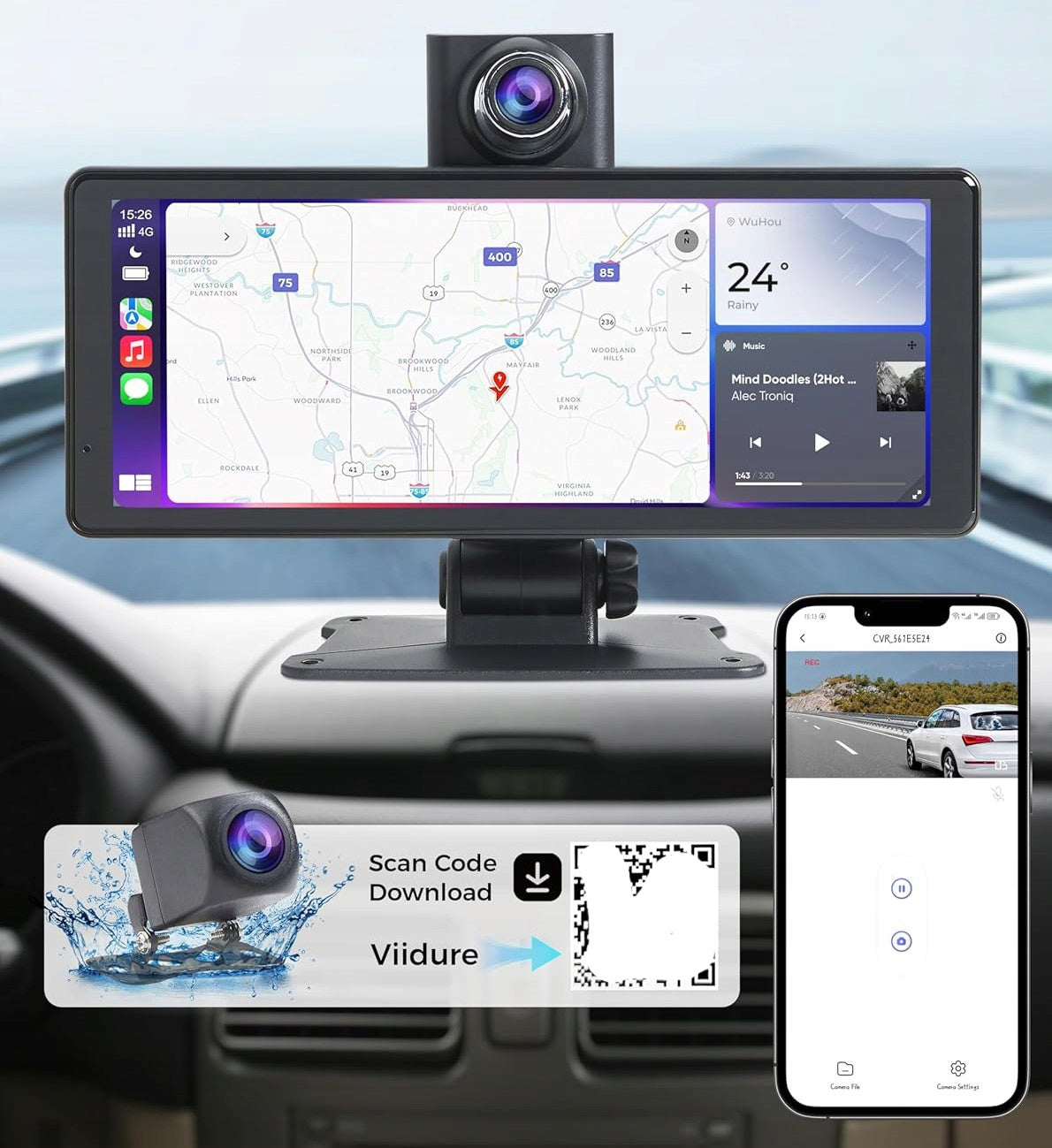

• ➡ It is possible to remotely receive images from cameras and control the device using an application on a smartphone via a WiFi wireless network, which is emitted by a built-in module compliant with the 802.11 a/b/g/n standard

10. Stereo sound output

Hands-free phone functions and listening to music from the device can be realized using:

♫♪ FM transmission from the device to the car radio,\

♫♪ connecting the mini Jack cable to the AUX input in the car,

♫♪ using the built-in speaker

♫♪ Bluetooth connections

Connection via cable eliminates noise heard in radio transmission, and the AUX output of the device is equipped with active filters of high and low frequencies. A module was also used to reduce the noise generated by the connection using a cable, through an impedance fit.

⚠ BlueTooth is necessary to maintain the connection of the smartphone with the device in Android Auto, Carplay or Mirror Link mode, therefore it is not possible to transmit sound via BT

Camera Image Display Modes:

• Front or rear
• Front and rear 1:1
• Automatic activation of the extended (170°) view from the reversing camera on the reverse camera (adjustable auxiliary lines applied)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Model	4K Kamera Android Auto CarPlay
Parametry	Screen diagonal	10.26"
Parametry	Memory card included	none
Parametry	EAN (GTIN)	5904316252717
Parametry	Manufacturer code	4K Kamera Android Auto CarPlay
Parametry	Product weight with unit packaging	1.118 kg
Parametry	Customs tariff code	85258900
Parametry	Batteries included	no
Parametry	Packaging status	original
Parametry	Recording quality	SD/VGA (640 x 480),HD (1280 x 720),Full HD (1920 x 1080),QHD (2560 x 1440),4K UHD (3840 x 2160)
Parametry	Power supply	car lighter socket,USB
Parametry	Ports	AV,memory card reader
Parametry	Communications	Bluetooth,GPS,Wi-Fi
Parametry	Additional features	camera,automatic start,motion sensor,shock sensor,two cameras,reversing camera,HDR/WDR,H.264 codec,sound recording,display
