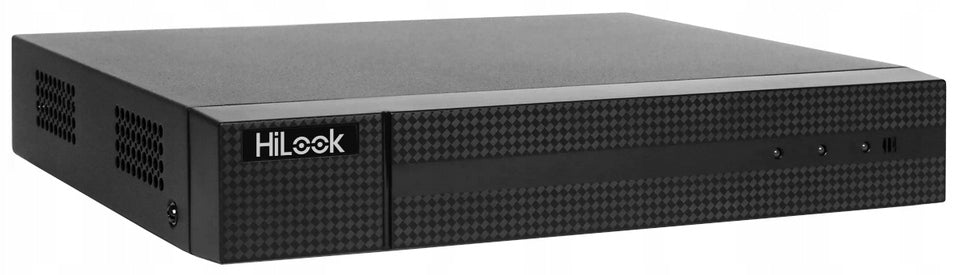

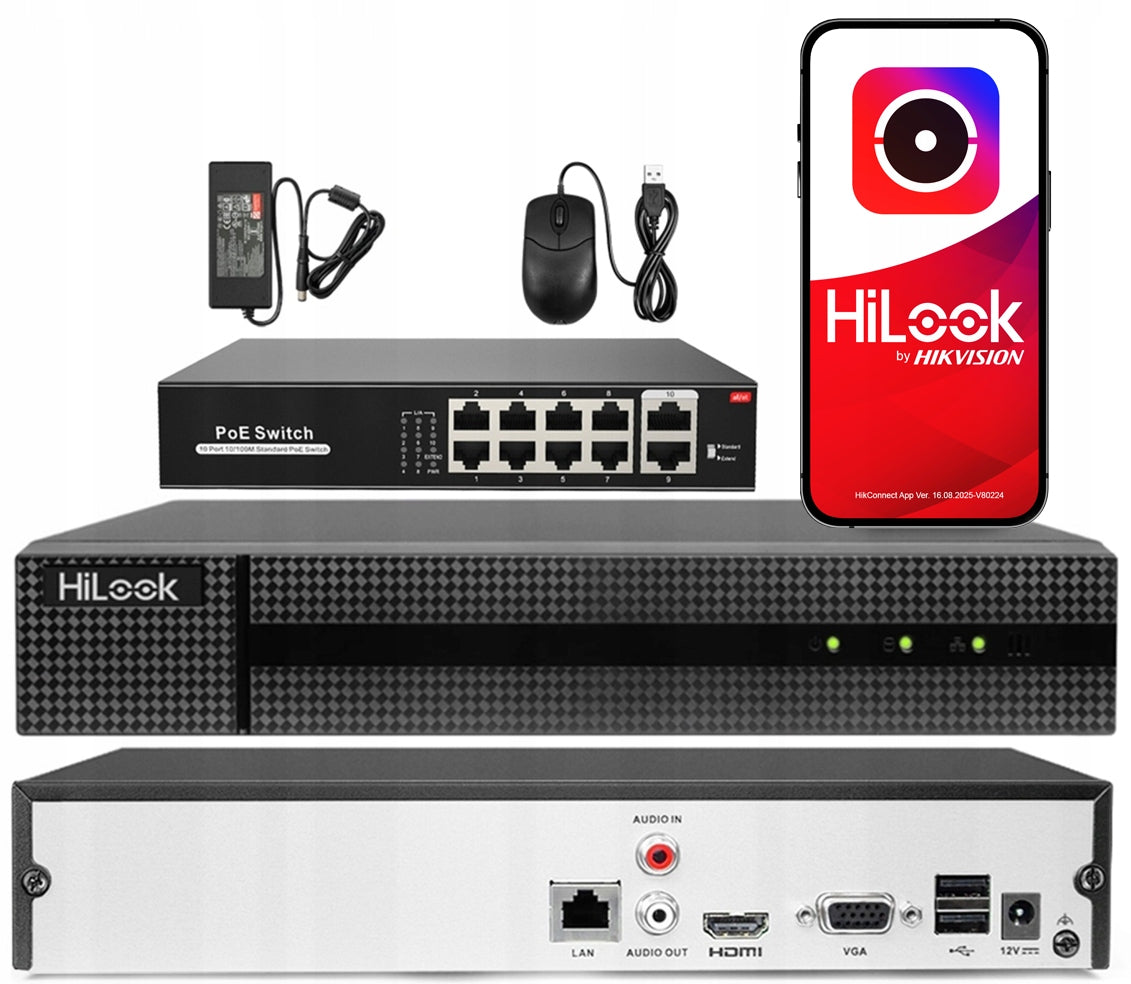

Vaizdo stebėjimo įrašymo įrenginys HiLook Hikvision, 8 kanalų, 8 Mpx, su 8 portų PoE jungikliu

Trumpai apie prekę

Prekė: Vaizdo stebėjimo įrašymo įrenginys HiLook Hikvision, 8 kanalų, 8 Mpx, su 8 portų PoE jungikliu. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: HiLook
• Modelis: NVR-8CH-5MP + EI-H1108PL

8-channel / up to 8Mpx / 1 HDD slot / motion detection 2.0 / Hik-Connect / HiLook App

The most important features of the recorder:

• allows synchronous playback of images from 8 cameras with a maximum resolution of 8mpx
• configuration and operation of the device is intuitive - through graphic menu, PC program and mobile application
• has the ability to install 1 HDD drive to a capacity of up to 8TB
• is equipped with H.265+ data compression technology, saving disk space
• switch PoE included

Technical parameters:

• Number of channels: 8
• Recording resolution: up to 8 Mpx (4K Ultra HD)
• Bitrate in/out: 80/80 Mbps
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Video outputs: 1x HDMI, 1x VGA
• Audio Inputs/Outputs: 1x RCA/1xRCA
• USB ports: 2x USB 2.0
• Network interface: 1x Ethernet 10M/100M Self-adaptive
• Live view: HIK-Connect / HiLook App, iVMS-4200 (lite)
• Intelligent functions: motion detection 2.0 on 4 channels
• Storage for hard drives: 1x HDD (up to 8TB)
• Power Supply: 12 VDC
• Power consumption: 18 W (without 10W disk)
• Dimensions: 315 x 240 x 48 mm
• Weight: 1 kg

This is a versatile, 10-port switch featuring 8 PoE ports with a maximum speed of 100 Mb/s, supporting IEEE 802.3af/at standards. The switch also includes 2 RJ45 Uplink ports with 100Mbps speed.

• Number of Ports: 8+2
• Speed: 100Mb/s
• Network Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
• Throughput: 2Gb/s
• Operation Indicators: LED lights: Power, LINK/ACT
• Max Power per Port: 30W
• Total Power Budget: 100W
• Dimensions: 130mm x 195mm x 40mm
• Weight: 1kg

HiLook /Hikvision monitoring systems can be controlled, configured and operated using the intuitive HikConnect/ HiLook App mobile application for smartphones and tablets and the iVMS-4200 program for PC computers. Thanks to this, the user has constant control and supervision over the monitored space from any place on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating scenarios and motion detection rules
• control of rotating cameras
• receiving notifications about events within the system

The application uses the P2P cloud to operate, so the system does not need to have forwarded ports on the router.

This recorder supports the motion detection function from network cameras. This feature allows for instant notifications to the user (via app or software) when changes are detected in the camera's image. It also enables searching recordings for detected motion in the monitored area.

Hikvision DVR supports an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

• 8-channel IP video input
• Resolution: up to 8MP
• Incoming bandwidth: 80 Mbps
• Outgoing bandwidth: 80 Mbps
• HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;
• VGA Output: 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;
• Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Video Compression: H.265/H.265+/H.264/H.264+/MPEG4
• Live View / Playback Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Simultaneous Playback: 8 channels
• Decoding Capacity: 1-ch @ 8 MP / 4-ch @ 1080p
• Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPTM, HTTPS
• SATA Interface: 1
• Capacity: up to 8 TB
• Network Interface: RJ-45 10/100/1000 Mbps Ethernet
• USB Ports: 2 × USB 2.0
• Power Supply: 12 VDC
• Operating Temperature: -10 °C to +55 °C
• Dimensions: 315 × 240 × 48 mm

Specifications
