Vaizdo stebėjimo kamera Dahua 6Mpx, 6 vnt., IPC-HDW1639T-A-IL-0280B-S6, juodos, PoE

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamera Dahua 6Mpx, 6 vnt., IPC-HDW1639T-A-IL-0280B-S6, juodos, PoE. Kategorija: Rinkiniai.

• Gamintojas: Dahua
• Modelis: IPC-HDW1639T-A-IL BLACK(x6)+NVR4108HS-4KS3+UTP

6 x IP Camera 6Mpx Dual Light| 8CH IP Recorder | 8x PoE Switch | Mounting Accessories

The most important features of the set:

✅ Dahua PoE surveillance kit with 6 external cameras 6Mpx

✅ Smooth and sharp image in high resolution 6Mpx (3200x1800p)

✅ Cameras with the possibility of mounting inside and outside

✅ Quick and convenient installation of the camera thanks to PoE power technology

✅ Night vision up to 30 meters in colour and infrared - Dual Light technology

✅ Cameras with automatic mode day / night

✅ Motion detection function that sends notifications about key events straight to your application

✅ Live view and access to recordings via internet on computer, cell, tablet

✅ P2P support (cloud) - a function that allows remote access without port forwarding and public IP address

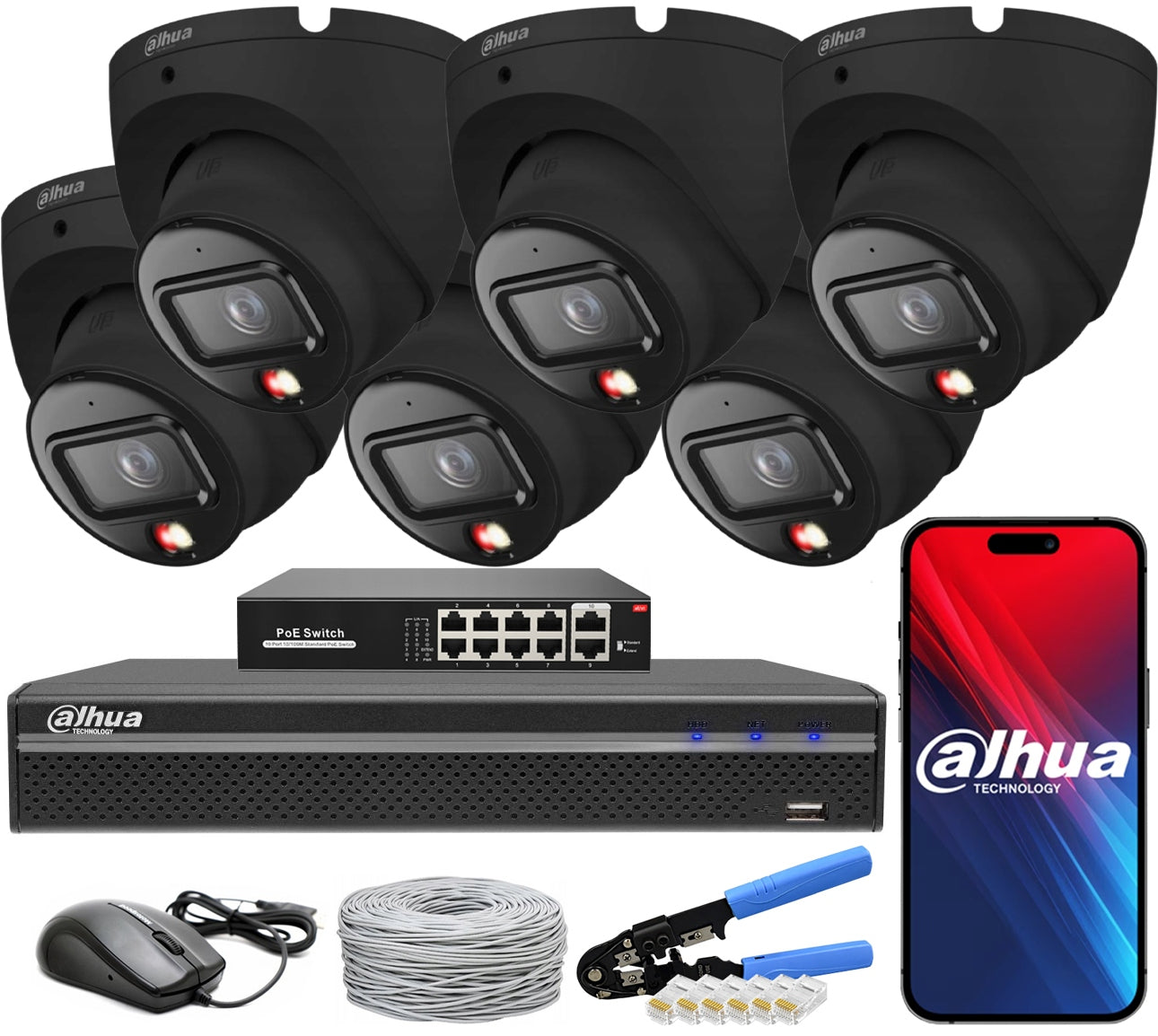

• 6 x High Resolution IP Camera 6Mpx - Dahua IPC-HDW1639T-A-IL-0280B-S6 BLACK
• 1 x IP Recorder - Dahua NVR4108HS-4KS3
• 1 x Switch 8 x PoE - EI-H1108PL
• 12x RJ45 plug
• 1x RJ45 Plug Crimping Machine
• 1x UTP twisted pair cable - 60m

The offered monitoring set can be operated and configured using the intuitive mobile application DMSS (smartphones) and the Smart PSS (PC) program. Thanks to this, the user receives constant access to recordings and live view from anywhere with access to the network. An additional advantage of the software is the ability to receive alarm notifications through the motion detection function in cameras.

The DMSS application is available for smartphones with Android and iOS. The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The monitoring system has a built-in motion detection algorithm - when moving objects are detected on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

The camera has double night mode - it allows you to record at night images in shades of gray in infrared mode and in full color, using a white light illuminator. Thanks to this function, you can easily recognize the colors of an intruder's clothes , even when he sneaks in complete darkness.

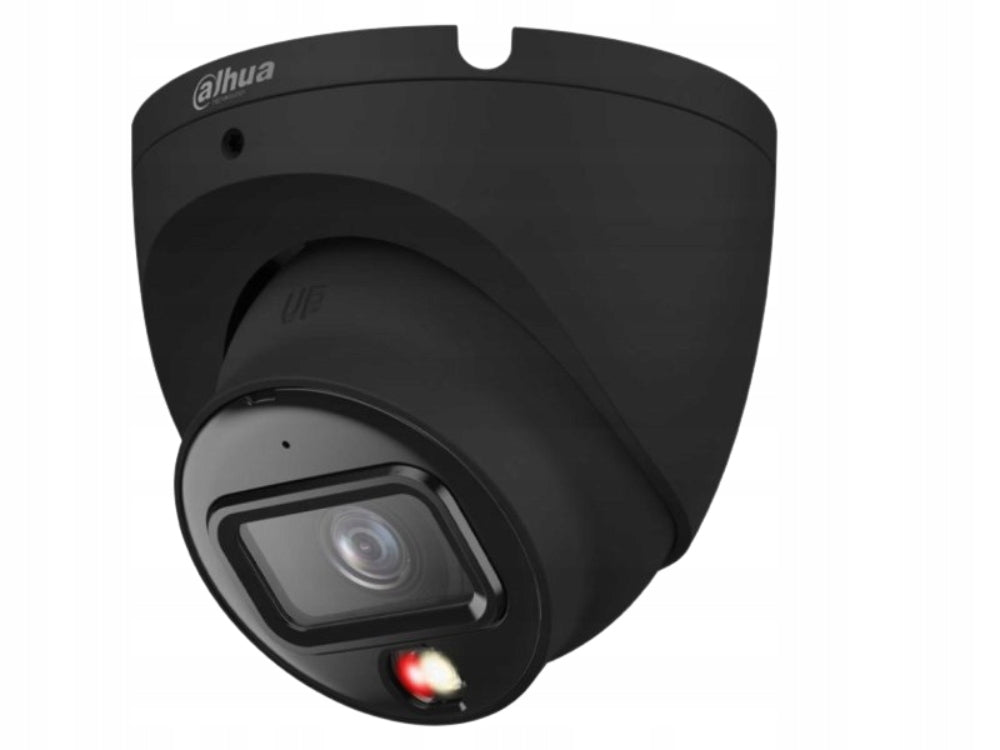

• Transducer: 1/2.7" CMOS
• Resolution: 6Mpx (3200 × 1800)
• Lens: 2.8mm
• Viewing angle: H: 110°
• Smart Dual Light - use of dual illuminator
• Full-Color - color image technology around the clock
• Built-in microphone: Yes
• Configuration and remote operation: VMS software (Smart PSS, DSS Express, DSS PRO), WEB browser, mobile applications
• Image compression: H.265+ / H.265 / H.264+ / H.264
• Examples of intelligent functions: object classification - object detection
• Leak-proof class: IP67
• Power supply: 12 VDC / PoE (802.3af)
• Power consumption: < 6.6 W
• Dimensions: Φ173.3 mm × 70.0 mm × 70.0 mm
• Weight: 44g

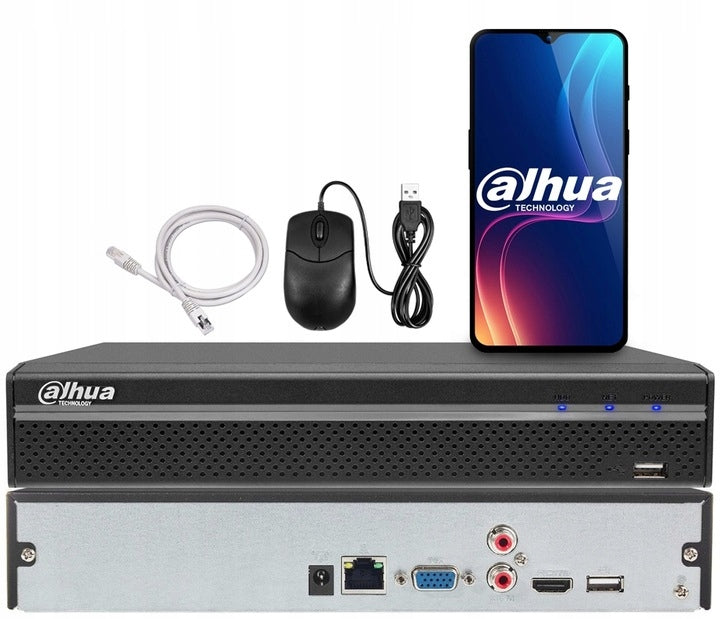

Model NVR4108HS-4KS3 is a 8-channel Lite series recorder, with the ability to record in resolution up to 12Mpx, connect up to 8 IP cameras and one HDD up to a capacity of up to 20TB.

• Number of channels: 8
• Recording resolution: up to 12 Mpx
• Bitrate in/out: 80 Mbps/ 80 Mbps
• Video compression: H.265+, H.265, H.264+, H.264
• Video outputs: 1x HDMI, 1x VGA
• Audio Inputs/Outputs: 1x RCA/ 1xRCA
• USB ports: 2x USB 2.0
• Network interface: 1x RJ-45 10/100 Mbps
• Live view: web server, VMS software (DSS/Smart PSS), DMSS, P2P
• Storage for hard drives: 1x HDD (up to 20TB)
• Power supply: 12 VDC, 2 A
• Power consumption: < 10W(without HDD)
• Dimensions: 260 mm × 232.5 mm × 47.6 mm
• Weight: 1.38 kg

Industrial switch is a universal PoE switch, dedicated to work in network monitoring systems that require power supply in the PoE standard.

Technical parameters:

• Number of PoE power ports: 8
• Number of Uplink ports to expand the system: 2

The set includes a high UTP CAT5E cable from Dahua, dedicated to connecting cameras to the recorder.

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 12x RJ45 plug
• 1x RJ45 plug crimper
• A set of instruction manual
