Vaizdo stebėjimo kamera Dahua HAC-HFW1500TLM-0280B-S3-DIP, 5 MP, 4-in-1, cilindrinė, HDCVI

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamera Dahua HAC-HFW1500TLM-0280B-S3-DIP, 5 MP, 4-in-1, cilindrinė, HDCVI. Kategorija: Fotoaparatai.

• Gamintojas: no brand
• Modelis: HAC-HFW1500TLM-0280B-S3-DIP

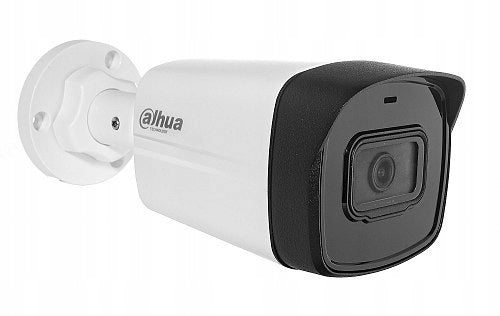

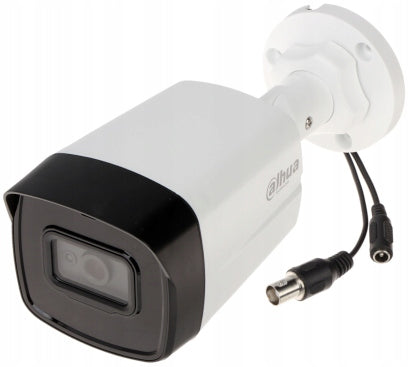

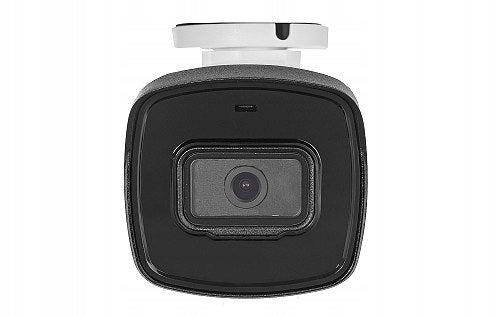

Dahua HAC-HFW1500TLM-0280B-S3-DIP Camera

It is a horn camera, designed for installation in vision systems based on Analog HD technology. The device is part of Dahua’s innovative Lite series, which is the main task of recording from a place and facility covered by round-the-clock monitoring. The camera is equipped with a modern 1/2.7" 5MP Progressive Scan CMOS image sensor, which allows you to capture video recordings in 5 MPX resolution. Numerous correction functions available, including DWDR, 2DNR, provide a very good quality of the image received. The camera optical system creates a modern lens with a focal length of 2,8mm, and thanks to the built-in infrared illuminator with a range of 60m, it guarantees round-the-clock monitoring.

Dahua camera belongs to an innovative series of devices that allow you to work in four different monitoring systems - CVI, TVI, AHD and CVBS. This solution is extremely convenient especially due to the possibility of connecting the camera to completely independent end devices operating in any of these systems. Changing the work system is done through the camera OSD menu or UTC controller.

• Standard: HD-CVI,HD-TVI,AHD,CVBS
• Sensor: CMOS
• Resolution: 2960 × 1665 - 5Mpx@HD-TVI@ 20fps- Aspect Ratio 16:9, 2880 × 1620 - 5Mpx@HD-CVI@ 25/ 12.5fps, 2560 x 1440 - 4Mpx@AHD/HD-CVI@ 25fps, 1920 x 1080 - 1080p@HD-CVI@ 25fps, 960 x 576 - 960H@CVBS@ 25fps
• IR illuminator range: 60 m
• IR illuminator power adjustment: Automatic
• White light illuminator range (LED): Brak
• Lens: 2.8 mm
• Viewing angle: 113 °
• Signal to noise ratio (S/N): > 65dB
• Video output: AHD/HD-CVI/HD-TVI/CVBS, 1Vpp/ 75ΩSet by DIP switches
• Audio: Built-in microphone, Coaxial audio support - HD-CVI / HD-TVI only
• Power supply: 12 VDC/ 430 mA
• Power consumption: ≤ 5.2 W
• Housing: Tube, Metal + Plastic
• Color: White + Black
• Tightness class: IP67
• Vandal-resistant: Brak
• Operating temperature: -40 °C ... 60 °C
• Weight: 0.31 kg
• Dimensions: 198.9mm x 80.2mm x 76.2mm

Smart PSS software

Comprehensive management and supervision of the security system and the network of cameras for observation determines the effectiveness of each video surveillance installation. Dahua has developed Smart PSS software for the user of PCs and MACs to create and personalize their own observation system. Smart PSS can cooperate with up to 256 devices and in addition to displaying live images or playing recordings, it allows for multi-monitor work, support for e-map and e-PTZ, support for video analytics and face detection options or advanced search for individual events. Thanks to the versatility of the program, it is possible to manage both high-resolution analogue CCTV cameras and megapixel IP cameras on an ongoing basis.

DMSS

DMSS is an application designed to view images from cameras and to manage Dahua recorders on smartphones and tablets. The program allows you to remotely operate devices (recorders, IP cameras), image preview, remote PTZ control, audio support, taking photos (snapshots) or recording videos.

Multi-system technology

The AHD / HD-CVI / HD-TVI interface enables the transmission of analog video signal via a coaxial cable at a resolution of up to 8 Mpx (4K UHD). During transmission, there are no delays and the original, high image quality is preserved.

Specifications
