Vaizdo stebėjimo kamera FORCE 4x AHD, 8MP, 4K, peržiūra internetu

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamera FORCE 4x AHD, 8MP, 4K, peržiūra internetu. Kategorija: Rinkiniai.

• Gamintojas: Force
• Modelis: XVR-E-3004H1

✅ Complete, ready-to-install kit from the renowned FORCE brand with 4 AHD outdoor cameras

✅ Live view and access to recordings via the Internet on your computer, smartphone, tablet

✅ High resolution 4K digital image and wide recording angle - 8 MPx 3864 × 2192p and ~109 degrees

✅ Full visibility at night thanks to IR infrared illuminators with a range of 20m

✅ Motion detection function, when motion is detected, automatically send an alarm to your phone.

✅ Tamper function, after losing the signal from the camera or covering it, automatically sending an alarm to the phone.

✅ Video overwriting (loop recording)

✅ Possibility of mounting cameras both inside and outside - cameras in IP67 protection class

✅ Simple installation

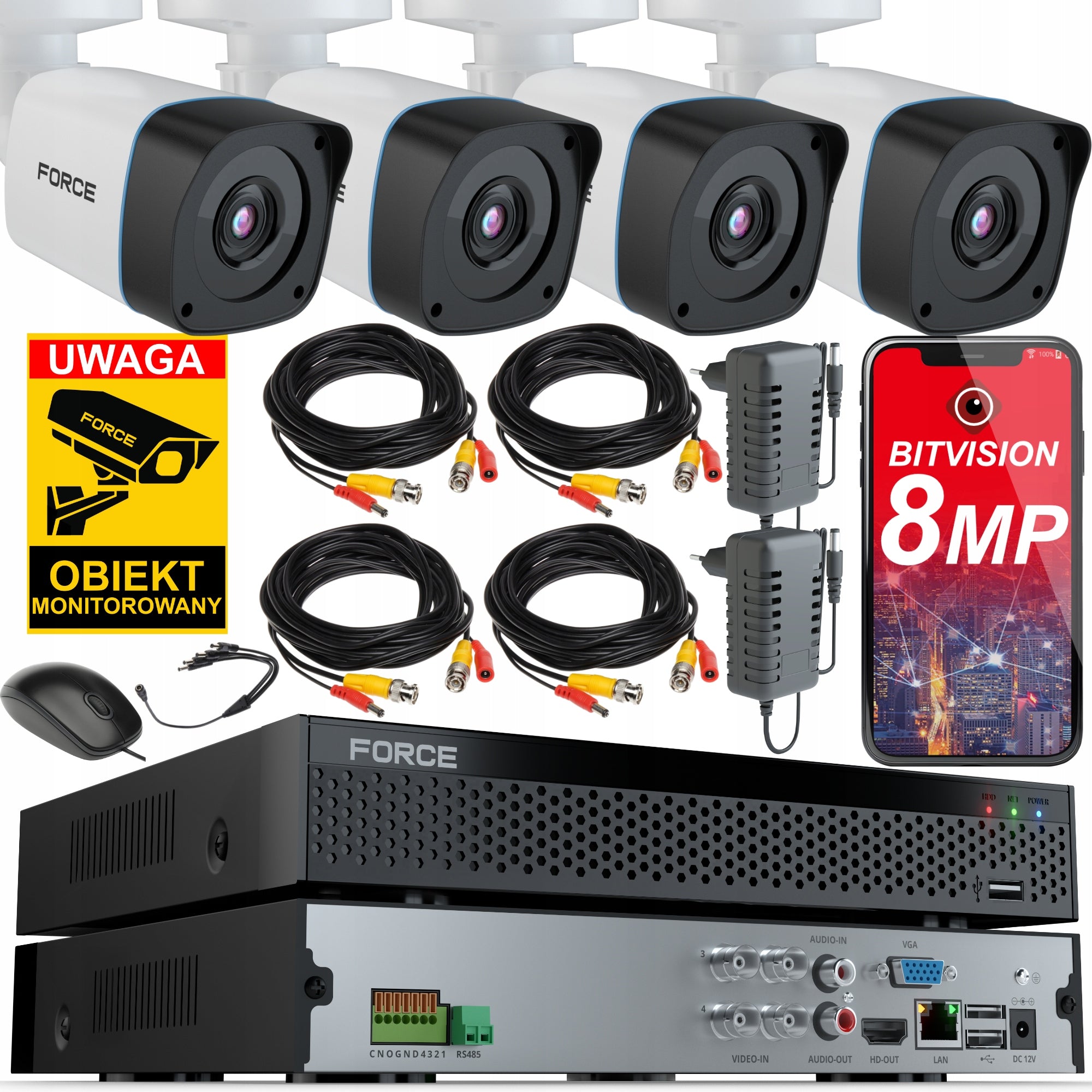

Z E S T A W Z A W I E R A

• 4x FORCE Camera 8MP IR20 AHD-E-8020B
• 1 x FORCE DVR XVR-E-3004H1
• 4x 18 meters, professional cable, BNC +DC for use in monitoring systems
• 1 x Computer Mouse
• 1 x Power Supply for DVR
• 1x Separate power to cameras, 1 to 4 channels
• Templatka (template for drilling holes on the wall)
• Mounting pins
• Original manufacturer's packaging

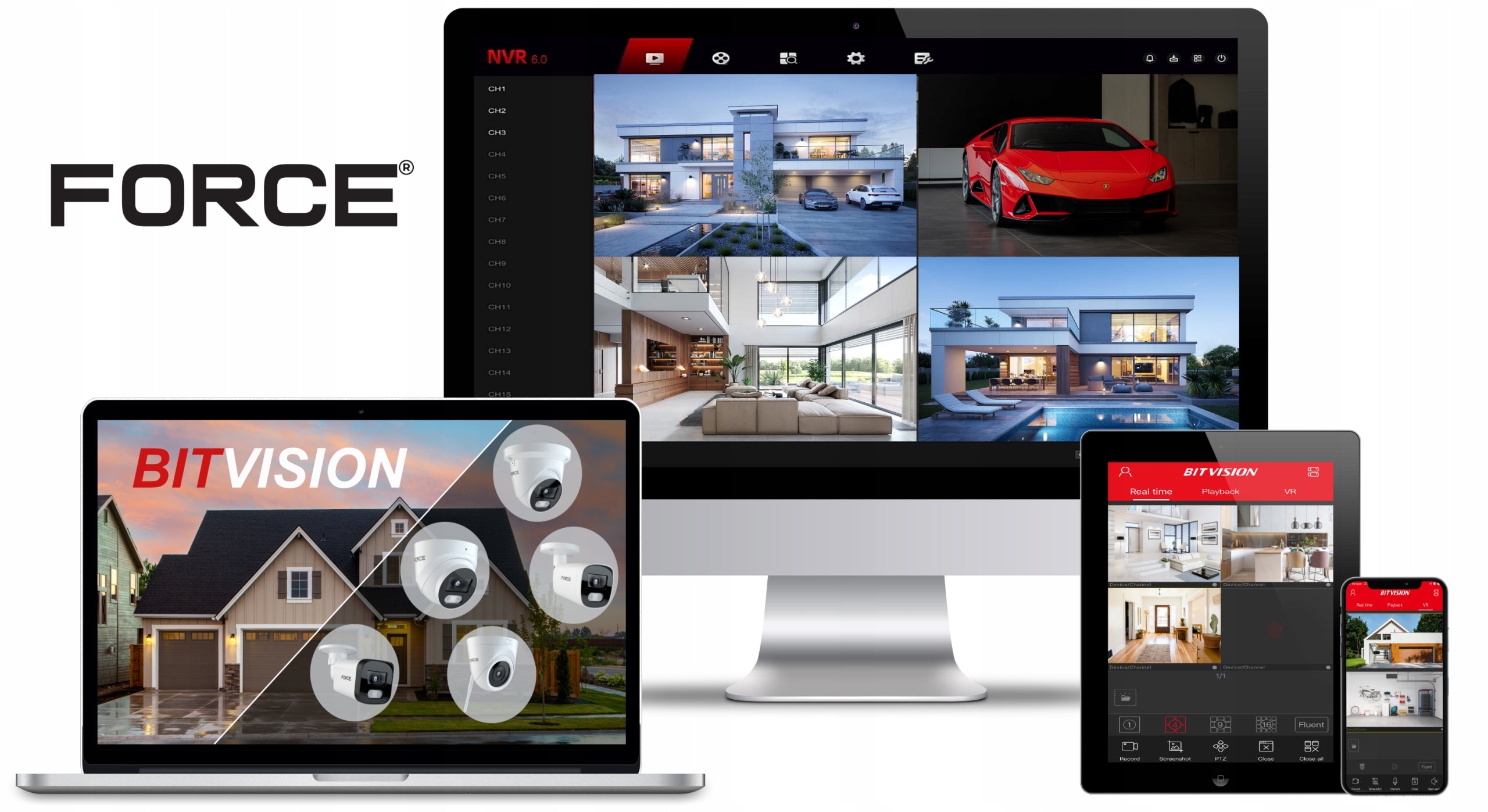

• online preview The set offers preview via both smartphone, PC, laptop or tablet. Thanks to the application, you can keep track of the image from cameras from anywhere in the world with Internet access. It’s a great solution to feel safe when you’re away from home or business. It is also remote to access archival recordings stored on the disk of your recorder.

  Intuitive application has been prepared for the most popular mobile operating systems Android and iOS, so you can be sure that it will be supported and updated on an ongoing basis. The clear menu makes using the application simple and pleasant.

• motion detection - the set automatically sends a notification to your phone when motion is detected! The set has the function of advanced motion analysis. Just set the monitoring areas and detection sensitivity to make sure that no moving "object" will escape our attention. Motion detection records images from cameras only after movement occurs in the camera frame. This is a feature that also allows you to save a very large amount of space on your hard drive, which has a positive effect on its lifespan.
• sabotage - cameras have an analysis of the observed area, they are able to detect sabotage attempts such as: loss of signal from the camera, image obscuration, change of focus, change of viewing angle. The kit automatically sends a notification to the phone upon detecting sabotage.
• privacy zones when we do not want the selected fragment of the frame to be on the recordings, you can cover the selected part with an electronically generated privacy zone
• write in loop after filling the disk, the recorder will work in loop. This means that it will automatically delete the oldest record and continue working without the need to interfere with the operation of the device

• schedule of recordings the work of the monitoring system can be planned according to your needs, e.g. continuous recording from 8-16 from Monday to Friday, and in other hours only for motion detection

The professional 8MPX surveillance camera allows you to record the observed area in very high resolution while maintaining a wide viewing angle.

Most important features:

• Camera resolution - 8Mpx. The camera operates at a very high resolution of 3840x2160 pixels, so you will see much more details.

• Infrared radiator up to 20m. Very powerful infrared heater allows you to see in total darkness up to 20m

• Specific housing with IP67 class. Rain and snow are not an obstacle. The camera is weatherproof and can be mounted outdoors with confidence.

• 3,6mm fixed focal length lens. The camera is factory sharpened. The wide 3,6mm lens gives a very sharp image without the effect of distorting the frame.

Additional camera features:

• Automatic white balance
• Electronic noise reduction
• Convenient vertical or horizontal installation
• Low power consumption

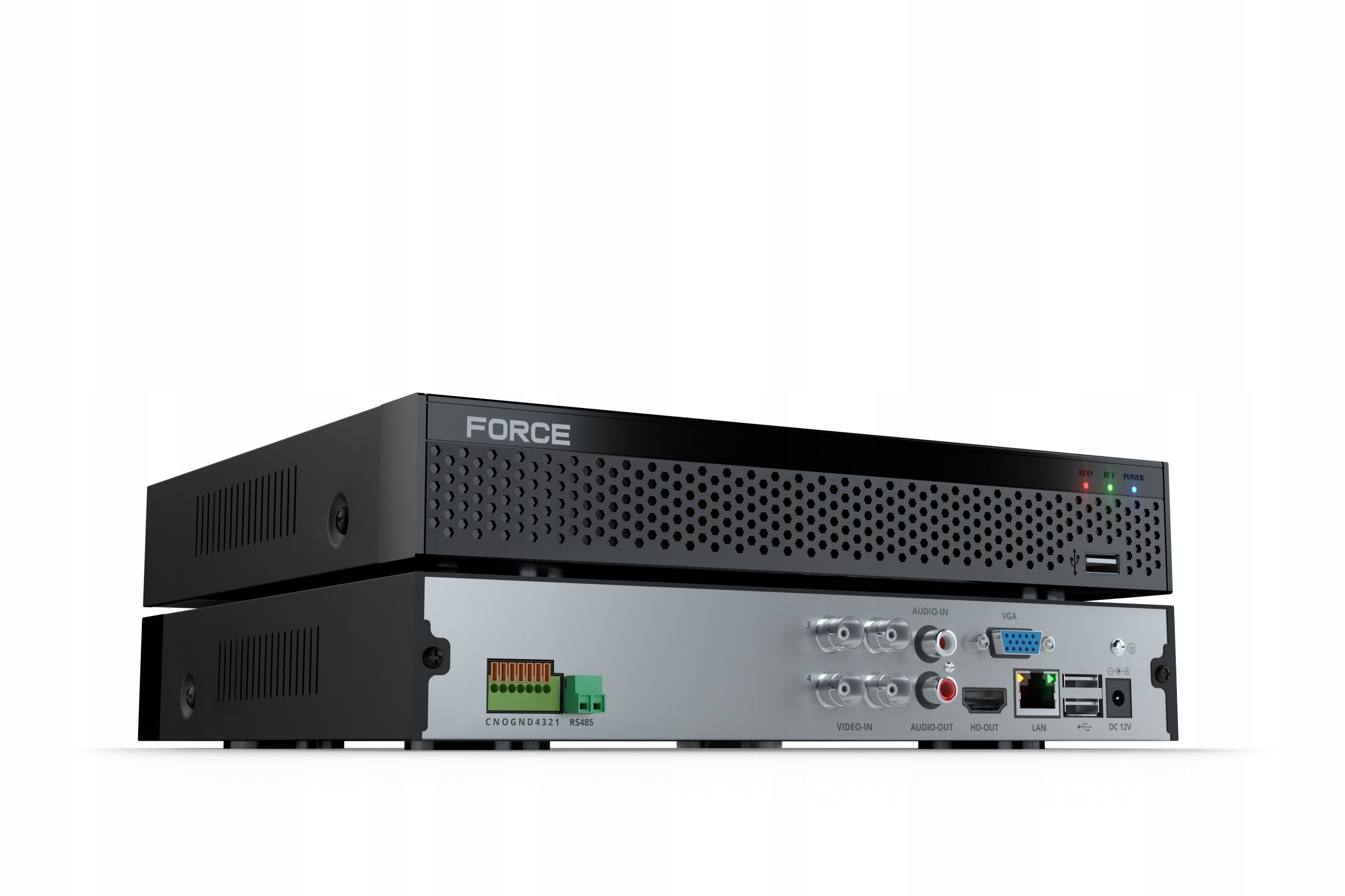

• Model: XVR-E-3004H1
• Number of channels: 4 AHD channels (max 8MPx) or 16 IP channels (max 5MPx) or 4 AHD channels + 4 IP channels simultaneously
• Resolution supported: up to 8Mpx AHD (4K 3840×2160), up to 5MPx IP (2K 2592x1944)
• Playback: 1-CH 4K@8 MP (30 fps)/2-CH@4 MP (30 fps)/ 4-CH@2-MP (30fps)
• Motion detection: Yes, supported
• Intelligent image analysis: on 4 channels, motion detection
• Video outputs: 1xHDMI, 1xVGA, 1x CVBS
• Video compression: H265+,H265,H264+,H.264, PAL, NTSC
• Audio compression: G.711u/G.711a
• Exit Alarm: 4x input, 1x output
• PTZ connector: 1x RS485 (Protocols: Pelco-D, Pelco-P)
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 8TB
• Mobile application: BitVision
• Supported protocols: IPv6/TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p, PPPOE
• Ethernet speed: RJ45 10M/100M
• Power Supply: DC12V

The recorder supports up to 4 AHD 8MPx cameras or 16 5MPx IP cameras from different manufacturers or 4 AHD cameras and 4 IP cameras at the same time. In order for the recorder to support more than one IP camera, the switch must be connected (not included). .

After connecting the cameras, the recorder will immediately display them on the connected screen.

Efficient H.265+ image compression - saves storage space and longer write times

Connect your monitor or TV to the DVR via the built-in HDMI and VGA connectors, and get a constant On-line preview on mobile devices (smartphone)

For all connected cameras, you will run motion detection, masking, etc.

ON-LINE Preview on every device running Windows, Android, iOS (PC, laptop, tablet, smartphone).

USB sockets will allow you to conveniently connect the mouse to control the recorder, as well as simultaneously connect a portable memory to rip recordings from cameras.

1. Video BNC input for connecting AHD cameras
2. Audio input
3. VGA output
4. Exit and alarm input
5. RS485 output (EIA-485) for controlling PTZ cameras
6. Audio input
7. HDMI input
8. RJ-45 socket connection to the Internet, after connecting the switch, the recorder can handle up to 16 IP cameras max 5MPx (only when AHD cameras are not connected)
9. USB sockets - connection of mouse or USB stick (pendrive)
10. Power socket (dedicated power supply is included with the recorder)

USB sockets will allow you to conveniently connect the mouse to control the recorder, as well as simultaneously connect a portable memory to rip recordings from cameras.

The sealed housing with class IP67 allows you to place the camera outside. The camera is resistant to weather conditions - rain, snow, low and high temperatures. High tightness class prevents dust from entering inside. The camera can operate in the temperature range -30°C to +50°C

• Converter: 1/2,5" CMOS sensor 8 Mpx
• Recording resolution: 3864 × 2192 (4K)
• Focal fixed lens 3,6 mm
• Angle of view: 109°
• Infrared illuminator: Smart IR20m
• Day/night switch: automatic
• Motion detection: Yes
• Image compression: PAL/NTSC
• Protection class: IP67
• Application: external or internal
• Power supply: 12VDC,
• Material: Plastic

The cameras from the set are equipped with automatic night mode - this means that when the illuminance in the environment drops, the cameras go into night mode, supported by an infrared illuminator. This feature allows you to record images 24/7 in any lighting conditions, ensuring complete visibility.

• The FORCE camera has a built-in motion detection algorithm - when moving objects are detected, the camera can send an alarm notification to the program and application.
• What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard disk, which positively affects its lifespan.

• Computer mouse
• 2x Power Supply
• 4x 18 meters, professional cable, BNC +DC for use in monitoring systems

The FORCE kit will allow you to secure the building with four cameras and contains everything needed to run. Cameras can be mounted both inside rooms, but also perfectly suited for outdoor use. Tight, housing class IP67 will withstand all weather conditions. You will have access to the cameras locally via TV or monitor, and via the local network and remotely on mobile devices. You can start and configure the entire monitoring system without any specialized knowledge or tools.
