Vaizdo stebėjimo kamera HiLook Hikvision, 6 Mpx, 3K+, IP, hibridinė, 4 vnt. komplektas

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamera HiLook Hikvision, 6 Mpx, 3K+, IP, hibridinė, 4 vnt. komplektas. Kategorija: Rinkiniai.

• Gamintojas: Hikvision
• Modelis: Zestaw IPC-B160HA-LU(x4)+NVR+HDD HIKVISION

4x 6Mpx Outdoor IP Camera | 1x 4ch Recorder | PoE Switch | 1x 1TB Drive | Wiring & Mounting Accessories

✅ IP monitoring kit in PoE technology with 4 Hybrid Light bullet cameras

✅ Excellent image quality thanks to the 1/2.4'' CMOS sensor with a resolution of 3200 × 1800p @6Mpx

✅ Cameras that can be mounted inside and outside the building - IP67 protection class

✅ Convenient camera installation thanks to the PoE camera powering function

✅ Built-in illuminators with Hybrid Light technology:

• IR infrared illuminating the scene at night up to 30 m from the camera
• white LED light illuminating the scene at night up to 20m from the camera

✅ Motion detection function - notifications in the application and recording of important events

✅ Built-in microphone for sound recording

✅ Alarm filtering algorithm with object recognition - human/vehicle

✅ Video overwriting function (loop recording)

✅ Hikvision 1TB heavy-duty hard drive included

✅ Online viewing on your computer, smartphone or tablet

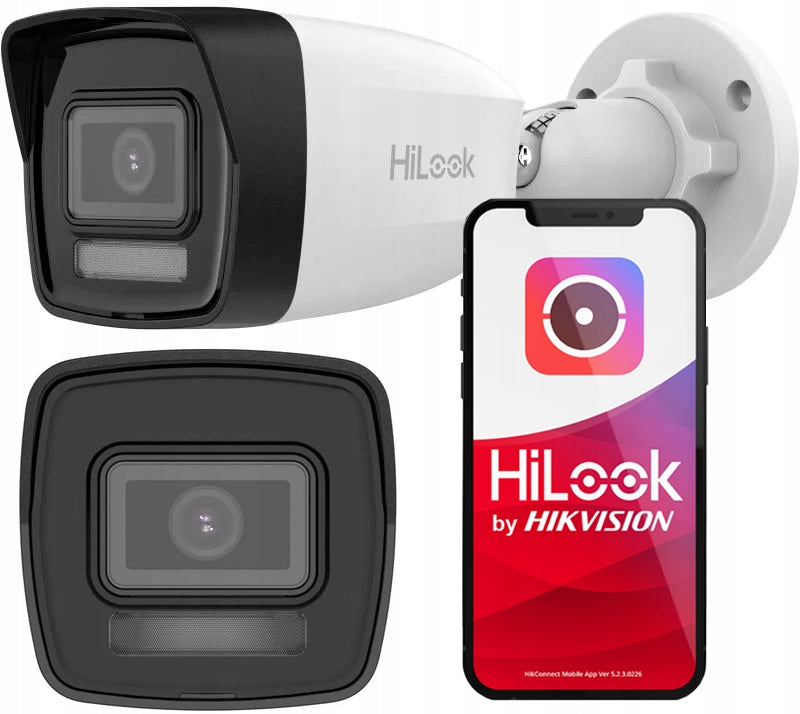

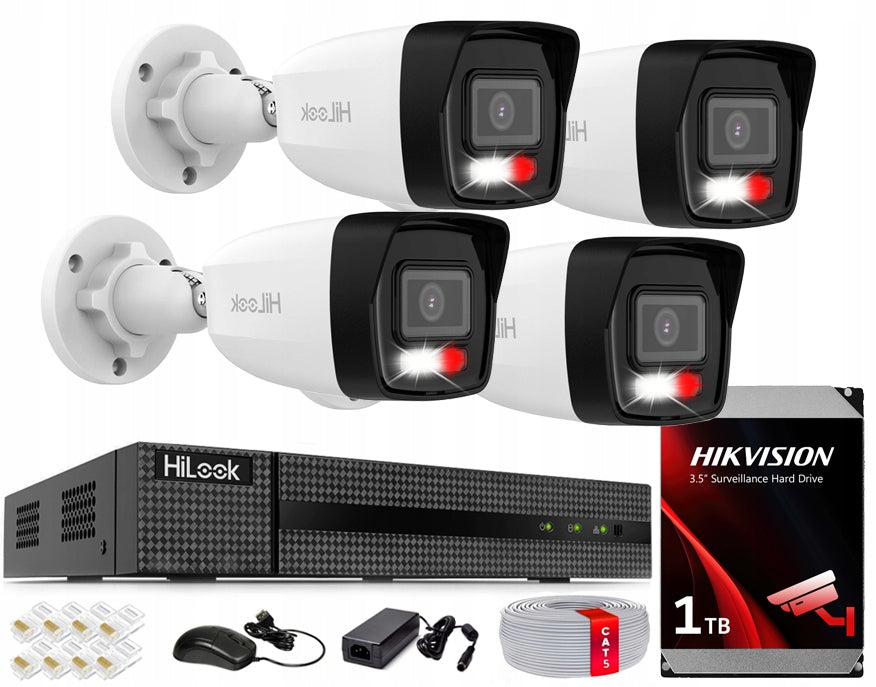

• 4 x 6Mpx horn outdoor camera - IPC-B160HA-LU HiLook by Hikvision
• 1 x 4-channel IP recorder - NVR-104MH-C HiLook by Hikvision
• 1 x PoE Switch 4+2 to power cameras EI-H1064PL
• 1 x Hard drive for CCTV - Hikvision Surveillanec 1TB
• 1 x UTP twisted pair cable - 20 meters
• 8 x RJ45 plug

The above system has been selected so that its installation is maximally simplified and intuitive. All devices and accessories are fully compatible with each other, and the instructions included in the kit will guide you step by step through the installation and configuration process. And if you encounter any problem, our experts are at your disposal.

HiLook surveillance systems can be controlled, configured, and operated using the intuitive HiLook App mobile application for smartphones and tablets, and the iVMS-4200 program for PCs. This gives the user constant control and supervision over the monitored area from anywhere in the world with internet access. The application and program allow you to:

• view live footage
• remotely play back recordings
• create scenarios and motion detection rules
• control PTZ (pan, tilt, zoom) cameras
• receive notifications about events within the system

The application uses the P2P cloud for operation, so the system does not need to have ports forwarded on the router.

The cameras included in the kit use innovative Hybrid Light technology - thanks to the built-in two types of illuminators, IR and LED, they enable effective observation at night both in infrared (black and white) and in full color. The range of the illuminators is 30 meters for the IR source and 20 meters for the LED source.

Thanks to this, they guarantee an even higher level of security, enabling effective identification of objects also by their color, in any lighting conditions.

The offered camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a lot of space on the hard drive, which positively affects its lifespan.

The advantage of the camera is the proprietary technology Motion Detection 2.0, allowing filtering false motion detection alarms and classifying objects on video recordings (human / vehicle).

Thanks to the algorithm, the camera will allow you to:

• Recognize moving people and vehicles with high accuracy.
• Limits the number of false alarms caused by falling leaves, insects, etc.
• Instantly informs about the detection of cars or people in the application by means of a "PUSH" notification

The recorder in the set supports the efficient H.265+ image compression standard. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant saving space on the hard disk and extending the archiving time of recordings on the disk.

The cameras included in the set are equipped with PoE (Power over Ethernet) power supply, making their installation extremely simple. Each camera with a focal point in which the recorder is located is connected using a single UTP category 5 cable (twisted pair).

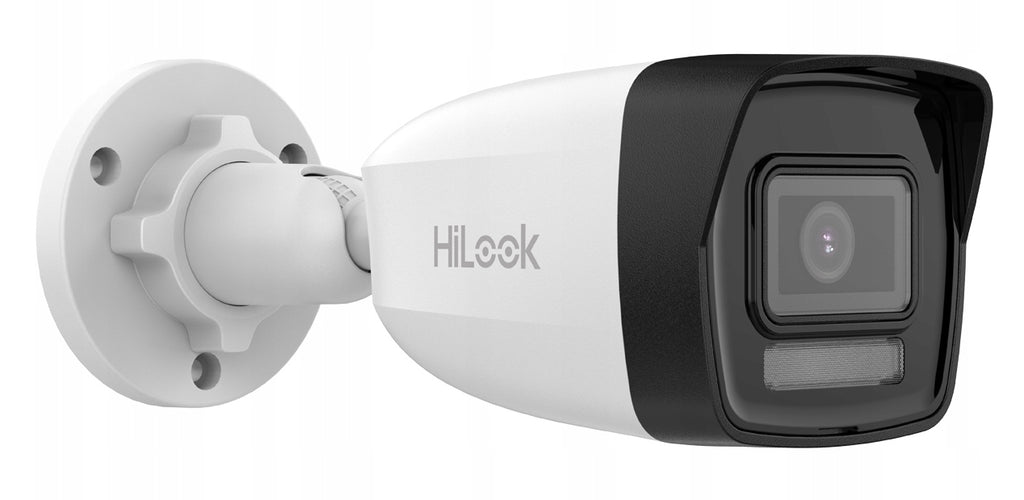

The IPC-B160HA-LU is a network model with a resolution of 6MPx, equipped with a dual illuminator (IR+LED), microphone and built-in image analysis algorithm MD2.0.

Technical parameters:

• Converter: 1/2.4” 6MPx CMOS
• Recording resolution: 3200 × 1800 @20FPS
• Lens: wide-angle 2,8 mm
• Recording angle: ~113°
• Image compression: H.265, H.264+, H.264, MJPEG
• Wide dynamic range: True WDR 120dB
• Digital Noise Cancellation: Yes - 3D DNR
• Built-in microphone: Yes
• Night mode: DUAL - color or infrared
• Infrared range: up to 30 m
• White light range: up to 20m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in HikConnect/ HiLook App: Yes
• Remote support: iVMS-4200, WEB interface, Application
• Assembly: external or internal
• Power Supply: 12V orPoE
• Leak-proof class: IP67
• Dimensions: 184.1 × 66 × 69.1 mm

Efficient 4-channel IP recorder with PoE power supply allowing you to support cameras with a maximum resolution of 8 megapixels.

• Number of channels: 4 IP channels
• Supported resolution: up to 8Mpx (4K 3840×2160)
• Decoding: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/4-ch@1080p (30 fps)
• Motion detection: Yes, supported
• Intelligent image analysis: on 1 channel, human/vehicle traffic filtering (MD2.0)
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 6TB
• Mobile app: HiLook App
• PoE power budget: < 50W
• Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
• Ethernet speed: RJ45 10M/100M
• Power Supply: 48VDC

Includes power supply and mouse.

The EI-H1064PL model by EIFLEX is a universal POE switch with a large power budget (65W) dedicated to connecting and powering network devices, such as IP cameras or IP video intercoms.

Parameters:

• Number of ports: 6
• PoE ports: 4x 10/100Mbps RJ45
• Uplink ports: 2x Uplink 10/100Mbps RJ45
• Switch type: Unmanaged
• Network protocols: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
• PoE power standard: IEEE 802.3af/at PoE+
• Single port power: up to 30W
• Total PoE power: 65W
• Capacity: 1.6Gbps
• EXTEND mode: Yes - transfer up to 250m @10Mbps
• Dimensions: 140*115*40mm
• Weight: 0.4kg
• Power supply: AC100-240V (built-in power supply)

Surveillance series drives are solutions dedicated to work 24/7 in CCTV systems and streaming systems. They are characterized by higher service life and resistance to high operating temperature.

Parameters:

• Format: 3.5"
• Interface: SATA III (6 Gbps)
• Cache: 64 MB
• Capacity: 1TB
• Configuration: automatic

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 8x RJ45 plug
• A set of instruction manual

The offered set guarantees trouble-free and smooth operation ensuring full safety of the monitored object or terrain. HiLook systems are solutions valued all over the world, with excellent technical parameters and the best value for money.
