Vaizdo stebėjimo kamerą rinkinys su 6 PoE IP kameromis, 4 Mpx

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamerą rinkinys su 6 PoE IP kameromis, 4 Mpx. Kategorija: Rinkiniai.

• Gamintojas: DVS
• Modelis: Zestaw kamer IP - DVS-NVR0801-POE+6xDVS-MP4028T-DL

💡 Why is it worth buying from us?

By buying from us, you gain not only proven equipment, but also professional support at every stage of the purchase. Thanks to this, you can easily choose the right solution, start devices faster and use them more conveniently every day.

🏢 We are one of the largest Polish companies specializing in the distribution and sale of monitoring systems, alarm systems and consumer electronics.

📘 We prepare our own detailed operating instructions for all our products, so that it will be easier for you to go through the independent process of commissioning and configuration of devices.

📱 The products we sell work on mobile applications without cumbersome advertising.

🛠 We have a technical support department that will be able to help you with most technical problems by phone or e-mail.

✅ By choosing our offer, you gain not only the product, but also experience, help and comfort of purchase.

⭐ Key features

✅ Complete IP surveillance kit with 6 external cameras, recorder, PoE switch and accessories

✅ High resolution 4Mpx – detailed image in Quad HD quality

✅ Dual Light IR/LED up to 30 m – clear image even after dark

✅ 105° wide-angle image – more convenient surveillance of a larger area

✅ PoE technology – one cable for power supply and data transmission

⚡ What else?

✅ Remote access via DMSS – preview and management from your phone or tablet

✅ SmartPSS Lite support – convenient system management on your computer

✅ Advanced image functions – DWDR, 3DNR, BLC, AGC, white balance

✅ Motion detection, privacy masks, image rotation

✅ IP67 resistance – reliable outdoor operation

✅ ONVIF compatibility – easy integration with other devices

✅ Stable RJ45 connection and simple Plug & Play setup

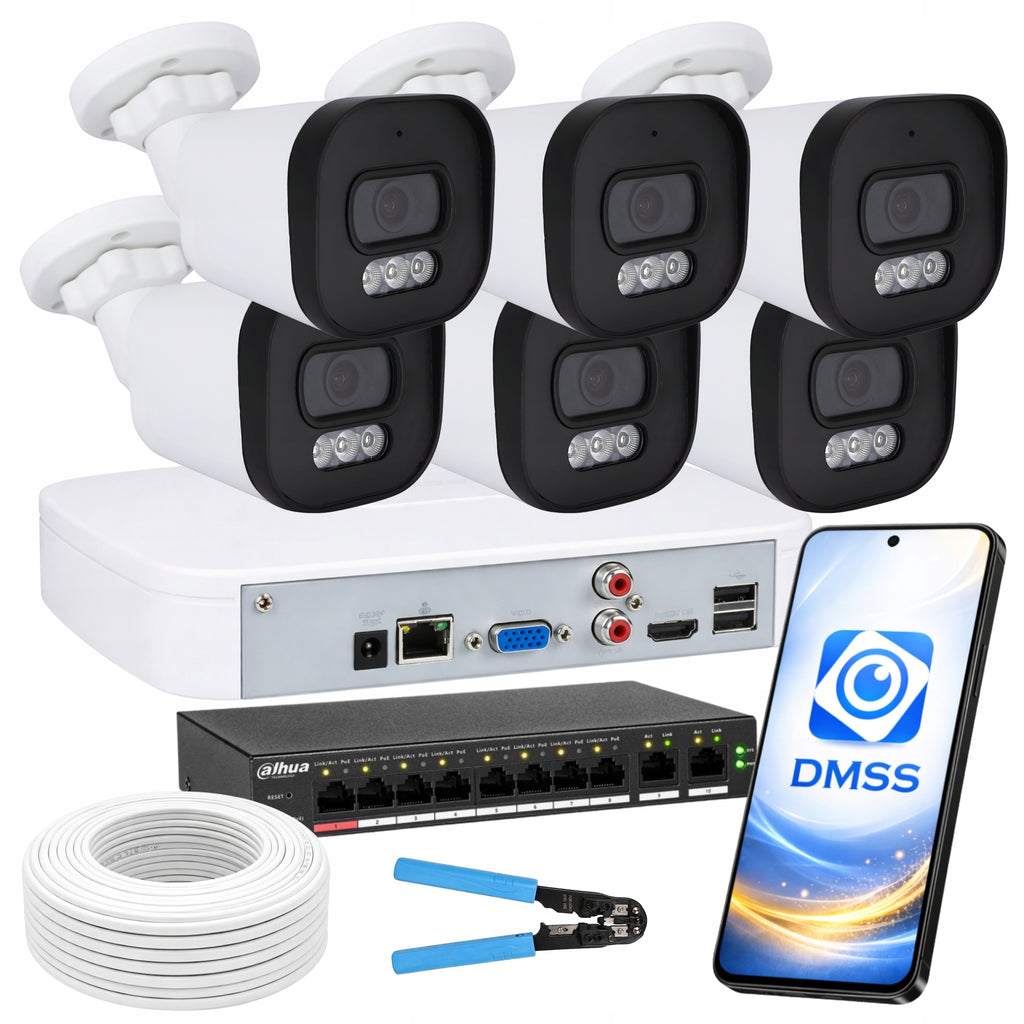

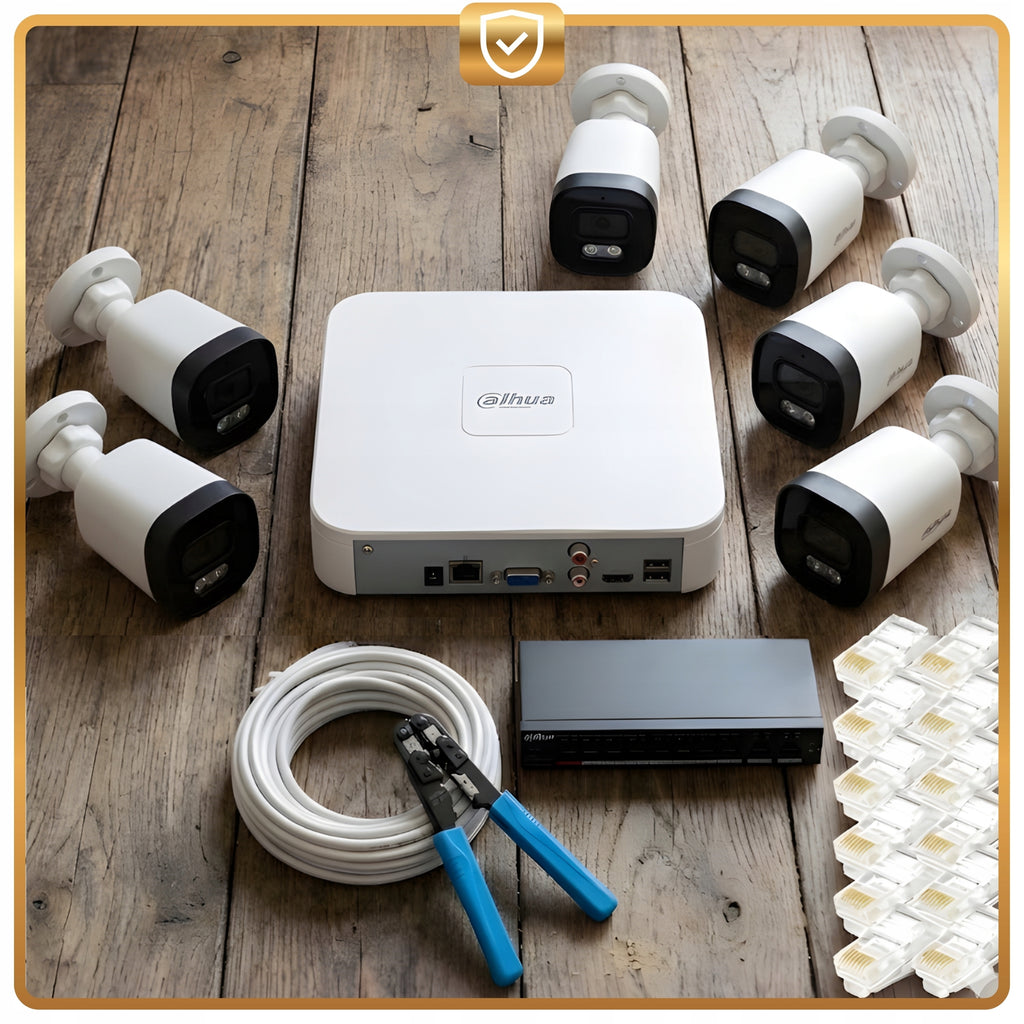

⚡ The set includes

✅ 1x Dahua recorder – NVR2108-4KS3

✅ 6x PoE IP camera – DVS-MP4028T-DL

✅ 1x Dahua managed switch – CS4010-8ET2GT-110

✅ 20x RJ45 plug

✅ 1x RJ45 plug crimper

✅ UTP cable – 40 m

⚡ Intuitive and simple installation

The DVS-GoldLine camera set is a complete and reliable IP surveillance system designed for durability and long life. Cameras, recorder, wiring and accessories are made of high quality components to ensure stable and trouble-free operation.

Installation is quick and intuitive – after connecting the devices, the system automatically detects the cameras and starts working. Thanks to PoE technology, power supply and data transmission are carried out with one cable, which simplifies installation and eliminates the need for additional power supplies.

Once up and running, you can immediately enjoy recording, live preview and remote management from your computer or mobile app. It is a Plug & Play solution that combines ease of use, reliability and security.

⚡ Discreet form, professional capabilities

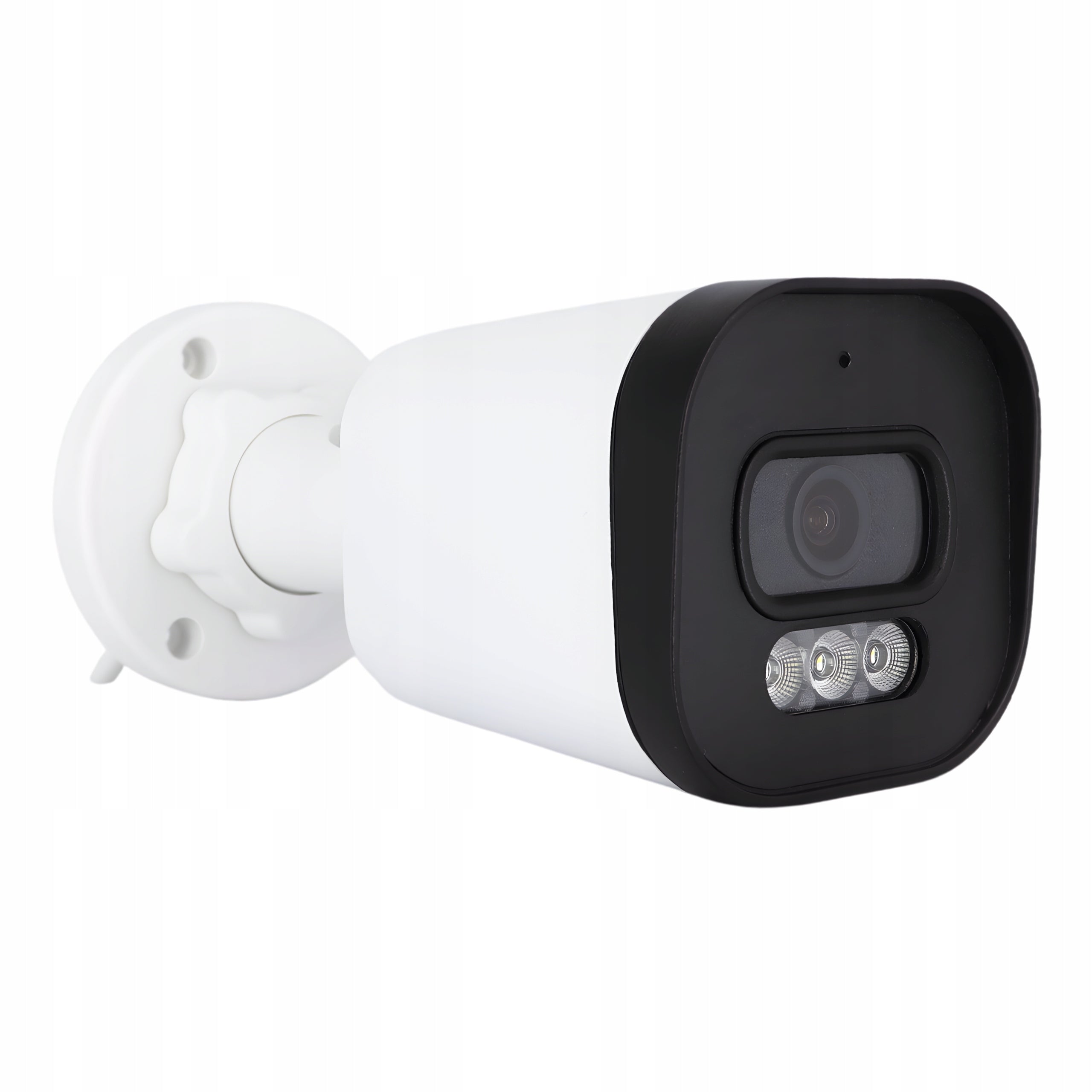

The DVS-MP4028T-DL is a horn IP camera from the DVS-GoldLine line, designed for round-the-clock work in monitoring systems – both at home, company, warehouse and on the property.

With its 1/2.8” CMOS sensor and 4Mpx resolution, the camera provides a clear and detailed image that makes it easy to recognize people, vehicles, and important details of the recording.

Wide viewing angle approx. 105° allows you to cover a larger area with one camera – it will work well when observing the driveway, entrance to the building, parking lot, gate or square around the object.

⚡ Built-in microphone – not only picture, but also sound

The camera is equipped with a built-in microphone, which allows you to record sound from the environment. Thanks to this, monitoring becomes even more effective – in addition to the image, you can also verify the situation based on the recorded sound.

This is especially useful in places such as:

• ✔ entrances to buildings
• ✔ reception
• ✔ warehouses
• ✔ offices
• ✔ parking

Sound can be an additional auxiliary material for event analysis and increases the level of security of the monitored area.

⚡ Ready to work in all conditions

The cameras are equipped with durable housings with tightness class IP67, which means a very high level of protection against external factors. They are completely protected against dust ingress, as well as resistant to rain, snow, moisture and harsh weather conditions.

• Leak-proof class: IP67
• Temperature range: –20°C to +60°C
• Housing: metal
• Type: tube / bullet
• Colour: white

Thanks to their robust construction, the cameras are perfect for working outdoors all year round – both during cold winter, intense rainfall, and on hot summer days. This solution is suitable for home, company, hall, warehouse, workshop or industrial area.

⚡ Advanced functionality and intelligent image processing

The cameras from the DVS-GoldLine line have been designed to offer not only high image quality, but also a set of practical functions to facilitate the daily operation of the monitoring system.

✅ Motion Detection - The built-in motion detection system automatically analyzes the image and responds to the appearance of objects in the monitored area. The camera allows you to define up to 4 independent detection zones.

✅ Image Improvement Features- The automatic parameter optimization system uses DWDR, BLC, 3DNR and AGC technologies. Thanks to them, the camera effectively copes with difficult lighting, contrast and noise.

✅ Image rotation - The 0° / 180° image rotation function allows you to easily adjust the orientation of the frame to the way the camera is mounted.

⚡ IP recorder – NVR2108-4KS3 and managed PoE switch – CS4010-8ET2GT-110

The NVR2108-4KS3 recorder is an advanced network device that combines high performance, intuitive operation and full compatibility with IP systems. Thanks to support for up to 8 network channels, it enables the construction of extensive monitoring systems.

The device supports modern H.265/H.264 codecs, allows for long-term recording of material and supports the ONVIF standard, which guarantees cooperation with a wide range of IP cameras. The HDMI 4K output allows comfortable viewing on the large screen and convenient playback of recordings directly from the recorder.

⚡ Remote Viewing – Full Control from Anywhere

The camera works with the free DMSS mobile application and SmartPSS Lite computer software, so you can manage monitoring as you like – from your phone, tablet or computer.

This way you can:

• ✔ watch the image live
• ✔ receive notifications about detected traffic
• ✔ play recordings from the recorder
• ✔ save photos and videos
• ✔ configure basic system settings
• ✔ manage more devices in one place

⚡ IP technology and PoE power supply

The IP camera transmits the image digitally over the network cable, which ensures a stable connection, high quality recordings and greater data transmission security.

The use of the RJ45 connector eliminates common wireless connection problems such as interference or signal loss.

PoE (Power over Ethernet) power supply allows you to transfer images and power with one cable, which significantly simplifies installation and reduces the amount of wiring. The camera can also be powered by 12V DC.

⚡ IR Infrared Mode

IR (infrared) is an invisible light emitted by camera diodes, which allows you to record the image even in complete darkness.

✅ Black and white image

✅ Discreet, invisible lighting

✅ No insect attraction

✅ Effective night observation without drawing attention to the environment

Lighting range: up to 30 meters

⚡ LED mode - white light

When motion is detected, the camera automatically activates LEDs, which illuminate the observed area and allow you to record a color image even in complete darkness.

✅ Color image at night

✅ Natural colour reproduction

✅ Perfect solution for completely dark places

• Lighting range: up to 30 meters
• Sensitivity: 0,01 Lux

In addition, DWDR, BLC, AGC, 3D DNR technologies ensure image clarity and stability even in difficult lighting.

⚙ Technical information

• Type: IP Camera
• Model: DVS-MP4028T-DL
• Resolution: 4Mpx (2560 × 1440)
• Transducer: 1/2.8" CMOS
• Lens: fixed focal length 2.8 mm
• Viewing angle: 105°
• Microphone: YES
• Day/night mode: Color / B&W
• Night light: IR / LED up to 30 m
• Compression: H.265 / H.264
• Video Streams: 2
• Motion detection: yes, 4 zones
• Privacy Masks: not
• Image rotation: 0° / 180°
• Protocols: ONVIF
• Power supply: PoE (IEEE 802.3af) / 12V DC
• Connector: RJ45
• Leak-proof class: IP67
• Working range: –20°C to +60°C

⚙ Technical information of the registrar

• Model: NVR2108-4KS3
• Type: IP recorder
• Channel support: up to 8 IP channels
• Compression: H.265 / H.264
• Video Output: HDMI 4K
• Disk support: yes
• Compatibility: ONVIF

⚙ Technical information of PoE switch

• Model: CS4010-8ET2GT-110
• Type: PoE managed switch
• Features: PoE Watchdog, VLAN, port isolation
• Long range mode: up to 250 m
• Uplink: 2 Gigabit ports
• Management: WEB / DoLynk Care
• Housing: metal
• Additional protection: overvoltage protection
• Hi-PoE support: 90 W

⭐ FAQ

❓ What is an IP camera and how does an IP surveillance system work?

An IP camera is a modern device that transmits an image in digital form over a computer network. Unlike analog systems, it offers higher quality recordings, remote access, and easy setup.

❓ What is PoE in IP cameras and why is it worth having?

The PoE (Power over Ethernet) technology allows you to transfer power and data with a single cable. This makes installation simpler, faster and more aesthetically pleasing – without the need for additional power cables.

❓ What is the difference between IP and analogue (AHD) monitoring?

The IP system transmits the image digitally, which provides much higher resolution, connection stability and greater remote viewing capabilities. Analog monitoring (AHD) has limited image quality and is more difficult to expand.

❓ How to connect IP monitoring kit step by step?

The DVS-LightLine kit is a Plug & Play solution – just connect the cameras to the recorder using Ethernet cables (UTP). The devices will be automatically detected and the system will be ready to work in minutes.

❓ Do IP cameras need to be connected to electricity, or is a network cable enough?

No need for a separate power supply – just one mains cable. Thanks to PoE technology, cameras receive power and transmit images with the same cable.

❓ Does the IP camera set work without the Internet?

Yes, the system works locally without a permanent Internet connection. The Internet is only needed if you want to have a remote view or control the system from the mobile application.

❓ Is the IP surveillance camera set safe?

Yes, the system is completely secure – data transmission takes place wired and is encrypted. Access to the cameras is password protected and only possible for authorized users.

❓ Can you view the image from the monitoring system on your phone?

Yes. The DVS-VIEW LITE app allows you to view live video, play recordings and receive notifications. It runs smoothly, is fully in Polish and does not burden the mobile device.

❓ Where are the recordings from the monitoring set saved?

Recordings from the cameras are saved on the hard drive installed in the recorder. It is worth having it in your set, because without a disk, the system only allows you to view the image online, without the ability to archive events and play recordings.

❓ What is the best IP camera for your home or business?

The best IP camera is one that combines high image resolution, good night sensitivity and stable performance in various weather conditions. The ease of installation, reliability of the wired connection and the quality of the image sensor, which determine the readability of recordings in everyday use, are also crucial.
