Vaizdo stebėjimo kamerų rinkinys DAHUA, 8 PoE IP, 6 Mpx, su Dual LED, 1TB

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamerų rinkinys DAHUA, 8 PoE IP, 6 Mpx, su Dual LED, 1TB. Kategorija: Rinkiniai.

• Gamintojas: Dahua
• Modelis: ZESTAW 8 KAMER TUBOWYCH 6MPX POE DAHUA DUAL LIGHT

☑ PROFESSIONAL MONITORING KIT WITH ARTIFICIAL INTELLIGENCE DAHUA ⬇

Reliable set of renowned manufacturer Dahua for self-assembly with horn cameras, supporting 6Mpx 3200x1800 resolution.

✔ Looking for proven and efficient monitoring?

✔ Don’t want to overpay for unnecessary functions?

✔ Do you have the time and desire to mount the cameras yourself?

✔ Do you care about professional image and reliable performance?

We have something that will meet all your expectations!

____________________________________

We have something that will meet all your expectations!

Reach for a set created for maximum comfort and reliability! Carefully selected, 100% compatible devices and a set of accessories mean that you can immediately go to assembly and configuration – quickly, efficiently and without surprises. Ready set, ready solution!

⭐Most important features⭐

✅ Complete surveillance kit with 8 cameras, recorder and all necessary accessories.

✅ Equipment from the renowned brand DAHUA

✅Advanced camera features!

✅Remote view from anywhere in the world

✅ High image quality 6Mpx

✅ Visibility at night up to 30 meters

✅ Smart Dual Light – built-in IR and LED illuminator

✅ Full-Color - color image technology around the clock

✅ Human detection – SMD human classification

✅ Motion detection - notifications when motion is detected

✅ Built-in microphone - recording sound

✅ Cameras with the possibility of mounting inside or outside

✅ Sturdy housing with tightness class IP67

✅Fast switch PoE with built-in power supply

✅Dedicated for continuous operation, disk 1TB

✅Application and program for computer in Polish

✅ Intelligent detection of motion, line crossings, entry into the area

✅ Flexible recording schedule and privacy zones

✅ Stable and secure connection with LAN cable

✅ Disk support up to 20TB and write in 'loop'

✅Free technical support

✅Instruction for use

⭐ DMSS – full control over monitoring on your phone! ⭐

After installing the free application on your phone or tablet, you can manage the entire monitoring system from anywhere.

Main features of the application:

• Live view from real-time cameras

• Play and download recordings stored on the recorder disk

• Push notifications on the phone when motion is detected

• Remote management of functions, such as motion detection or recording schedule

• Multi-user access – up to 64 accounts

Easy local and remote operation

It is also possible to manage your system from your computer or laptop using Smart PSS.

In addition, the recorder is equipped with HDMI and VGA outputs, which allow for convenient, local viewing of the image on a TV or monitor.

It’s a solution that gives you comfort and control – wherever you are.

Serve as comfortable as you can!

1. By phone
2. Computer
3. Television
4. Tablet
5. Monitor
6. Laptop

⭐WHY OUR IP MONITORING⭐

Our products come from official polish distribution . Unlike devices imported from abroad, we offer you certainty of origin, trouble-free service and technical support in Polish . By choosing equipment from an official distribution channel, you gain not only the security of your purchase, but also access to a reliable warranty and professional advice.

Economical monitoring systems do not have this!

The system will detect an intruder and send a notification to your phone, and thanks to advanced artificial intelligence functions, it will distinguish between a human, an animal, or a plant. You will only receive a notification when something suspicious actually happens.

You can draw lines or areas on the image , crossing which will generate an alarm and send a message to your phone. False alarms will then not occur and you will ensure maximum security.

Protecting an object that is important to us does not have to involve high expenses of several thousand zlotys. We strive to offer solutions that provide optimal parameters at an affordable price for customers who want to protect their :

• ✅ HOME
• ✅ APARTMENT
• ✅ OFFICE
• ✅ PLOT
• ✅ GARDEN
• ✅ MAGAZINE
• ✅ CONSTRUCTION
• ✅ PARKING
• ✅ SHOP
• ✅ UNRESIDENTIAL OBJECTS

⭐ The most important features of the set⭐

✔️ Human Detection!

The advanced SMD image analysis algorithm precisely distinguishes human figures within the monitored area. This technology effectively eliminates false alarms caused by moving branches, animals, or other irrelevant objects, while providing accurate information about real threats – from people.

✔ Dual night light up to 30 meters!

Smart Dual Light is a feature in cameras that automatically adjusts lighting to light and motion conditions. The camera has a built-in infrared (IR) illuminator for night recording and a white LED light that turns on when it detects movement.

We have 3 operating modes at our disposal: IR - infrared only, LED - only white light and Smart Dual Light - after dark, the camera uses IR mode as standard and records black and white image, without emitting visible light. If a human appears in the field of view, the camera automatically switches to color mode and activates LED lighting. This allows it to record more details – such as the color of clothes, car or face – only when needed. It is discreet, energy-efficient and effective.

✔ Schedule of recordings!

Choose from six types of recording trigger events (continuous, event, motion detection, alarm, motion and alarm, motion or alarm) and freely select the materials you are interested in. Choose recording days and times, add holidays and exceptions to save your valuable time and hard disk space.

✔ PoE power!

PoE (Power over Ethernet) is a technology that allows you to power the camera and transfer images using one network cable (LAN). Thanks to this, you do not need to run an additional power cable, which simplifies installation, reduces installation costs and makes the whole system look more aesthetically pleasing. Simply connect the camera to the PoE switch.

✔ Recordings to your hard drive in an automatic loop!

Professional hard drive SkyHawk™ 1TB from the renowned brand Seagate, designed for continuous operation in monitoring systems. Adapted to 24/7 operation, it offers reliable operation for up to 1 000 000 hours. In addition, the system supports the loop recording function with automatic overwriting of the oldest recordings, so you can be sure that the recorder will never stop recording due to lack of space.

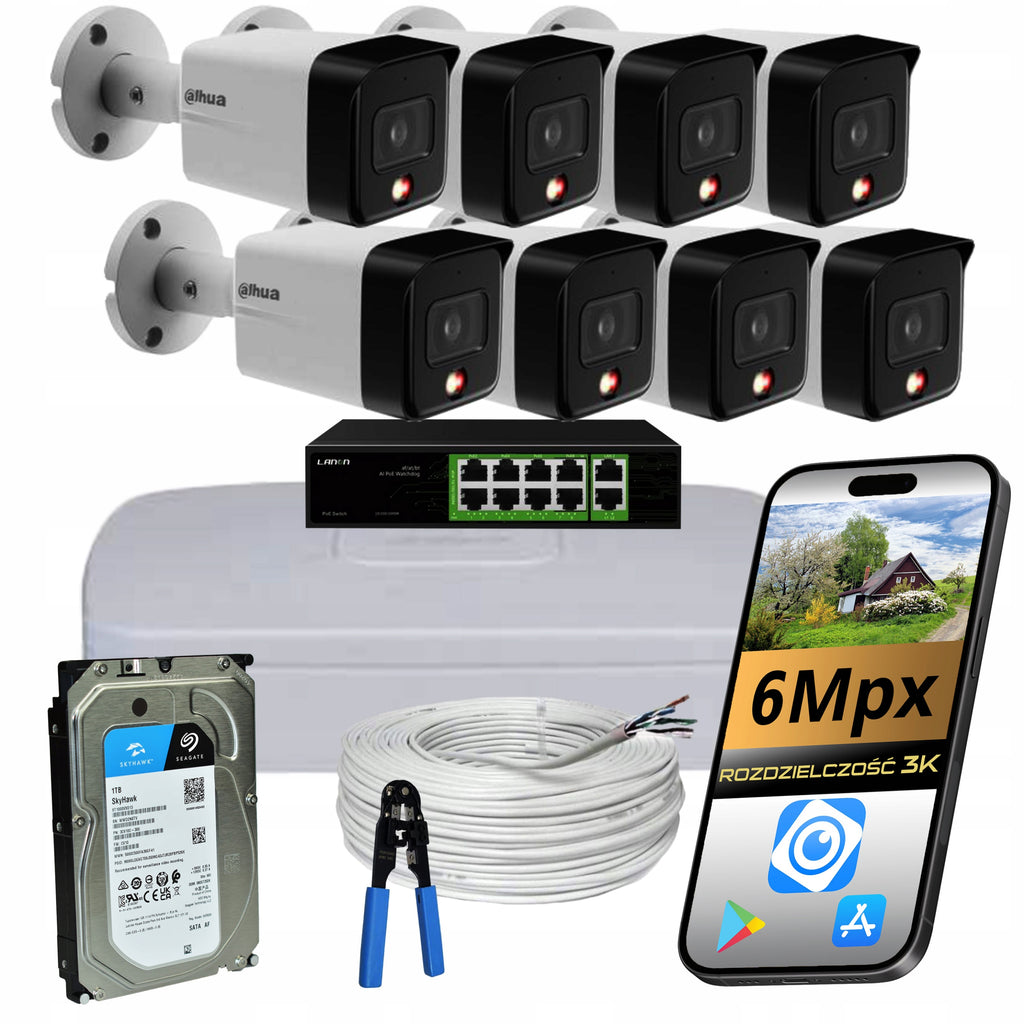

⭐The composition of our set⭐

☑ 8x IPC-HFW1639TC-A-IL-0280B-S6 – IP camera 6 Mpx in a durable housing with IP67 protection class

☑ NVR2108-4KS3 – IP recorder model enabling operation of the system by a phone application

☑ LN-S82-120W - PoE Switch Smart Network Switch Supporting Up to 8 PoE Cameras

☑ HDD 1TB – dedicated for 24/7 monitoring (CCTV)

☑ UTP computer twisted pair – 40 meters – twisted pair from the renowned manufacturer DAHUA

☑ Set of 20x RJ45 plugs – for self-termination of wires

☑ Professional crimper – for mounting RJ45 terminals

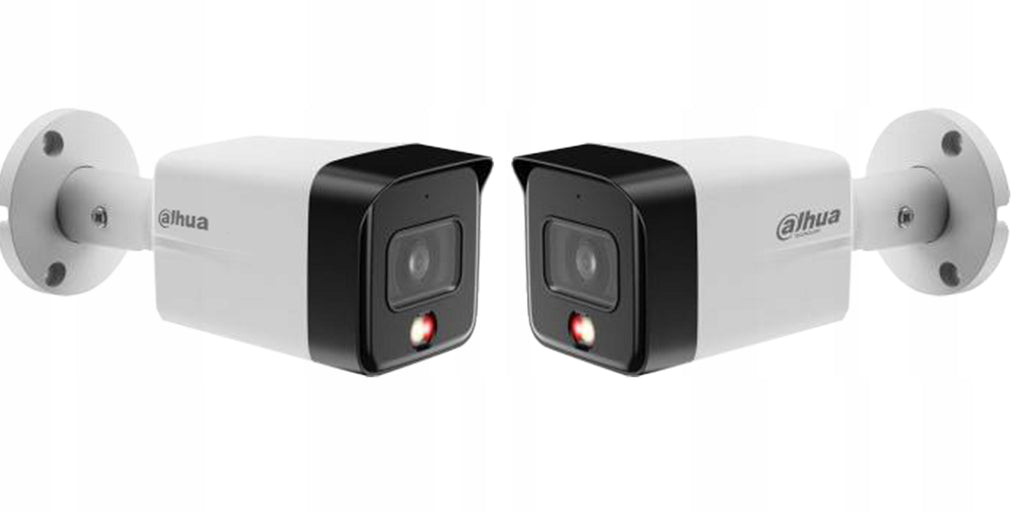

✔ POE IP Camera Dahua IPC-HFW1639TC-A-IL-0280B-S6

The modern Dahua IP camera from the Entry S6 series is an excellent choice for external and internal applications. Thanks to the sealed, metal housing (IP67), it is resistant to rain, dust and changing weather conditions, and thanks to the PoE power supply, installation is quick and convenient – one network cable is enough for data transmission and power supply. The wide viewing angle of 110° enables effective surveillance of large spaces.

The camera captures high-resolution 6 Mpx (3200x1800 pixels) images at 20 fps, providing exceptional recording detail. The Smart Dual Multi-core technology automatically switches between infrared lighting (IR) and white light depending on the detected movement and conditions – the illumination range reaches up to 30 meters. The Full-Color function allows you to get a color image even in complete darkness. The camera also has advanced image analysis functions – classification of people SMD, which effectively filters false alarms. Thanks to the built-in microphone , it is possible to record sound, and a rich set of image enhancement functions (WDR 120 dB, 3D DNR, BLC, HLC, AWB) provides a clear and crisp image in all lighting conditions. The camera allows remote viewing via a browser, mobile application or Dahua software.

Technical Specifications IPC-HFW1639TC-A-IL-0280B-S6

Sensor: 1/2.7" CMOS

Max. Resolution: 3200 x 1800

ROM: 128 MB

RAM: 256 MB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s - 1/100,000 s

Sensitivity: 0.007 Lux @F1.6 (Color, 30 IRE) 0.0007 Lux @1.6 (B/W, 30 IRE) 0 Lux (Illuminator On)

Signal-to-Noise Ratio: > 56 dB

Illumination Distance: Infrared: 30m, White Light: 30m

Illuminator Control: Auto/Manual

Number of Illuminators: 1x (IR+LED)

Adjustment Range: Horizontal: 0°-360° Vertical: 0°-90° Rotation: 0°-360°

Lens Type: Fixed Focal M12 2.8 mm

Aperture: F1.6

Field of View: Horizontal: 110°, Vertical: 58°, Diagonal: 132°

Aperture Type: Fixed

DORI Distance: Detection: 63.6 m, Observation: 25.4 m, Recognition: 12.7 m, Identification: 6.4 m

Video Compression: H.265, H.264, H.264B, MJPEG (Auxiliary Stream Only)

Intelligent Encoding: Smart H.265+/ Smart H.264+

Frame Rate & Resolution: Main Stream: 3200 x 1800 (1-20fps), 2688 x 1520 (1-25fps), Sub Stream: 704 x 576 (1-25fps) 704 x 480 (1-30fps)

Streaming: 2 Streams

Resolutions: 6Mpx (3200x1800), 4Mpx (2880x1620/2688x1520), 3Mpx (2048x1536/2304x1296), 1080P (1920x1080), 1.3Mpx (1280x960), 720P (1280x720), D1 (704x576/704x480), VGA (640x480), CIF (352x288/352x240)

Video Bit Rate: H.264: 32 kbps-8192 kbps, H.265: 12 kbps-8192 kbps

BLC (Backlight Compensation): Yes

HLC (Highlight Compensation): Yes

WDR (Wide Dynamic Range): Yes

DWDR (Digital): Yes

White Balance: Auto/Natural/Street Lamp/Outdoor/Manual/Custom

Gain Control: Auto, Manual

Noise Reduction: 3D NR

Motion Detection: Enable/Disable (4 rectangular zones)

ROI (Region of Interest): Yes, 4 areas

Intelligent Illumination: Yes

Smart Dual Light: Yes

Image Rotation: 0°/90°/180°/270° (Supports 90°/270° at 2688 x 1520 and lower)

Mirror: Yes

Privacy Masks: 4 rectangular areas

Built-in Microphone: Yes

Audio Compression: G.711a, G.711Mu, G.726, PCM

AI ANALYTICS: Human Detection, Supports classification and accurate detection of people

Smart Search: With NVR, events triggered by specific object types can be extracted

Alarm Events: Network Disconnection, IP Address Conflict, Illegal Access, Motion Detection, Video Tampering, Sound Detection, Security Exception, SMD

Network Interface: RJ-45 (10/100 Base-T)

SDK & API: Yes

Cyber Security: Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; X.509 certificate generation and import; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P

Standards Support: ONVIF (Profile S/Profile T), CGI

Users: 20 (Total Bandwidth: 48 M)

Storage: FTP

Browser: IE: IE8, IE9, IE11, Chrome, Firefox

Management Software: Smart PSS Lite, DSS, DMSS, DoLynk Care

Mobile Devices: iOS, Android

Certifications: CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power Supply: DC 12V, PoE DC 48V (802.3af)

Power Consumption: Basic: 2.0 W (12VDC), 2.9W (PoE), Max: 4.0 W (12VDC), 5.3 (PoE)

Operating Temperature: -40 °C to +60 °C

Permissible Humidity: Up to 95%

Storage Temperature: -40 °C to +60 °C

Protection Rating: IP67

Housing: Metal

Color: White

Dimensions: 173.3 x 70.0 x 70.0 mm

Weight: 550 g

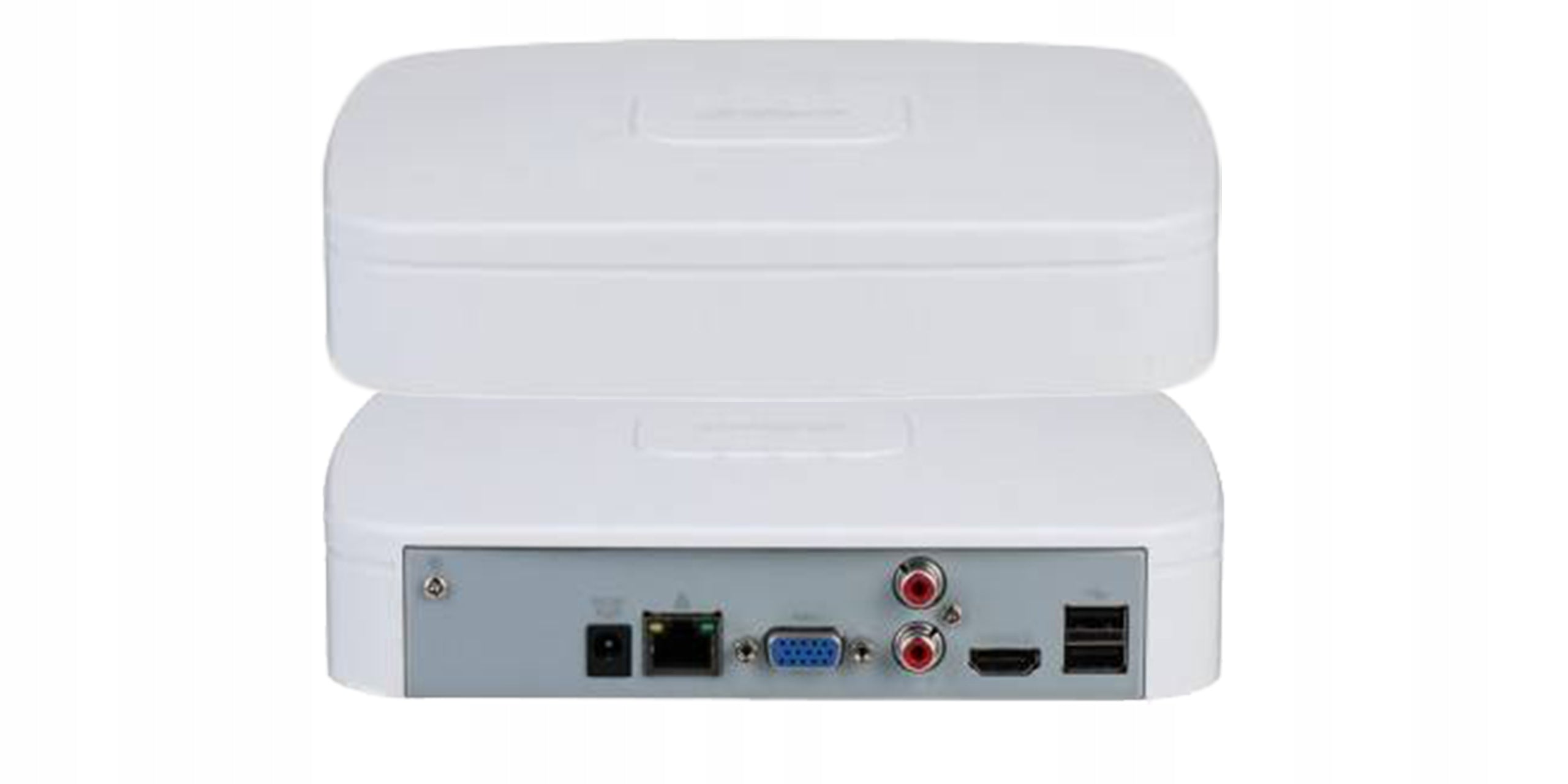

✔ Dahua NVR2108-4KS3 IP Recorder

The compact and efficient Dahua Lite series network recorder is perfect for small and medium-sized monitoring systems. Supports up to 8 IP cameras with a resolution of up to 12 Mpx, providing detailed image recording with a maximum bandwidth of up to 80 Mbps. Thanks to the use of AI technology, such as SMD Plus and perimeter protection (from cameras), the system can recognize people and vehicles, eliminating false alarms caused by rain, leaves or light.

(Advanced features must also be supported by connected cameras)

The recorder supports multiple compression modes (Smart H.265+, H.265, Smart H.264+, H.264, MJPEG), which allows for cost-effective data storage without loss of quality. It has one HDMI output and one VGA, as well as the ability to play recordings simultaneously from up to 8 channels. The built-in SATA connector allows you to install a hard drive with a capacity of up to 20 TB. Thanks to its compact dimensions and the possibility of mounting in a rack or on a desk, the device is easy to fit into any installation. The recorder offers remote viewing and full management via a mobile application (iOS, Android), a web browser or Dahua software.

Technical Specifications NVR2108-4KS3

Number of Channels: 8 Channels

Network Bandwidth: 80 Mbps Incoming 80 Mbps Recording 60 Mbps Outgoing

Resolution Support: 12Mpx, 8Mpx, 5Mpx, 4Mpx, 3Mpx, 1080p, 720p, D1

Decoding Capability (AI Off): 1x 12Mpx @30fps, 1x 8Mpx @30fps, 2x 5Mpx @30fps, 3x 4Mpx @30fps, 6x 2Mpx @30fps

Decoding Capability (AI On): 1x 8Mpx @30fps, 1x 5Mpx @30fps, 2x 4Mpx @30fps, 4x 2Mpx @30fps

Video Outputs: HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720

Screen Split: 1/8

NVR AI: SMD Plus

Camera AI: Perimeter Protection, SMD Plus

Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

Audio Compression: G.711a, G.711u, PCM, G726

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search (Supports IP Camera, DVR, NVS, etc.), P2P, Auto Registration

Interoperability: ONVIF 22.12 (Profiles T, S, G), CGI, SDK

Simultaneous Playback: Up to 8 Channels

Recording Mode: Normal, Motion Detection, Intelligent, Alarm

Backup: USB Device and Network

Playback Mode: Instant Playback, Normal Playback, Event Playback, Timeline Playback, Smart Playback

General Alarm: Motion Detection, PIR Alarm, IPC External Alarm

Alarm Events: Error (Disk Full, Disk Error, Insufficient Space, Network Disconnected, IP Conflict, MAC Conflict), Video Signal Loss, Video Tampering, Camera Offline

Smart Alarm: Perimeter Protection, SMD Plus

Alarm Linkage: Record, Snapshot, Buzzer, Indicator, Log, Email

Audio: 1x Input (RCA) 1x Output (RCA)

Hard Drive: 1 SATA Port (Up to 20TB Capacity)

USB: 2 Rear USB 2.0 Ports

Video Outputs: HDMI 1x VGA 1x

Network Port: 1 x 10/100 Mbps Ethernet Port, RJ-45

Power Supply: 12 VDC, 1.5 A

Power Consumption: < 10 W (without HDD)

Weight: 450g

Dimensions: 204.6 x 206.4 x 45.6 mm

Height: 1U

Operating Temperature: -10 °C to +55 °C

Permissible Humidity: 10%-93% (Relative, Non-condensing)

Certifications: CE-LVD, IEC 62368-1:2014, CE-EMC:, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017 +A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

✔ PoE Switch LN-S82-120W

Switch PoE is a reliable network device designed for monitoring systems. It allows you to power your cameras simultaneously and transfer images with a single network cable, eliminating the need for additional power supplies. Equipped with 8 PoE ports and 2 uplink ports, it is suitable for installations requiring stable data transmission and simplicity in installation.

The device supports signal transmission over a distance of up to 130 meters, and the total power supply is 120W, with the possibility of connecting one camera with increased consumption (up to 60W). The built-in AI Watchdog automatically restores port operation when a failure is detected, which ensures maintenance-free operation of the entire system. Robust construction, surge resistance and a wide operating temperature range guarantee reliable operation in various conditions.

Technical specification of LN-S82-120W

Ports : PoE 1-6: 10/100Mb/s (RJ45 PoE) / PoE 7-8: 10/100Mb/s (RJ45 PoE with 60W High Power support) / LAN 1-2: 10/100Mb/s (RJ45 Uplink)

Transmission speed : 200 Mbps Full Duplex (simultaneous communication in both directions)

100 Mbps Half Duplex (alternating communication in both directions)

10 Mbps Half Duplex (alternating communication in both directions)

Transmission distance : 130m for 10Mbps / 130m for 100Mbps automatic adaptation

Performance specification : Capacity: 2.0 Gbps

Network delay : (10/100 Mbps): ≤16μs (64 bytes package size)

MAC address table: 2K

Frame filter and bit rate: - maximum 14800pps for 10M port - maximum 148800pps for 100M port

Network standard : IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt PoE

Power Input: AC 90~240V Total Power ≤120W

AI Watchdog: ports 1-8

Power Output: - PoE Ports 1-6: 1/2(+52V), 3/6(GND) ≤30W - PoE Port 7-8: 1245(+53V), 3678(GND) Compatible with 1/2(+52V), 3/6(GND) ≤60W

Protection against atmospheric discharges: 6KV, according to IEC61000-4-5

Protection against electrostatic discharge: 8KV, according to IEC61000-4-2 standard

Size: 187 x 139 x 43mm

Weight: 1.0kg

Working temperature: -30℃-60℃

Storage temperature: -40℃-70℃

Working humidity: 10%-90% non-condensing

Storage humidity: 5%-90% non-condensing

Certification : CE FCC Part 15, RoHS Class B 2.0

✔ Additionally included

✅Hard drive

• 1x SEAGATE SKYHAWK 1TB – for 24/7 continuous operation

✅A set of plugs necessary for the proper operation of the system

• 20x RJ-45

✅Ethernet cable clamp

• 1x HT-210N

✅UTP cable Dahua (Computer twisted pair)

• 40 meters* UTP Cat.5e (max. PoE distance 160m)

*possibility to buy more cable:

• Additional 50m – Offer number: 17475452999
• Additional 100m – Offer number: 12873175414

⭐ Why choose this monitoring kit?

Looking for a comprehensive and reliable solution to secure your home, business, or property? This IP 6 Mpx monitoring kit from Dahua is the perfect choice for those who value simplicity, quality and safety. The set includes cameras with excellent image quality, a reliable recorder with the possibility of remote viewing and a PoE switch that allows you to power and transfer images with one cable. It’s a ready-made, complete solution – just plug it in and it works!

The system provides clear images both day and night, weather resistance, as well as maintenance-free operation thanks to intelligent functions and robust construction. Perfect for anyone who wants to have a calm head and full control over their surroundings.

The most important features of the set:

✅ Full support for 8 IP cameras – the ability to expand the system according to your needs

✅ High image quality 6 Mpx – clear details, wide viewing angle 110° and good visibility at night (IR up to 30 m)

✅ Smart Dual Light – built-in IR and LED illuminator - activation of white LED light when human is detected

✅ Full-Color technology - color image around the clock

✅ Human detection SMD – cameras distinguish a human from other objects, which effectively reduces false alarms

✅ Built-in microphone - cameras support audio recording

✅ H.265+ compression recorder – more recordings with less disk space consumption

✅ Remote access from the application – preview and operation of the system from anywhere by phone or computer

✅ Switch PoE included – one cable for power supply and data transmission – quick and simple installation

✅ Stable operation thanks to AI Watchdog – automatic detection and repair of possible transmission errors

✅ Weather resistance (IP67) – cameras work reliably outside and inside

✅ Ready-made Plug&Play set – everything you need in one set

Invest in professional security – bet on a proven, complete monitoring system from Hikvision!

⭕ OFFER NUMBER: 17922402902

Specifications
