Vaizdo stebėjimo kamerų testeris CS-H7-50H, AHD/TVI/CVI/CVBS/IP/POE/ONVIF

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamerų testeris CS-H7-50H, AHD/TVI/CVI/CVBS/IP/POE/ONVIF. Kategorija: Priedai.

• Gamintojas: Prolech
• Modelis: IPC-5100 Plus

5 inch IPS touch screen camera tester is designed for maintenance and installation of analog cameras (CVI, TVI, CVBS, AHD) and IP cameras. The screen resolution of is 1920x1080, which allows you to display FHD cameras in high resolution. The device supports and supports many protocols such as ONVIF or PTZ.

From now on, you only need one device for everything - thanks to it you will improve working conditions and increase productivity.

• CCTV camera tester
• 5 inch touch screen display
• Resolution: 1920x1080
• Camera test - Blow, HikVision, Dahua, etc.
• Creating reports
• Additional power output
• 4K video display
• Video signal quality test
• Support for coding H.265+/H.265/H.264+/H.264
• Detection of IP addresses with the touch of a button
• Built-in Wi-Fi
• Creates a Wi-Fi Hotspot
• Software for Windows/iOS
• Test RJ-45 cable
• BNC video input
• PTZ control and control
• Flashlight
• Lithium polymer battery

⏺ Support for resolution

• HDTVI -8MP 3840 x 2160P 15 FPS - UTC Control & Menu
• CVI - 8MP - UTC Control and Menu
• AHD - 8MP - UTC Control and Menu
• IP - 8MP 3840x2160P
• CVBS

⏺ Rapid-Onvif and Protocols

Support for Onvif protocol. The tester can easily activate the cameras or modify their IP address. Onvif aims to unify all elements of data transfer between devices. With Onvif, you can be sure and compatible.

In addition, the device contains more than 100 private "Non-onvif" protocols.

⏺ Automatic search

The tester has the ability to automatically search for cameras from the DHCP address pool. You do not have to manually enter the settings of each camera, the tester will search for DHCP cameras to make your work easier.

⏺ Power over Ethernet

The tester has the ability to power the camera with PoE technology and freely modify the settings with the help of the built-in port RJ-45. Simply plug in the camera and enjoy the live image in the tester. In addition, the tester is equipped with a DC 12V/3A output, thanks to which we can also test cameras without PoE technology

⏺ Create full reports

The tester allows you to create many types of reports. At the time of creation, it creates a PDF file, with any name and date of creation. The perfect tool to present evidence to customers about the correctness of the configuration or the lack of adequate network coverage with WiFi cameras.

⏺ Device inputs and outputs

1. Power button [On/Off]
2. SD card slot
3. DC 12V/3A Output
4. RJ45
5. HDMI input
6. BNC Entry
7. Power supply DC 12V/1A IN
8. RS485
9. Headphone Input
10. UTP - Cable test
11. VGA
12. Flashlight

⏺ HDMI IN

The HDMI input allows you to connect the recorder and check the appropriate previews or change the basic settings. The ideal solution to speed up the installation process of entire monitoring systems.

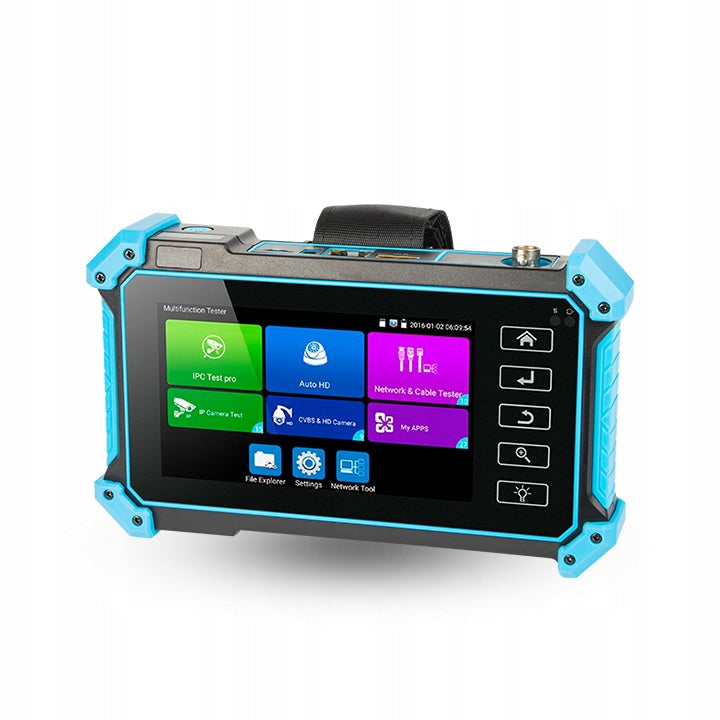

⏹ Menu and interface of tester

⏺ Technical Specifications:

Screen

• 5.4-inch Touchscreen IPS Display, 1920x1080 Resolution

Video Mode

• CVBS -

  1 channel BNC input, NTSC/PAL (automatic adaptation)

  PTZ control, RS485 control, Baud 600-115200bps, compatible with over 30 protocols such as PELCO-D/P, Samsung, Panasonic

• IP Camera Tester (4K/H.265/H.264) -

  IP Discovery/Quick ONVIF/IP Camera Test/RTSP Play/Client APK

  Rapid Video - Automatic video preview, test reports

  Hikvision Test Tool - Camera activation, image test, parameter modification, IP configuration

  Dahua Test Tool - Dahua camera test, parameter modification, IP configuration

• Analog Tester -

  8MP TVI -  3840 x 2160P 15 FPS, UTC/OSD control

  8MP CVI  - 3840 x 2160P 15 FPS, 2560 x 1440P 25/30 FPS, UTC, OSD Menu

  8MP AHD  - 3840 x 2160P 15 FPS, 2560 x 1440P 25/30 FPS, UTC, OSD Menu

• Zoom - Zoom, screenshot, recording, saving, browsing, recording and playback

Power Output

• PoE: 48V PoE output, 25W maximum
• DC 12V/3A

RJ45 Tester

• TDR cable test, cable damage and short circuit detection, length test

UTP Tester

• Cable connection status and display on the screen

Network Tester

• Link monitor, port flashing, PING test

Audio Tester

• 1 channel audio input, 1 channel headphone output

HDMI/VGA

• HDMI: 4K 30FPS
• VGA: 1920x1200 60FPS

Data Monitor

• Analysis of command data from the device

Drop-down Menu

• Yes, PoE power/IP settings/CVBS/LAN information, etc.

Power Supply

• DC 12V/1A

Battery

• Built-in 7.4V lithium-polymer battery, 3350mAh

Battery Life

• Charging 4-5 hours, working time - ~ 6 hours

Settings

• OSD Menu, language selection – Including Polish!

Auto-off

• 1-30 minutes

Operating Temperature

• -10°C---+50°C

Humidity

• 30%-90%

Dimensions/Weight

• 183mm x 110mm x 36mm / 0.32kg

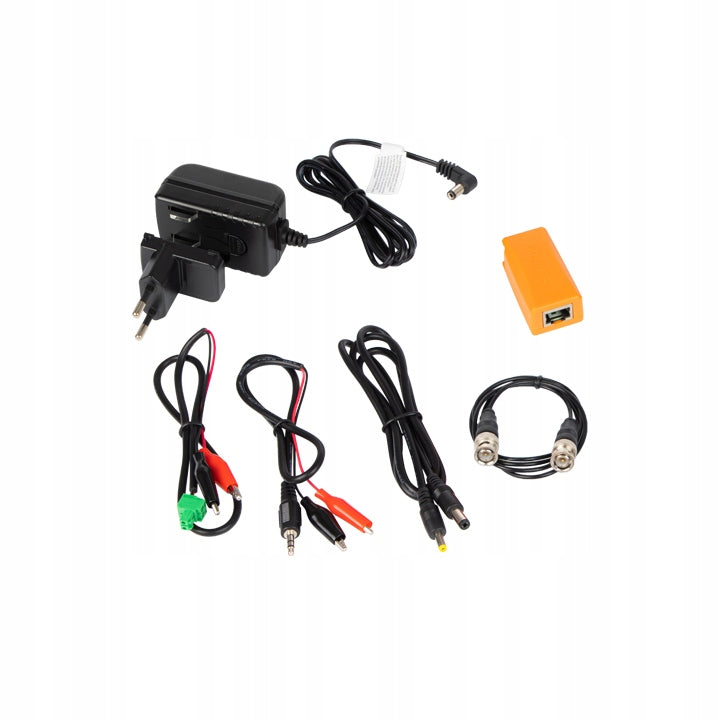

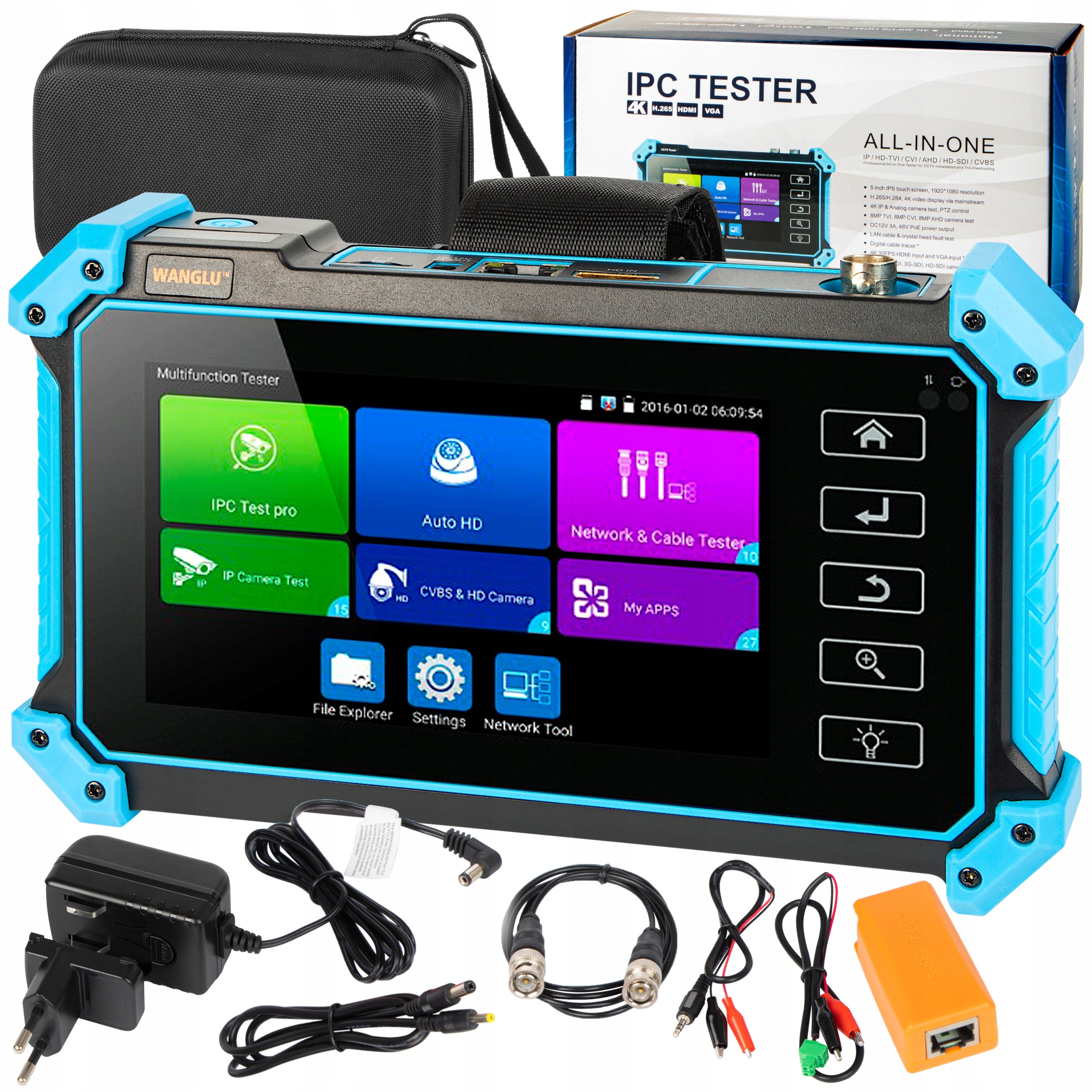

⏺ Contents of the set:

• Tester
• DC12V/1A power supply
• Battery (7.4V DC 3350mAh)
• Tool bag
• Power cable
• BNC cable
• RS485 cable
• Audio cable

CE certified

BLOW products are CE certified, which confirms compliance with fully stringent European Union standards regarding, among others, health safety and environmental protection.
