Aprašymas
Trumpai apie prekę
Prekė: Vaizdo stebėjimo komplektas HiLook Hikvision, 4 x 4Mpx IP kameros, PoE, IR iki 20 m, 1TB kietasis diskas. Kategorija: Rinkiniai.
- Gamintojas: Hikvision
- Modelis: Zestaw CCTV 4MPx IPC-B141H-C(x4) NVR PoE KIT
4x 4MPx IP Camera | 4CH PoE HiLook Recorder | 1TB Drive | Mounting Accessories
Complete 2K monitoring from HiLook by Hikvision
Complete 2K 4MPx surveillance for home or business, thanks to which you can see clearly faces/events, you will gain preview on your phone and 24/7 recording – without combining with power supplies (power via PoE). The set is ideal as a monitoring system in:
- offices in the company
- home
- apartment
- shop
Why choose this set?
✅ Clear 2K (4MP) image – easily recognize details on recordings
✅ Recording at night up to 20m - cameras equipped with IR illuminators
✅ Power supply after PoE - cameras you can power directly from the recorder
✅ Passed preview on phone - in HikConnect application from Hikvision
✅ 24/7 recording to a 1TB HDD - dedicated to work in monitoring systems
✅ Motion Detection – recordings exactly when something is happening
✅ Complete ready-to-assemble kit – cameras, recorder, disk and accessories in one package
In the set we offer you get a complete, ready to install set based on high quality, branded components.

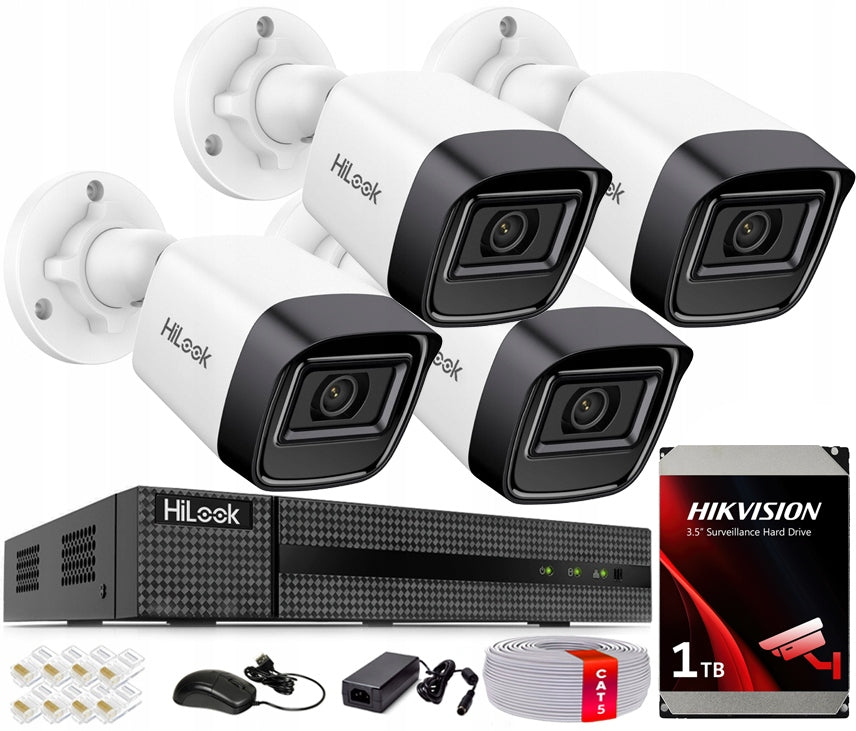

This set includes:

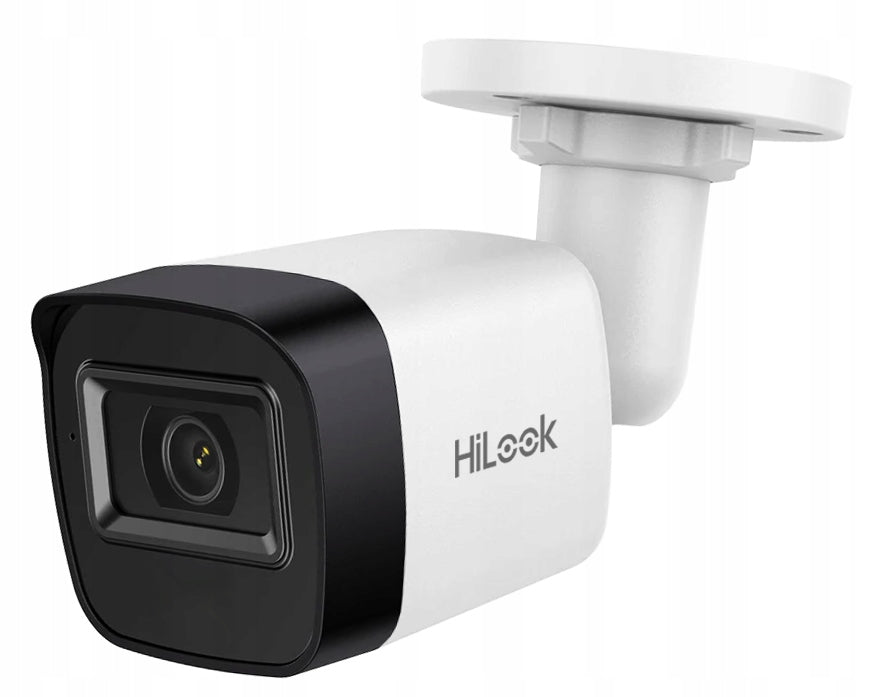

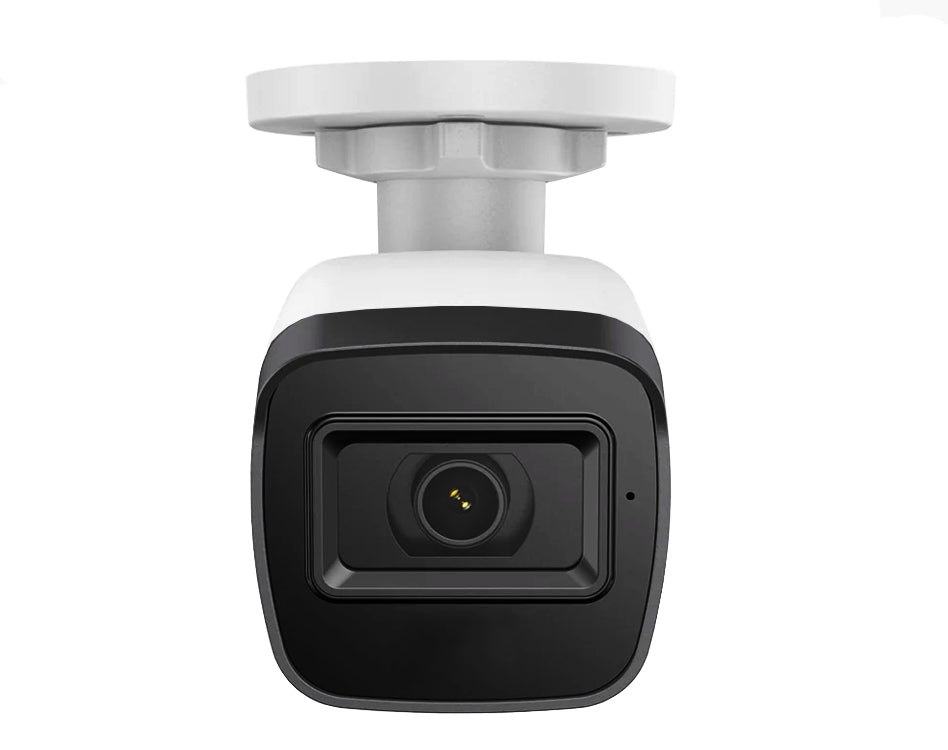

- 4x Tube camera 4Mpx (2560x1440 True 2.5k) - IPCAM-B4-P HiLook by Hikvision
- 1x 4-channel IP recorder with PoE switch - NVR-4CH-4MP/4P HiLook by Hikvision
- 1x Drive hard to CCTV ( 24/7 recording) - Hikvision Surveillance 1TB
- 1x UTP twisted pair cable - 20 meters
- Information sticker "Monitored Object" by EC System
- 8x RJ45 plug
- You mount cameras in selected places (wall, facade, ceiling)
- You connect cameras with one network cable to the recorder – PoE power supply and image in one cable
- You plug the cables into the recorder and connect it to the Internet (home router)
- You install a free mobile app and add a system
- Ready – you have live view and access to recordings from anywhere
Features of the set:
The system enables remote viewing of live images and playback of recordings both on the smartphone and on the PC. Thanks to the free mobile application, you have constant access to cameras from anywhere – at home, at work or on the go. Operation is simple and intuitive, and you can see all the cameras on one screen, which gives you full control over what is happening on the property or in the company.
The IPCAM-B4-P camera is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator with a range of 20m.
This function allows you to record images via 24/7 in any lighting conditions.
The offered camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.
What’s more, recording in motion detection mode, the camera allows you to save a lot of space on the hard drive, which positively affects its lifespan.
The cameras included in the kit are equipped with PoE (Power over Ethernet) power supply, making their installation extremely simple. Each camera with the recorder is connected using a single UTP cable.
- Converter: CMOS 1/2.8” 4MPx
- Image resolution: 2560 × 1440p @20fps
- Lens: wide-angle 2,8 mm
- Recording angle: ~100 degrees (wide-angle)
- Image compression: H.265+, H.265, H.264+, H.264
- Double Stream: Yes
- Wide dynamic range: digital WDR
- Digital Noise Cancellation: Yes - 3D DNR
- Other functions: ROI, BLC, Motion detection, Mirror, EXIR
- Infrared range: up to 20 m
- P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
- Support in the Hik-Connect mobile app: Yes
- Remote view: Hik-Connect, iVMS-4200, browser WEB
- Assembly: external or internal
- Housing: plastic
- Power Supply: 12V or PoE
- Leak-proof class: IP67
- Number of channels: 4 IP channels with PoE power supply
- Resolution supported: up to 4Mpx 2560x1440p
- Decoding: 1-ch @ 4 MP / 2-ch @ 1080p
- Motion detection: Yes, supported
- Video outputs: 1xHDMI, 1xVGA
- Video compression: H265+,H265,H264+,H.264
- USB connectors: 2x USB 2.0
- Max. number of drives: 1 (built-in 1TB drive)
- Max. Disk capacity: 6TB
- Mobile app: HiLook App
- Remote support: IVMS-4200, WEB Interface, application
- Switch PoE: Built-in
- PoE power budget: < 50W
- Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
- Ethernet speed: RJ45 10M/100M
- Power Supply: 48VDC
The disk in the set is a model from the Surveillance series, dedicated to monitoring, characterized by a higher service life.
- Capacity: 1TB
- Cache: 64 MB
- Interface: Serial ATA III
- rpm. /min: 5400 rpm
⭐ The drive guarantees about 12 days of 24/7 recording for this set ⭐
UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors
The set includes a set of necessary accessories, allowing you to install, power, and connect the system:
- 1x wired mouse
- 1x UTP cable for DVR
- 1x 48V power supply for DVR
- 8x RJ45 plug
- A set of instruction manual
- Sticker "Monitored Object" by EC System
The presented set guarantees trouble-free and smooth operation of the monitoring system. The Hikvision brand systems are solutions valued all over the world, with unbeatable operating parameters and the best value for money.
Frequently Asked Questions (FAQ)
✅ What do I gain by choosing a branded monitoring kit?
First of all, stable operation, refined mobile application and predictability of use for years, without problems with connection or operation.
✅ Can I handle assembly without technical knowledge?
Yes. Thanks to PoE technology, installation is simple – each camera requires only one cable, and the configuration is intuitive.
✅ Can I have a preview of the cameras on my phone and computer?
Yes. The system allows remote live view and playback of recordings on your smartphone and PC from anywhere.
✅ Does monitoring work at night?
Yes. The cameras have night mode (IR), which provides a clear image after dark up to 20 meters.
✅ How many recordings can fit on a 1 TB drive?
The drive allows for approx. 12 days of 24/7 continuous recording - depending on settings and traffic intensity, this time may be extended (e.g. by recording only when motion is detected)
✅ Is this set suitable for home and business?
Yes. It will work both in the single-family house, as well as in the shop, office or on the company property.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Zestaw CCTV 4MPx IPC-B141H-C(x4) NVR PoE KIT |
| Parametry | Model | Zestaw CCTV 4MPx IPC-B141H-C(x4) NVR PoE KIT |
| Parametry | Brand | Hikvision |
| Parametry | Product width | 10.18 cm |
| Parametry | Product height | 14.7 cm |
| Parametry | Product depth | 2.61 cm |
| Parametry | Product weight | 1 kg |
| Parametry | Product weight with unit packaging | 3.42 kg |
| Parametry | Technology | IP |
| Parametry | Number of supported cameras | 4 |
| Parametry | Maximum recording resolution | 4 Mpx |
| Parametry | Lens | fixed-focus |
| Parametry | Infrared range | 20 m |
| Parametry | Camera waterproof rating | IP67 |
| Parametry | Installed disk capacity | 1 TB |
| Parametry | Maximum number of supported drives | 1 |
| Parametry | Maximum capacity of drives | 6 TB |
| Parametry | Video compression | H.265+ |
| Parametry | Number of USB ports | 2 |
| Parametry | EAN (GTIN) | 5906667321586 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Batteries included | no |
| Parametry | Video outputs | HDMI,VGA |
| Parametry | Other ports | RJ45 10/100Mbps,SATA III do dysku,Switch 4x PoE |
| Parametry | Functions | phone app,motion detection,PoE,digital zoom |
