Vaizdo stebėjimo komplektas ORLLO POESET 4 su 4 kameromis, 5 Mpx, POE

Trumpai apie prekę

Prekė: Vaizdo stebėjimo komplektas ORLLO POESET 4 su 4 kameromis, 5 Mpx, POE. Kategorija: Rinkiniai.

• Gamintojas: Orllo
• Modelis: POESET-4

⚙ Specifications⚙ :

☑ Model: ORLLO NVR1 9CH 4K GUI5.0 DVR

☑ Processor: ARM Cortex A7 Processor

☑ Operating system: Linux

☑ Channel support: 9 (9x ONVIF 2.4)

☑ Throughput: 80MB

Recording parameters

☑ Resolution support:

3840x2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720

☑ Recording resolution: 8MP(3840x2160), 5MP(2592×1944),

4MP(2688×1520/2560×1440), 3MP(2048×1536), 1080P(1920×1080),

960P(1280x960), 720P(1280×720), D1 (720×576/720×480)

☑ Recording(FPS):

PAL :4K@8x25fps,5MP@9×25fp,4

MP@9x25fp,3MP@9×25fp,1080P@

9×25fp, 960P@9×25fp,720P@9×25

fp, D1@9×25fp

NTSC: 4K@8x30fps,5MP@9×30fp,4

MP@9×30fp,3MP@9×30fp,1080P@

9×30fp, 960P@9×30fp, 720P@9×3

0fp, D1@9×30fp

☑ Video Codec: H264 ; H264+ ; H265 ; H265+

Preview parameters

☑ Screen split during preview: 9 channels / 8 channels / 4 channels /

1 channel

☑ Channel display:

9CHxD1/8CHxD1/4CHxD1/1CHx10

80P/1CHx3MP/1CHx4MP/1CHx5M

P/1CHx4k

☑ Display resolution:

1024x768/60Hz，1280x720/60Hz, 1280x1024/60HZ,

1920x1080/60Hz，4K(3840x2160)/30Hz

☑ Playback of saved recordings:

1CH 4K@30fps, 1CH 5MP@30fps,2

CH 4MP@30fps, 2CH 3M@30fps, 4C

H 1080P@30fps, 4CH 960P@30fps,

4CH 720P@30fps

Additional functions

☑ P2P Support: YES(P2P) (via mobile app)

☑ CMS (PC): Windows 7/8/10

☑ Supported by web browser: IE811, Google Chrome (lower than Ver44), Firefox (lower than Ver53)

☑ Poland Mobile App: iOS and Android

Network information

☑ Network interface: 10Base-T/100Base-TX, RJ45 connector

☑ Protocol support: TCP/IP, HTTP,HTTPS, UPnP, DNS, N

TP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P,PPPOE

☑ ONVIF Support: 2.4

Other

☑ Audio Bit Rate: 64kbps

☑ Audio compression: G711u, G711a, G726

☑ Audio Port: 1 RCA Port (Linear, 1kΩ)

☑ Built-in buzzer: Yes

☑ Port: 2x USB 2.0 / RJ45 (1x WAN) RS485

☑ Output: 1xVGA / 1xHDMI

☑ Disk support: Up to 8TB (SATA 3.5'' and 2.5'' mounting)

☑ Power supply: 12V/2A

☑ Power consumption: 4W (with HDD)

☑ Operating temperature: -10°-55°; humidity: 90%

☑ Weight: approx. 660g

☑ Dimensions: 260*215*43mm

⚙ Specification⚙ :

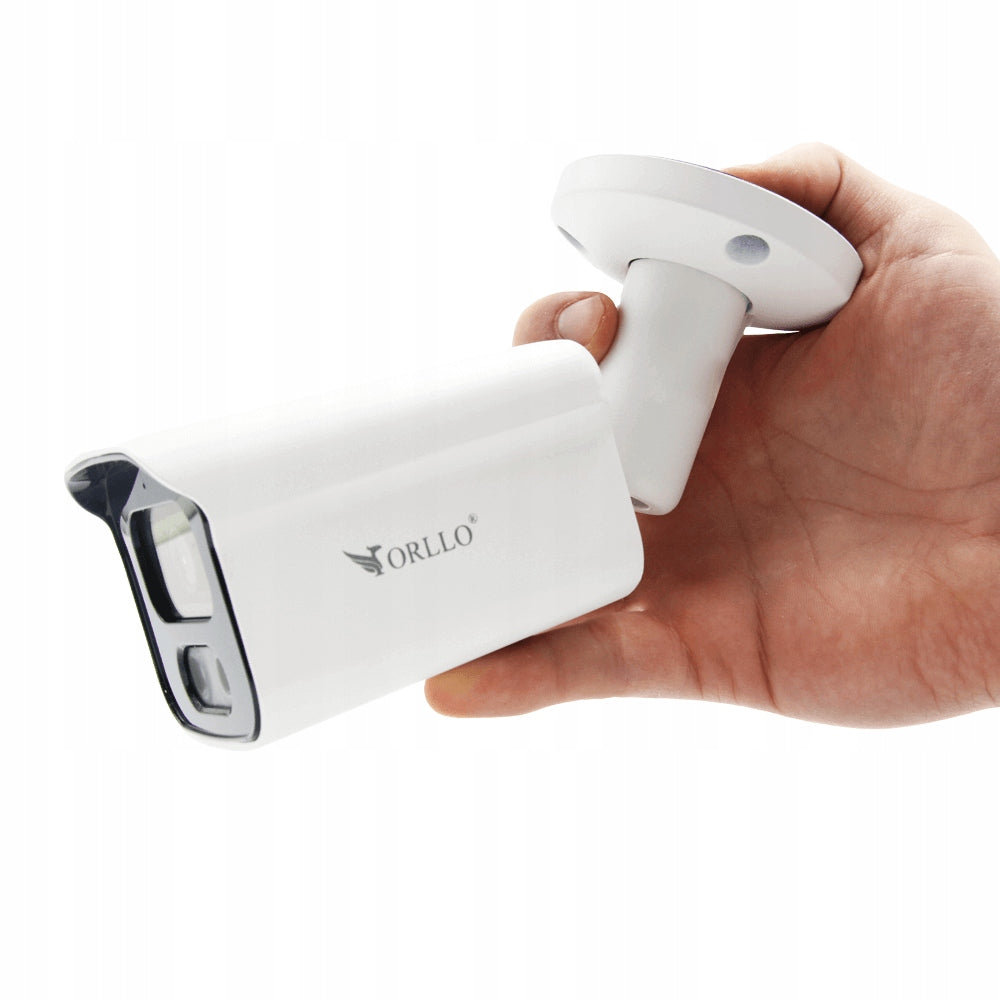

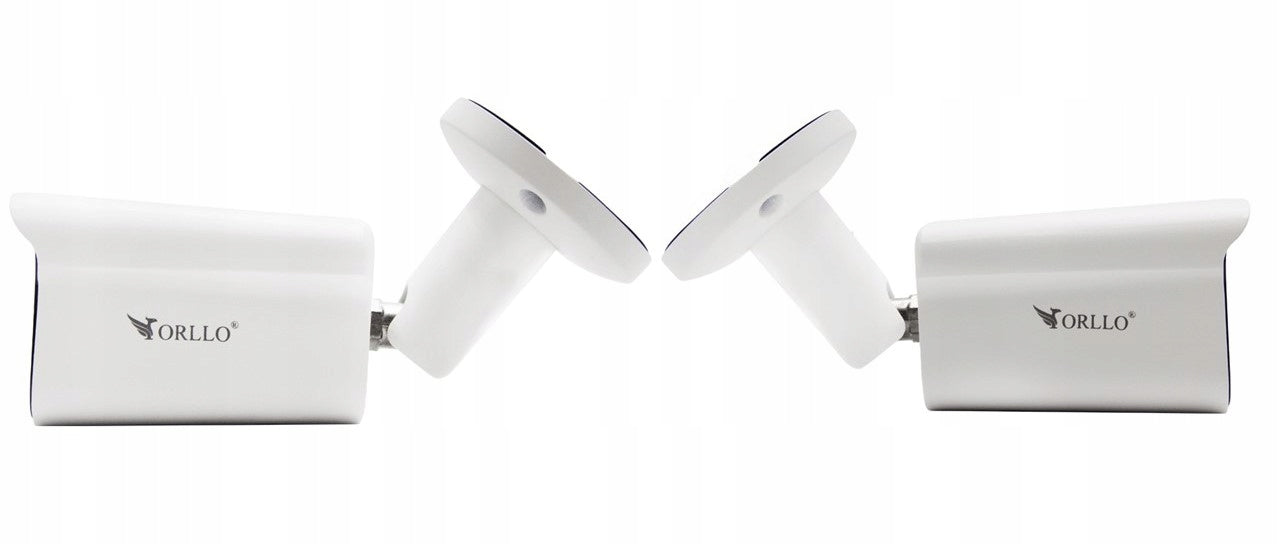

☑ Model: ORLLO POE9

☑ Processor: Novatek

☑ Image converter: 1/2.8" CMOS SONY Back-illuminated

☑ Number of pixels: 5.0Mpx

☑ Operating system: Linux

Basic parameters of the lens

☑ Lens size: Fixed-focal 2.8mm

☑ Lens brightness: F/1.6

☑ Lux: 0.01Lux

☑ Angle of view: 110°

☑ Zoom: 00000000N/A

Video parameters

☑ Default resolution: 2592x1944@30fps

☑ Main stream: 2592x1944@30fps

2560x1440@30fps

1920x1080@30fps

1280x720@30fps

☑ Second stream: 1280x720@30fps

720x480@30fps

☑ Max. Bit rate: 3072 Kbp/s

☑ Video format: MP4

☑ Video codec: H.264/H.265/MJPEG/AVI

☑ Photo format: JPEG

☑ TV System: PAL/NTSC

Additional Features

☑ Night mode: 2x IR LEDs, IR-CUT auto-switching, up to 40m

☑ Motion detection: Based on image pixel changes

☑ Support for memory cards: Up to 512GB

☑ Progressive scanning system: YES, Image quality enhancement technology

Possibility to set in the camera

☑ Auto mode: day/night

☑ Saturation / Brightness / Contrast / Focus, Mirror,

☑ White balance, FLK (Flashing control)

☑ 3D NR- image enhancement function (filtration

noise)

☑ Image masking

☑ BLC, WDR 120

☑ Ability to determine the area where motion is to be detected

☑ Detection of people

☑ Detection of line crossing (input/output)

☑ Detection of clusters/gatherings of people

☑ Detection of pointless human presence in a designated place

☑ Network interface: 10Base-T/100Base-TX, RJ45 connector

Network information

☑ Support for protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP

☑ Network: WiFi N/A

☑ ONVIF support: YES, ONVIF 2.4

Other

☑ Built-in microphone Yes

☑ Built-in N/A speaker

☑ Image delay 0.3s

☑ IP67 protection class

☑ Metal housing

☑ Power supply DC12V±10%, 700mA

☑ POE: YES, IEEE 802.3af (15,4W) support

☑ Standard B – used pairs 4/5(+), 7/8(-)

☑ Standard A – pairs used 1/2(+), 3/6(-)

☑ Power consumption: Approximately 3W

☑ Working temperature: -30 to 70°C humidity: 95% max

☑ Weight: 850g

☑ Dimensions: 72 x 66 x 175mm

⚙ Specification⚙ :

☑ Name:ORLLO POE SWITCH SW1

☑ Input voltage: 110-240V/AC 50-60Hz

☑ Maximum power supply: 60W

☑ Overvoltage protection: +-4KV

☑ POE standard: IEEE 802.3af, IEEE 802.3at

☑ Ports: 6 x RJ45 10/100Mb/s 4POE/2WAN

☑ Transmission distance: Up to 100m – normal mode

Up to 200m – extended mode

☑ Data transmission: Control of data flow

(IEEE 802.3X, IEEE802.3af standard)

☑ Capacity: 1Gb/s

☑ Working temperature: 0℃~60℃ humidity 95%

☑ Device power: 1.87W(220V/50Hz)

☑ Weight: Approximately 1100g.

☑ Dimensions: 220 x 140 x 40 mm

Outdoor CCTV PoE Camera Kit for Monitoring 4 Cameras 5Mpx with NVR Recorder

☑ Safe purchase in polish company operating since 2011. polish warranties, polish instructions, Polish service and after-sales support

☑ ORLLO PACKAGE: Polish Application + Free Updates + Technical Support

☑ CYBERSECURITY PACKAGE

☑ Effective protection of real estate and property using state-of-the-art technologies including artificial intelligence

☑ Save time and money - self-assembly and connection (configuration)

☑ Control and management by phone - dedicated application with live view and remote control for the whole family

☑ Instant event information - alarms about detecting movement on the phone, saving recordings of the event, downloading remote recordings to the phone - allows you to react immediately and obtain evidence (e.g. there is no waste of time for the intervention group to arrive)

☑ Day and night monitoring - modern technology guarantees high image quality - recognition of people, registration numbers, etc.

☑ Live view - in a free, polish application for phone and computer from around the world. ORLLO VISION+ application with user data and video encryption

☑ Granting permissions and sharing access to the device with other users - administrator, guest, operator

☑ Remote viewing and downloading of recordings from microSD card/hard drive of DVR - in the application for phone and computer

☑ Switch with extended function - extending the range from 100 to 200m on the cable

☑ SONY 5 Mpx optical sensor - QHD (2592x1944p) resolution, wide angle of view lens 101°

☑ Lens brightness F/1.6, WDR 120dB - clear and detailed image in different lighting conditions

☑ Image Quality Improvement Features - WDR, DNR, BLC, IR LED light intensity and night mode switching settings, sensitivity, saturation, brightness, contrast, sharpness, EV, AWB, mirroring

☑ Protection class IP67 - a set of outdoor cameras, resistant to weather conditions, in a metal housing

☑ Built-in microphone - recording video with sound, the ability to listen to the monitored area using a phone

☑ PoE power supply - power supply and communication with one RJ45 LAN cable

☑ Support for up to 9 cameras - the recorder supports up to 9 IP cameras (wired or WiFi)

☑ Night range up to 40 meters - infrared camera with automatic night mode, powerful High Power LEDs

☑ Emergency notifications – when motion is detected, you will receive a notification on the Polish, free ORLLO VISION+ application on your phone, and e-mail

☑ You will also receive a notification after detecting intrusion, crossing the line, detecting clusters, detecting pointless stay in the area

☑ Write to an FTP server when motion is detected

☑ Possibility to set the area where motion will not be detected - elimination of false alarms

☑ Double protection of recorded material: HDD + memory card

☑ Support for hard drives up to 8 TB See>>

☑ Recording on microSD card up to 512GB (save approx. 40 days in a loop) - after detecting a movement or event, loop recording with overwrite function, recording according to the set schedule See>>

☑ Free cloud - save photos when motion is detected (Google drive)

☑ Intelligent Image Analysis (AV IVS) - the ability to set rules

☑ In the application you will get access to:

• Live view
• Emergency notifications
• Add and configure the device
• Two-way communication
• Changes to recording modes
• Gallery with saved recordings

☑ Thanks to the advanced night mode, the cameras automatically switch to infrared vision as soon as they detect low light levels, allowing you to monitor the area up to a distance of 30-50 meters at night.

☑ High Power IR LEDs provide exceptionally bright images, minimizing interference and maintaining a high level of detail.

☑ Take care of the highest quality of monitoring with the ORLLO camera set equipped with the SONY 5Mpx optical sensor, which provides exceptional image sharpness and detail of recordings in QHD resolution.

☑ Cameras capture high-resolution images, allowing accurate recognition of details such as faces or license plates, even in difficult lighting conditions.

☑ With the ability to save to the free Google cloud, you can be sure that your recordings are safe and available at any time.

☑ The cloud allows you to store recordings for 7 days with the option of extension, which means that you do not have to worry about data loss.

☑ Additional advantage is the WDR (Wide Dynamic Range) function, which automatically adjusts the contrast and brightness of the image to provide excellent visibility in difficult lighting conditions, such as harsh sunlight or dark shadows.

☑ This ensures that details remain visible even when the scene is unevenly lit.

☑ Detection of intrusion or entry into a designated area

☑ Line Crossing Detection (Input/Output)

☑ Detection of clusters/gathering of people

☑ Detection of pointless human presence in the designated area

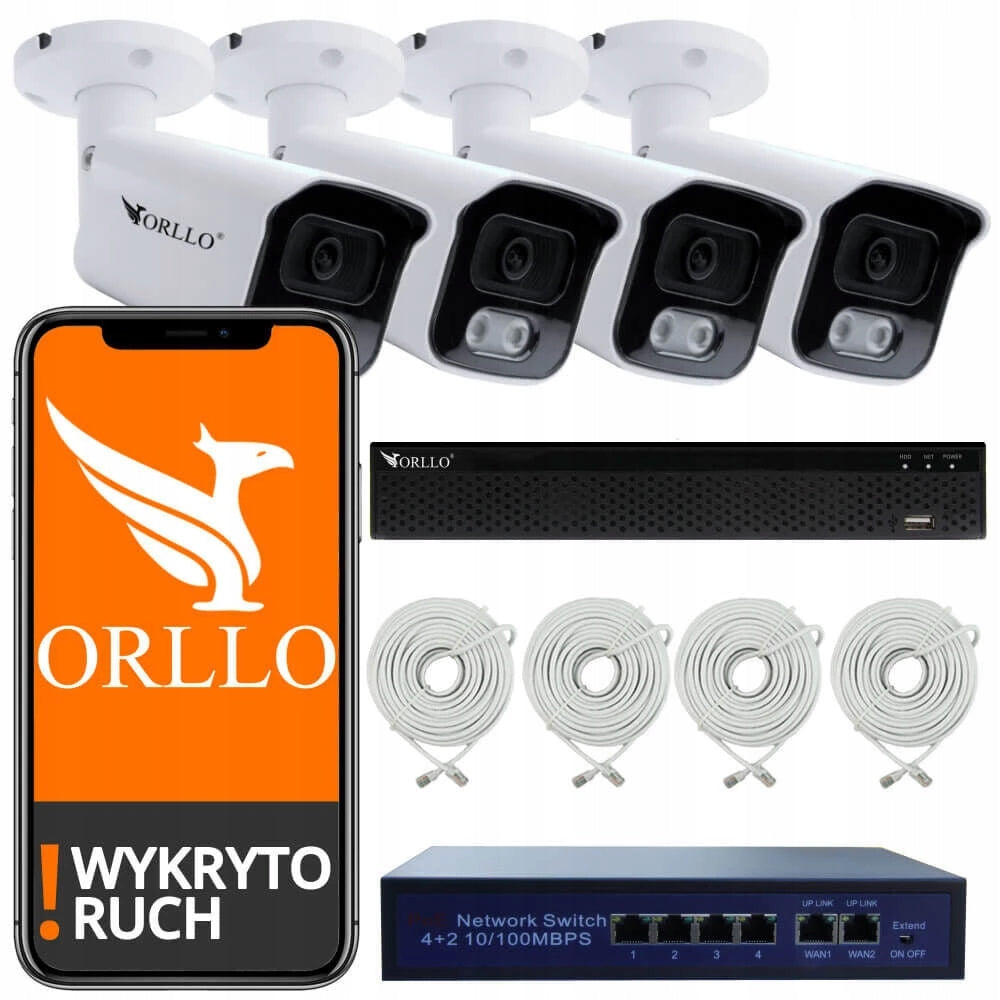

☑ 1x ORLLO NVR1 CH9 4K

☑ 4x ORLLO POE9

☑ 1x ORLLO POE SWITCH SW2 + Power cord (1500mm)

☑ 1x Power adapter for NVR 12V/2A (1500mm)

☑ 4x LAN cable cat.5E (4 x 20m)

☑ 1x USB Mouse

☑ 1x Instruction Manual

☑ 1x Mounting accessories

☑ Camera 72 x 175 mm (Screw spacing 53 x 53 mm)

☑ Switch 140 x 220 mm

☑ Recorder 228 x 260 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	POESET-4
Parametry	Model	POESET-4
Parametry	Brand	Orllo
Parametry	Product width	175 cm
Parametry	Product height	72 cm
Parametry	Product weight	2.5 kg
Parametry	Technology	IP
Parametry	Number of supported cameras	9
Parametry	Maximum recording resolution	5 Mpx
Parametry	Infrared range	40 m
Parametry	Camera waterproof rating	IP66
Parametry	Video compression	H.265
Parametry	EAN (GTIN)	5904673513513
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Video outputs	HDMI,VGA
Parametry	Functions	phone app,motion detection,PoE,alarm inputs/outputs,digital zoom
