Vaizdo stebėjimo komplektas su 4 IP kameromis 4MP IPC-T241H-C HiLook Hikvision, NVR, POE

Trumpai apie prekę

Prekė: Vaizdo stebėjimo komplektas su 4 IP kameromis 4MP IPC-T241H-C HiLook Hikvision, NVR, POE. Kategorija: Rinkiniai.

• Gamintojas: HiLook
• Modelis: IPC-T241H-C(x4) + NVR + HDD Hikvision (DSDi Ready)

4x 4MPx IP Dome Camera | 4CH HiLook Recorder | PoE Switch | 1TB Drive | Mounting Accessories

Reliable monitoring system HiLook by Hikvision

Reliable and easy to use network monitoring kit with four HiLook horn network cameras by Hikvision, supporting 2K+ @2560x1440p resolution. The set is ideal as a monitoring system in:

• offices in the company
• home
• apartment
• shop

Features of the set:

✅ allows constant supervision over the monitored area, both day and night (lighting up to 20m)

✅ guarantees high image quality in resolution 4Mpx 2560×1440

✅ uses power supply after twisted pair (PoE)

✅ allows archiving of 24/7 recordings on the disk in the recorder

✅ can be operated from the mobile application via smartphone or computer

✅ includes a set of wiring and accessories to speed up installation

In the set we offer you get a complete, ready to install set based on high quality, branded components.

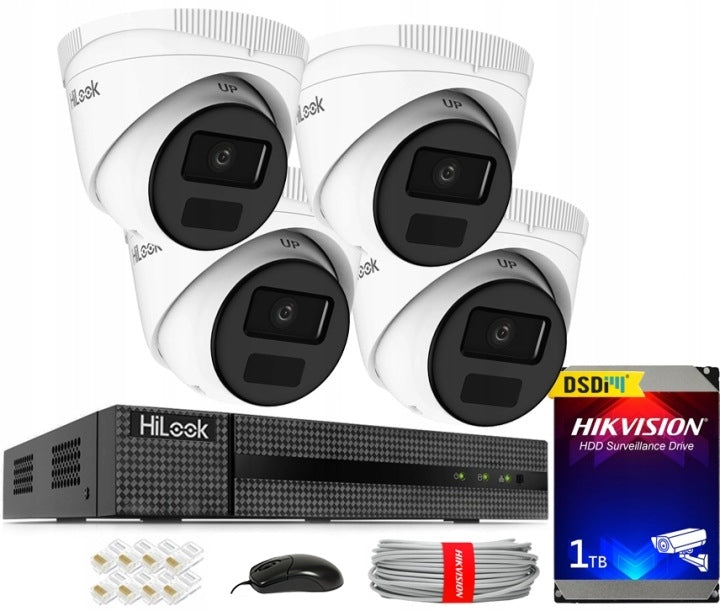

This set includes:

• 4x Dome camera 4Mpx (2560x1440 True 2.5k) - IPC-T241H-C HiLook by Hikvision

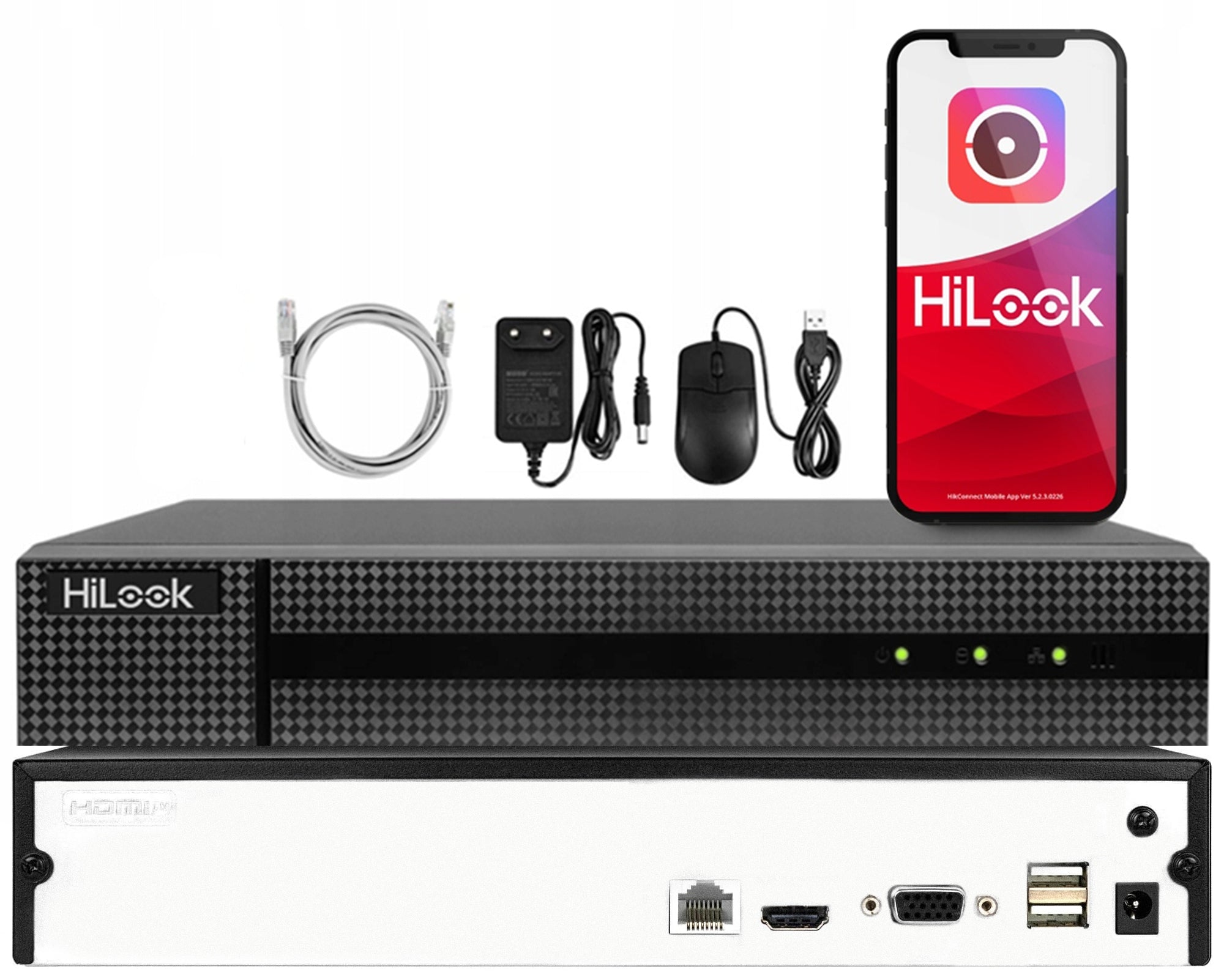

• 1x 4-channel IP recorder with PoE switch - NVR-104MH-D HiLook by Hikvision
• 1x Switch PoE 4+2 to connect and power cameras - EI-H1064PL EIFLEX
• 1x Drive hard to CCTV ( 24/7 recording) - Hikvision 1TB
• 1x UTP twisted pair cable - 20 meters DS-PL-5E Hikvision
• 8x RJ45 plug

HiLook by Hikvison monitoring systems have been designed to make their installation as simple and intuitive as possible. The instructions included in the kit will guide you step by step through the process of installing and configuring the kit.

1. You mount cameras in selected places (wall, facade, ceiling)
2. You connect cameras with one network cable to the recorder – PoE power supply and image in one cable
3. You plug the cables into the recorder and connect it to the Internet (home router)
4. You install a free mobile app and add a system
5. Ready – you have live view and access to recordings from anywhere

Key features of the set:

HiLook by Hikvision monitoring systems can be controlled, configured and operated using the intuitive Hik-Connect mobile application for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

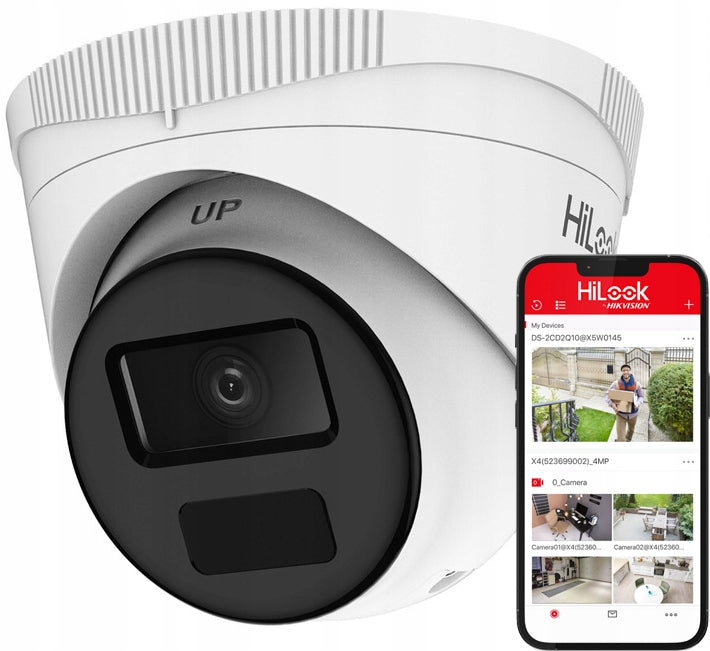

The IPC-T241H-C is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator with a range of 20m.

This function allows you to record images via 24/7 in any lighting conditions.

The offered camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a lot of space on the hard drive, which positively affects its lifespan.

The cameras included in the kit are equipped with PoE (Power over Ethernet) power supply, making their installation extremely simple. Each camera with a recorder is connected using a single UTP cable.

• Converter: CMOS 1/2.8” 4MPx
• Image resolution: 2560 × 1440p @20fps
• Lens: wide-angle 2,8 mm
• Recording angle: ~100 degrees (wide-angle)
• Image compression: H.265+, H.265, H.264+, H.264
• Double Stream: Yes
• Wide dynamic range: digital WDR
• Digital Noise Cancellation: Yes - 3D DNR
• Other functions: ROI, BLC, Motion detection, Mirror, EXIR
• Infrared range: up to 20 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in the Hik-Connect mobile app: Yes
• Remote view: Hik-Connect, iVMS-4200, browser WEB
• Assembly: external or internal
• Housing: plastic
• Power Supply: 12V or PoE
• Leak-proof class: IP67

• Number of channels: 4
• Recording resolution: to 6Mpx
• Bitrate in/out: 40/60 Mbps
• Video outputs: 1x HDMI, 1x VGA
• USB ports: 2x USB 2.0
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Ethernet interface: 1x RJ45 10 / 100 Mbps
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Preview/remote support: HIK-Connect/HiLook App, iVMS-4200 (lite)
• Storage for HDDs: 1 (up to 6TB)
• Power Supply: 12 VDC
• Power consumption: 18 W (without 10W disk)
• Dimensions: 265 x 225 x 48mm
• Weight: ≤ 1 kg

The switch has 6 ports with a speed of 10/100Mbps, including 4 PoE ports with a total power budget 65W and unit power up to 30W per port.

The device works in Plug&Play mode - it does not require configuration and is ready to work immediately after connecting to the power supply.

• Number of ports: 6
• PoE ports: 4x 10/100Mbps RJ45
• Uplink ports: 2x Uplink 10/100Mbps RJ45
• Switch Type:Unmanaged
• Network protocols: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
• PoE power standard: IEEE 802.3af/at PoE+
• Power of one port: up to 30W
• Total PoE power: 65W
• Bandwidth: 1.6Gbps
• EXTEND mode: Yes - transfer up to 250m @10Mbps
• Dimensions: 140*115*40mm
• Weight: 0.4kg
• Power supply: AC100-240V (built-in power supply)

The disk in the set is a model from the Surveillance series, dedicated to monitoring, characterized by a higher service life.

• Capacity: 1TB
• Cache: 64 MB
• Interface: Serial ATA III
• rpm. /min: 5400 rpm

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 8x RJ45 plug
• A set of instruction manual
• Sticker "Monitored Object" by EC System

The presented set guarantees trouble-free and smooth operation of the monitoring system. Hikvision systems are solutions valued all over the world, having unbeatable operating parameters and the best value for money.

Frequently Asked Questions (FAQ)

✅ What do I gain by choosing a branded monitoring kit?

First of all, stable operation, refined mobile application and predictability of use for years, without problems with connection or operation.

✅ Can I handle assembly without technical knowledge?

Yes. Thanks to PoE technology, installation is simple – each camera requires only one cable, and the configuration is intuitive.

✅ Can I have a preview of the cameras on my phone and computer?

Yes. The system allows remote live view and playback of recordings on your smartphone and PC from anywhere.

✅ Does monitoring work at night?

Yes. The cameras have night mode (IR), which provides a clear image after dark up to 20 meters.

✅ How many recordings can fit on a 1 TB drive?

The drive allows for approx. 12 days of 24/7 continuous recording - depending on settings and traffic intensity, this time may be extended (e.g. by recording only when motion is detected)

✅ Is this set suitable for home and business?

Yes. It will work both in the single-family house, as well as in the shop, office or on the company property.

DSDi® Ready

The monitoring system we offer, marked with the "DSDi" tag, has a license that allows you to use the services of the DSDi® system, which provides additional after-sales support and control over the purchased equipment. Thanks to the intuitive application, the user can easily check the warranty period for individual devices, as well as expand the package of available service services within the DSDi ecosystem.

Specifications
