Vaizdo stebėjimo komplektas su 6 kameromis, 8 Mpx, 4K, lauko IP, 2 TB diskas, peržiūra internetu

Trumpai apie prekę

Prekė: Vaizdo stebėjimo komplektas su 6 kameromis, 8 Mpx, 4K, lauko IP, 2 TB diskas, peržiūra internetu. Kategorija: Rinkiniai.

• Gamintojas: Protec
• Modelis: Zestaw do monitoringu IP 4K UHD 8Mpx 06T8LE

set of cameras for monitoring 6 external cameras - home monitoring - external monitoring

❓ Why this set ❓

➡ Very high image quality and advanced motion detection

➡ A complete set that you can run yourself, without the need for specialist knowledge

Professional monitoring set created by specialists with over 15 years of experience in the field of electronic security systems, with a view to reliable protection of home, company or property. The set includes 6 durable cameras resistant to weather conditions, recorder, wiring and all necessary accessories – everything you need to start monitoring immediately.

✅ Highest quality of workmanship

✅ Technical support of the manufacturer in Polish

✅ Polish manual and intuitive application in Polish

✅ Ideal for outdoor and indoor applications

Bet on a proven solution from polish company – safety and quality without compromise.

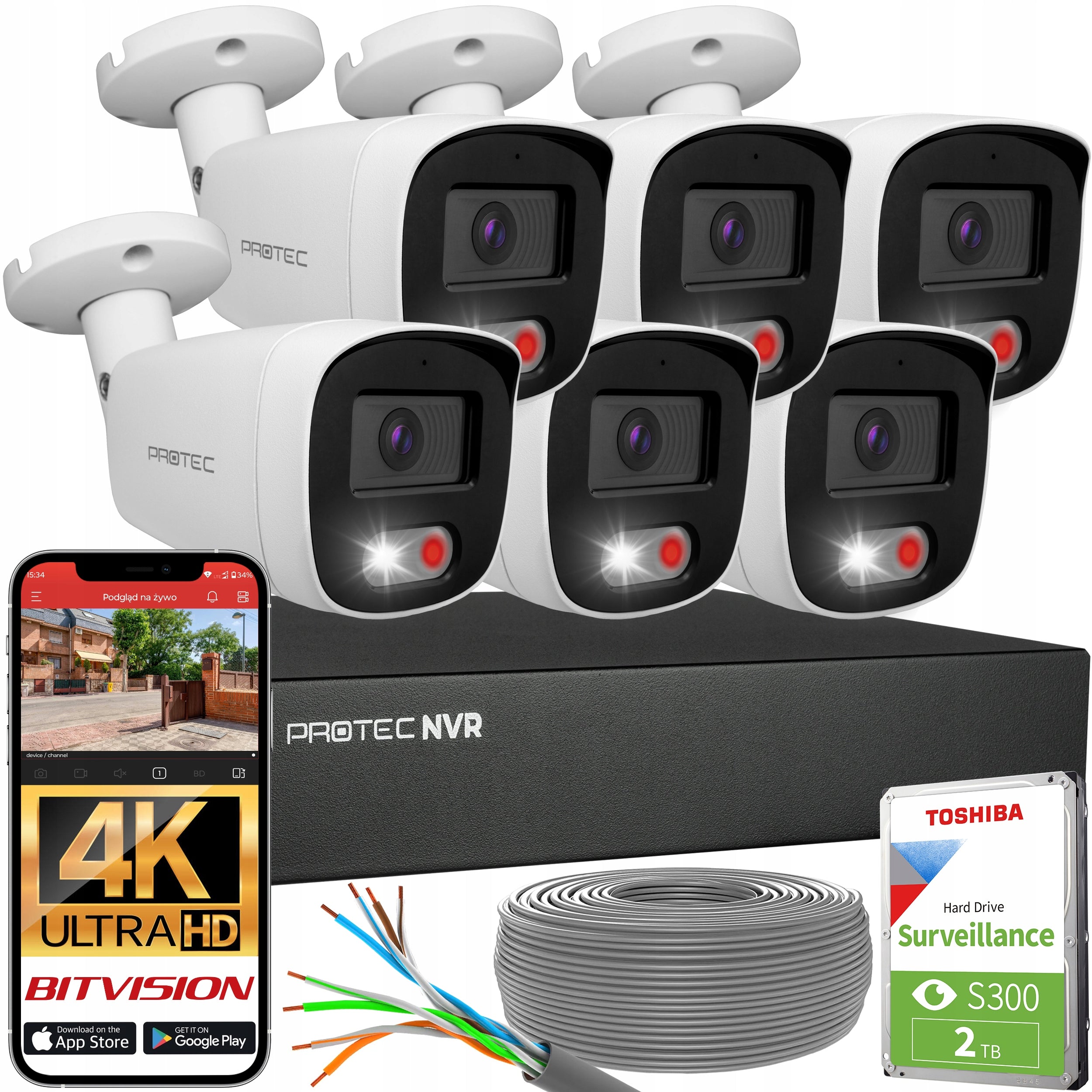

Contents of the monitoring kit:

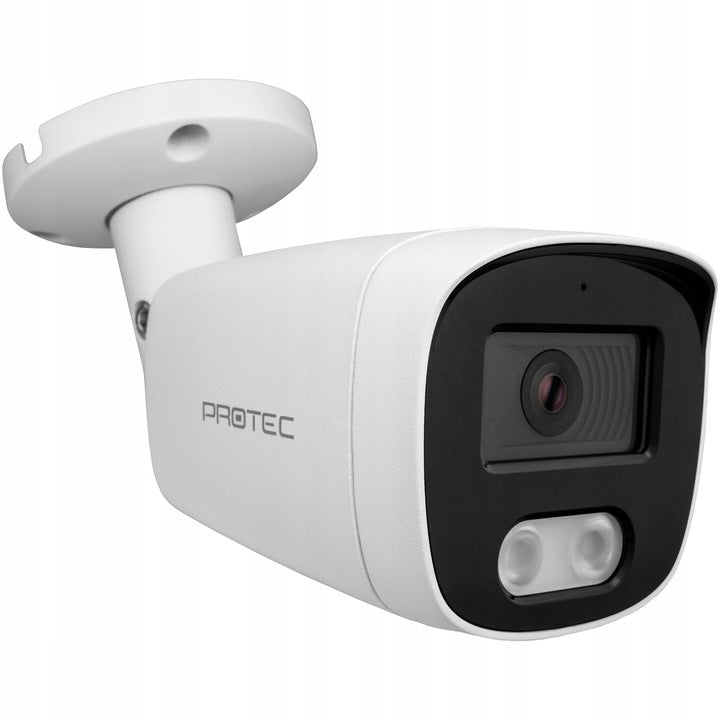

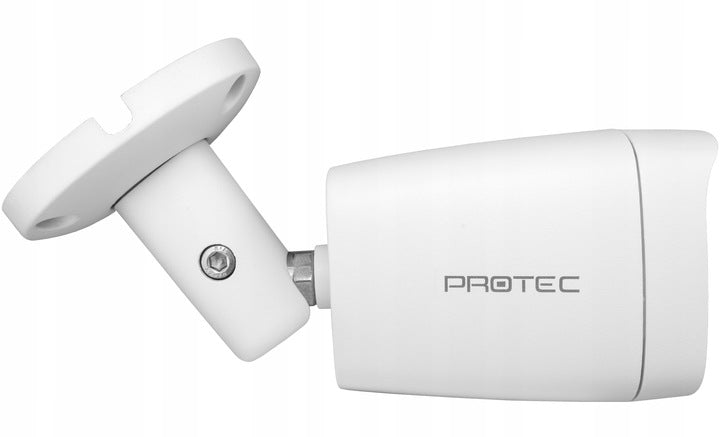

✅ 6x Professional 8Mpx PoE IP Camera

-Cameras have built-in microphone

-Advanced detection of people and vehicles

-Cameras can be mounted outside

-Color image also at night using LEDs

✅ NVR with built-in switch (8xPoE)

-Allows you to easily set up an online preview from anywhere in the world thanks to the P2P function

-You will learn about motion detection immediately through a dedicated application

✅ 2TB drive dedicated to CCTV from the renowned Toshiba company

-The system records 24/7 up to 14 days

✅ Accessories needed to start the system yourself

After connecting the recorder to the router and simple configuration, you will get access to the image from the recorder. All you need is a quick registration in the free application V247. The application is available in Polish.

✅ Live preview - watch what is happening in front of the cameras

✅ Viewing recordings - check what happened before

✅ Notifications - receive notifications about detections

(requires access to the Internet at the place of monitoring and on the phone)

Intelligent motion detection technology

Through the use of advanced artificial intelligence algorithms, this system can precisely recognize movement only related to people. Significantly eliminates false alarms, which often come from random movements, animals or objects irrelevant from the point of view of safety

Selected Intelligent Detection Functions:

✅ Intrusion (people and vehicles)

❗About detection you will get a notification in the application ❗

Intelligent lighting capabilities

✅ IR mode: the camera works only with the IR radiator on, but this allows you to associate intelligent detection with the camera deterrence function (black and white image at night)

✅ White light mode: the camera will activate the white light radiator at night and allow observation in ( 24/7 color image)

✅ Intelligent mode: the camera will start the IR radiator at night, and if a human is detected in the frame, it will start the white light radiator. So you can see e.g. color of clothing (at night black and white image, after the appearance of someone in the frame, the picture will become colorful)

Camera with Microphone

The cameras record not only the image, but also the sound from the environment. This is an additional level of security that allows you to better understand the situation and react faster. Hear more – protect more effectively!

Examples of frames obtained from exactly such a set:

⬇ Download:

• Software for computers and mobile devices
• Polish manual to the registrar in pdf
• Step-by-step installation instructions in pdf

❓How to install monitoring❓

1. Use our VIDEO setup instructions!!!
2. www.youtube.com/watch?v=fML9apBAeG8
3. Instructions for first system startup, camera connection and first configuration are available on YouTube

✅The system is ready for operation✅

Detailed assembly instructions are available in PDF at the end of the offer description

CAMERA DATA:

Transducer size: 1/2.7"

Image resolution: 3840 x 2160@20kl/s - 4K

Lens: 2,8 mm (Angle of view: 100°)

Coding: H.265 + / H.265 / H.264 + / H.264. In auxiliary: H.265 / H.264

Range of illuminator IR: 30 m

White light illuminator range: 30 m

Audio: Built-in microphone

Power supply: 12 V DC / 48V PoE (802.3af)

Power consumption: > 5 W

Housing: Metal

Protection class: IP67

Weight: 0.28 kg

Dimensions: 172 x 70 x 70 mm

RECORDER DATA:

PoE power supply: 8 independent PoE ports (maximum 30W per port)

Maximum power from PoE ports: 45W

Maximum number of cameras: 8 4K cameras

Audio support: yes, with IP cameras

Video outputs: 1 unit HDMI (max. 3840x2160, default 1024x768)

Image compression method: H265/H264/H265+/H264+

Supported hard drives: 1 x 8 TB SATA III 3,5"

Archiving on external media: Archiving on a USB stick

Access from mobile phone: Yes, application V247

USB: 2 units USB 2.0

Power supply: power supply included

Dimensions: 200 x 175 x 40 mm

Dedicated 2TB drive for 24/7 monitoring

• Recording up to 14 days with 6 cameras with h.265+ encoding - this is twice as much as with older systems.
• Recording time depends on the amount of traffic in the camera frames, with very high activity, recording time can decrease by about 50%
• Provides optimal operating conditions of the entire system
• Allows you to record from all cameras at the same time

All necessary plugs and accessories to start the monitoring system!

1. 1x Dedicated, efficient power supply of the recorder
2. 1x RJ-45 connector clamp
3. Sticker "Note Object monitored"
4. 60m cable UTP cat. 5e CCA
5. Mouse to operate the recorder
6. 24x RJ-45 plug

FREQUENTLY ASKED QUESTIONS

1. How many meters of wire are included?

The amount of UTP cable is specified in the set composition. Additional cable can be found on our other Allegro offers

2. What can be the maximum distance between the recorder and the camera?

With standard settings, the signal can be routed at 100m via UTP cable from the DVR's PoE switch. In EXTEND mode, you can increase the length of the UTP cable up to 200 meters, the transmission rate will then decrease to 10Mbps.

3. How to connect the DVR to the Internet?

The recorder must be connected wired to a router that has access to the Internet.

4. Can I have a preview on my phone?

Yes, you can. The recorder must first be connected to the Internet and configured.

5. How to connect the disk to the recorder?

Remove the top cover of the recorder, connect with two wires (SATA + power supply), and then attach with screws to the base of the recorder. The first time you start the drive, you need to format it.

6. How to get an image from the DVR?

The recorder should be connected to the TV or monitor via HDMI. Once connected, the screen should immediately display the DVR menu.

6a. Can I connect the DVR to my laptop with an HDMI cable?

No, laptops have an output, not a video input. This prevents you from getting the image this way.

7. How much is the disk from the set enough?

In the "HARD DRIVE" section, it is calculated how many days of recordings the disk will hold. After filling the disk, the recorder will automatically delete the oldest record and continue working.

8. Can the cameras be mounted outside?

Yes, the cameras have a sealed housing with IP67 rating and can be mounted outdoors. When installing, we recommend properly securing the cable and plugs.

9. What happens in the event of a power outage?

The device will shut down. When the voltage appears, it will automatically restart.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	PRNVRE06T8LE2TB
Parametry	Model	Zestaw do monitoringu IP 4K UHD 8Mpx 06T8LE
Parametry	Brand	Protec
Parametry	Product width	30 cm
Parametry	Product height	30 cm
Parametry	Product depth	34 cm
Parametry	Technology	IP
Parametry	Number of supported cameras	8
Parametry	Maximum recording resolution	8 Mpx
Parametry	Lens	fixed-focus
Parametry	Infrared range	30 m
Parametry	Camera waterproof rating	IP67
Parametry	Installed disk capacity	2 TB
Parametry	Maximum number of supported drives	1
Parametry	Maximum capacity of drives	8 TB
Parametry	Video compression	H.265+
Parametry	Video outputs	HDMI
Parametry	Number of USB ports	2
Parametry	EAN (GTIN)	5904473551203
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Functions	phone app,motion detection,PoE,advanced search,digital zoom,other
Parametry	Certificates of conformity	CE,WEEE
