Vaizdo stebėjimo rinkinys 4 IP PoE 5Mpx kameros, 1TB, AI DVS, biurui ir įmonei

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys 4 IP PoE 5Mpx kameros, 1TB, AI DVS, biurui ir įmonei. Kategorija: Rinkiniai.

• Gamintojas: DVS
• Modelis: ZESTAW MONITORINGU 4 KAMERY DVS SEAGATE UTP DAHUA

💡 Why is it worth buying from us?

By buying from us, you gain not only proven equipment, but also professional support at every stage of the purchase. Thanks to this, you can easily choose the right solution, start devices faster and use them more conveniently every day.

🏢 We are one of the largest Polish companies specializing in the distribution and sale of monitoring systems, alarm systems and consumer electronics.

📘 We prepare our own detailed operating instructions for all our products, so that it will be easier for you to go through the independent process of commissioning and configuration of devices.

📱 The products we sell work on mobile applications without cumbersome advertising.

🛠 We have a technical support department that will be able to help you with most technical problems by phone or e-mail.

✅ When you choose our offer, you gain not only the product, but also experience, help and comfort of purchase.

⭐ Key features

✅ PoE IP monitoring 5Mpx – detailed image in 2880 × 1620 resolution, which allows you to better recognize people, vehicles and details of the environment

✅ Intelligent recognition of man and vehicle – the camera can distinguish important objects from ordinary movement, which limits the number of false alarms

✅ Perimeter protection: intrusion – the system can respond to human entry into a designated zone, e.g. driveway, entrance, parking or company premises

✅ Line crossing function – the camera detects crossing the virtual line, which works well when controlling the gate, gate, entrance or selected area

✅ IR lighting up to 50 m – clear image even after dark, without the need for additional lighting

✅ PoE technology – power supply and data transmission with one cable, which facilitates installation and organizes the installation

✅ Recording to 1TB disk – the set is ready to save recordings after starting the system

✅ Remote access via the application – camera preview and monitoring management from the phone thanks to the application DVS-View Lite

⚡ What else?

✅ IP67 outdoor cameras – resistance to rain, snow, dust and harsher weather conditions all year round

✅ Tamper alarm – the system detects attempts to interfere with the camera, e.g. obscuring, rearranging or manipulating the device

✅ Recorder with 4 PoE ports – quick connection of cameras without additional PoE switch

✅ HDMI 4K and VGA output – convenient image preview on a monitor or TV

✅ Wide viewing angle 110° – larger observation area from one camera

✅ Built-in microphone – the ability to record sound from the monitored place

✅ Support microSD cards up to 512 GB – additional possibility of recording directly in the camera

✅ Advanced image functions – True WDR 120 dB, 3D DNR, BLC, HLC, AGC and AWB improve recording quality in more difficult lighting conditions

⚡ Who is this set for?

This IP PoE 5Mpx kit with intelligent image analytics will work wherever stable wired monitoring, remote viewing from the phone and quick detection of important events are needed.

Perfect for:

▶ houses and properties – control of the entrance, driveway, garden, garage or area around the building

▶ companies and offices – monitoring of entrances, facilities, corridors and workspace

▶ shops and service premises – protection of goods, service stations and places available to customers

▶ warehouses and workshops – supervision of property, deliveries, gates and workstations

▶ parking lots and squares – observation of vehicles, entrances, fences and open ground

▶ lot and cottages – remote preview of the object during absence

▶ entries, gates and gates – the use of the crossing of lines and intrusion functions to monitor critical points.

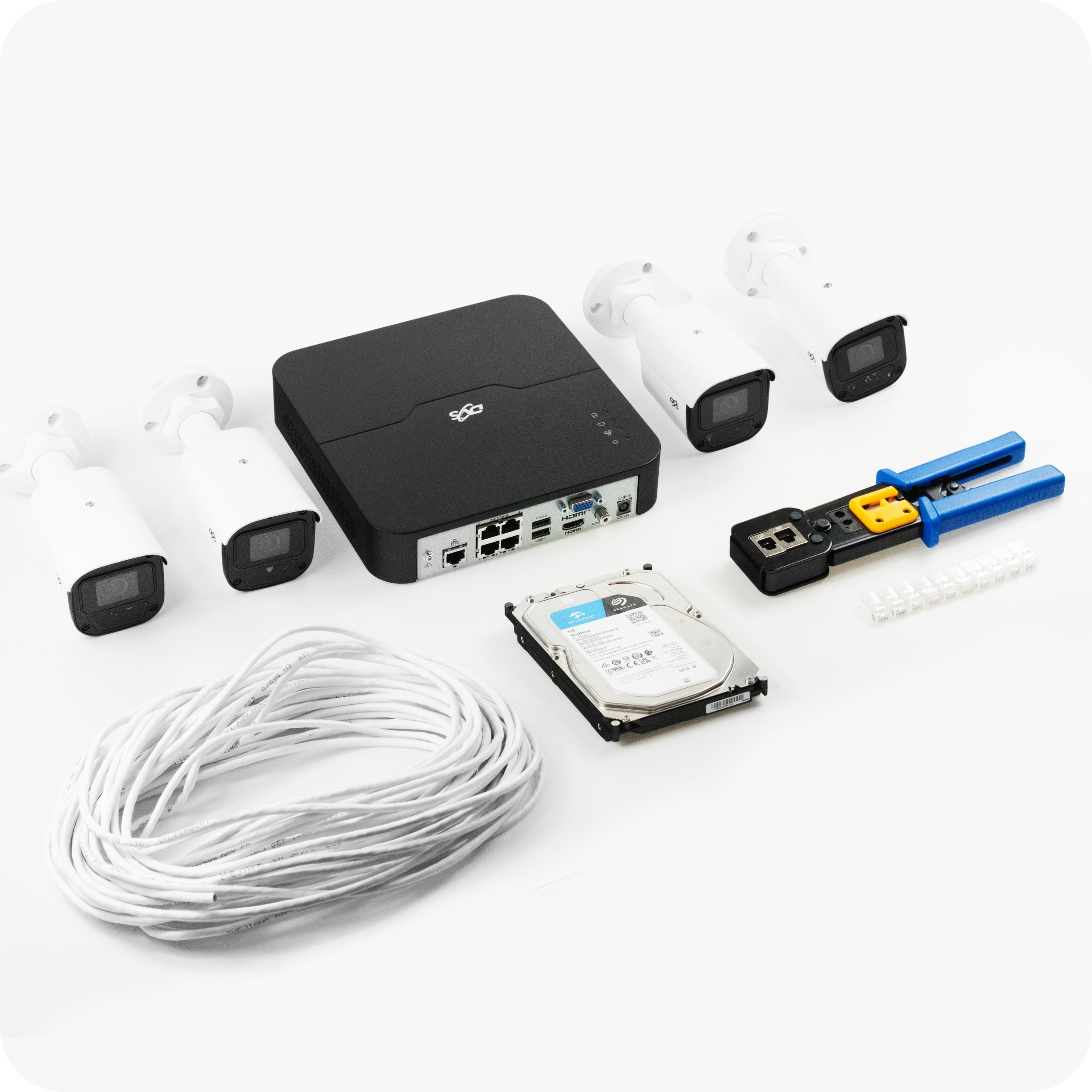

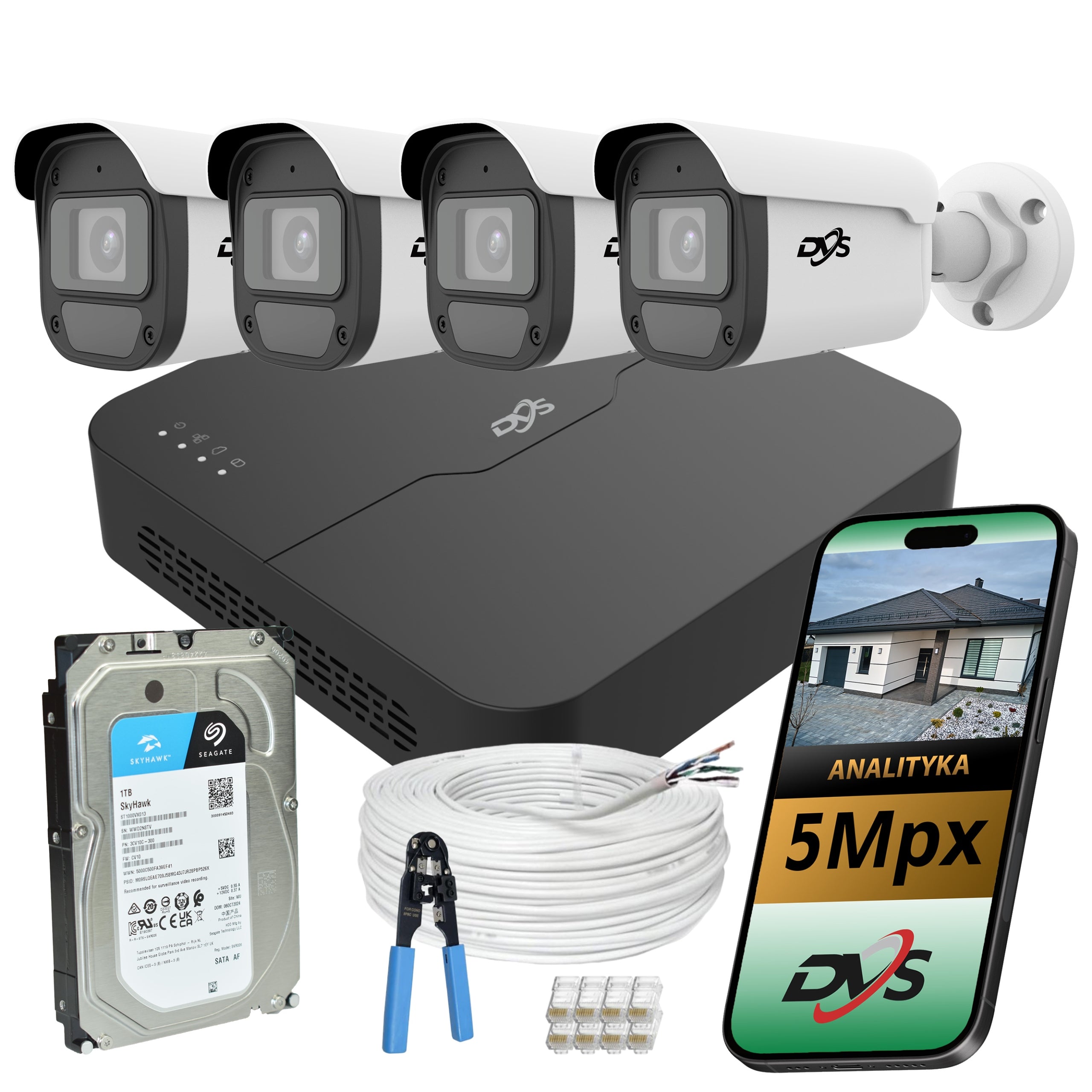

⚡ The set includes

✅ 1x PoE IP recorder – DVS-NVR0401-U8-POE – 4-channel recorder with built-in PoE ports for IP cameras

✅ 4x PoE 5Mpx IP camera – DVS-MP5028UT-IP – outdoor horn camera with IR illumination up to 50 m, microphone and IP67 housing

✅ 1x internal HDD 1TB – designed for continuous operation and recording of monitoring recordings

✅ 10x RJ45 plug – for the preparation of network cables

✅ 1x RJ45 plug crimper – useful for wiring installation

✅ UTP cable 20 m – for connecting system components

⚡ Simple installation without additional power supplies

The IP PoE DVS kit has been prepared to make installation simple and orderly. You screw the cameras in selected places, set the appropriate direction of observation, and then lead the network cable to them.

Thanks to PoE technology, one cable is simultaneously responsible for powering the camera and transmitting the image. You do not need to mount separate power supplies at each camera, which makes it easy to install on the facade, under the roof, at the gate, garage or entrance.

The recorder has 4 PoE ports, so you connect the cameras directly to it. This is a practical solution like Plug & Play – fewer cables, faster start-up and stable wired operation.

⚡ Remote access from your phone – monitoring always at hand

The kit allows convenient monitoring management from the DVS-View Lite application. This allows you to check the camera footage on your phone or tablet, whether you’re at home, at work, or away from the facility.

✅ Live view – quick check of what is happening at home, company, store, warehouse or on the property

✅ Access to recordings – the ability to view and play back recorded events from cameras

✅ Notifications about important events – the application can inform about the detection of movement, human, vehicle, line crossing or intrusion into the zone

✅ Support from phone and tablet – convenient system management without the need to sit at the recorder

✅ Control from anywhere – constant access to monitoring when you are away from home, business or warehouse

✅ Convenient solution for everyday use – quick preview of the object, checking recordings and reacting to events from a smartphone

It is a practical solution for people who want to have constant control over the property, company, store or warehouse without the need for physical presence on site.

⚡ Convenient management on the computer

You can operate the set not only from your phone, but also from your computer. The PC program allows you to conveniently manage monitoring, view the image from cameras on a larger screen and analyze recordings faster.

✅ Live view from cameras – convenient control of the entire object from the computer

✅ Playback of recordings – quick checking of recorded events and selected hours

✅ Convenient work on the big screen – better detail preview than on the phone

✅ Management of the monitoring system – support for cameras, recorder and settings from one place

✅ Good solution for companies, offices and warehouses – constant monitoring while working at the computer

It is a practical complement to the mobile application – the phone will work for quick preview, and the computer for more convenient, daily operation of the system.

⚡ Discreet form, professional monitoring

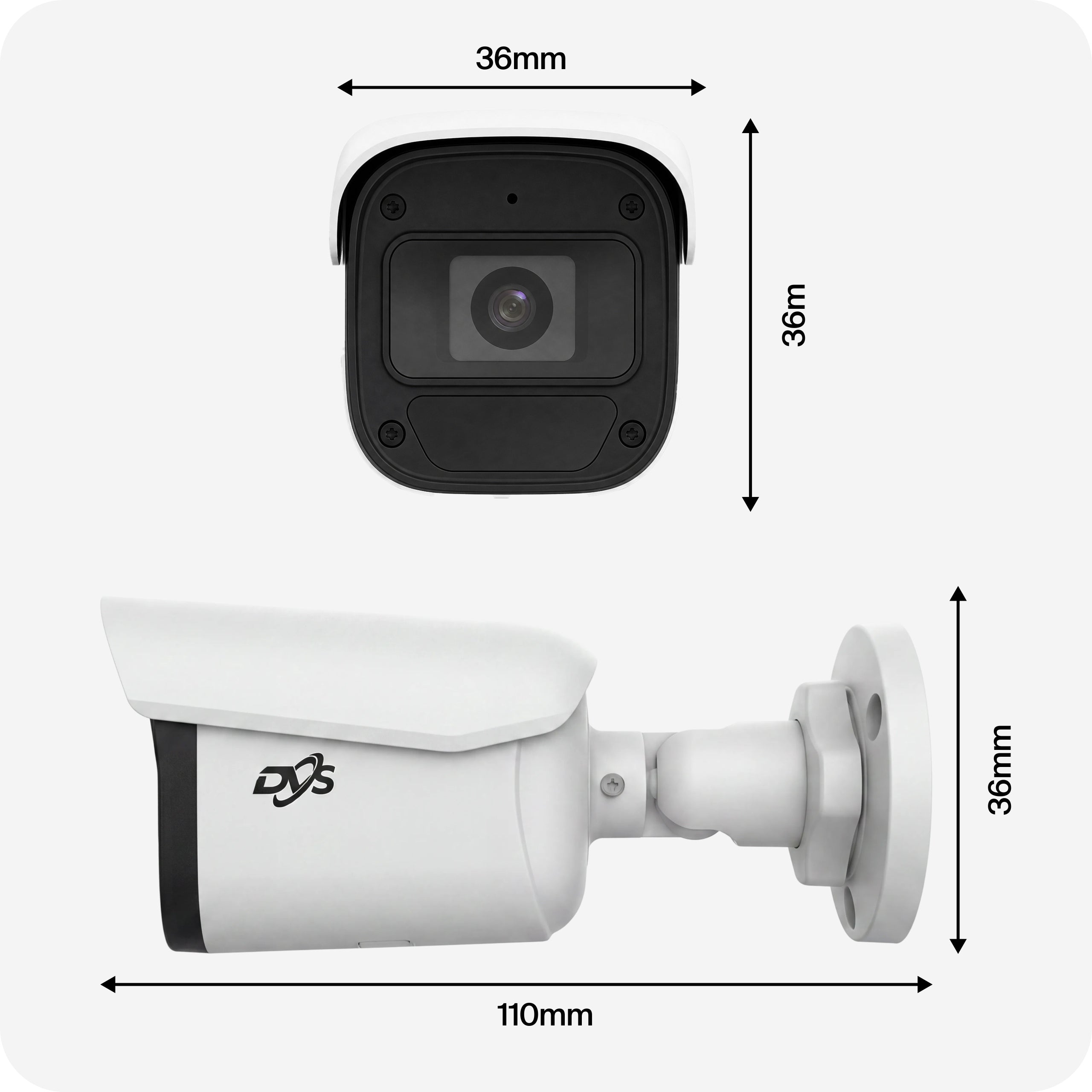

The DVS-MP5028UT-IP is a horn PoE IP camera designed for external and internal monitoring. It will work at home, company, store, warehouse, parking lot or entrance to the building.

The camera captures images in 5Mpx resolution, making it easy to observe people, vehicles, and important environmental elements. The 2.8 mm lens and the 110° viewing angle allow you to cover a larger area with one camera.

IR lighting up to 50 m provides effective viewing even after dark, and the sealed housing IP67 protects the device from rain, snow, dust and harsher weather conditions.

In addition, the camera has a built-in microphone, thanks to which the system can record not only the image, but also sound from the monitored environment.

⚡ Intelligent detection of man and vehicle

The DVS-MP5028UT-IP uses advanced image analysis to capture the most important events in the monitored area faster.

✅ Human and vehicle recognition – the system can distinguish people and cars from ordinary movement in the frame, e.g. branches, rain, lights or shadows.

✅ Less false alarms – the camera focuses on important objects, making monitoring more practical for everyday use.

✅ Motion detection – makes it easier to quickly find important moments on recordings and allows you to control the terrain more efficiently.

✅ Better control of the facility – the function will work at the entrance, driveway, parking lot, gate, shop, warehouse or area around the property.

⚡ Zone control and image enhancement

The camera enables not only standard recording, but also intelligent monitoring of selected locations in the frame – where protection is paramount.

✅ Crossing the line – the ability to set a virtual line, the violation of which can be treated as an important event, e.g. at the gate, gate, entrance or exit to the back.

✅ Intrusion into zone – the system detects entry into the designated area, e.g. driveway, parking, company area or space around the building.

✅ Tamper alarm – the camera detects attempts to cover, rearrange or manipulate the device.

✅ Image Improvement Features – True WDR 120 dB, 3D DNR, BLC, HLC, AGC and AWB help you get a clearer picture in difficult lighting conditions.

✅ Privacy masks and ROI – allow you to cover selected parts of the image and indicate the most important areas that are to maintain higher detail.

⚡ Effective viewing even after dark

The DVS-MP5028UT-IP cameras are equipped with IR night light up to 50 m, so they can monitor the area even after dark – without the need for additional lighting.

It is a practical solution for observing the driveway, garden, gate, entrance, parking lot or area around the company. The camera helps you stay in control of the subject both day and night.

✅ IR lighting up to 50 m – effective monitoring after dark and in low light

✅ Day/night mode with ICR filter – the camera adapts to changing lighting conditions

✅ Sensitivity 0,003 Lux – better camera performance with very little light

✅ 3D DNR and True WDR – image enhancement features help reduce noise, x-rays and too strong contrasts

✅ Night-the-clock monitoring – permanent protection of your home, business, store, warehouse or property

⚡ Cameras ready to work outdoors

The DVS-MP5028UT-IP cameras are designed for external and internal monitoring. The housing with tightness class IP67 protects the device from rain, snow, dust and dust, which is why the camera will work well at home, company, store, warehouse or parking lot.

The operating temperature range from -30°C to +60°C allows for stable operation throughout the year – both in winter and during hot days. Robust housing made of graphene and metal increases the durability of the camera during everyday outdoor work.

✅ IP67 protection class – protection against rain, snow, dust and dust

✅ Working from -30°C to +60°C – reliable performance at different times of the year

✅ Graphene + metal housing – robust construction for outdoor applications

✅ Monitoring throughout the year – for home, business, store, warehouse, parking lot or property

⚡ PoE IP Recorder – the center of the entire system

The DVS-NVR0401-U8-POE recorder is the main device of the set, which is responsible for camera operation, recording recordings and viewing live images. The model supports 4 IP channels, so it fits perfectly into the set with 4 cameras.

Thanks to the built-in 4 PoE ports, the camera can be connected directly to the recorder with one network cable. The same cable is responsible for power supply and image transmission, which simplifies installation and reduces the number of additional wires.

The recorder supports recording up to 8Mpx, Ultra 265 / H.265 / H.264 compression and SATA drives up to 10TB. The HDMI 4K and VGA outputs allow you to conveniently connect your monitor or TV, while the DVS-View Lite app allows you to use remote system preview.

⚡ 1TB hard drive – write ready immediately after startup

The set is equipped with an internal hard drive HDD 1TB, thanks to which the system is ready not only for live viewing, but also for save and subsequent playback of recordings.

This is a great convenience when mounting – you do not have to choose the drive separately or check compatibility with the recorder. Once started, the kit can instantly archive camera footage and record important events.

✅ Capacity 1TB – space for recording surveillance recordings

✅ Continuous operation 24/7 – disk adapted to monitoring systems

✅ Ready to go – the media is already included in the set

✅ Convenient playback of recordings – quick access to saved events from the recorder, phone or computer

⚙ Technical information of the camera

• Type: IP camera
• Model: DVS-MP5028UT-IP
• Series/Line: Green/DVS-SmartLine
• Resolution: 5Mpx / 2880 × 1620
• Converter: 1/2,7” CMOS
• Lens: fixed focal length 2.8 mm F1.6
• Angle of view: 110°
• Night light: IR up to 50 m
• Microphone: YES, built-in
• Slot microSD: up to 512 GB
• Image compression: Ultra 265 / H.265 / H.264 / MJPEG
• Motion detection: YES
• Ultra Motion Detection: YES — human/vehicle
• Analytical functions: intrusion, line crossing, sabotage alarm
• Privacy masks: YES, 4 areas
• ROI: YES, 4 areas
• Image Features: True WDR 120 dB, 3D DNR, BLC, HLC, AGC, AWB
• Day/night mode: mechanical ICR infrared filter
• ONVIF support: Profile S/G/T
• Power Supply: PoE or DC 12V
• Connection: RJ45
• Protection class: IP67
• Working range: from -30°C to +60°C
• Housing material: graphene + metal
• Housing type: tube
• Mobile application: DVS-View Lite

⚙ Technical information of the registrar

• Type: PoE IP Network Recorder
• Model: DVS-NVR0401-U8-POE
• Video inputs: 4 IP channels
• Built-in PoE: 4 RJ45 PoE ports
• PoE standard: IEEE 802.3af/at
• Max. PoE power per port: 30W
• Max. PoE total power: 54W
• Recording: to 8Mpx
• Compression: Ultra 265 / H.265 / H.264
• HDMI output: 4K/30Hz, 1080p/60Hz
• VGA output: 1080p/60Hz
• Live view: 1 / 4 channels
• Synchronous playback: 4 channels
• Disk: 1× SATA
• Max. Disk capacity: up to 10TB
• Network: 1× RJ45 10/100Mb
• USB: 2× USB 2.0
• Audio output: 1× RCA
• Input bandwidth: 64 Mbps
• Output bandwidth: 48 Mbps
• Remote users: to 128
• Mobile application: DVS-View Lite
• Working temperature: from -10°C to +55°C
• Power Supply: DC 48V / 1.35A
• Dimensions: 205 × 205 × 46 mm

⭐ FAQ

❓ What is an IP camera and how does an IP surveillance system work?

An IP camera is a modern device that transmits an image in digital form over a computer network. Unlike analog systems, it offers higher quality recordings, remote access, and easy setup.

❓ What is PoE in IP cameras and why is it worth having?

PoE (Power over Ethernet) technology allows you to transfer power and data with a single cable. This makes installation simpler, faster and more aesthetically pleasing – without the need for additional power cables.

❓ What is the difference between IP and analogue (AHD) monitoring?

The IP system transmits the image digitally, which provides much higher resolution, connection stability and greater remote viewing capabilities. Analog monitoring (AHD) has limited image quality and is more difficult to expand.

❓ How to connect IP monitoring kit step by step?

The DVS-SmartLine kit is a Plug & Play solution – just connect the cameras to the recorder using Ethernet cables (UTP). The devices will be automatically detected and the system will be ready to work in minutes.

❓ Do IP cameras need to be connected to electricity, or is a network cable enough?

No need for a separate power supply – just one mains cable. Thanks to PoE technology, cameras receive power and transmit images with the same cable.

❓ Does the IP camera set work without the Internet?

Yes, the system works locally without a permanent Internet connection. The Internet is only needed if you want to have a remote view or control the system from the mobile application.

❓ Is the IP surveillance camera set safe?

Yes, the system is completely secure – data transmission takes place wired and is encrypted. Access to the cameras is password protected and only possible for authorized users.

❓ Can you view the image from the monitoring system on your phone?

Yes. The DVS-View Lite app allows you to view live video, play recordings and receive notifications. It runs smoothly, is fully in Polish and does not burden the mobile device.

❓ Where are the recordings from the monitoring set saved?

Recordings are saved on a 1TB hard drive installed in the recorder. Once started, the kit immediately archives the image from the cameras and records important events.

❓ What is the best IP camera for your home or business?

The best IP camera is one that combines high image resolution, good night sensitivity and stable performance in various weather conditions. The ease of installation, reliability of the wired connection and the quality of the image sensor, which determine the readability of recordings in everyday use, are also crucial.
