Aprašymas
Trumpai apie prekę

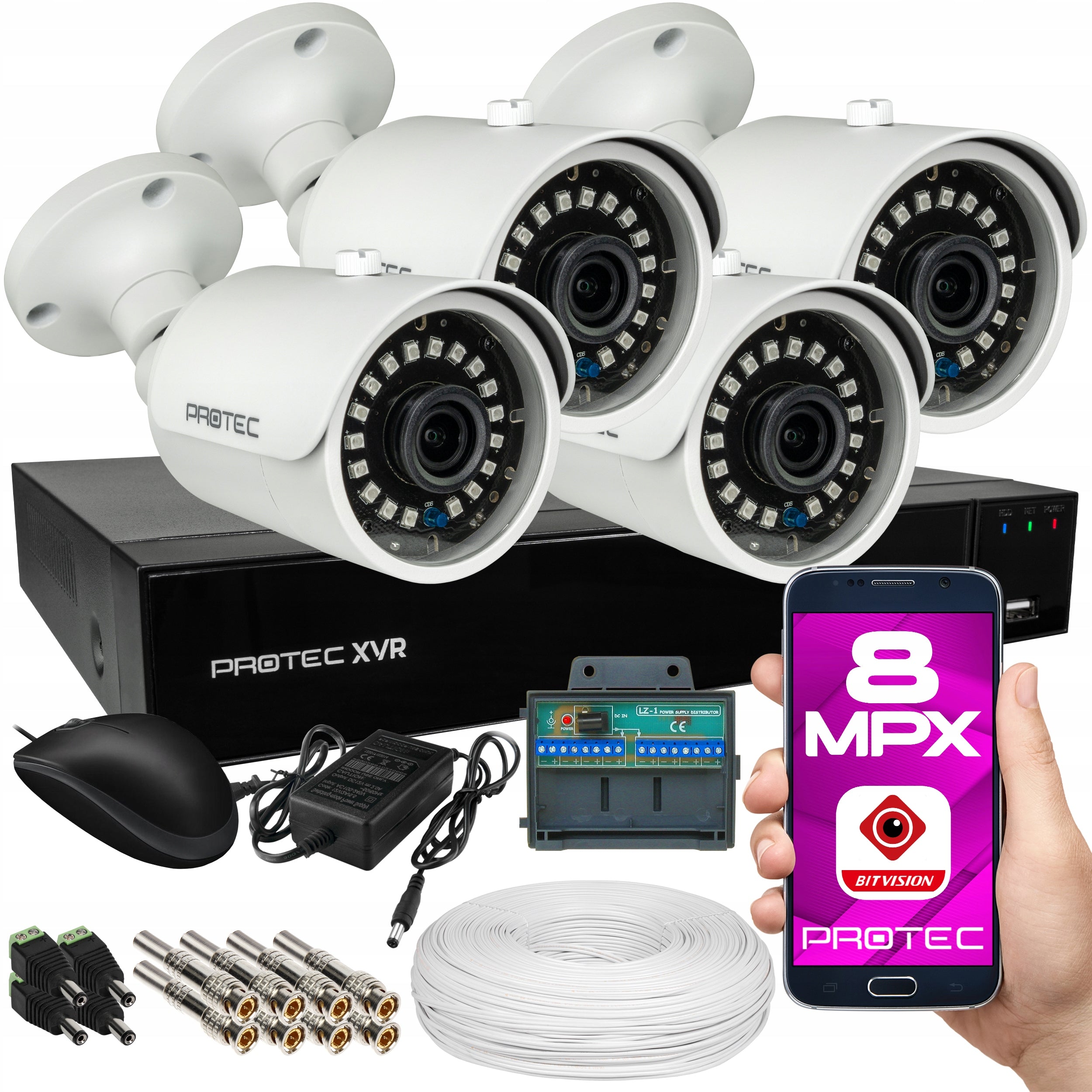

Prekė: Vaizdo stebėjimo rinkinys, 4 išorinės 4K (8MP) baltos kameros. Kategorija: Rinkiniai.
- Gamintojas: Protec
- Modelis: kamery - ESBR-8084
1x Multifunctional 4-channel digital recorder with remote online preview function on mobile devices
4x 8MPX horn camera (3840x2160) IR infrared heater 30m
A set of all necessary plugs and fittings
Efficient power supply with splitter voltage for cameras
20m coaxial cable with power supply
Download:
- Software for computer and mobile device set
- Polish manual to the registrar in pdf
- Instructions for assembly step by step in pdf
The kit allows you to view the image from the cameras using:
- Monitor and TV - just plug the display into the DVR via VGA or HDMI
- Computer - via dedicated application iVMS320
- Mobile devices - through a dedicated application V247 available for Android and iOS
4x Professional 8MPX surveillance camera allows you to record the observed area in very high resolution while maintaining a wide viewing angle.
Most important features:
- Camera resolution - 8Mpx. The camera operates at a very high resolution of 3840x2160 pixels, so you will see much more details.
- Infrared radiator up to 30m. Very powerful infrared heater allows you to see in total darkness up to 30m
- Specific housing with IP66 class. Rain and snow are not an obstacle. The camera is weatherproof and can be mounted outdoors with confidence.
- Fixed-focal lens 3,6mm. The camera is factory sharpened. The wide 3,6mm lens gives a very sharp image without the effect of distorting the frame.
Additional camera features:
- Automatic white balance
- Electronic noise reduction
- Convenient vertical or horizontal installation
- Low power consumption
- Operating temperature from -30°C to +50°C
1. The cameras have a convenient mounting bracket thanks to which you can point the camera in the right direction. Such a mount allows you to freely mount the camera in the most convenient place, both on the wall and under the ceiling.
2. Thanks to its tight housing with IP66 class, the camera is resistant to weather conditions. Not terrible rain, snow, high or low temperatures. It is completely dust-resistant and protected from even strong water jets.
3. Resistant and durable camera - it's a higher security of your home, business - a place you care about! Metal housing of the camera is additionally not susceptible to distortion resulting from temperature changes or high humidity.
4. Infrared radiator of the camera will start automatically in too low light and will allow effective observation even without additional light sources. Infrared light is invisible to the human eye, while cameras have an appropriate filter that allows observation in such conditions. Thanks to this, the camera can work effectively all day and night.
5. The camera has a factory sharpened 3,6mm lens, which provides a sharp image and a wide viewing angle of 85° horizontally. The parameters of the lens will also allow you to work in difficult lighting conditions.
Screenshot obtained with this camera:
For all connected cameras, you will run motion detection, masking, etc.
Efficient H.265 image compression - saves storage space and longer write time
Connect your monitor or TV to the DVR via the built-in HDMI and VGA connectors, and get a constant On-line preview on mobile devices (smartphone)
You can get an ON-LINE preview on any device running Windows, Android, iOS (PC, laptop, tablet, smartphone). Each system user can have a different type of access to the cameras. Example: the administrator can have access to all cameras, and the specified user will only have access to camera 1 and 2, without the possibility of editing settings.
Rear panel of the recorder:
- Emergency Inputs and Outputs
- Audio output - connecting the speaker via cinch output
- BNC output for connecting an analog display
- BNC sockets for connecting cameras
- Audio input - microphone connection via cinch input
- Audio input - microphone connection via cinch input
- HDMI output - connect a monitor or TV
- USB sockets - connection of mouse or USB stick (pendrive)
- RJ-45 socket - connection to the Internet
- RS socket - for controlling PTZ cameras
- Power socket (dedicated power supply is included with the recorder)
- VGA output - connect a monitor or TV
USB sockets will allow you to conveniently connect the mouse to control the recorder (mouse under USB included), as well as simultaneously connect a portable memory to rip recordings from cameras.
The recorder supports up to 4 8Mpx cameras from different manufacturers. It allows you to record in high resolution 8M-n. After connecting the cameras, the recorder will immediately display them on the connected screen.
You will gain access to the DVR through a dedicated application for phones and mobile devices V247. After connecting the DVR to the Internet and a short configuration, you will have access to the image anywhere.
allows you to record images from cameras only after movement occurs in the camera frame. It is a convenient feature that saves disk space and works best in enclosed spaces. In addition, the recorder allows you to detect image loss.
When we do not want the selected fragment of the frame to be on the recordings, the selected part can be covered with an electronically generated privacy zone. This allows you to limit the recording zone and the monitoring will work in accordance with the GDPR.
When the disk is full, the recorder will run in a loop. This means that it will automatically delete the oldest record and continue working without the need to interfere with the operation of the device
The work of the monitoring system can be planned according to your needs, e.g. continuous recording from 8-16 from Monday to Friday, and in other hours only for motion detection
The recorder has HDMI and VGA output. When you connect the DVR to a monitor or TV, all connected cameras will be displayed immediately. This configuration will allow for convenient system management.
As with computer operation, you will also have access to all functions with the mouse in the recorder. After the system starts, all you have to do is connect the mouse from the set to the USB port and press the right mouse button, and the selectable menu of the device will be displayed.
You can get preview from cameras simultaneously on the connected monitor and on mobile devices!
Once you connect and configure your DVR, you’ll get an online preview as well as notifications sent to your phone app!
You can conveniently mount the drive inside the recorder.
Drive to buy separately.
All the necessary plugs and accessories to start the monitoring system!
- 1x Dedicated, efficient power supply 12V 2A for cameras
- 1x Voltage splitter for cameras LZ-1
- Sticker "Attention Object monitored"
- Concentric cable + power supply
- Mouse to operate the recorder
- 4x DCM power plug for supplying voltage from LZ-1 to each of the cameras
- 8x coaxial cable plug to guide the image from the cameras to the recorder
1x Multifunctional 4-channel digital recorder
- Support up to 4 cameras at the same time
- Online preview on mobile devices
- Displaying images via HDMI or VGA
4x 8MPX IR 30m horn camera
- high resolution 8Mpx (3840x2160 pixels)
- built-in infrared reflector (night vision up to 30m)
- hermetic housing (can be mounted outdoors)
A set of all necessary plugs and fittings
Efficient power supply with voltage splitter for cameras
20m coaxial cable with power supply
Download:
- Software for computers and mobile devices
- Polish manual for the registrar
- Step-by-step assembly instructions
The set will allow security of the building 4. cameras and includes everything needed to run. Cameras can be mounted both inside rooms, but also perfectly suited for outdoor use. Tight, metal housing with class IP66 will withstand all weather conditions. You will have access to the cameras locally via TV or monitor, as well as via local network and remotely on mobile devices. You can start and configure the entire monitoring system without any specialized knowledge or tools.
CAMERA:
Standard: AHD, HD-CVI, HD-TVI, PAL
Converter: Progressive Scan CMOS
Matrix size: 8 Mpx
Resolution : 8Mpx @ 15 fps; 2592 x 1944 - 5 Mpx @ 12.5 or 20 fps; 2560 x 1440 - 3.7 Mpx @ 25 fps; 1920 x 1080 - 1080p @ 25 fps; 960 x 576 - 960H, PAL
IR illuminator range: 30 m
Lens: fixed 3,6 mm
Angle of view: 85°
Signal/noise ratio (S/N): > 62 dB
Video output: 1 Vpp / 75 ? - AHD/HD-CVI/HD-TVI/PAL, BNC socket
Selected functions
- DNR - Digital Noise Reduction in Images
- AGC - Automatic image gain adjustment
- BLC - reverse light compensation (background)
- ICR - Mechanical Infrared Filter
- Automatic white balance
- Sharpness - Sharpening the contours of the image
OSD screen menu: OSD menu available via DVR
Power supply: 12 V DC / 300 mA
Power consumption: max 5 W (at night with the radiator on)
Housing: Metal
Protection class: IP66
Working temperature: -40 °C ~ 60 °C
Weight: 0.37 kg
Dimensions: 180 × 80 × 70 mm
Registrar:
Standard: AHD, HD-CVI, HD-TVI, CVBS
Video inputs: 4 pcs. BNC - AHD / HD-CVI / HD-TVI / CVBS
Video outputs: 1 unit HDMI; 1 pc. VGA
Audio inputs: 2 pcs. CINCH
Audio outputs: 1 unit CINCH
Image compression method: H.264 / H.265
Resolution of the saved image
- AHD: 8M-n/5M/4M/1080p/720p
- CVBS: 960H
Write speed adjustment
- 8M-n @ 1 ... 8kl/s
- 5M @ 1 ... 6fps
- 4M @ 1 ... 8 fps
- 1080p @ 1 ... 15 fps
- 960H @ 1 ... 25 fps
Working modes: 4 x HD-TVI / AHD / HD-CVI / CVBS
Supported hard drives: 1 x 8 TB SATA
Archiving on external media: Archiving on USB drive (pendrive)
Access from mobile phone:
- Access via cloud (P2P)
- Android: Free app V247
- iOS (iPhone): Free app V247
USB: 2 units USB 2.0
Power supply: 12 V DC (power supply included)
Weight: 0.76 kg
Dimensions: 260 x 210 x 45
1. How many meters of wire is included?
The amount of coaxial and power cord is specified in the set composition. Additional cable can be purchased on Allegro
2. What can be the maximum distance between the recorder and the camera?
The signal can be conducted up to 100m. For 12VDC power supply, we recommend shorter sections.
3. How to connect the DVR to the Internet?
The recorder must be connected wired to a router that has access to the Internet. Alternatively, you can connect an access point device to the DVR that will connect to your local Wi-Fi network [not included].
4. Can I have a preview on my phone?
Yes, you can. The recorder must first be connected to the Internet and configured.
5. How to connect the drive to the recorder?
Remove the top cover of the recorder, connect with two wires (SATA + power supply), and then attach with screws to the base of the recorder.
6. How to get an image from the DVR?
The recorder must be connected to a TV or monitor via VGA or HDMI. After connecting, the screen should immediately display the DVR menu.
6a. Can I connect the DVR to my laptop with VGA/HDMI cable?
No, laptops have an output, not a video input. This prevents you from getting the image this way.
7. How much is the disk from the set enough?
In the "HARD DRIVE" section, it is calculated how many days of recordings the disk will hold. When the drive is full, the recorder will automatically delete the oldest record and continue working.
8. Can the cameras be mounted outside?
Yes, the cameras have a sealed housing with IP66 rating and can be mounted outdoors. When installing, we recommend properly securing the cable and plugs.
9. What happens in the event of a power outage?
The device will shut down. When the voltage appears, it will automatically restart.
PRXVR04T8HBD
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 5904473552095 |
| Parametry | Model | kamery - ESBR-8084 |
| Parametry | Brand | Protec |
| Parametry | Number of supported cameras | 4 |
| Parametry | Maximum recording resolution | 8 Mpx |
| Parametry | Lens | fixed-focus |
| Parametry | Infrared range | 30 m |
| Parametry | Camera waterproof rating | IP66 |
| Parametry | Installed disk capacity | 0 TB |
| Parametry | Maximum number of supported drives | 1 |
| Parametry | Maximum capacity of drives | 6 TB |
| Parametry | Video compression | H.265 |
| Parametry | Number of USB ports | 2 |
| Parametry | EAN (GTIN) | 5904473552095 |
| Parametry | Batteries included | no |
| Parametry | Technology | AHD,ANALOG,CVBS,HD-CVI,HD-TVI |
| Parametry | Video outputs | HDMI,VGA |
| Parametry | Functions | phone app,motion detection,advanced search,digital zoom |
| Parametry | Certificates of conformity | CE,WEEE |
