Vaizdo stebėjimo rinkinys DAHUA, 4 kameros, 6 Mpx, 3K+, spalvotas vaizdas dieną ir naktį, garsas, PoE

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys DAHUA, 4 kameros, 6 Mpx, 3K+, spalvotas vaizdas dieną ir naktį, garsas, PoE. Kategorija: Rinkiniai.

• Gamintojas: Dahua
• Modelis: IPC-HDW1639T-A-IL(z4) + NVR + HDD

4 x 6Mpx Full-Color Dual Light IP Camera / 4CH PoE IP Recorder / 1TB HDD / Plug Set

The most important features of the set:

✅ Dahua PoE surveillance kit with 4 external cameras 6Mpx

✅ Smooth and sharp image in high resolution 6Mpx (3200x1800p)

✅ Cameras with the possibility of mounting inside and outside

✅ Quick and convenient installation of the camera thanks to PoE power technology

✅ Night vision up to 30 meters in colour and infrared - Dual Light technology

✅ Cameras with automatic mode day / night

✅ Motion detection function that sends notifications about key events straight to your application

✅ Overwrite video on disk

✅ Hard Drive Seagate Skyhawkwith large capacity included

✅ Live view and access to recordings via internet on computer, cell, tablet

✅ P2P support (cloud) - a function that allows remote access without port forwarding and public IP address

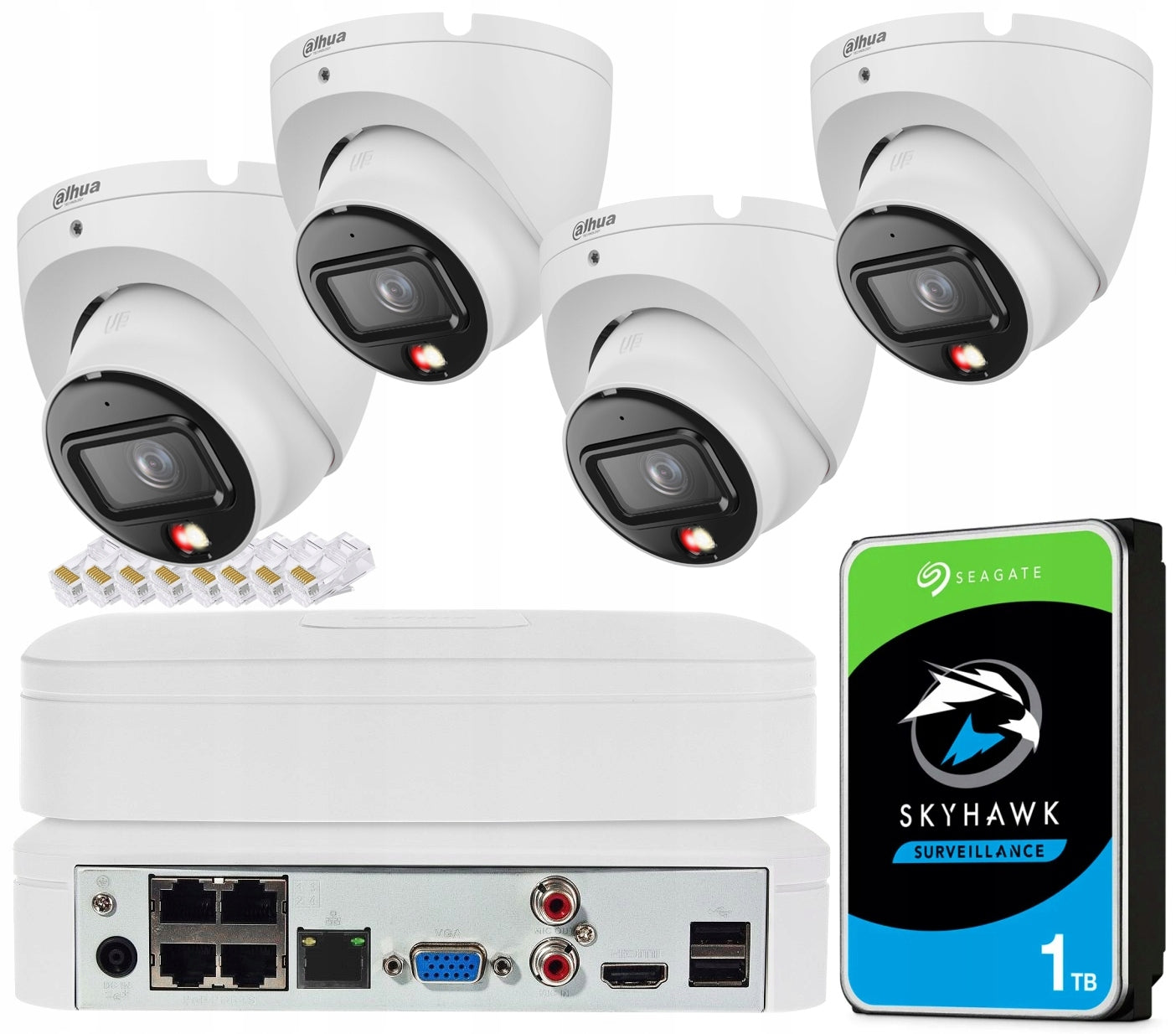

• 4 x 6Mpx High Resolution IP Camera - Dahua IPC-HDW1639T-A-IL
• 1 x PoE IP recorder with the ability to support up to 4 cameras - Dahua NVR2104-P-4KS3
• 1 x Seagate Skyhawk hard drive with 1TB capacity, designed to work 24/7
• 8 x RJ45 plug

The offered monitoring set can be operated and configured using the intuitive mobile application DMSS (smartphones) and the Smart PSS (PC) program. Thanks to this, the user receives constant access to recordings and live view from anywhere with access to the network. An additional advantage of the software is the ability to receive alarm notifications through the motion detection function in cameras.

The DMSS application is available for smartphones with Android and iOS. The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The monitoring system has a built-in motion detection algorithm - when moving objects are detected on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

The camera has double night mode - it allows you to record at night images in shades of gray in infrared mode and in full color, using a white light illuminator. Thanks to this function, you can easily recognize the colors of an intruder's clothes , even when he sneaks in complete darkness.

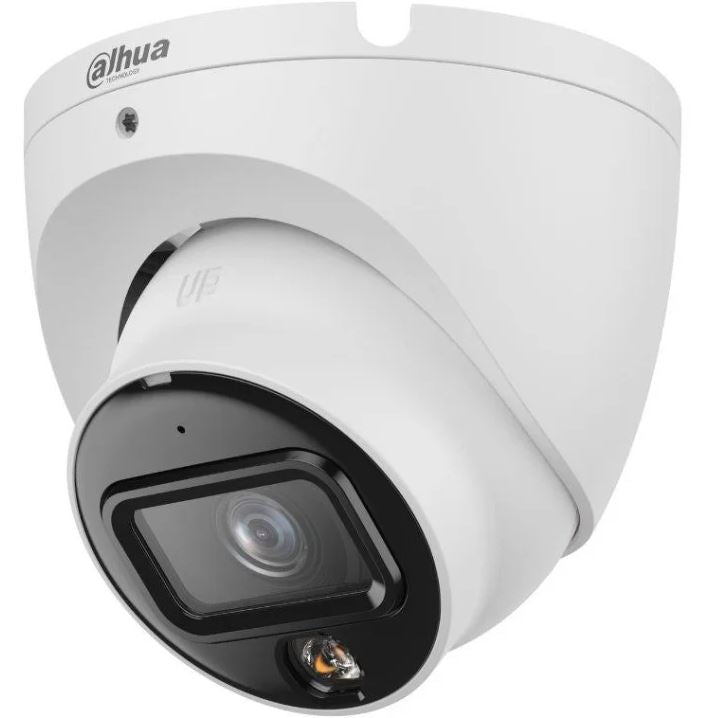

• Converter: 1/2.7" PS CMOS
• Resolution: 6Mpx (3200×1800)
• Lens: 2.8mm
• Angle of view: 110°
• IR illuminator: Yes, range up to 30m
• White light illuminator: Yes, range up to 30m
• Built-in microphone: Yes
• Image functions: AWB, AGC, BLC, HLC, 3D NR, WDR 120dB, RoI
• Full Color: Yes, color image around the clock
• Intelligent functions: motion detection, object classification (human)
• Configuration and remote operation: VMS software (Smart PSS, DSS Express, DSS PRO), WEB browser, mobile applications
• Image compression: H.265, H.264, H.264H, H.264B, MJPEG
• Protection class: IP67
• Power consumption: < 5.7 W
• Power Supply:12 VDC / PoE (802.3af)
• Dimensions: Φ94 × 85,6 mm
• Weight: 0.34 kg

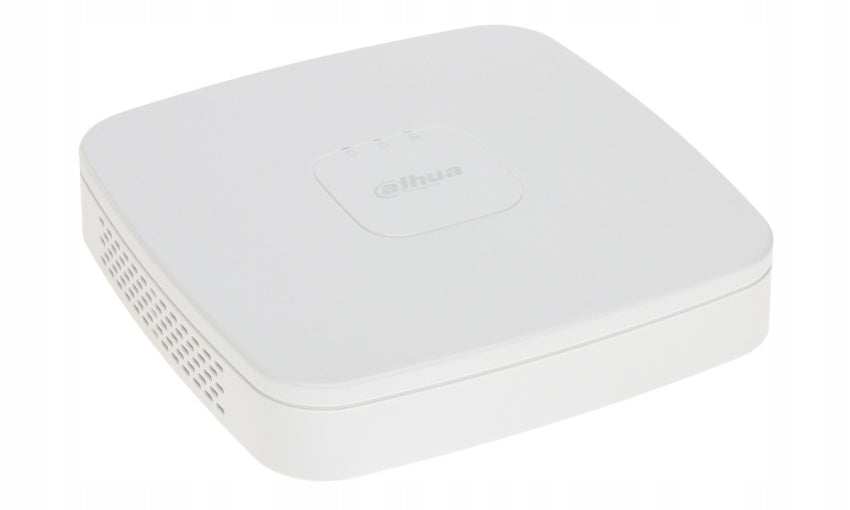

• Number of channels: 4 IP channels with PoE power supply
• Resolution supported: up to 12Mpx (up to 8Mpx with AI funds)
• Video outputs: 1xHDMI, 1xVGA
• Video compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 6TB
• Mobile application: DMSS, Smart PSS
• Support for ONVIF: Yes
• PoE power budget: < 36W
• Ethernet speed: RJ45 10M/100M
• Dimensions; 204.6 mm × 206.4 mm × 45.6 mm
• Power Supply: 48VDC

The disk in the set is a model from the Skyhawk series, dedicated to monitoring, characterized by a higher service life.

• Capacity: 1 TB
• Cache: 64 MB
• Interface: Smart SATA 6 Gb/s
• Size: 3,5”
• Fig. /min: 5700 rpm. /min

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 8x RJ45 plug
• A set of instruction manual
