Vaizdo stebėjimo rinkinys DVS, lauko 8 kamerų komplektas, juodos cilindrinės, 5MP DVS

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys DVS, lauko 8 kamerų komplektas, juodos cilindrinės, 5MP DVS. Kategorija: Rinkiniai.

• Gamintojas: DVS
• Modelis: ZEWNETRZNY ZESTAW 8 KAMER DVS TUBA CZARNA 5MPX DVS

Designed for people looking for high-quality products at an affordable price. The set includes solid analog cameras from polish brand DVS. We designed the set listening to the needs of users. With their compact design and durable components, they provide ease and comfort. The cameras are ideal for both internal and external applications.

• Are you looking for proven and durable monitoring for years for reasonable money?
• You want to mount the kit yourself and you have no knowledge of CCTV
• Do you want to overpay for features you won’t use?

We have something that will meet all your expectations! Order and check the quality of the offered sets.

____________________________________

WHY DVS MONITORING??

The protection of an object that is important to us does not have to be immediately associated with high expenses of several thousand zlotys.

⭐ Key features of the camera set:

✅Remote view from anywhere in the world

✅ Application for phone and program for computer in Polish

✅ Simple installation and configuration PLUG&PLAY

✅ Smooth, detailed image with high resolution 5Mpx

⚡ Visibility at night up to 25 meters - dual IR/LED illumination

⚡LED activation when motion is detected

✅ Notifications based on advanced analytics - man/vehicle

✅ Wide-angle lens, approximately 110°

✅ Sturdy black metal housing with tightness class IP66

✅ Recording schedule, privacy masks and PUSH notification o motion detection

✅ Detailed instructions for configuration andtechnical support

⭐ Advanced analytics of the DVS camera set

Modern analogue sets for DVS monitoring not only capture images, but also offer advanced analytical functions that increase the effectiveness of surveillance. Built-in image analysis systems allow you to detect irregularities in real time, thanks to which it is possible to quickly respond to potential threats and eliminate false alarms.

Motion detection

Cameras equipped with analytics systems can detect movement in the monitored area and then automatically activate deterrent white light, alarm or recording, minimizing the amount of unnecessary notifications.

Detection zones

Possibility to designate virtual detection zones whose violation by the object, e.g. human or vehicle, triggers alarm, notification or LED lighting.

LED activation (white lighting)

Possibility to activate LED illumination when motion is detected. The camera activates bright white light when it detects a moving object in the observation area.

Human detection

Thanks to the algorithm of analytics and human character detection, false motion detection notifications are eliminated.

Vehicle detection

Thanks to the analytics algorithm and vehicle detection, false motion detection notifications are eliminated.

Detection and alarm schedule

Possibility to configure the schedule for each camera separately:- motion detection and notifications- LED activation

Thanks to the integration of advanced analytics in analogue sets for monitoring DVS, users gain a tool that not only monitors, but also automatically responds to detected irregularities, improving the safety and efficiency of supervision.

⭐ Additional functions of the monitoring kit

Schedule of recordings

Choose from six types of recording trigger events (continuous, event, motion detection, alarm, motion and alarm, motion or alarm) and freely select the materials you are interested in. Choose recording days and times, add holidays and exceptions to save your valuable time and hard disk space.

-

Motion detection

With one click of the mouse, set advanced motion analysis and receive precise information (including a photo) about the zone violation directly on your mobile phone with the Guard Viewer application installed. Select on the screen where the motion detection option is to be active and set its sensitivity.

-

Automatic overwriting of recordings

The oldest recordings will be automatically replaced with new ones, without having to remove the disk or reformat it. If you decide that you want to keep some of the recordings, you can indicate them as excluded from overwriting, or use the archiving option on an external device that you connect to the USB port of the recorder.

-

Mask of privacy

Rest assured of the requirements set by GDPR, including the option to set a privacy mask. Create up to 4 areas that will be excluded from previewing and recording events.

⭐ Clear picture even on the darkest nights thanks to Dual Light cameras

The camera is equipped with an advanced Dual Light radiator, which combines Smart IR infrared technology with a range of up to 25 meters and system of LEDs emitting white light. Thanks to this, the camera guarantees reliable monitoring both in complete darkness and in conditions of limited lighting.

• Infrared mode (Smart IR): The camera automatically switches to black and white mode, providing a clear image in complete darkness. Smart IR eliminates the problem of spot x-rays, ensuring even illumination of the entire frame.
• LED lighting: When motion is detected, the camera activates the LED system, which not only allows you to get a color image without natural light, but also acts as a deterrent to potential intruders.

This solution not only facilitates the identification of people or objects in difficult conditions, but also increases safety thanks to the preventive function. Compared to older technologies, the Dual Light radiator offers better performance, longer life and a fuller image from the monitored area.

⭐ Access from anywhere in the world via smartphone apps!

Our monitoring set thanks to plug and play function, installation and configuration of the system is intuitive and does not require complicated technical knowledge. Full support of the set by phone or computer is provided by a dedicated, proprietary application available for Android and iOS and a program for a computer, all in the full polish language version, which guarantees ease of use and availability. What’s more, the kit allows remote access from anywhere in the world, providing users with the ability to monitor their property wherever they are.

Preview on your phone and computer

The set offers preview via both smartphone, and computer, monitor or tablet. The user can play and save recordings to the DVR's hard drive from within the application.

Just install the Polish-language Guard Viewer application, prepared for Android / iOS devices, create an individual account and have an Internet connection. Dedicated program Guard Station will allow you to view the image from the cameras using a computer.

⭐ DVS analog camera set for everyone!

We recommend the set to users who expect the highest image quality, full of details and a wide viewing angle. AHD/TVI technology is an excellent alternative to more expensive IP monitoring, its main advantages include:

- simplicity of installation - just connect the cameras to dedicated inputs, and our recorder will do the rest and automatically display the image from them.

- low installation and assembly cost - monitoring in AHD/TVI technology uses classic cables used in CCTV for years.

- liquid image in real time - unlike IP monitoring, the set transmits data stream without delay.

- direct connection with coaxial cable K-60 - allows the monitoring system to operate without burdening office or home computer networks. In addition, this system is fully compatible with most older installations, because in the past all monitoring systems were based on K-60 cables, which enables easy modernization without the need to replace existing infrastructure.

You can easily recognize faces, read license plates or identify potentially dangerous events.

⭐ Install and configure it yourself!

The installation and operation itself is extremely intuitive, and the instructions prepared by our dedicated technical department will guide you through the process of installing and configuring the kit step by step.

The manual in the electronic version is located directly below the offer description, ready to download in PDF version.

⭐ Bronze line of analog cameras DVS

Our brown line of analogue systems is safety for many years. All products in our brown product line are fully compatible and offer the possibility of easy connection and management with one mobile application. The kit can be installed and configured with a comprehensive user manual and system configuration, making it easy to install and manage. In case of any difficulties, a package dedicated to technical support is included in the set, which guarantees quick and effective assistance in case of any questions or needs related to our products.

⭐ Universal complete set for analogue monitoring DVS

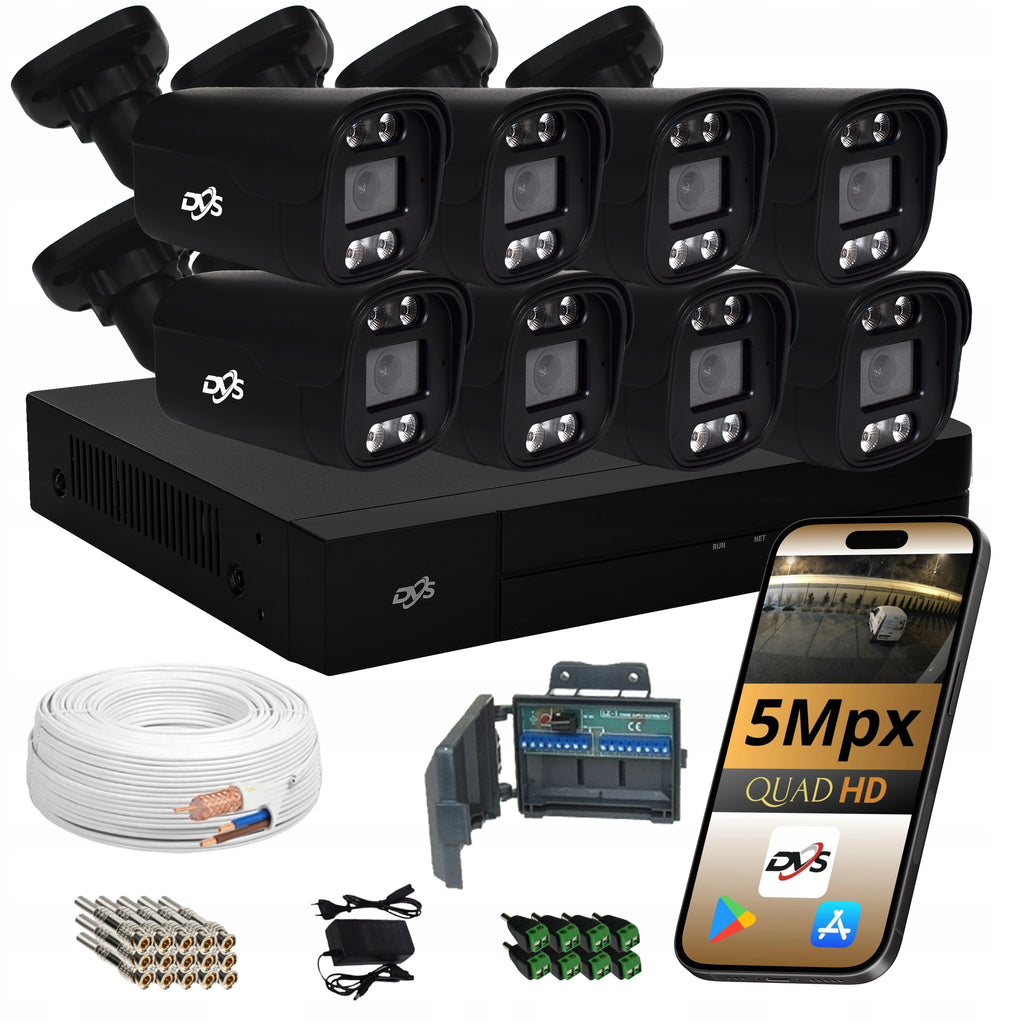

⬇ Analog set includes⬇

• 8 cameras DVS-HA5028NT-IRLS
• DVR DVS-XVR0801-N5
• Switching power supply 12V/5A
• Power connector LZ-1
• 40m K-60 cable (signal + power supply)
• 8 plugs ML121
• 16 BNC-W/SKR-MET signal plugs

The kit allows you to preview the image using:

1. Monitor / TV - by connecting it to the DVR with an HDMI or VGA cable
2. Computer - via dedicated application Guard Station
3. Phone / tablet - via a dedicated application Guard Viewer

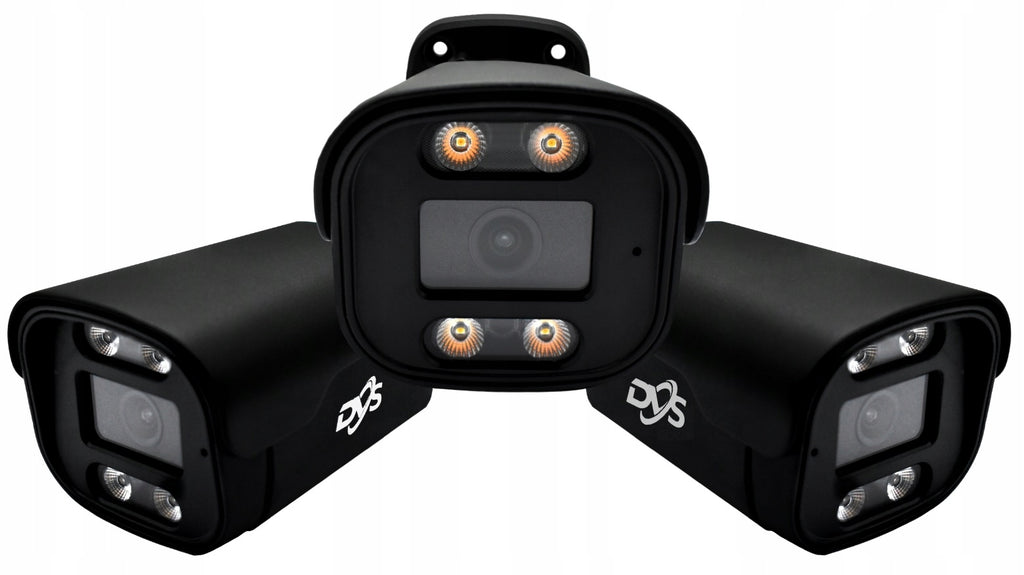

⭐ Dual light DVS-HA5028NT-IRLS analog camera

This advanced camera from the DVS analogue set is equipped with a solid metal housing in black, which ensures not only strength, but also an excellent camouflage. The adjustment on the handle allows easy adjustment of the viewing angle and mounting as needed, and the visibility of up to 25m IR/LED guarantees clear image even in complete darkness. The device is designed for external and internal use, making it a universal choice for a variety of environmental conditions.

Equipped with a 5Mpx sensor and matrix with 1/2.7 FH8538E+SC501AI sensor, offering exceptional image quality in all lighting conditions. Thanks to the mechanical ICR filter and IR radiator with a range of up to 25 m, the camera provides a clear image even in total darkness. IP66 protection class guarantees resistance to adverse weather conditions, and the wide-angle lens 2.8 mm allows for effective monitoring. The device supports AHD and TVI standards, making it a versatile choice for any analog system.

DVS -HA5028NT-IRLS Specifications:

• Resolution: 5Mpx
• Lens: 2.8mm prime
• Type: Analog
• Viewing angle: 110°
• Housing material: metal
• Housing color: black
• Night illumination : 25m (4 IR diodes and 4 LED diodes)
• Tightness class: IP66
• Power supply: 12VDC (+/-10%) / 300mA
• Signal to noise ratio: >48dB
• Sensitivity: 0 Lux (with IR LED on) )
• Shutter Speed: PAL:1/25s-1/10000s, NTSC:1/30s-1/10000s
• Mechanical ICR infrared cut filter: Yes
• Additional functions: auto AGC, auto WB
• Type: tube (bullet)
• Dimensions : 158*65*65
• Weight: 385g

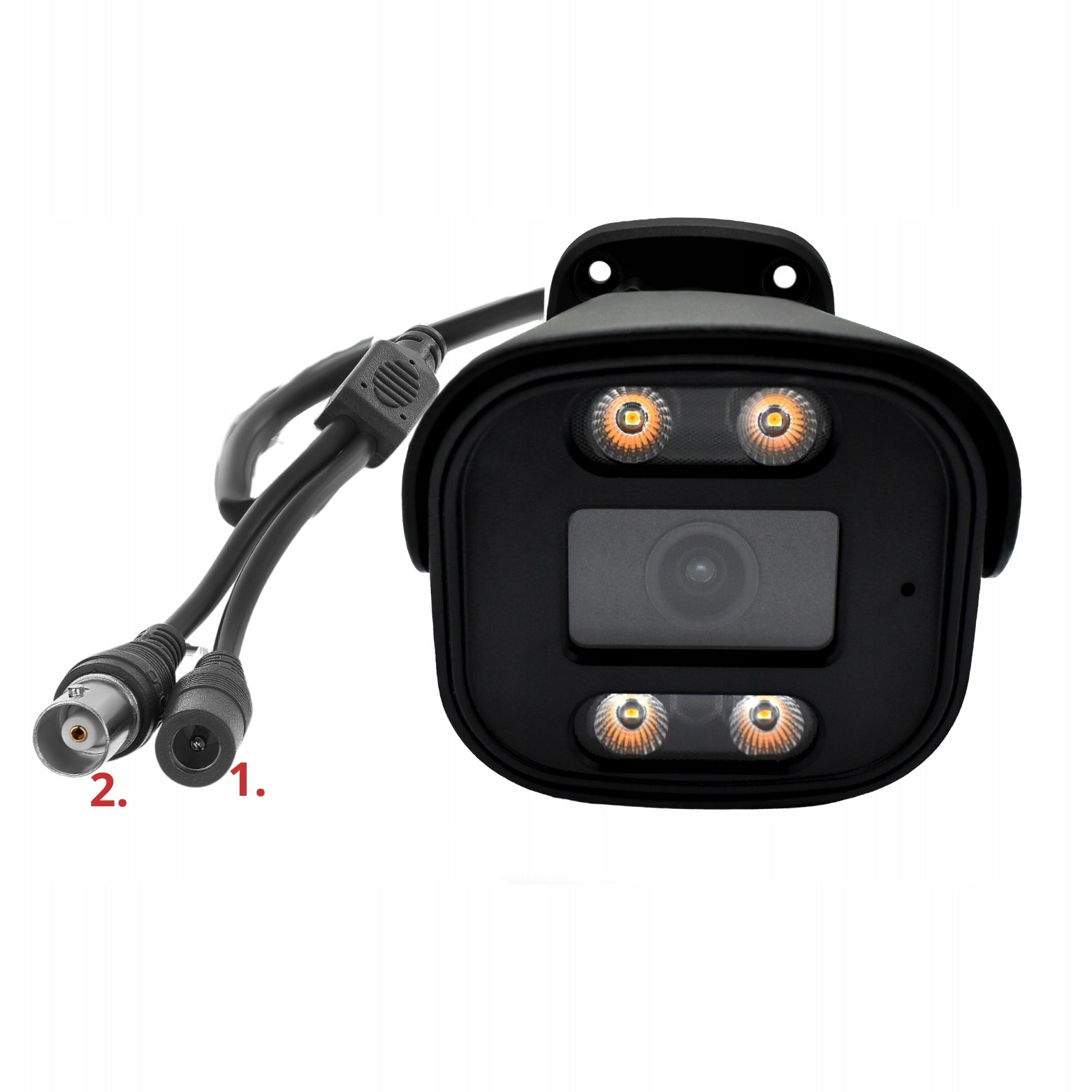

Connectors:

1. Power socket - connect the 12V power supply
2. BNC signal socket - connect a coaxial cable with a pre-terminated BNC plug

⭐ Analog recorder DVS-XVR0801-N5

The Intelligent Motion Detection function is an advanced motion detection system that increases safety by altering in the event of unauthorized entry into a protected area through human/vehicle identification. With the recording schedule, the user can schedule automatic video recording, which optimizes memory management. The recorder supports up to 8 cameras up to 5Mpx, guaranteeing compatibility with the latest analogue monitoring systems.

The recorder ensures interoperability with a wide range of analog devices. Preview on TV with HDMI output offers images with the highest available resolution. Privacy masks allow you to protect your privacy by excluding specific areas from the camera's field of view. Finally, the loop recording function enables automatic overwriting of the oldest recordings, ensuring continuity of monitoring without the need for manual data cleaning.

DVS-XVR0801-N5 specification:

• Resolution: 5Mpx-n
• Maximum number of cameras supported: 8
• Number of disks supported: 1
• Maximum disk capacity: 6TB
• Image compression: H.265
• Mobile application: Guard Viewer
• CMS Program: Guard Station
• Disk connector: SATA
• Power Supply: 12VDC
• Dimensions: 255mm×215mm×42mm
• Working temperature: -10°C~+55°C

Connectors:

1. 8x BNC - camera connection
2. 1x AUDIO OUT - speaker connection , 1x AUDIO IN - microphone connection
3. VGA - monitor/TV connection
4. BNC Video - BNC video output
5. HDMI - monitor / TV connection
6. 2x USB - socket for connecting a mouse / pendriva
7. LAN - port for connecting a local network
8. RS485 - communication port
9. DC 12V - power socket

Additionally included

✅A set of plugs and connectors necessary for the proper operation of the system

• 1x LZ-1 power connector
• 8x power plug for cameras
• 16x BNC-W/SKR-MET signal plug

✅Pulse power supply 5A

• company switching power supply 5A
• power supply: 90÷264VAC/50Hz ; output: 5A/12VDC

✅ 40 meters of K60 cable (RG59+ OMY 2x0,5mm)

• professional cable for use in monitoring systems
• conductor: CU 0,59 wire with PE insulation
• power cord 2x0,5mm

* Possibility to purchase more cable:

Additional 60m - Offer number: 8701903442

Additional 100m - Offer number: 8099241719

1TB hard drive - offer number: 10193841984

Hard drive 2TB - offer number: 8879548494

4TB hard drive - offer number: 10193832327

6TB hard drive - offer number: 9546708072

⚡ WHY CHOOSE THIS MONITORING KIT ⚡

✅ The highest preview quality 5Mpx – Smooth and detailed image allows precise recognition of silhouettes, objects and small details.

✅ Advanced Image Analytics – Intelligent features such as human and vehicle detection eliminate false positives and increase safety.

✅ Double Light – IR and LED system provides a clear image at night, and additional white light deters intruders.

✅ Remote view from anywhere – Support by phone, tablet and computer thanks to the Polish-language, free Guard Viewer and Guard Station application.

✅ Easy installation and configuration – The PLUG & PLAY system allows for self-assembly without the need to hire a professional.

✅ Weather resistance – The IP66 metal housing makes the cameras work flawlessly in rain, snow and high temperatures.

✅ Complete set ready for operation – In the set you will find everything necessary for installation and configuration of the system.

☑ Don’t overpay for features you won’t use!

⚡ Order now and enjoy the peace of mind today! ⚡

Offer Number: 15360889728

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	DVS-XVR0801-N5+8xDVS-HA5028NT-IRLS
Parametry	Model	ZEWNETRZNY ZESTAW 8 KAMER DVS TUBA CZARNA 5MPX DVS
Parametry	Brand	DVS
Parametry	Product width	25 cm
Parametry	Product height	25 cm
Parametry	Product depth	15 cm
Parametry	Product weight	5 kg
Parametry	Product weight with unit packaging	6.5 kg
Parametry	Number of supported cameras	8
Parametry	Maximum recording resolution	5 Mpx
Parametry	Lens	fixed-focus
Parametry	Infrared range	25 m
Parametry	Camera waterproof rating	IP66
Parametry	Installed disk capacity	0 TB
Parametry	Maximum number of supported drives	1
Parametry	Maximum capacity of drives	6 TB
Parametry	Video compression	H.265
Parametry	Number of USB ports	2
Parametry	EAN (GTIN)	5906022554406
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Technology	AHD,ANALOG,CVBS,HD-CVI,HD-TVI,IP
Parametry	Video outputs	BNC,HDMI,VGA
Parametry	Other ports	1x RJ-45,x8 BNC
Parametry	Functions	phone app,motion detection,advanced search,digital zoom
