Vaizdo stebėjimo rinkinys FORCE, 4 IP kameros, 2MP Full HD, įrašymo įrenginys, programėlė

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys FORCE, 4 IP kameros, 2MP Full HD, įrašymo įrenginys, programėlė. Kategorija: Rinkiniai.

• Gamintojas: Force
• Modelis: NVR-V-3008H1

✅ Complete, ready-to-install kit from the renowned brand FORCE with 4 digital external IP cameras

✅ Live view and access to recordings via the Internet on your computer, smartphone, tablet

✅ High resolution Full HD digital image and wide recording angle - 2 MPx 1920×1080p and ~105 degrees

✅ Full visibility at night thanks to IR illuminators with a range of 25m

✅ Motion detection function, when motion is detected, automatically send an alarm to the phone.

✅ Tamper function, after losing the signal from the camera or covering it, automatically sending an alarm to the phone.

✅ Video overwriting function (loop recording)

✅ Possibility of mounting cameras both inside and outside - cameras in IP66 protection class

✅ Simple installation

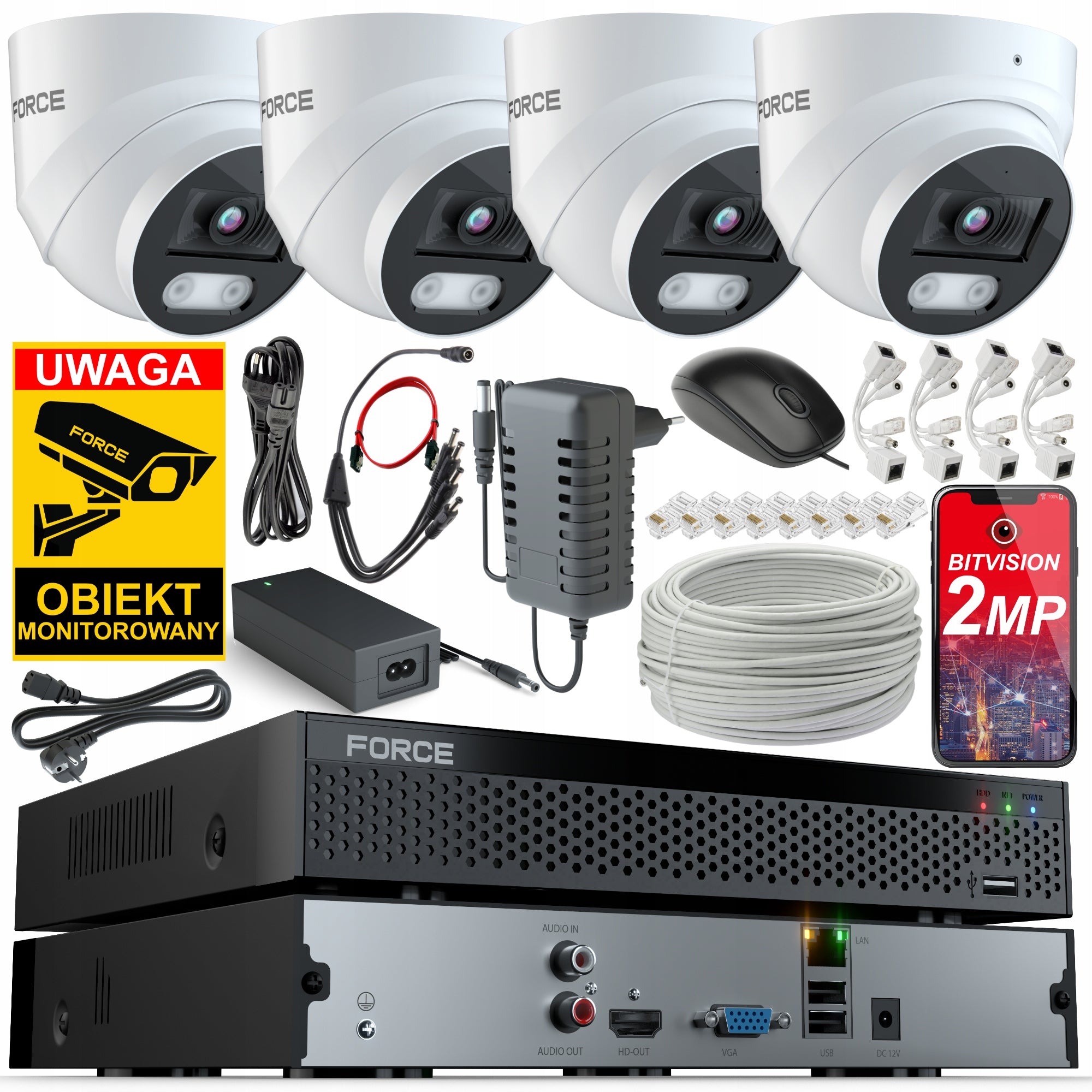

• 4 x FORCE 2MP IR25 IP-E-2025D camera
• 1 x FORCE NVR-V-3008H1 recorder
• 1 x Computer Mouse
• 4x FORCE POE-AD-W power adapter
• 1 x DC 12V, 2A Camera Power Supply
• 1 x Network Cable
• 1 x Power Supply for DVR
• 8x RJ45 plug
• 40m UTP twisted pair
• Power Distributor
• Templatka (template for drilling holes on the wall)
• Mounting pins
• Original manufacturer's packaging

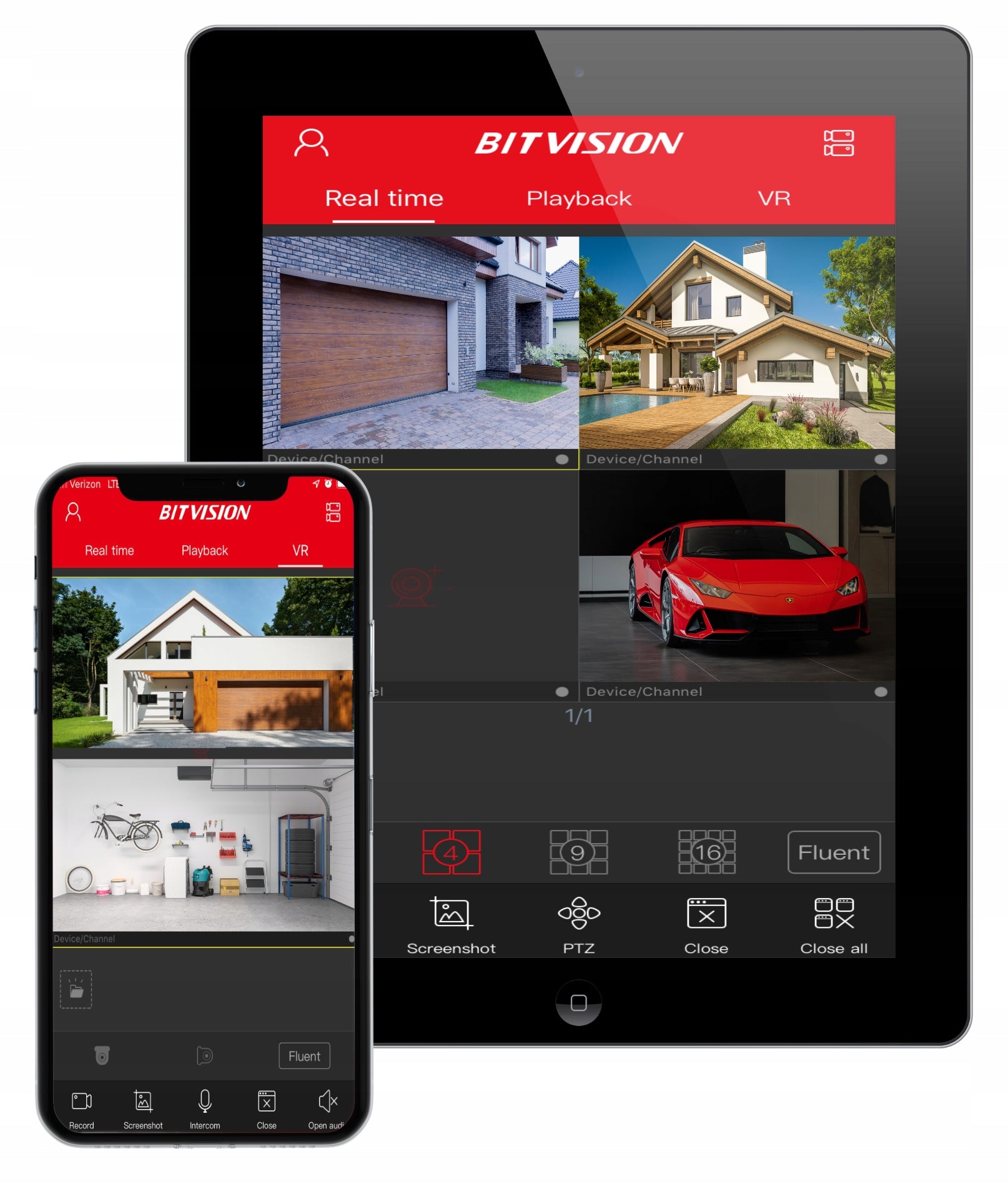

• online preview The set offers preview via both smartphone, PC, laptop or tablet. Thanks to the application, you can keep track of the image from cameras from anywhere in the world with Internet access. It’s a great solution to feel safe when you’re away from home or business. It is also remote to access archival recordings stored on the disk of your recorder.

  Intuitive application has been prepared for the most popular mobile operating systems Android and iOS, so you can be sure that it will be supported and updated on an ongoing basis. The clear menu makes using the application simple and pleasant.

• motion detection - the set automatically sends a notification to your phone when motion is detected! The set has the function of advanced motion analysis. Just set the monitoring areas and detection sensitivity to make sure that no moving "object" will escape our attention. Motion detection records images from cameras only after movement occurs in the camera frame. This is a feature that also saves a very large amount of space on the hard drive, which has a positive effect on its lifespan.
• sabotage - cameras have an analysis of the observed area, they are able to detect sabotage attempts such as: loss of signal from the camera, image obscuration, change of focus, change of viewing angle. The set automatically sends a notification to your phone when tampering is detected.
• privacy zones when we do not want the selected fragment of the frame to be on the recordings, the selected part can be covered with an electronically generated privacy zone
• write in loop after filling the disk, the recorder will work in loop. This means that it will automatically delete the oldest record and continue working without the need to interfere with the operation of the device

• recording schedule The work of the monitoring system can be planned according to your needs, e.g. continuous recording from 8-16 from Monday to Friday, and in other hours only for motion detection

• Model: NVR-V-3008H1
• Number of channels: 8 IP channels
• Resolution supported: up to 8Mpx (4K 3840×2160)
• Playback: 1-CH 4K@8 MP (30 fps)/2-CH@4 MP (30 fps)/ 4-CH@2-MP (30fps)
• Motion detection: Yes, supported
• Intelligent image analysis: on 4 channels, motion detection
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 8TB
• Mobile application: BitVision
• Supported protocols: IPv6/TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p, PPPOE
• Ethernet speed: RJ45 10M/100M
• Power Supply: DC12V

The recorder supports up to 8 8MPX cameras from different manufacturers. After connecting the cameras, the recorder will immediately display them on the connected screen.

Efficient H.265+ image compression - saves storage space and longer write times

Connect your monitor or TV to the DVR via the built-in HDMI and VGA connectors, and get a constant On-line preview on mobile devices (smartphone)

For all connected cameras, you will run motion detection, masking, etc.

ON-LINE Preview on every device running Windows, Android, iOS (PC, laptop, tablet, smartphone).

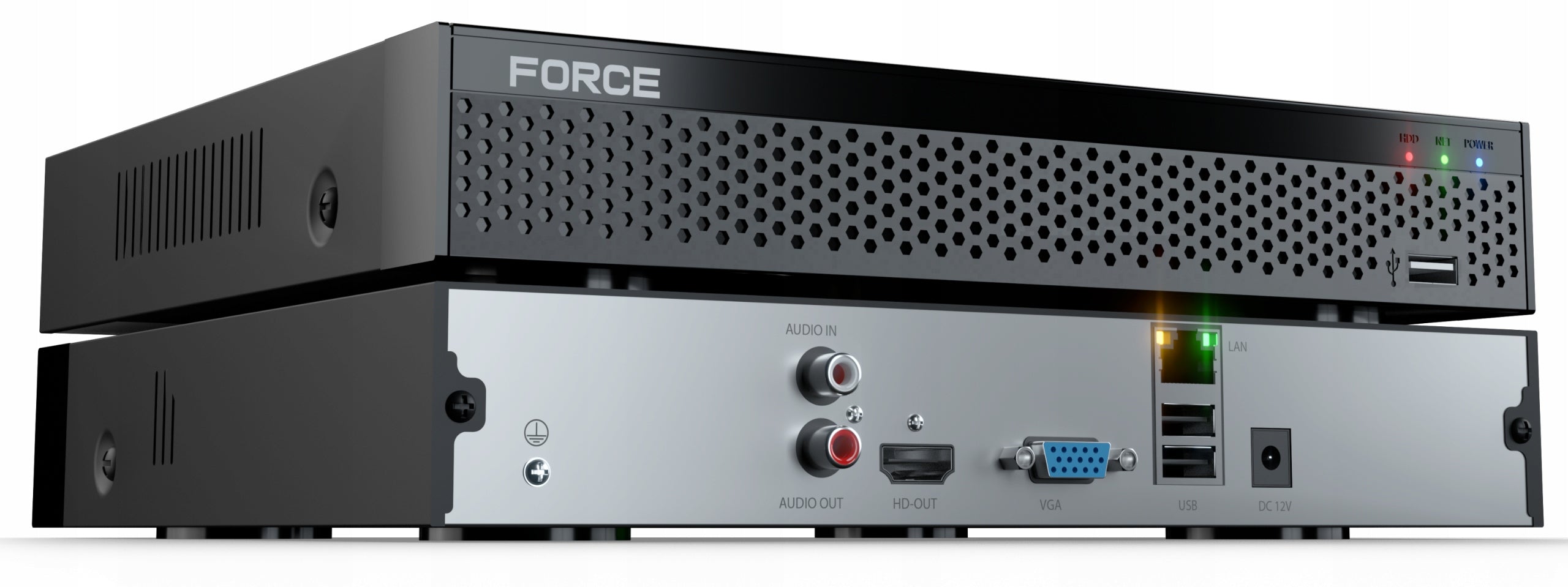

Rear panel of the recorder:

1. Audio output
2. Audio input
3. HDMI output - connect monitor or TV
4. VGA output - connect monitor or TV
5. USB sockets - connection of mouse or USB stick (pendrive)
6. Power socket (dedicated power supply is included with the recorder)a
7. RJ-45 socket - connection to the Internet

USB sockets will allow you to conveniently connect the mouse to control the recorder, as well as simultaneously connect a portable memory to rip recordings from cameras.

• Converter: 1/2.9" CMOS 2 Mpx
• Recording resolution: 1920 × 1080 (FULL HD)
• Fixed-focal lens 2,8 mm
• Angle of view: 105°
• Infrared illuminator: Smart IR25m
• Day/night switch: automatic
• Motion detection: Yes
• Image compression: H.264/H.265/JPEG/AVI/MJPEG
• Protection class: IP67
• Application: external or internal
• Power Supply: 12VDC, PoE
• Material: metal

The sealed housing with class IP67 allows you to place the camera outside. The camera is resistant to weather conditions - rain, snow, low and high temperatures. High tightness class prevents dust from entering inside. The camera can operate in the temperature range -30°C to +50°C

The cameras from the set are equipped with automatic night mode - this means that when the illuminance in the environment drops, the cameras go into night mode, supported by an infrared illuminator. This feature allows you to record images 24/7 in any lighting conditions, ensuring complete visibility.

• The FORCE camera has a built-in motion detection algorithm - when moving objects are detected, the camera can send an alarm notification to the program and application.
• What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard disk, which positively affects its lifespan.

• New models of network cameras from FORCE use the efficient HEVC codec. High Efficiency Video Coding), designated H.265+ in the CCTV systems industry.
• Compared to the previous H.264 standard, the new technology allows for almost double bandwidth savings, which in CCTV systems translates into longer archiving time of the material on the disk.

• Dedicated, efficient power supply for DC 12V, 2A cameras
• Power distribution for 4 cameras
• Computer mouse
• 4x FORCE POE-AD-W power adapter
• 8x RJ45 plug
• 40m UTP twisted pair

The FORCE kit will allow you to secure the building with four cameras and contains everything needed to run. Cameras can be mounted both inside rooms, but also perfectly suited for outdoor use. Tight, housing class IP67 will withstand all weather conditions. You will have access to the cameras locally via TV or monitor, and via the local network and remotely on mobile devices. You can start and configure the entire monitoring system without any specialized knowledge or tools.

Cameras and recorder from this set should be connected to your home network device, that is, a home router, modem or network switch.

Specifications
