Vaizdo stebėjimo rinkinys Hikvision HiLook, 4MP, 4 kameros, 2K PoE įrašymo įrenginys

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys Hikvision HiLook, 4MP, 4 kameros, 2K PoE įrašymo įrenginys. Kategorija: Rinkiniai.

• Gamintojas: Hikvision
• Modelis: IPC-B140HA-LUC (x4) + NVR + HDD HIK (DSDi Ready)

4x 4MPx Dual Light IP Camera | 4CH IP Recorder | 4x PoE Switch + 2x Uplink | 1TB Drive | Mounting Accessories

Complete 2K monitoring from HiLook by Hikvision

Complete monitoring 2K 4MPx for home or business, thanks to which you will see clearly faces / events, you will gain preview on your phone and 24/7 recording – without combining with power supplies (power supply via PoE). The set is ideal as a monitoring system in:

• offices in the company
• home
• apartment
• shop

Why choose this set?

✅ Clear 2K (4MP) image – you can easily recognize details on recordings

✅ Night vision in color and infrared - thanks to dual lighting technology in cameras

✅ Power supply after PoE - cameras can be easily powered by the PoE switch included

✅ Passed preview on phone - in HikConnect application from Hikvision

✅ 24/7 recording to a 1TB HDD - dedicated to work in monitoring systems

✅ AI motion detection – recordings exactly when something is happening

✅ Notifications without false alarms - cameras have an algorithm capable of recognizing the silhouettes of people

✅ Complete ready-to-assemble kit – cameras, recorder, disk and accessories in one package

In the kit we offer, you receive a complete, ready-to-install set based on high-quality, branded components.

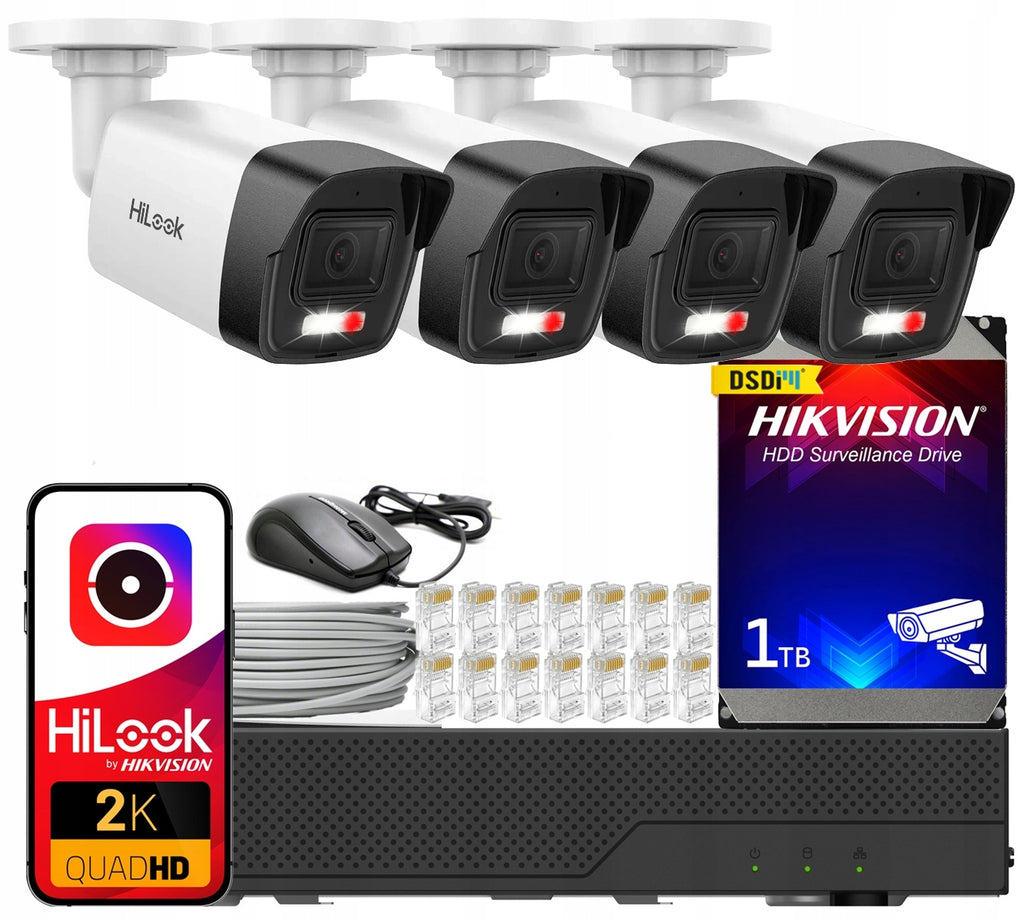

This set includes:

• 4x 4Mpx bullet camera (2560x1440 2k) - IPC-B140HA-LUC HiLook by Hikvision
• 1x 4-channel IP recorder - NVR-104MH-D HiLook by Hikvision
• 1x PoE Switch 4+2 to connect and power cameras - EI-H1064PL EIFLEX
• 1x Hard Drive for CCTV (24/7 recording) - Hikvision 1TB (built-in to the recorder)
• 1x UTP twisted pair cable - 20 meters
• 8x RJ45 plug

HiLook by Hikvison monitoring systems have been designed to make their installation as simple and intuitive as possible. The instructions included in the kit will guide you step by step through the installation and configuration process.

1. You mount cameras in selected places (wall, facade, ceiling)
2. You connect cameras with one network cable to the recorder – PoE power supply and image in one cable
3. You plug the cables into the recorder and connect it to the Internet (home router)
4. You install a free mobile app and add a system
5. Ready – you have live view and access to recordings from anywhere

Key features of the set:

HiLook by Hikvision monitoring systems can be controlled, configured and operated using the intuitive Hik-Connect mobile application for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• create motion detection scenarios and rules
• Rotary camera control
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

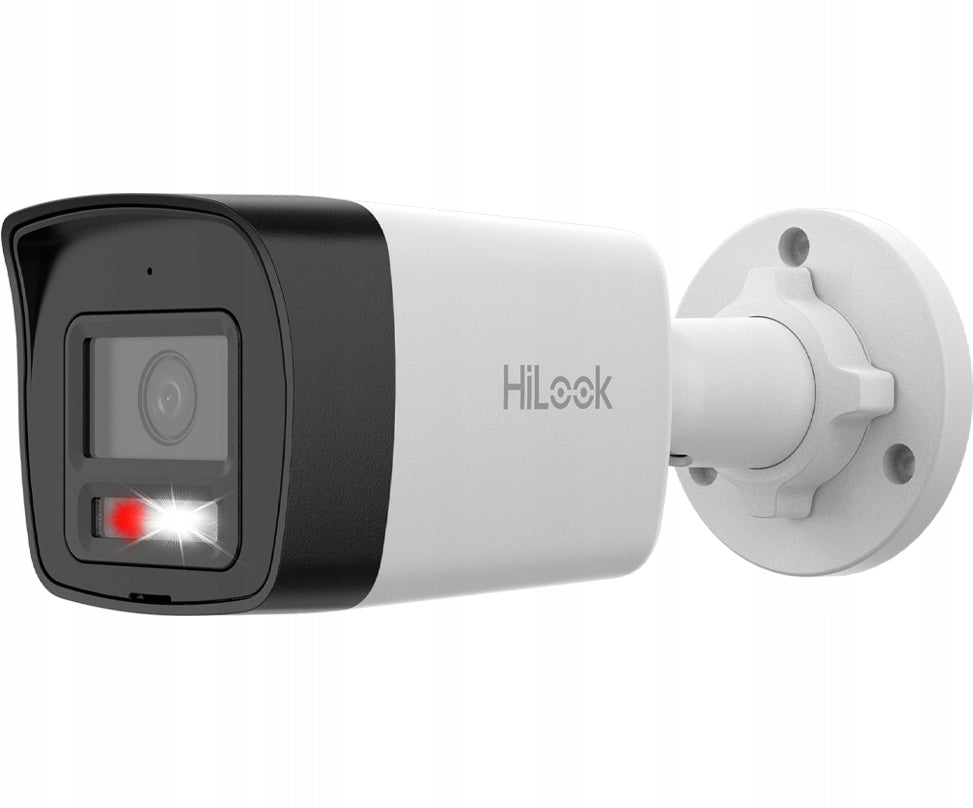

IPC-B140HA-LUC cameras from the set belong to a series of cameras using innovative Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night both in infrared (black and white) and fully colored mode.

Thanks to this, it guarantees an even higher level of safety, enabling effective identification of objects also by their color, in any lighting conditions.

The cameras have a built-in motion detection algorithm - when moving objects are detected on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

The advantage of the detection system in the IPC-B140HA-LUC camera is also the ability to recognize the silhouettes of people, which allows you to reduce false alarms by moving irrelevant objects.

The cameras included in the kit are equipped with PoE (Power over Ethernet) power supply, making their installation extremely simple. Each camera with a PoE switch is connected using a single UTP cable.

• Converter: 1/2,8” 4MPx CMOS
• Recording resolution: 2560×1440 @20FPS
• Lens: wide-angle 2,8 mm
• Recording angle: ~104°
• Image compression: H.265, H.264+, H.264, MJPEG
• Wide dynamic range: DWDR
• Digital Noise Cancellation: Yes - 3D DNR
• Built-in microphone: Yes
• Night mode: Hybrid - color or infrared
• Infrared range: up to 20 m
• White light range: up to 15m
• Motion detection: yes - body detection and recognition: human
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in HiLook App: Yes
• Remote support: iVMS-4200, WEB interface, HiLook App/HikConnect
• Assembly: external or internal
• Power Supply: 12V or PoE
• Leak-proof class: IP67

• Number of channels: 4
• Recording resolution: to 6Mpx
• Bitrate in/out: 40/60 Mbps
• Video outputs: 1x HDMI, 1x VGA
• USB ports: 2x USB 2.0
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Ethernet interface: 1x RJ45 10 / 100 Mbps
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Preview/remote support: HIK-Connect/HiLook App, iVMS-4200 (lite)
• Storage for HDDs: 1 (up to 6TB)
• Power Supply: 12 VDC
• Power consumption: 18 W (without 10W disk)
• Dimensions: 265 x 225 x 48mm
• Weight: ≤ 1 kg

The switch has 6 ports with a speed of 10/100Mbps, including 4 PoE ports with a total power budget 65W and unit power up to 30W per port.

The device works in Plug&Play mode - it does not require configuration and is ready to work immediately after connecting to the power supply.

• Number of ports: 6
• PoE ports: 4x 10/100Mbps RJ45
• Uplink ports: 2x Uplink 10/100Mbps RJ45
• Switch type: Unmanaged
• PoE power standard: IEEE 802.3af/at PoE+
• Single port power: up to 30W
• Total PoE power: 65W
• EXTEND mode: Yes - transfer up to 250m @10Mbps
• Dimensions: 140*115*40mm
• Weight: 0.4kg
• Power supply: AC100-240V (built-in power supply)

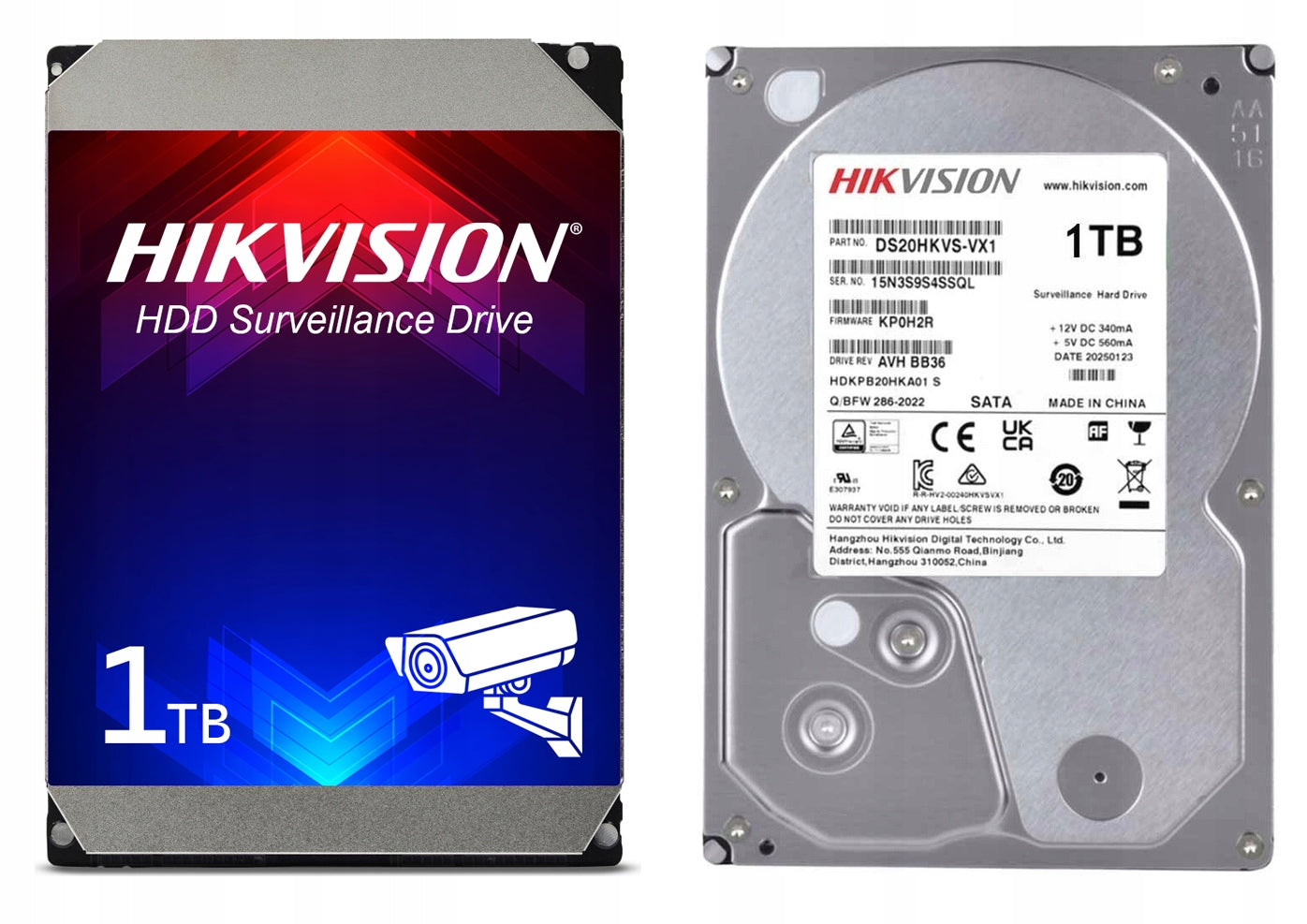

1TB Hikvision hard drive for monitoring included

The recorder has a built-in hard drive, dedicated to 24/7 operation in CCTV monitoring systems.

Technical parameters:

• Capacity: 1 TB
• Cache: 64 MB
• Interface: Smart SATA 6 Gb/s
• revolution /min: 5700 rpm. /min

The 1TB drive in this set allows for about 12 days of continuous recording (24/7).

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 8x RJ45 plug
• A set of instruction manual
• Sticker "Monitored Object" by EC System

The presented set guarantees trouble-free and smooth operation of the monitoring system. Hikvision systems are solutions valued all over the world, with unbeatable operating parameters and the best value for money.

⚠ CHOOSE CONSCIOUSLY⚠

Monitoring systems are an investment in security – not only property, but also data. Unlike cheap, unverified OEM devices, Hikvision products provide:

✅ Regular device firmware updates to ensure compliance with the latest cybersecurity standards

✅ Stability and reliability of operation HikConnect - mobile application no.1 in the CCTV monitoring systems industry

By choosing Hikvision, you can be sure that your monitoring system meets the highest standards of quality, data protection and reliability.

Frequently Asked Questions (FAQ)

✅ What do I gain by choosing a branded monitoring kit?

First of all, stable operation, refined mobile application and predictability of use for years, without problems with connection or operation.

✅ Can I handle assembly without technical knowledge?

Yes. Thanks to PoE technology, installation is simple – each camera requires only one cable, and the configuration is intuitive.

✅ Can I have a preview of the cameras on my phone and computer?

Yes. The system allows remote live view and playback of recordings on your smartphone and PC from anywhere.

✅ Does monitoring work at night?

Yes. The cameras have an infrared illuminator and white light illuminator, which provide a clear image after dark up to 20 meters - both in color and in black and white mode

✅ How many recordings can fit on a 1 TB drive?

The drive allows for approx. 12 days of 24/7 continuous recording - depending on settings and traffic intensity, this time may be extended (e.g. by recording only when motion is detected)

✅ Is this set suitable for home and business?

Yes. It will work both in the single-family house, as well as in the shop, office or on the company property.

DSDi® Ready

The monitoring system we offer, marked with the "DSDi" tag, has a license that allows you to use the services of the DSDi® system, which provides additional after-sales support and control over the purchased equipment. Thanks to the intuitive application, the user can easily check the warranty period for individual devices, as well as expand the package of available service services within the DSDi ecosystem.

DSDi license activated only for devices purchased from an authorized reseller. Products outside DSDi distribution are not supported by the application.

Specifications
