Vaizdo stebėjimo rinkinys Hikvision su 6 PoE kameromis 4MP, 2K+, išorinis HDD, juodas

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys Hikvision su 6 PoE kameromis 4MP, 2K+, išorinis HDD, juodas. Kategorija: Rinkiniai.

• Gamintojas: Hikvision
• Modelis: IPC-B141H-C-B(x6)+NVR-8CH-4MP/8P+HDD (DSDi Ready)

6x 4Mpx IP Tube Camera | 1x 8-Channel IP Recorder | 8x PoE Switch + 2x Uplink | 2TB Drive | Mounting Accessories

Reliable and easy-to-use network monitoring system with 6 HiLook IP cameras supporting 2560x1440p resolution. The system is ideal for monitoring in:

• office in the company
• home
• apartment
• shop

✅ Complete IP monitoring kit in PoE technology with 6 bullet cameras

✅ High image resolution 2560x1440p (4Mpx) and wide recording angle 100 degrees

✅ Cameras that can be mounted inside and outside the building - IP67 protection class

✅ Cameras equipped with IR illuminators with a range of 20 meters , allowing recording at night

✅ Motion detection function - notifications in the application and recording of important events

✅ Video overwriting function (loop recording)

✅ Hikvision 2TB heavy-duty hard drive included

✅ Online viewing on your computer , smartphone, or tablet

✅ P2P support (cloud) - a feature that allows remote access without port forwarding and public IP address

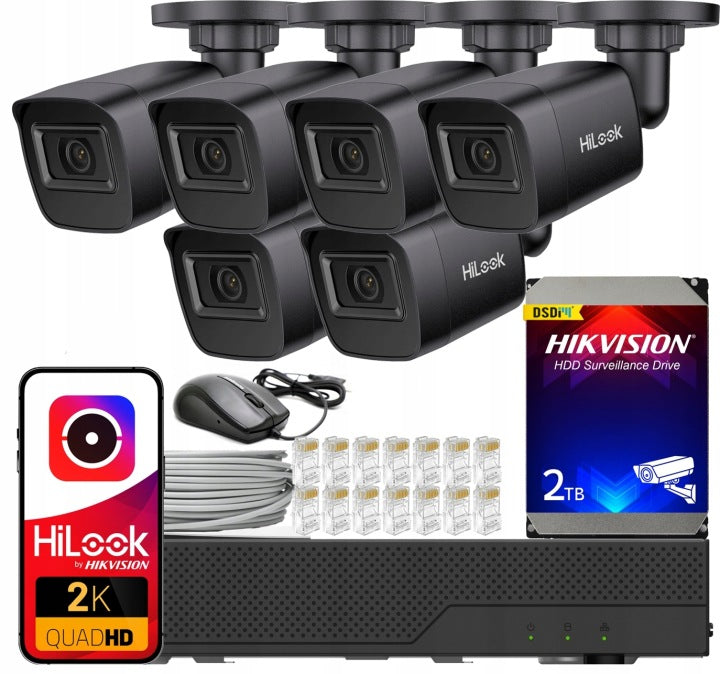

This set includes:

• 6x 4Mpx bullet camera (2560x1440 True 2.5k) - IPC-B141H-C BLACK HiLook
• 1x 8-channel IP recorder - NVR-108MH-D HiLook
• 1 x PoE Switch 8+2 to power cameras EI-H1108PL
• 1x Hard Drive for CCTV (24/7 recording) - Hikvision 2TB
• 1x UTP twisted pair cable - 30 meters
• 12x RJ45 plug

HiLook by Hikvison monitoring systems have been designed to make their installation as simple and intuitive as possible. The instructions included in the kit will guide you step by step through the installation and configuration process.

HiLook by Hikvision cameras can be controlled, configured and operated using the intuitive Hik-Connect mobile application for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings from the recorder
• create motion detection scenarios and rules
• Rotary camera control
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

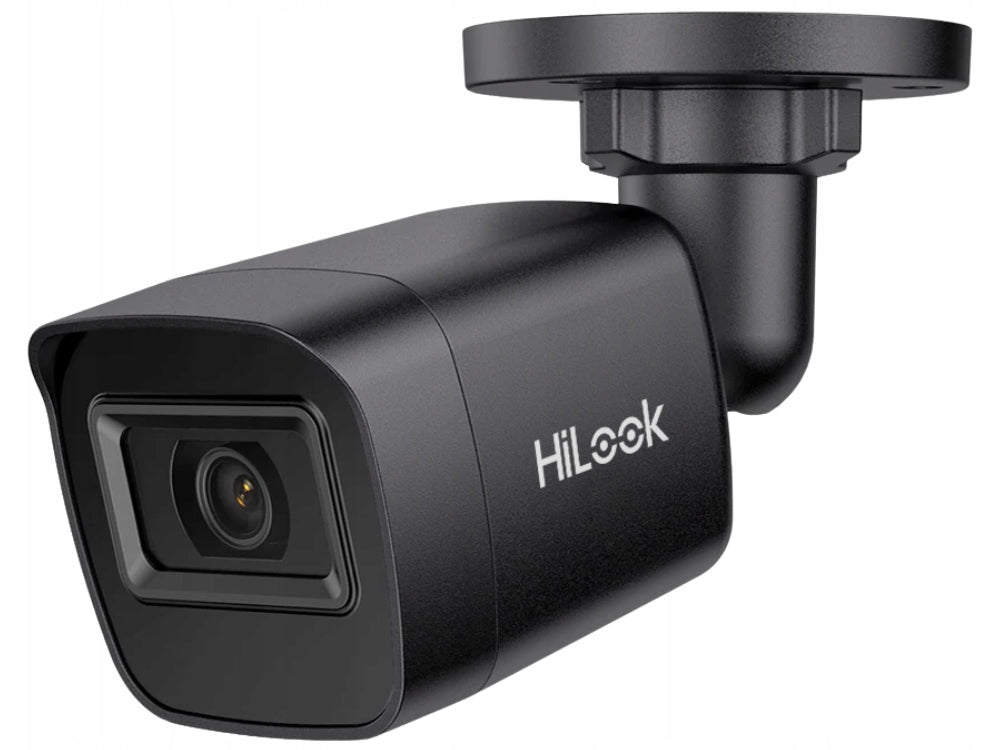

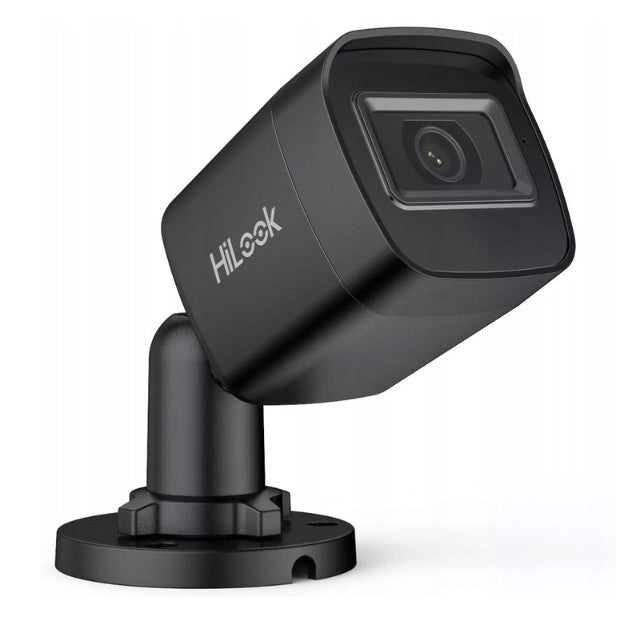

The IPC-B141H-C BLACK camera is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator with a range of 20m.

This function allows you to record images via 24/7 in any lighting conditions.

The offered camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a lot of space on the hard drive, which positively affects its lifespan.

The cameras included in the kit are equipped with PoE (Power over Ethernet) power supply, making their installation extremely simple. Each camera with a recorder is connected using a single UTP cable.

• Converter: CMOS 1/2.8” 4MPx
• Image resolution: 2560 × 1440p @20fps
• Lens: wide-angle 2,8 mm
• Recording angle: ~100 degrees (wide-angle)
• Image compression: H.265+, H.265, H.264+, H.264
• Double Stream: Yes
• Wide dynamic range: digital WDR
• Digital Noise Cancellation: Yes - 3D DNR
• Other functions: ROI, BLC, Motion detection, Mirror, EXIR
• Infrared range: up to 20 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in the Hik-Connect mobile app: Yes
• Remote view: Hik-Connect, iVMS-4200, browser WEB
• Assembly: external or internal
• Housing: plastic
• Power Supply: 12V or PoE
• Leak-proof class: IP67

• Number of channels: 8 IP channels with PoE power supply
• Supported resolution: up to 4Mpx
• Decoding: 1-ch @ 4 MP / 2-ch @ 1080p
• Motion detection: Yes, supported
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 6TB
• Mobile app: HiLook App
• PoE power budget: < 75W
• Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
• Ethernet speed: RJ45 10M/100M
• Power Supply: 48VDC

Includes power supply and mouse.

This is a versatile, 10-port switch featuring 8 PoE ports with a maximum speed of 100 Mb/s and support for IEEE 802.3af/at standards. The switch also has 2 RJ45 Uplink ports at 100Mbps.

• Number of Ports: 8+2
• Speed: 100Mb/s
• Network Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
• Bandwidth: 2Gb/s
• Operation Indicators: LED lights: Power, LINK/ACT
• Maximum Power per Port: 30W
• Total Power Budget: 100W
• Dimensions: 130mm x 195mm x 40mm
• Weight: 1kg

The drive included in the set is a model from the Surveillance series, dedicated to monitoring, characterized by a longer service life.

• Capacity: 2TB
• Cache: 64 MB
• Interface: Serial ATA III
• Size: 3.5”
• Fig. /min: 5400 rpm

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 12x RJ45 plug
• A set of instruction manual

DSDi® Ready

The monitoring system we offer, marked with the "DSDi" tag, has a license that allows you to use the services of the DSDi® system, which provides additional after-sales support and control over the purchased equipment. Thanks to the intuitive application, the user can easily check the warranty period for individual devices, as well as expand the package of available service services within the DSDi ecosystem.

DSDi license activated only for devices purchased from an authorized reseller. Products outside DSDi distribution are not supported by the application.
