Vaizdo stebėjimo rinkinys su 4 lauko PoE IP kameromis, 8 Mpx, spalvotas vaizdas naktį, 1 TB

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys su 4 lauko PoE IP kameromis, 8 Mpx, spalvotas vaizdas naktį, 1 TB. Kategorija: Rinkiniai.

• Gamintojas: DVS
• Modelis: IP POE DVS-NVR0401-U8-POE+4xDVS-MP8028UT-DL-IP+1TB

💡 Why is it worth buying from us?

By buying from us, you gain not only proven equipment, but also professional support at every stage of the purchase. Thanks to this, you can easily choose the right solution, start devices faster and use them more conveniently every day.

🏢 We are one of the largest Polish companies specializing in the distribution and sale of monitoring systems, alarm systems and consumer electronics.

📘 We prepare our own detailed operating instructions for all our products, so that it will be easier for you to go through the independent process of commissioning and configuration of devices.

📱 The products we sell work on mobile applications without cumbersome advertising.

🛠 We have a technical support department that will be able to help you with most technical problems by phone or e-mail.

✅ By choosing our offer, you gain not only the product, but also experience, help and comfort of purchase.

⭐ Key features

✅ PoE IP monitoring 8Mpx – highly detailed image in 4K resolution

✅ Smart Dual Light IR/LED – effective preview even after dark thanks to illumination up to 30 m

✅ Human and vehicle detection – faster capture of the most important events in the frame

✅ PoE technology – power supply and data transmission with one network cable

✅ Recording to 1TB disk – set ready to save recordings after startup

✅ Remote access via the DVS-View-Lite application – image preview and system management from your phone or tablet

✅ IP67 outdoor cameras – resistance to rain, dust and changing weather conditions

⚡ What else?

✅ Stable RJ45 wired connection – more reliable operation than Wi-Fi systems

✅ Simple Plug & Play configuration – quick start of monitoring after connecting devices

✅ Advanced motion detection – support for motion detection, sabotage and sound

✅ Privacy mask – the ability to cover selected areas of the image

✅ Image quality improvement functions – DWDR, 3D DNR, BLC, HLC, AGC and automatic white balance

✅ Preview support on a computer – convenient system management from the PC level

✅ Application to home and business – monitoring of property, driveway, shop, office or warehouse

⚡ Who is this set for?

This IP PoE kit will work wherever you need stable wired monitoring, detailed 4K image, remote preview and recording.

Ideal for:

▶ houses and properties – entrance, driveway, garden, garage

▶ companies and offices – control of entrances, facilities and workspace

▶ shops and service premises – protection of goods, service and sales zones

▶ warehouses and workshops – supervision of property, deliveries and workstations

▶ parking lots and squares – monitoring of vehicles and the area around the building

▶ lot and cottages – remote viewing in absence

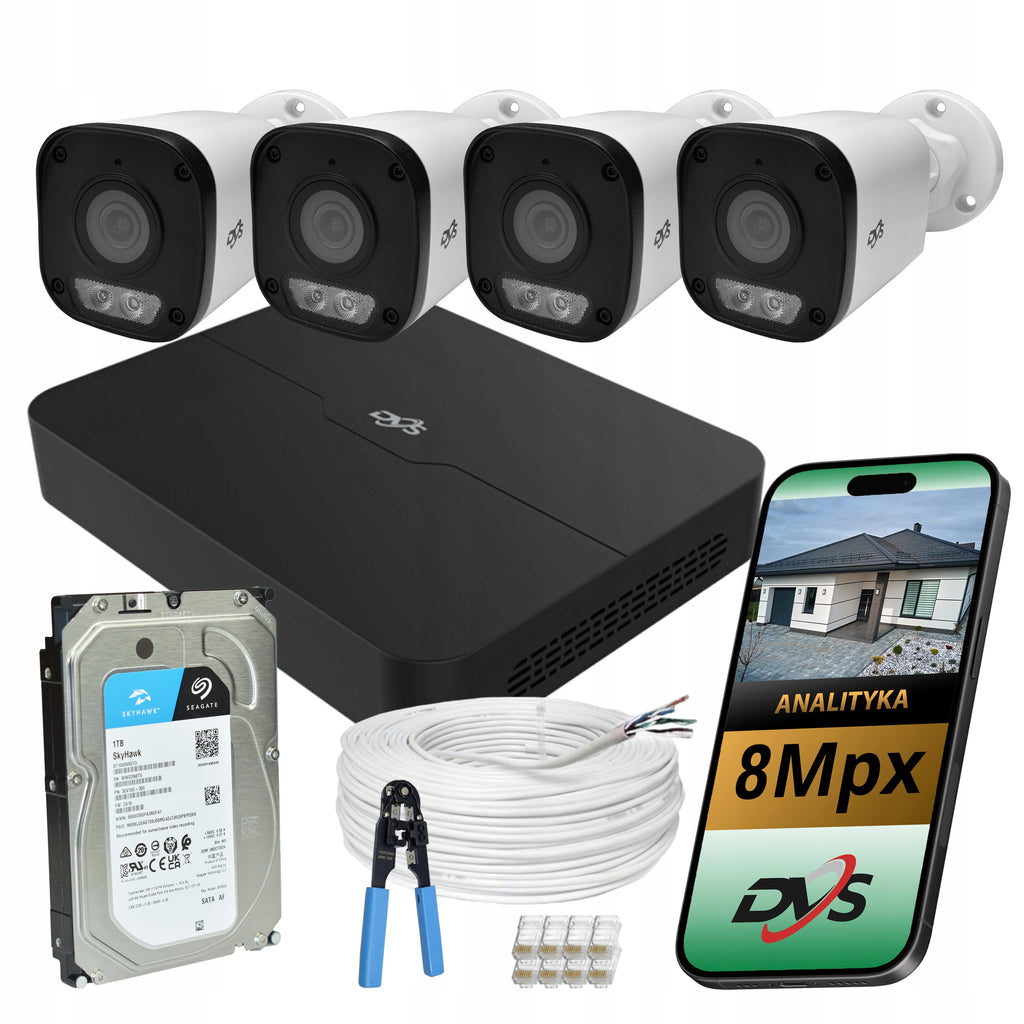

⚡ The set includes

✅ 1x PoE IP recorder – DVS-NVR0401-U8-POE

✅ 4x PoE IP camera 8Mpx Dual Light – DVS-MP8028UT-DL-IP

✅ 1x internal HDD 1TB – ST1000VX013, designed for continuous operation

✅ 10x RJ45 plug – for the preparation of network cables

✅ 1x RJ45 plug crimper – useful for wiring installation

✅ UTP cable 20 m – for connecting system components

⚡ Intuitive and simple installation

The IP PoE DVS 8Mpx monitoring kit is a ready-made solution for securing your home, business, plot, store or warehouse. The system has been prepared to combine very detailed 4K image, stable wired operation and convenient everyday operation.

The installation is simple and transparent – thanks to PoE technology, power supply and data transmission take place via a single network cable. This reduces the number of cables, facilitates the installation of cameras and eliminates the need for separate power supplies for each camera.

Once up and running, the system enables image recording, live view and remote access from your phone or tablet. It is a practical solution such as Plug & Play, which allows you to quickly start monitoring the object without complicated configuration.

⚡ Discreet form, professional capabilities

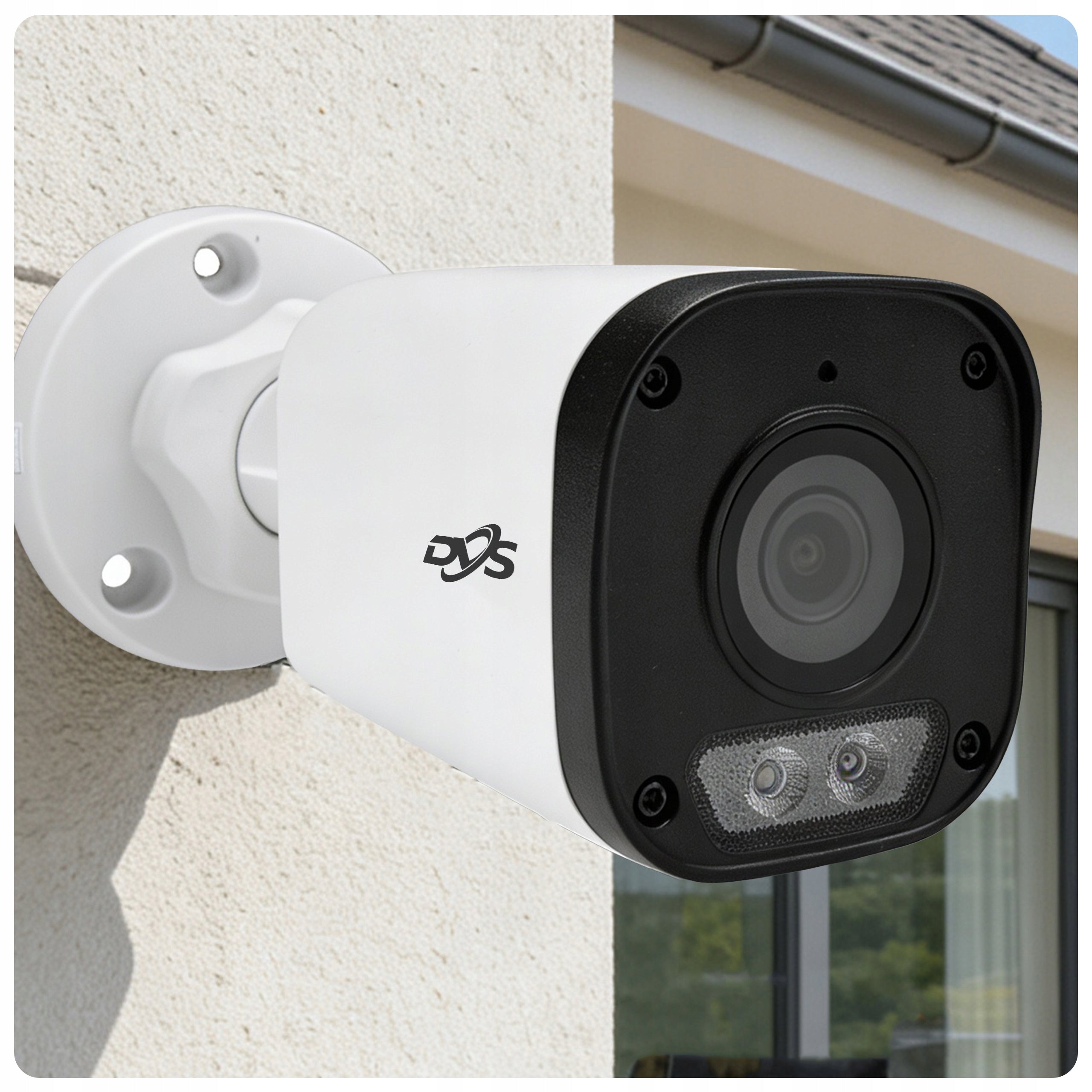

The DVS-MP8028UT-DL-IP is an 8Mpx IP PoE tube camera from the DVS-LightLine line, designed for round-the-clock operation – both outside and inside the building.

Thanks to the 1/2,7” CMOS sensor and 8Mpx / 4K resolution, you get a very detailed image that makes it easy to observe the entrance, driveway, garden, parking lot or back room.

The 2.8 mm lens and the 101° viewing angle allow you to cover a wide area with one camera – a practical solution for monitoring your property, company, warehouse or entrance to the building.

⚡ Advanced functionality and intelligent detection

The DVS-MP8028UT-DL-IP camera offers practical image analysis capabilities to help you capture important events faster and manage your monitoring more conveniently on a daily basis.

✅ Advanced motion detection – human and vehicle – the camera can distinguish between important objects in the frame, such as a person or a car, limiting the number of accidental alarms triggered, e.g. movement of leaves, rain or change of light.

✅ Motion detection – the system responds to movement in the monitored area, making it easier to find important moments on recordings.

✅ Image enhancement functions – DWDR, 3D DNR, BLC, HLC, AGC and AWB help you get a clearer picture with difficult lighting, strong contrast, noise or x-rays.

✅ Privacy mask – the ability to exclude selected fragments of the image from the preview, e.g. windows of the neighbor, part of the street or private zone of the property.

✅ ROI — areas of increased quality – indication of important places in the frame, such as the gate, gate, entrance or driveway, so that the system better retains details in key zones.

⚡ Remote access from your phone – monitoring always at hand

The kit enables convenient monitoring management from the DVS-View-Lite application. This allows you to check the camera image on your phone or tablet – whether you’re at home, at work or away.

✅ Live view – quick check of what is happening at home, company, store or warehouse

✅ Access to recordings – the ability to view and play back recorded events from cameras

✅ Notifications of important events – faster response when motion, human or vehicle is detected in the monitored area

✅ Support from phone and tablet – convenient system management without the need to sit at the recorder

✅ Application in Polish and without advertising – convenient, clear system operation without pop-up advertisements and unnecessary marketing messages.

✅ Control from anywhere – constant access to monitoring when you are away from the facility

It is a practical solution for people who want to have constant control over the property, company or warehouse without the need for physical presence on site.

⚡ Convenient management on the computer

You can operate the set not only from your phone, but also from your computer. The PC program allows you to conveniently manage monitoring, view the image from cameras on a larger screen and analyze recordings faster.

✅ Live view from cameras – convenient control of the entire object from the computer

✅ Playback of recordings – quick checking of recorded events and selected hours

✅ Convenient work on the big screen – better detail preview than on the phone

✅ Management of the monitoring system – support for cameras, recorder and settings from one place

✅ Good solution for companies, offices and warehouses – constant monitoring while working at the computer

It is a practical complement to the mobile application – the phone will work for quick preview, and the computer for more convenient, daily operation of the system.

⚡ IR + LED night modes up to 30 m

✅ IR mode — infrared

After dark, the camera uses infrared, providing readable, black and white night vision. It is a discreet mode of operation without visible light and without blinding people nearby.

✅ LED mode — white light

In LED mode, the camera illuminates the observed area with white light, so it can capture color image after dark. This is a good solution when you want better readability of the scene and more visible details.

✅ Automatic Dual Light Mode - IR + LED

Dual Light mode combines the work of infrared IR and LED lights. The camera monitors the area discreetly in IR mode, and when human is detected, it automatically turns on LED lighting to get an color image of the situation.

⚡ Cameras ready to work in all conditions

The DVS-MP8028UT-DL-IP cameras have been designed for external monitoring throughout the year. The housing with tightness class IP67 protects the device against water, dust, dust and snow, which is why the camera will work well with home, company, store, warehouse or parking.

The operating temperature range from -30°C to +60°C ensures stable operation both in winter and during hot days. The polycarbonate and metal construction increases the durability of the camera during everyday outdoor work.

✅ IP67 protection class – resistance to rain, snow, dust and dust

✅ Working temperature -30°C to +60°C – reliable operation at different times of the year

✅ Polycarbonate + metal housing – robust construction for outdoor applications

⚡ Built-in microphone – not only picture, but also sound

The DVS-MP8028UT-DL-IP camera is equipped with a built-in microphone, which allows you to record sound from the environment. Thanks to this, monitoring becomes more complete – in addition to the image, you can also verify the situation based on the recorded sound.

This is especially useful in places such as:

✅ entrances to buildings

✅ reception

✅ shops and service points

✅ magazines

✅ office

✅ parking lots and driveways

Sound can be an additional auxiliary material for event analysis, facilitating the assessment of the situation, the course of the conversation or unusual noises in the monitored area.

⚡ PoE IP recorder – the center of the entire system

The DVS-NVR0401-U8-POE recorder is the network center of the set, which is responsible for camera support, recording and convenient image preview. The device supports 4 IP channels, so it fits perfectly into a set with four 8Mpx cameras.

Thanks to the built-in 4 IEEE 802.3af/at PoE ports, the cameras can be connected directly to the recorder with one network cable – the same cable transmits image and power. This facilitates installation and reduces the number of additional wires.

The recorder supports recording in resolution up to 8Mpx, compression Ultra 265 / H.265 / H.264 and SATA drive up to 10TB. The HDMI 4K and VGA outputs allow you to conveniently connect your monitor, while the DVS-View-Lite app allows you to view your system remotely.

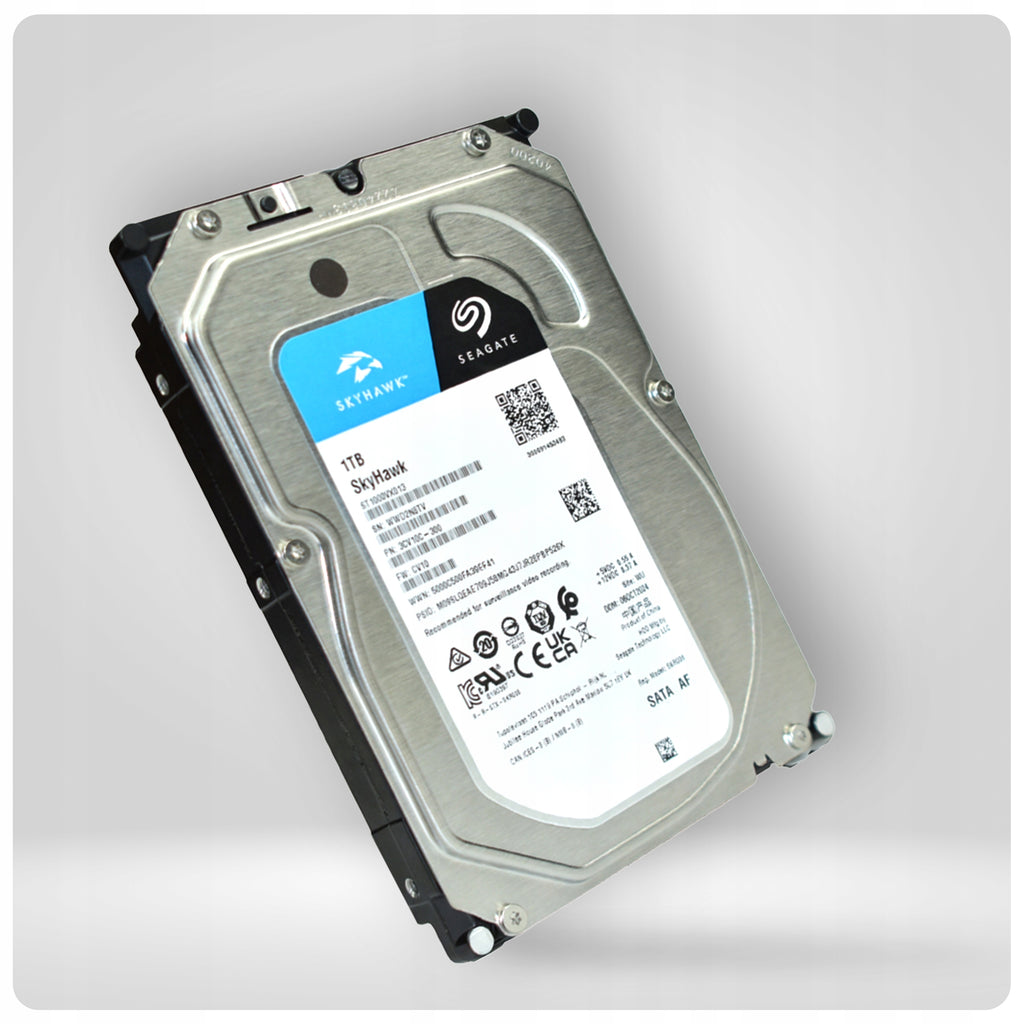

⚡ 1TB hard drive – write ready immediately after startup

The set is equipped with an internal hard drive HDD 1TB, thanks to which the system is ready not only for live viewing, but also for save and subsequent playback of recordings.

This is a great convenience when mounting – you do not have to choose the drive separately or check compatibility with the recorder. Once started, the kit can instantly archive camera footage and record important events.

✅ Capacity 1TB – space for recording surveillance recordings

✅ Continuous operation 24/7 – disk adapted to monitoring systems

✅ Ready to go – the media is already included in the set

✅ Convenient playback of recordings – quick access to saved events from the recorder, phone or computer

⚙ Technical information of the camera

• Type: IP camera
• Model: DVS-MP8028UT-DL-IP
• Series/Line: DVS-LightLine
• Resolution: 8Mpx / 3840 × 2160
• Converter: 1/2,7” CMOS
• Lens: fixed focal length 2.8 mm
• Angle of view: 101°
• Night light: IR up to 30 m / LED up to 30 m
• Microphone: YES, built-in
• Slot microSD: up to 512 GB
• Image compression: Ultra 265 / H.265 / H.264 / MJPEG
• Motion detection: YES
• Advanced motion detection: YES — human and vehicle detection
• Privacy masks: YES, 4 areas
• ROI: YES, 4 areas
• Image functions: DWDR, 3D DNR, BLC, HLC, AGC, AWB
• Day/night mode: automatic ICR
• ONVIF support: Profile S/G/T
• Power Supply: IEEE 802.3af or DC 12V PoE
• Connection: RJ45
• Protection class: IP67
• Working range: from -30°C to +60°C
• Housing material: polycarbonate + metal
• Mobile application: DVS-View-Lite

⚙ Technical information of the registrar

• Type: PoE IP Network Recorder
• Model: DVS-NVR0401-U8-POE
• Video inputs: 4 IP channels
• Built-in PoE: 4 RJ45 PoE ports
• PoE standard: IEEE 802.3af/at
• Max. PoE power per port: 30W
• Max. PoE total power: 54W
• Recording: to 8Mpx
• Compression: Ultra 265 / H.265 / H.264
• HDMI output: 4K/30Hz, 1080p/60Hz
• VGA output: 1080p/60Hz
• Live view: 1 / 4 channels
• Synchronous playback: 4 channels
• Disk: 1× SATA
• Max. Disk capacity: up to 10TB
• Network: 1× RJ45 10/100Mb
• USB: 2× USB 2.0
• Audio output: 1× RCA
• Input bandwidth: 64 Mbps
• Output bandwidth: 48 Mbps
• Remote users: to 128
• Mobile application: DVS-View Lite
• Working temperature: from -10°C to +55°C
• Power Supply: DC 48V / 1.35A
• Dimensions: 205 × 205 × 46 mm

⭐ FAQ

❓ What is an IP camera and how does an IP surveillance system work?

An IP camera is a modern device that transmits an image in digital form over a computer network. Unlike analog systems, it offers higher quality recordings, remote access, and easy setup.

❓ What is PoE in IP cameras and why is it worth having?

The PoE (Power over Ethernet) technology allows you to transfer power and data with a single cable. This makes installation simpler, faster and more aesthetically pleasing – without the need for additional power cables.

❓ What is the difference between IP and analogue (AHD) monitoring?

The IP system transmits the image digitally, which provides much higher resolution, connection stability and greater remote viewing capabilities. Analog monitoring (AHD) has limited image quality and is more difficult to expand.

❓ How to connect IP monitoring kit step by step?

The DVS-LightLine kit is a Plug & Play solution – just connect the cameras to the recorder using Ethernet cables (UTP). The devices will be automatically detected and the system will be ready to work in minutes.

❓ Do IP cameras need to be connected to electricity, or is a network cable enough?

No need for a separate power supply – just one mains cable. Thanks to PoE technology, cameras receive power and transmit images with the same cable.

❓ Does the IP camera set work without the Internet?

Yes, the system works locally without a permanent Internet connection. The Internet is only needed if you want to have a remote view or control the system from the mobile application.

❓ Is the IP surveillance camera set safe?

Yes, the system is completely secure – data transmission takes place wired and is encrypted. Access to the cameras is password protected and only possible for authorized users.

❓ Can you view the image from the monitoring system on your phone?

Yes. The DVS-VIEW-LITE app allows you to view live video, play recordings and receive notifications. It runs smoothly, is fully in Polish and does not burden the mobile device.

❓ Where are the recordings from the monitoring set saved?

Recordings from the cameras are saved on the hard drive installed in the recorder. It is worth having it in your set, because without a disk, the system only allows you to view the image online, without the ability to archive events and play recordings.

❓ What is the best IP camera for your home or business?

The best IP camera is one that combines high image resolution, good night sensitivity and stable performance in various weather conditions. The ease of installation, reliability of the wired connection and the quality of the image sensor, which determine the readability of recordings in everyday use, are also crucial.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	MONITORING ZESTAW 4x KAMERA IP POE ULTRA HD
Parametry	Model	IP POE DVS-NVR0401-U8-POE+4xDVS-MP8028UT-DL-IP+1TB
Parametry	Brand	DVS
Parametry	Product width	50 cm
Parametry	Product height	25 cm
Parametry	Product depth	25 cm
Parametry	Product weight	3.5 kg
Parametry	Product weight with unit packaging	4 kg
Parametry	Technology	IP
Parametry	Number of supported cameras	4
Parametry	Maximum recording resolution	8 Mpx
Parametry	Lens	fixed-focus
Parametry	Infrared range	30 m
Parametry	Camera waterproof rating	IP67
Parametry	Installed disk capacity	1 TB
Parametry	Maximum number of supported drives	1
Parametry	Maximum capacity of drives	10 TB
Parametry	Video compression	H.265+
Parametry	Number of USB ports	2
Parametry	EAN (GTIN)	5906022558664
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Video outputs	HDMI,VGA
Parametry	Other ports	1x RJ45,4x RJ45 POE,AUDIO OUT
Parametry	Functions	phone app,motion detection,PoE,advanced search,digital zoom
