Vaizdo stebėjimo rinkinys su 4 rotacinėmis 4MPx PTZ-N2D400M-DE/14 PoE kameromis

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys su 4 rotacinėmis 4MPx PTZ-N2D400M-DE/14 PoE kameromis. Kategorija: Rinkiniai.

• Gamintojas: Hikvision
• Modelis: PTZ-N2D400M-DE/14(x4) + NVR + HDD 1TB (DSDi Ready)

4x 2x 4Mpx Rotary Camera with Autotracking | 8CH IP Recorder | PoE Switch | 1TB Drive | Accessories

Cameras are powered directly from the recorder by one cable via the built-in PoE switch.

✅ Complete set of IP monitoring with 4 PTZ TandemVu Smart Hybrid Light rotary cameras

✅ High image quality thanks to recording resolution 4Mpx (x2) @2560x1440p

✅ Cameras with the possibility of mounting inside i on outside the building - IP66

✅ Convenient installation thanks to the PoE switch in the recorder

✅ Autotracking Lite function people moving within the protected area

✅ Dual illuminator in cameras - Smart Hybrid Light technology:

• IR infrared illuminator - for discreet recording in black and white mode
• White light illuminator - providing a fully color image around the clock

✅ Algorithm motion detection AI - detecting human silhouettes

✅ In-app notifications and recording of important events

✅ Function overwrite video (loop recording)

✅ Hard drive 1TB with high strength included

✅ Internet preview on computer, smartphone, tablet

✅ Support P2P(cloud) - a function that allows remote access without port forwarding and public IP address

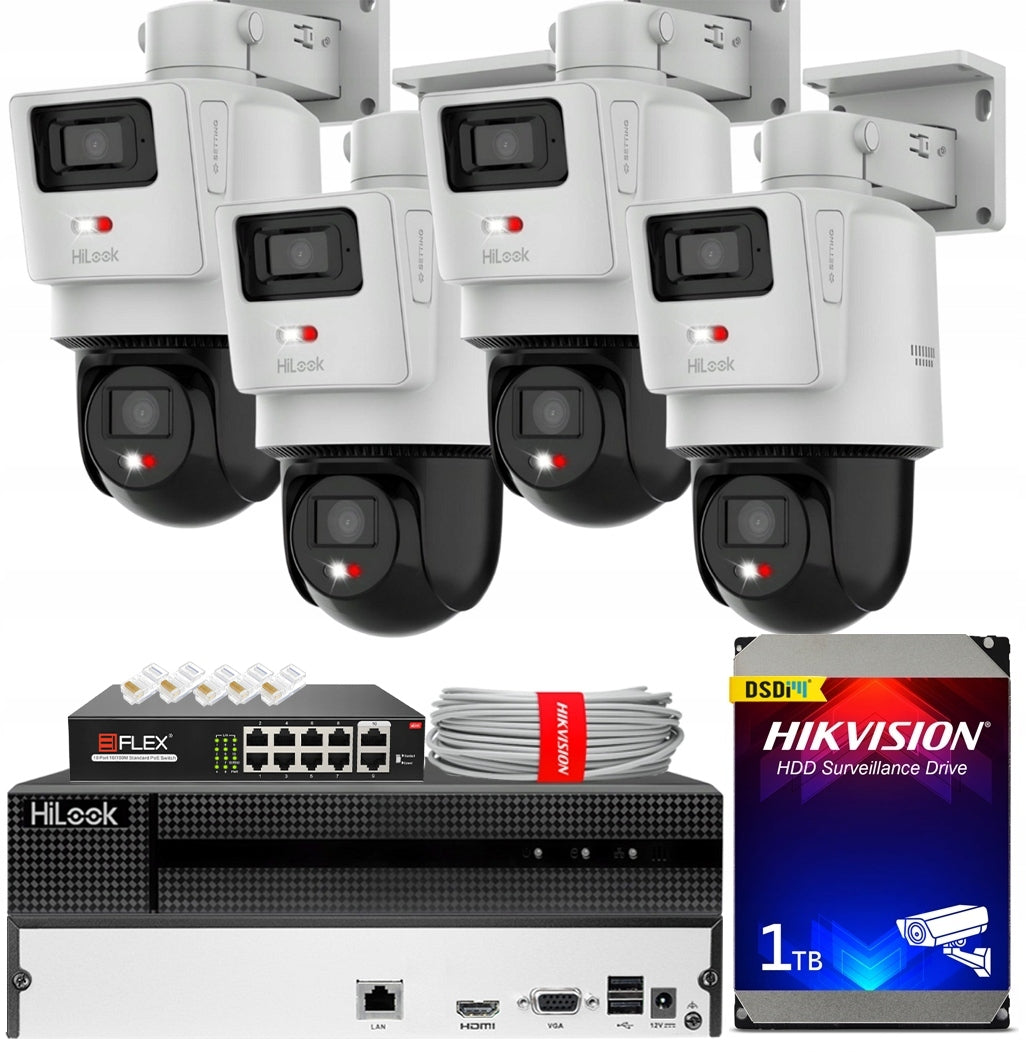

• 4x HiLook PTZ-N2D400M-DE/14 Smart Hybrid Light rotary camera, with microphone and speaker and autotracking function
• 1x 8-channel recorder HiLook NVR-108MH-D with built-in PoE power supply, remote cloud operation
• 1 x PoE Switch 8+2 to power cameras EI-H1108PL
• 1x 1 TB drive, dedicated for 24/7 operation (or equivalent Seagate/Toshiba/WD Purple - subject to availability)
• 8x RJ45 plug
• 1x UTP twisted pair cable - 20 meters

⚠ CHOOSE CONSCIOUSLY⚠

Monitoring systems are an investment in security – not only property, but also data. Therefore, we encourage you to choose your equipment consciously from reputable manufacturers such as Hikvision. Unlike cheap, unverified OEM devices, Hikvision products provide:

✅ Regular device firmware updates to ensure compliance with the latest cybersecurity standards

✅ Stability and reliability of operation HikConnect - mobile application no.1 in the CCTV monitoring systems industry

✅ Advanced data encryption (AES-256, HTTPS, TLS 1.2/1.3) – guarantee of confidentiality of transmission

✅ Meeting strict ISO standards, including ISO 27701 (Personal Information Security Management) and CSA-Star (Cloud Data Security Guarantee)

By choosing Hikvision, you can be sure that your monitoring system meets the highest standards of quality, data protection and reliability.

HiLook surveillance systems can be controlled, configured, and operated using the intuitive HiLook App mobile application for smartphones and tablets, as well as the iVMS-4200 software for PCs. This allows users to have constant control and oversight of the monitored area from anywhere in the world with internet access. The app and software allow for:

• Live view
• Remote playback of recordings
• Creating motion detection scenarios and rules
• Controlling PTZ (Pan-Tilt-Zoom) cameras
• Receiving event notifications within the system

The app uses P2P cloud technology, so the system does not require port forwarding on your router.

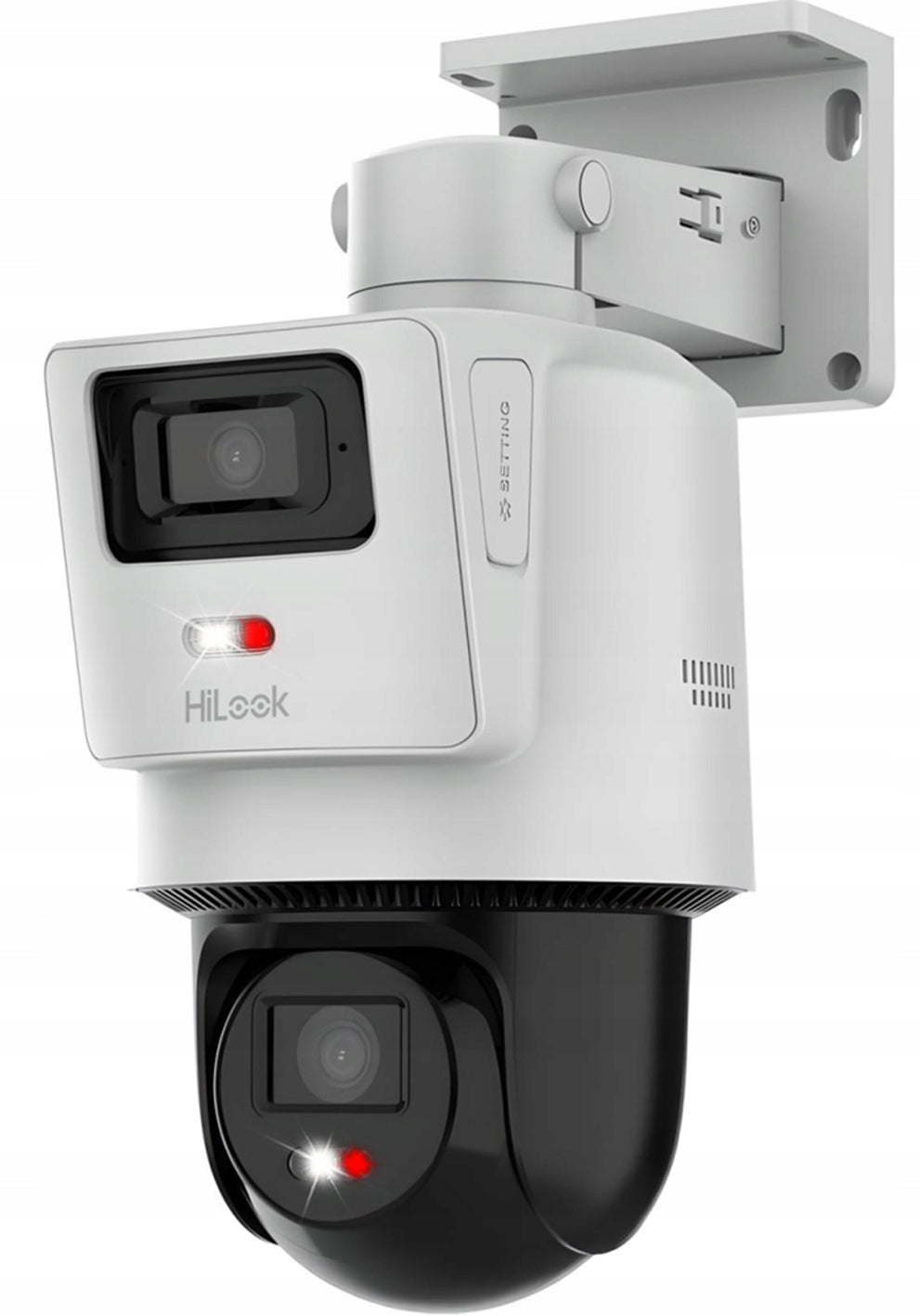

The PTZ-N2D400M-DE/14 camera not only detects movement - it is also able to follow the head of moving people! This allows for precise observation without the need for a manual rotary head setting.

Important: camera allows you to track people moving at normal speed (without running).

The presented camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, thanks to the built-in human body detection function, the camera effectively reduces the number of false alarms caused by the movement of irrelevant objects (leaves, animals).

The camera belongs to a series of devices using innovative Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night both in infrared (black and white) and fully colored mode.

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

• Converter: 2x 1/2,8" PS CMOS
• Recording resolution: 2x 4MPx @2540x1440p
• Lens: 2.8mm (panorama) + 8mm (PTZ)
• Sensitivity: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
• IR illuminator: 2x 30m
• White light illuminator: 2x 30m
• Smart Hybrid Light: Yes
• Smart functions: movement detection with human/vehicle classification, autotracking (lite)
• Privacy masks: Yes 4 for PTZ, 4 for panorama
• Video compression: H.265/H.264/Smart264/Smart265
• Image functions: BLC,HLC,3D DNR, DWDR
• Built-in microphone and speaker: Yes - two-way audio
• Network interface: 1x RJ45 10/100Mbps
• Remote support: Hik-Connect, HiLookVision, iVMS-4200, Web Interface
• Housing tightness class: IP66
• Working temperature: -30 °C to 50 °C
• Power supply: 12V DC (max. 9W), PoE
• Housing material: metal + plastic
• Dimensions: 134 mm × 213.5 mm × 291.7 mm
• Weight: 1000g

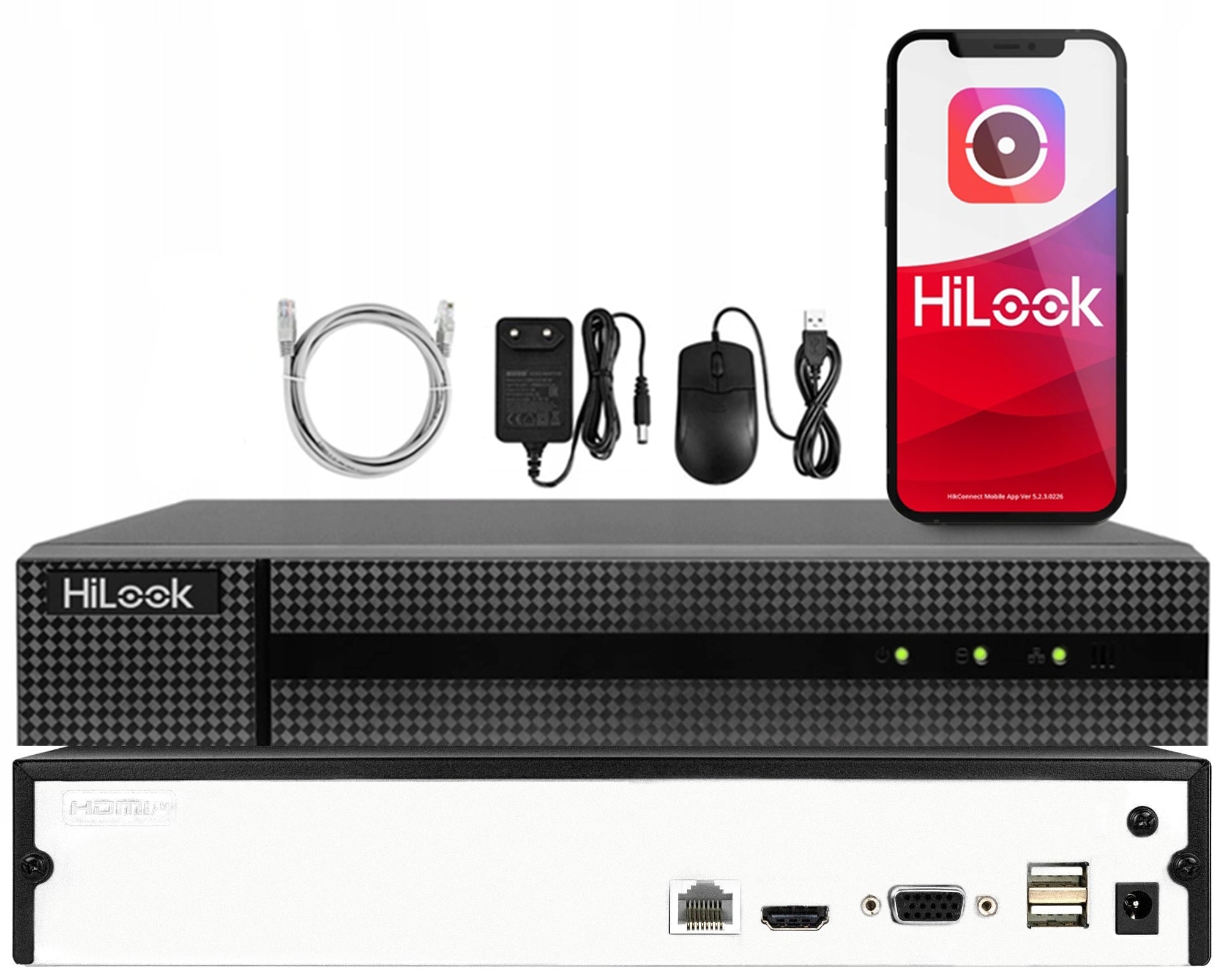

• Number of channels: 8
• Recording resolution: to 6Mpx
• Bitrate in/out: 60/60 Mbps
• Video outputs: 1x HDMI, 1x VGA
• USB ports: 2x USB 2.0
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Ethernet interface: 1x RJ45 10 / 100 Mbps
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Preview/remote support: HIK-Connect/HiLook App, iVMS-4200 (lite)
• Storage for HDDs: 1 (up to 6TB)
• Power Supply: 12 VDC
• Power consumption: 18 W (without 10W disk)
• Dimensions: 265 x 225 x 48mm
• Weight: ≤ 1 kg

This model is a universal, 10-port switch equipped with 8 PoE ports with a maximum speed of 100 Mb/s and supporting IEEE 802.3af/at standards. The switch also has 2 RJ45 Uplink ports with a speed of 100Mbps.

• Number of ports: 8+2
• Speed: 100Mb/s
• Network protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
• Throughput: 2Gb/s
• Operation indicators: LED lights: Power, LINK/ACT
• Maximum power per port: 30W
• Total power budget: 100W
• Dimensions: 130mm x 195mm x 40mm
• Weight: 1kg

Hikvision hard drive with a capacity of 1TB, dedicated for monitoring, characterized by a higher service life.

• Capacity: 1TB
• Cache: 64 MB
• rpm. /min: 5400 rpm

*(or equivalent Seagate/Toshiba/WD Purple - subject to availability)

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 8x RJ45 plug
• A set of instruction manual

DSDi® Ready

The monitoring system we offer, marked with the "DSDi" tag, has a license that allows you to use the services of the DSDi® system, which provides additional after-sales support and control over the purchased equipment. Thanks to the intuitive application, the user can easily check the warranty period for individual devices, as well as expand the package of available service services within the DSDi ecosystem.

DSDi license activated only for devices purchased from an authorized reseller. Products outside DSDi distribution are not supported by the application.
