Vaizdo stebėjimo sistema Dahua, 5 MP, 4 kameros Discv4

Trumpai apie prekę

Prekė: Vaizdo stebėjimo sistema Dahua, 5 MP, 4 kameros Discv4. Kategorija: Rinkiniai.

• Gamintojas: Dahua
• Modelis: HDCVI HAC-HDW1500TLMQ-A-0280

5MPX / 1x SATA III / 4x Dome Camera / 1TB Drive Included

❗❗Expandable with an additional IP camera with a resolution of up to 6MP❗❗

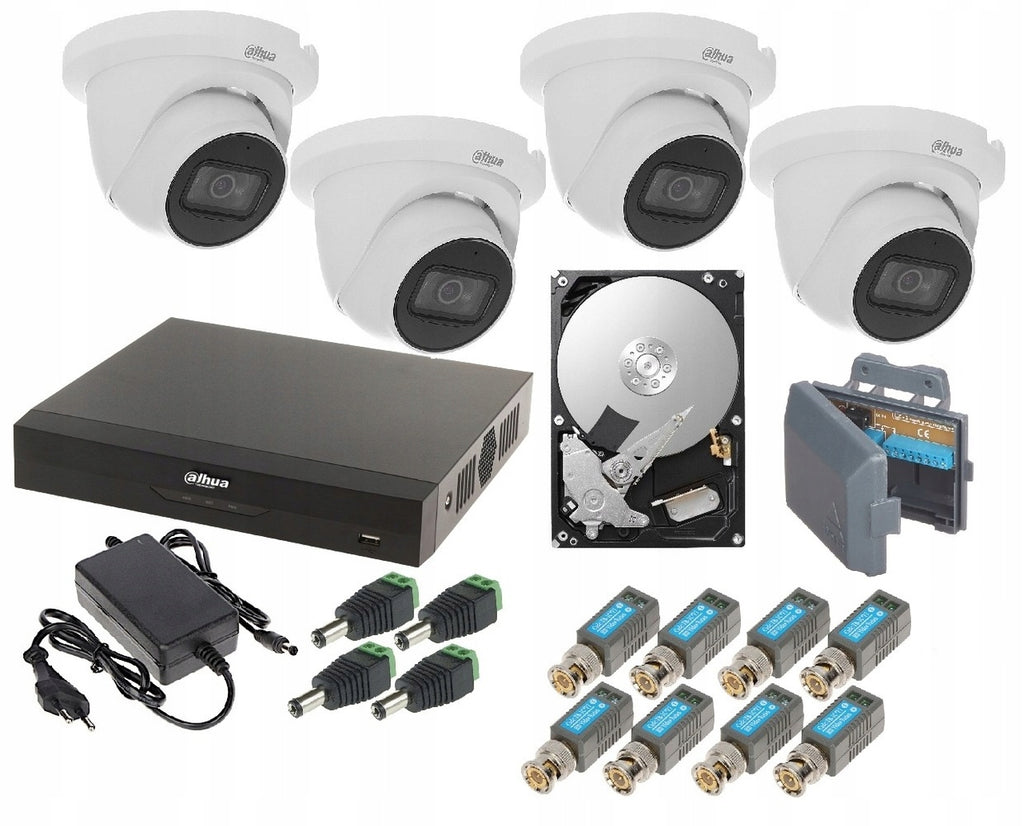

Set Contents:

• 4x 5MPX OUTDOOR/INDOOR CAMERAS WITH IR HEADLIGHT UP TO 30 M
• RECORDER 4 CHANNEL HYBRID
• PULSE POWER SUPPLY 12V/3A
• POWER DISTRIBUTOR IN HOUSING
• A SET OF PLUGS TO TRANSMIT VISION AND POWER
• CONTINUOUS OPERATION DISK 1TB

1x Multifunctional 4-channel digital recorder

• Support for up to 4 cameras
• Online preview on mobile devices
• HDMI ora VGA output for connecting to a monitor or TV

4x 5 MPX dome camera with IR reflector up to 30m

• high resolution 5MPX (2880x1620)
• built-in infrared reflector (visibility at night up to 30m)
• hermetic housing (can be mounted outdoors)

1x Hard Drive 1TB

• adapted to continuous operation

Set of all necessary plugs and fittings

Software for computer system, telephone

DMSS

DMSS is an application designed to view images from cameras and to manage Dahua recorders on smartphones and tablets. The program allows you to remotely operate devices (recorders, IP cameras), image preview, remote PTZ control, audio support, taking photos (snapshots) or recording videos.

Smart PSS software

Comprehensive management and supervision of the security system and the network of cameras for observation determines the effectiveness of each video surveillance installation. Dahua has created Smart PSS software for the user of personal PCs and MACs to create and personalize their own observation system. Smart PSS can cooperate with up to 256 devices and in addition to displaying live images or playing recordings, it allows for multi-monitor work, support for e-map and e-PTZ, support for video analytics and face detection options or advanced search for individual events. Thanks to the versatility of the program, it is possible to manage both high-resolution analogue CCTV cameras and megapixel IP cameras on an ongoing basis.

The HAC-HFW1500TH-I8-0360B-S2 camera is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator with a range of 80m.

This function allows you to record images via 24/7 in any lighting conditions.

The camera is resistant to low temperatures and moisture.

For use both indoors and outdoors rooms.

It can operate at temperatures from -40°C...+60 °C

Weather-resistant rain, snow, frost

The presented model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode allows you to save a very large amount of space on the hard disk, which positively affects its life.

The recorder saves recordings continuously. When the disk is full, it overwrites the oldest materials.

Allows intelligent search for recordings. E.g. only after motion detection. It allows you to filter out recordings where nothing happens.

The set includes a 1TB drive

The recording time of the cameras is ok. 6 days

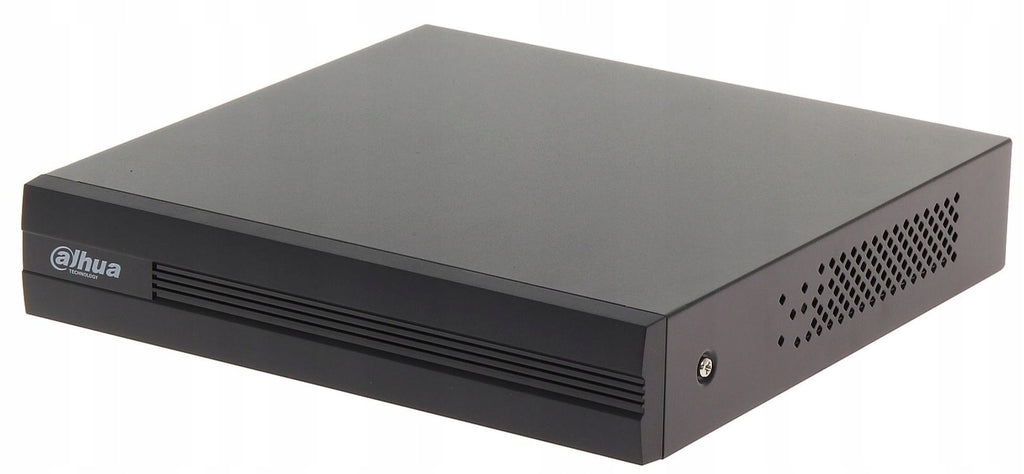

Dahua XVR5104HS-I3 recorder

The most important features;

• Video inputs: 4x CVI / AHD / TVI / CVBS / IP + 2x IP*
• Video outputs: 1x VGA, 1x HDMI (Full HD)
• recording (CVI, AHD, TVI): 10 fps @ 1296x1944 (5M-N - 5Mpx Lite), 15 fps @ 1280x1440 (4M-N - 4Mpx Lite), 15 fps @ 1920x1080 (2Mpx), 25/30kl/s @ 960x1080 (1080N - 1080p Lite)
• Recording (IP):, 25/30 fps* @ 3072x2048 (6Mpx)
• compression format: AI Coding*/H.265+/H.265/H.264+/H.264
• Audio Inputs/Outputs: 1/1 (RCA)
• Network interface: 1x Ethernet RJ45 100Mbps
• Disk support: 1x HDD Sata III (max. 6TB)
• remote control of camera OSD menu thanks to CoC function
• Support for P2P connections
• AI functions: perimeter protection (1 channel) or face detection / face recognition (1 channel) or SMD+ (4 channels)
• integration with cash registers (POS 2.0)
• Support for IoT (Internet of Things) cameras
• Support for CVI cameras in 5MP 16:9 resolution
• Fast support for active deterrence in AnalogHD cameras
• recording sound with max. 4 CVI cameras or 6 IP cameras
• bitrate: 32Kbps ~ 6144Kbps (per channel), 32Mb/s - for IP
• image view: Smart PSS, DSS Express, DSS PRO, web browsers: IE, mobile devices with systems: iOS, Android
• dimensions: 260x237.9x47.6mm - Compact 1U (W) /length /height )

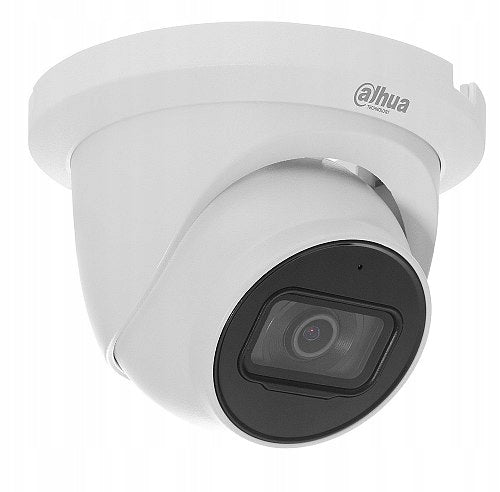

4 x 4in1 DAHUA HAC-HDW1500TLMQ-A camera

Most important features:

• Image transmission standard: CVI/TVI/AHD/CVBS
• Transducer: 1/2.7" 5MP Progressive Scan CMOS
• resolution:CVI: 2880x1620 - 16:9 (5Mpx) @ 25/25 fps

  2560x1440 (4Mpx) @ 25/30 fps

  1920x1080 (2Mpx) @ 25/30 fps

  AHD/TVI: 2560x1440 (4Mpx) @ 25/30 fps

• Sensitivity: 0.005lux/F1.6 30IRE, 0lux (IR on )
• lens: 2.8mm
• illuminator: 1 IR LED (30m range)
• AGC, AWB, BLC, HLC, 2D NR, DWDR
• Built-in microphone
• audio transmission over coaxial cable
• automatic ICR infrared filter
• systems: privacy zones (8 masks)
• OSD menu available from the DVR (CoC support)
• Quick-to-install system
• housing: tightness class (IP67)
• Power Supply: 12V DC
• dimensions: Ø109.9x88.1mm (width. /height )
• Viewing angle:

  H: 111°

  V: 58°

  D: 132°

The most important features;

• Name HDD 3.5” Toshiba 1TB SATA III
• SATA III interface
• Capacity 1 TB
• Size 3,5”
• 64MB cache
• Number of disk pockets supported: 1 to 2
• maximum bit rate (MB/s): 180
• maximum number of write/delete cycles: 300 000

Admissible temperatures:

• during operation: from 0°C to 70°C
• storage: from -40°C to 70°C

Weight and dimensions:

• height / width / depth (mm): 20,20 / 101,85 / 146,99
• Weight (g): 415

Average power consumption:

• Read/Write: 5,5W
• Idle: 3,2W
• Sleeping: 0,25W

• 12v 3A power supply
• 4 sets of transformers
• 4 power plugs
• power connector
• hard drive

• 1 x DAHUA XVR5104HS-I3 IP RECORDER
• 4 x DAHUA HAC-HDW1500TLMQ-A-0280B CAMERA
• 1 x 1TB HARD DRIVE
• 4 x TR-1C VIDEO TRANSFORMER
• 1 x 12V 3A POWER SUPPLY
• 4 x S-55 POWER PLUG
• 1 x LZ-1 POWER CONNECTOR

Specifications
