Vakuuminis griebtuvas GRABO PRO be šepetėlių, tinka DEWALT 18V, su maišu

Trumpai apie prekę

Prekė: Vakuuminis griebtuvas GRABO PRO be šepetėlių, tinka DEWALT 18V, su maišu. Kategorija: Plytelėms skirtos siurbtukai.

• Gamintojas: Grabo
• Modelis: 111012

By choosing this offer you can be sure that you are buying a product 100% ORIGINAL from an Authorized Brand Dealer GRABO in Poland.

GRABO PRO Brushless Vacuum Gripper

– Compatible with DEWALT 18V Batteries

– Version 0



Everything professionals love about GRABO – now a smarter, faster and brushless GRABO PRO Brushless



Brushless power, brushless force designed for even greater efficiency

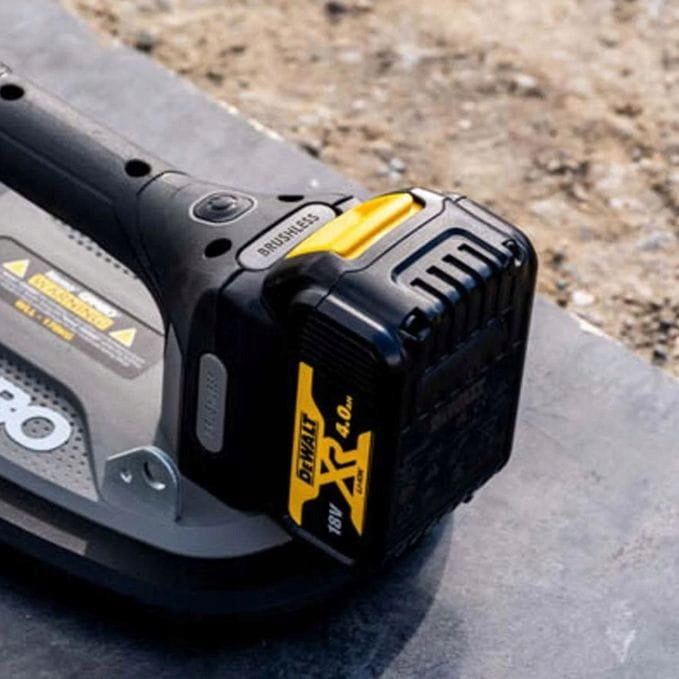

GRABO PRO BRUSHLESS runs on a new 18V battery platform

- Compatible with batteries from leading power tool manufacturers such as Dewalt, Makita, Bosch, Milwaukee, Flex using special adapters and original GRABO batteries.

- The high-performance brushless motor now pumps 30 liters of air per minute for even faster gripping, faster resets, and longer runtime of the GRABO PRO BL on a single charge.



Set exactly the vacuum you need

The bright LED display provides precise vacuum control, ensuring that thin glass, polished stone, and delicate tiles remain safe from excessive suction, protecting against material breakage.

Set the target pressure, monitor it in real time, and rely on an improved suction stop to make each lifted element fit within the specification.

The balanced, ergonomic handle is comfortable and the integrated wireless remote control allows you to control your GRABO PRO BL from up to 30m away.



Precise vacuum control for professional users

The improved next-generation brushless vacuum pump and adjustable suction stop maintain exactly the pressure you set in the range of 0,30 - 0,80 Bar, for both heavy and delicate materials.

Observe the LED display, make adjustments during operation and let the pump automatically maintain the vacuum you need to safely transport a variety of materials.

Professionalism in every way

Unlike other large and expensive material handling solutions, the GRABO PRO BL is portable compact and reliable.

According to our motto "HEAVY LIFTING - MADE EASY" - "Easy lifting of heavy objects", GRABO Pro Brushless is as effective on smooth as it is on rough and porous surfaces.

The vacuum pump in the GRABO Pro Brushless has a capacity of 30 liters per minute - it is even more efficient than our flagship model GRABO Pro Lifter 20.

So say goodbye to unreliable and often dangerous hand suction cups, with the GRABO Pro grippers you can double your productivity and increase the efficiency of your work and take care of your safety and healthy spine by transferring the load from the spine to the shoulders.

Our GRABO is perfect for glass, wood, ceramic tiles, metals and other smooth materials, moreover, it is also an effective vacuum lifter even for dusty, porous and rough surfaces.

Like the classic GRABO tool, the PRO model is equipped with four metal external carrying handles using carabiner straps or for system applications.

Advantages of Grabo PRO Brushless

- Bright LED display for precise vacuum control

- Electronic actual vacuum control and automatic switching on of the vacuum pump when safe pressure is lost.

- Comfortable fast and stable gripping of elements and materials of various structures

- Wide range of gripping materials and surfaces using a single device

- Ergonomic handle for a strong grip and secure transport

- Housing made of the highest quality materials ensures the resistance and durability of the device

- Intuitively placed control buttons ensure comfortable and pleasant work also in gloves



Application of the device in industries:

- Transmission and installation of glass, glass, windows, mirrors (for glass materials below 6mm recommended use of Brace Seal)

- Transfer and installation of stone, marble, granite, stoneware, ceramic tiles, terracotta, quartz sinters, stone slabs, large format slabs

- Moving and installation of concrete slabs, paving stones, curbstones, Silka concrete blocks, H+H, YTONG, terrace slabs, stone slabs

- Moving and assembling plasterboard, furniture boards, plywood, structural wood, carpentry boards, laminated boards

- Transfer and installation of steel materials, sheet metal, trapezoidal sheet metal, sewerage manholes, etc.

- Carrying heavy objects such as refrigerators, stoves, dishwashers, washing machines with non-permeable housing structure

- Installation of structures from GK boards, doors, door frames, windows





Optional additional accessories for your GRABO :

- GRABO ERGUO S1 Conveyor with Lever for Late Grippers GRABO

- GRABO RUBBER SEAL Universal Seal

- GRABO ROCK SEAL Gasket For Unequal Surfaces

- GRABO SLENDER SEAL Gasket For Narrow Materials

- GRABO BRACE SEAL Seal for Glass Tiles > 6mm

and many others

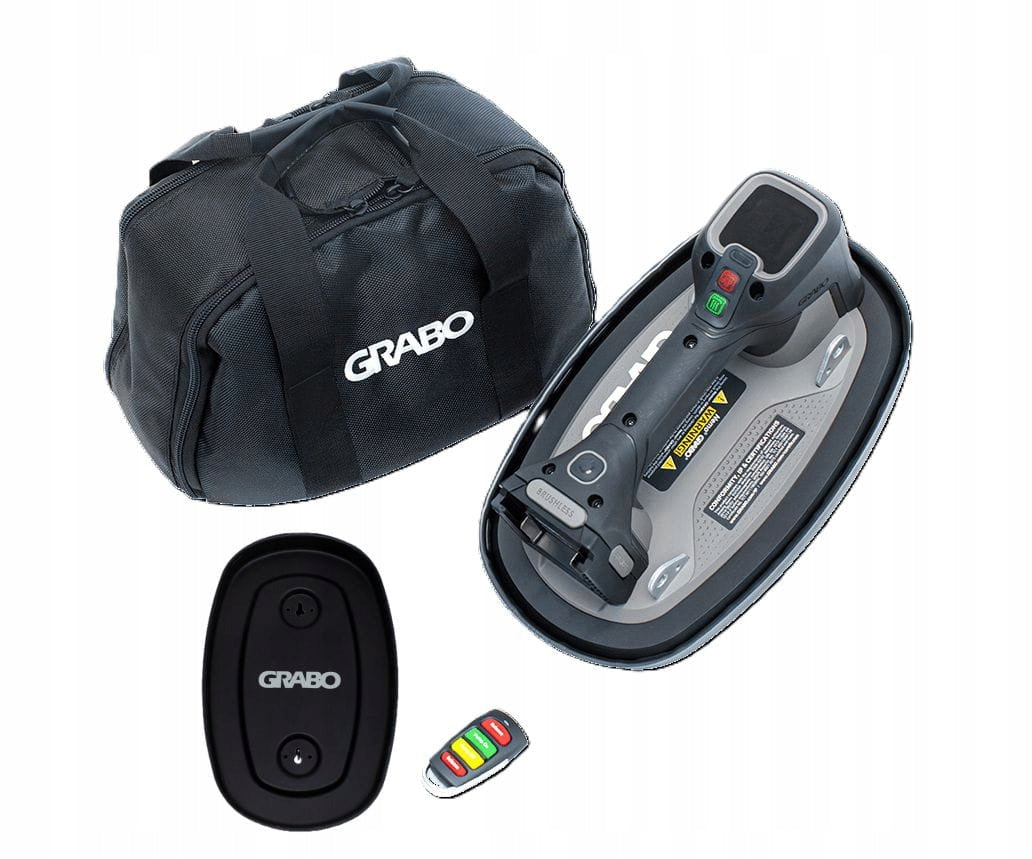

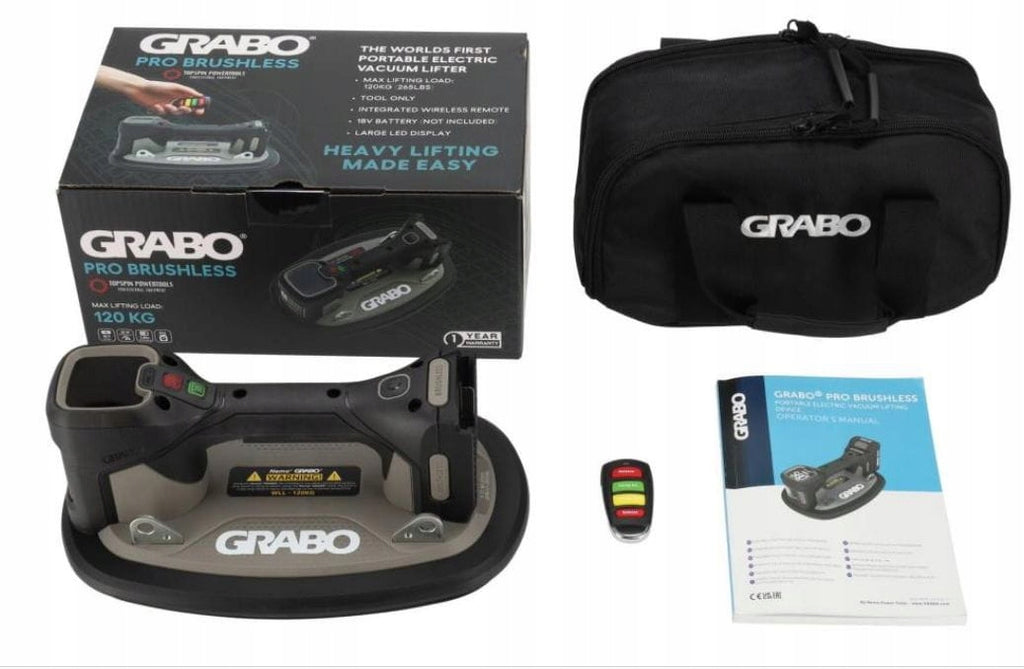

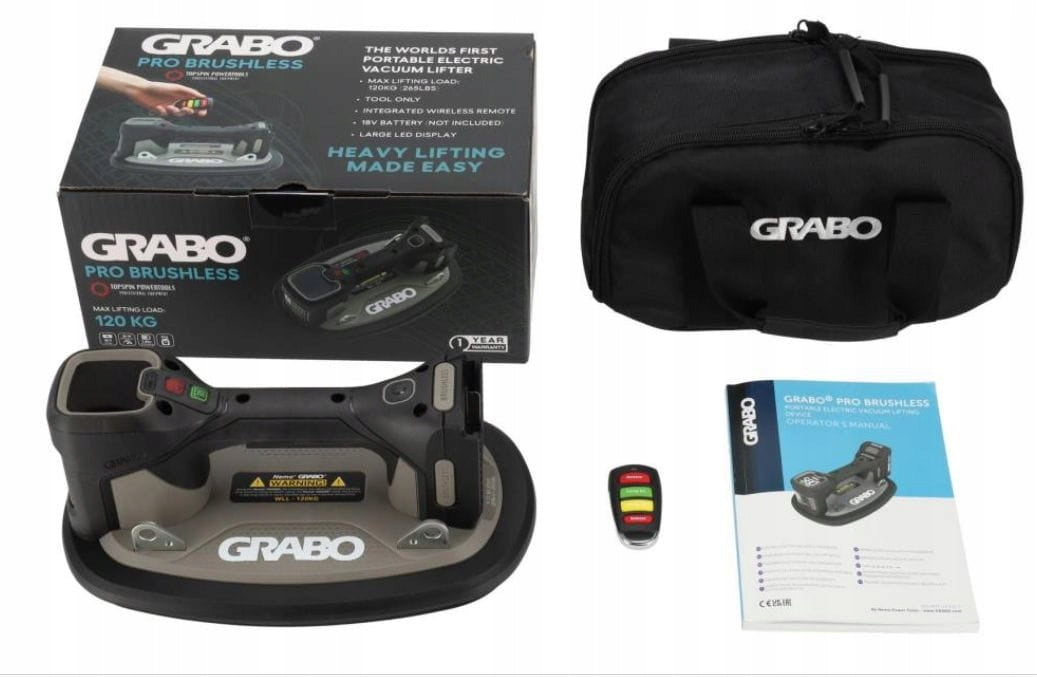

The set includes :

- 1x GRABO PRO Brushless Vacuum Gripper designed to work with DEWALT 18V batteries

- 1x GRABO RUBBER SEAL Universal Seal

- Remote control

- Wall mount for storing your device

- 1x Strong Carrying Bag

- 2x Set of interchangeable air filters

- 1x Gasket replacement device

- 1x replaceable rubber button cover

- Batteries and charger sold separately



Technical Specifications :

Model - Grabo Pro Brushless

Power Supply - 18V Lithium-Ion Battery

Pump capacity - 30l/min

Operating temperature - 0-60 °C

Weight (with battery) - 2,0kg with battery GRABO capacity. 2,6Ah

Maximum catalogue load capacity - 120kg (depending on the material)

Maximum theoretical lifting capacity - 170kg - at 80% vacuum * (depending on the material)

Maximum practical lifting capacity (horizontal position) - 85kg - at 80% vacuum * (depending on the material)

Maximum practical lifting capacity (vertical position) - 45kg - at 80% vacuum * (depending on the material)





Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Grabo
Parametry	Manufacturer code	111012
Parametry	EAN (GTIN)	5906400056683
Parametry	Device weight	2 kg
Parametry	Batteries included	no
Parametry	Series	PRO BRUSHLESS
Parametry	Lifting capacity	120 kg
