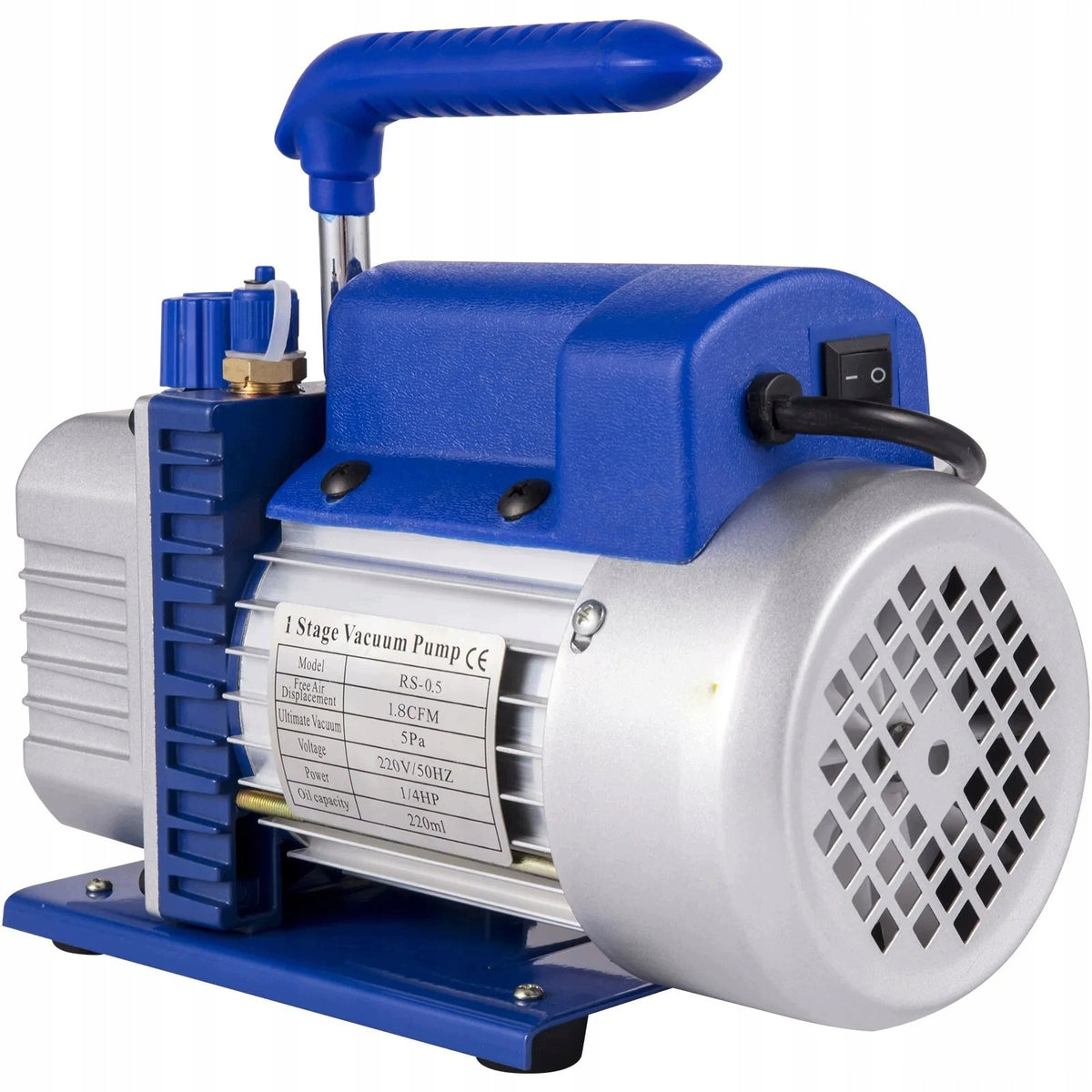

Vakuuminis siurblys 1.8CFM 1440 aps./min 5PA su manometrų rinkiniu oro kondicionavimui

Trumpai apie prekę

Prekė: Vakuuminis siurblys 1.8CFM 1440 aps./min 5PA su manometrų rinkiniu oro kondicionavimui. Kategorija: Kompresoriai.

• Gamintojas: no brand
• Modelis: 1.8CFM1-4HP
• Galia: 0.18 kW

Specifications：

High pressure: 0 ~ 800 PSI

Hose pressure: 4000 PSI

Low pressure: 0 ~ 500 PSI

Max. working pressure of the hose: 800 PSI

Intake nozzle connection specifications: 1/4” SAE

Rotational speed: 1,440 rpm

Mounting: 7/16 inch

Hose pressure: 4,000 PSI

Power/Voltage: 1/4 HP, 220 V / 50–60 Hz

Air displacement rate: 1.8 CFM, 50 L/min

Final vacuum: 3 × 10⁻¹ Pa, 25 micrometers

Gwint zewnętrzny na dolnym końcu: 1/4" SAE (standardowy gwint zewnętrzny pompy próżniowej, rozszerzony)

Gwint wewnętrzny na górnym końcu: 5/16" SAE (przyłącze z gwintem wewnętrznym do węży systemów HVAC)

⭐Efficient 1.8 Cfm Vacuum Pump：

Featuring a 1.8 CFM FAD, single‑stage operation, 1/4 HP motor, and 5 Pa ultimate vacuum, this high‑quality vacuum pump is built with a die‑cast aluminium housing and a composite‑rubber base for a lightweight and durable build. The pump runs quietly thanks to low noise emission and includes thermal protection to prevent burn‑out if it gets stuck, which ultimately improves productivity.

🔧 Backflow Prevention：

The oil fill port is compatible with most pressure gauges, whilst the drain hole makes it easy to completely drain the oil. The vent effectively prevents oil from being expelled. All these features help to prevent system contamination.

💧 Transparent Oil Level Indicator：

The rotary pump features a sight glass that allows for quick checking of the oil level, preventing oil shortages.

❄️ Effective Cooling:

While the pump is running, the built-in fan provides efficient heat dissipation, thereby maintaining its high performance.

🔧 Multifunctional Hoses:

These three hoses are made of high-quality rubber in various colors.

Their brass fittings feature a 45‑degree angle on one end and a straight end on the other, providing a more secure seal.

The hoses are designed for high working pressure.

They come with various fitting sizes to meet your diverse needs.

🛠️ Handy carrying handle：

Installing the pump on domestic and industrial water heaters (electric or gas) is straightforward. Just make sure the pump shaft remains horizontal after installation.

🔧 Complete Refrigerant Tool Kit：

This kit includes:

⚙️ A single-stage rotary vane vacuum pump

📊 A pressure gauge

🧪 Three color-coded hoses

This professional refrigerant tool kit simplifies maintenance.

🌐 Wide application:

The vacuum pump has a simple oil filling nozzle for clean pouring and an oil drain screw located below the oil reservoir. This refrigerant set is widely used for domestic air conditioners, automotive units, refrigerators, refrigeration units, vacuum packaging, refrigerator vacuum, industry, etc.
