Vakuuminis siurbtukas GRABO OTTOVAC su dėklu

Trumpai apie prekę

Prekė: Vakuuminis siurbtukas GRABO OTTOVAC su dėklu. Kategorija: Plytelėms skirtos siurbtukai.

• Gamintojas: Grabo
• Modelis: OTTOVAC-V1(OV-V1) GRABO

By choosing this offer you can be sure that you are buying a product 100% ORIGINAL from an Authorized GRABO Brand Dealer in Poland.

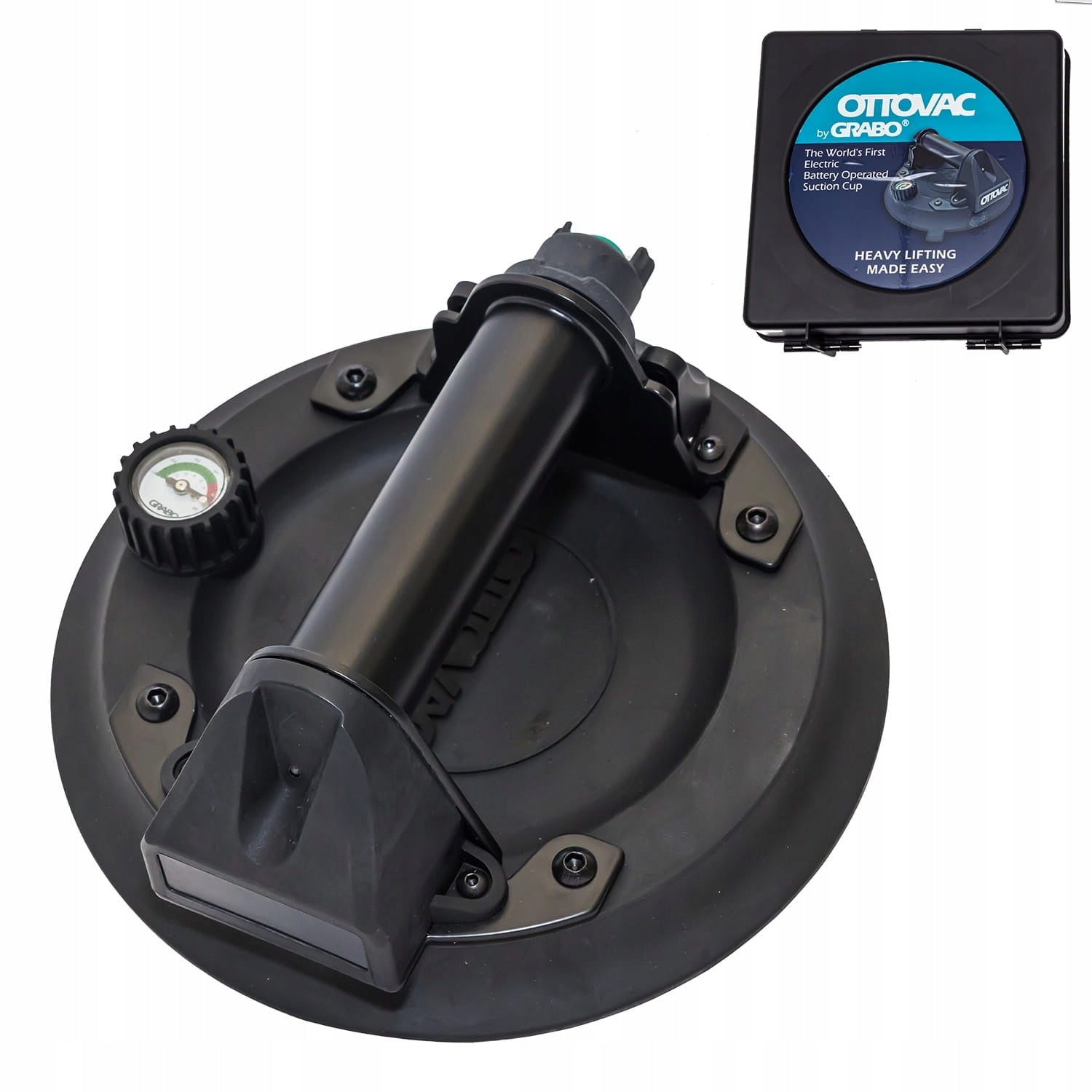

GRABO OTTOVAC Battery Vacuum Suction Cup with Pressure Gauge Suitcase



Battery suction cup with electronic vacuum control.



Description and Characteristics of Grabo OTTOVAC:

OTTOVAC by GRABO is a completely new tool that will significantly facilitate the work of tilers and glaziers. GRABO's OTTOVAC is a portable battery-powered vacuum suction cup with an electronic vacuum control module.

The OTTOVAC suction cup completely eliminates the manual pumping that is needed to achieve vacuum in standard suction cups.

The OTTOVAC vacuum suction cup has an integrated automatic vacuum pump that provides power and a stable grip on flat and smooth surfaces such as glass, stoneware, ceramic and stone tiles.

The automatic on/off sensor is built into the OTTOVAC suction cup continuously monitors the set vacuum and regulates its value.

The sensor tells the vacuum pump to turn on to produce suction and stop when it reaches enough vacuum. When the sensor detects a vacuum loss between the suction cup and the material, it will automatically start the vacuum pump to equalize the pressure. This ensures safety and stability when moving materials - you no longer have to look at the pressure gauge or protruding piston in a standard suction cup.



Application of GRABO OTTOVAC suction cups:

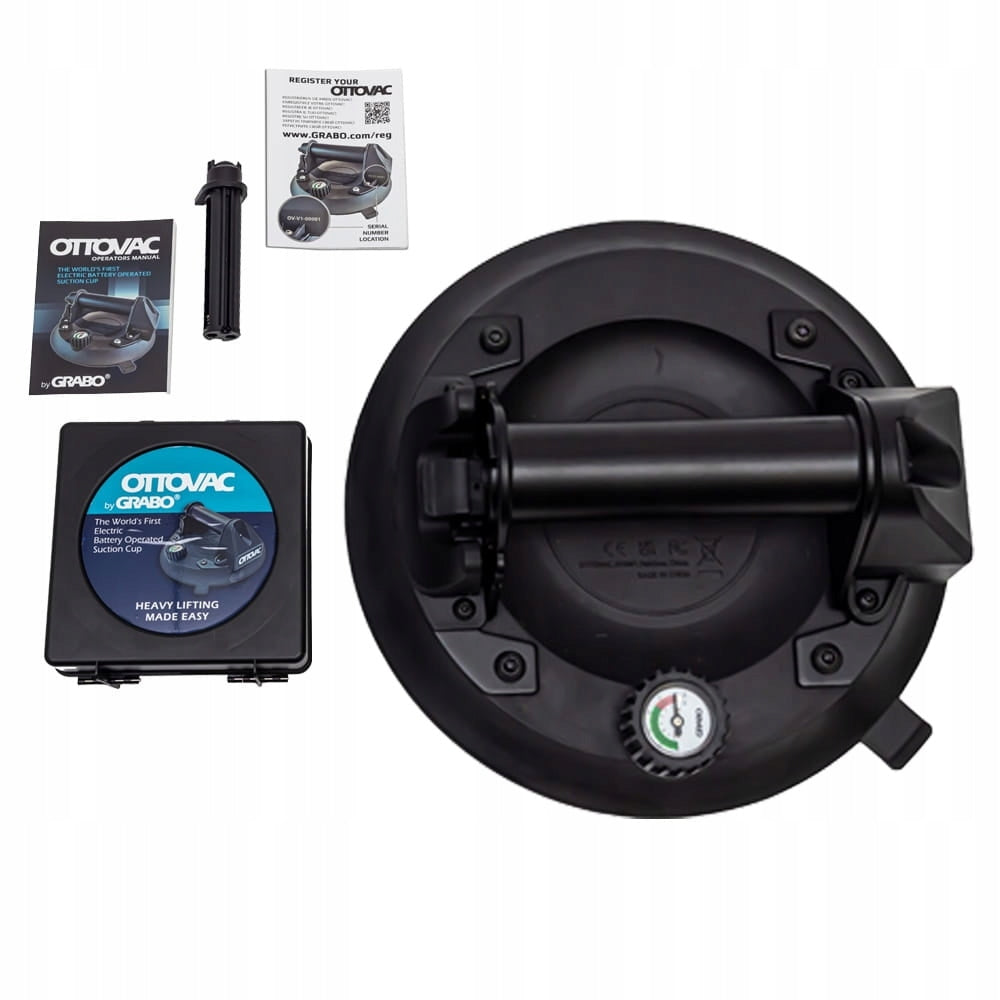

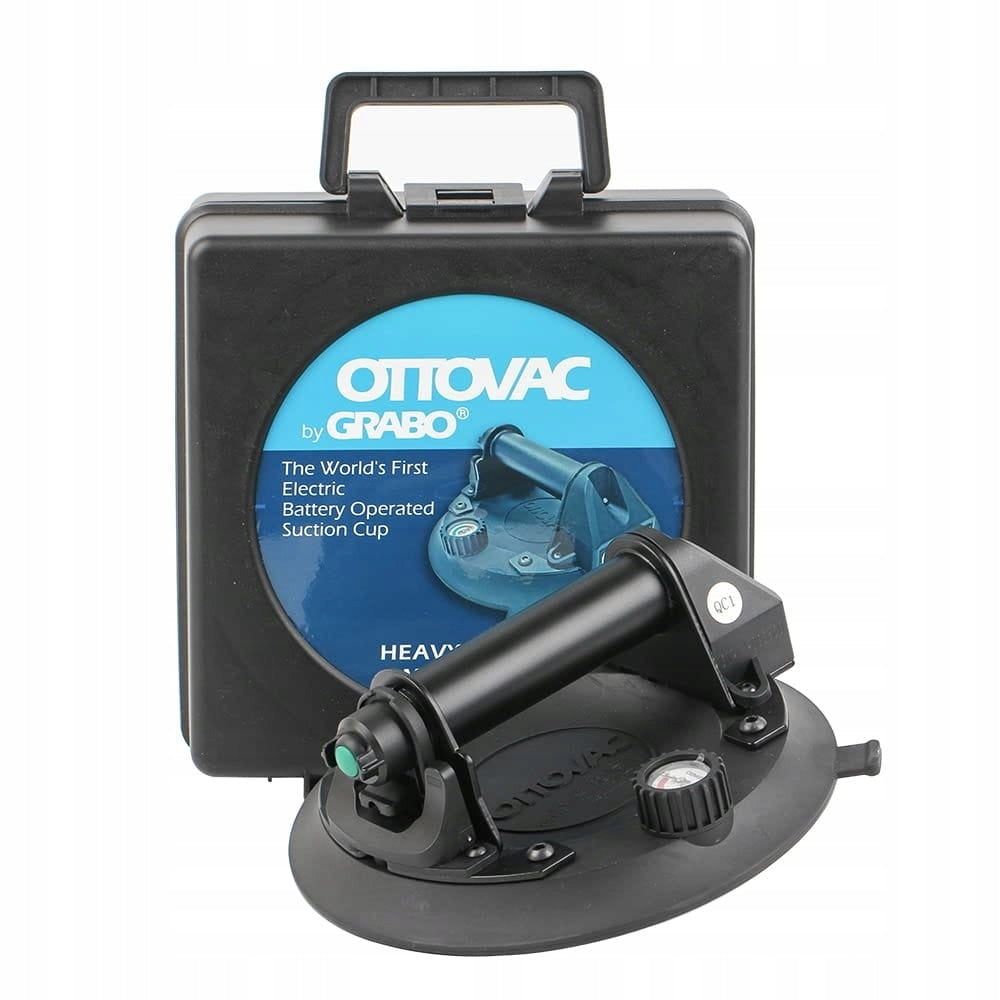

- Transfer and installation of glass, glass, windows, mirrors - Transfer and installation of stone, marble, granite, stoneware, ceramic tiles, terracotta, quartz sinters, stone slabs, large format slabs - Transfer and installation of steel materials, sheet metal The set includes: - Grabo suction cup OTTOVAC - Strong transport case - Batteries not included

Technical Specifications:

Model - GRABO OTTOVAC

Power supply - 4x AA 1,5V alkaline battery

Rated Power - 6W

Working time without interruption (full charge) - 1,5h

Operating temperature - 0-60 °C

Weight (with battery) - 1,25kg

Maximum theoretical lifting capacity - 180kg - at 60% vacuum *

Maximum practical lifting capacity (horizontal position) - 90kg - at 60% vacuum *

Maximum practical lifting capacity (vertical position) - 45kg - at 70% vacuum *



* – the lifting capacity generated by the vacuum gripper depends on the value of the vacuum obtained, the method of gripping (horizontally or vertically), and in the case of gripping and transport in a non-horizontal position also on the friction coefficient of the surface of the lifted load.



Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Grabo
Parametry	Manufacturer code	OTTOVAC-V1(OV-V1) GRABO
Parametry	EAN (GTIN)	4897100720930
Parametry	Series	OTTOVAC-V1
