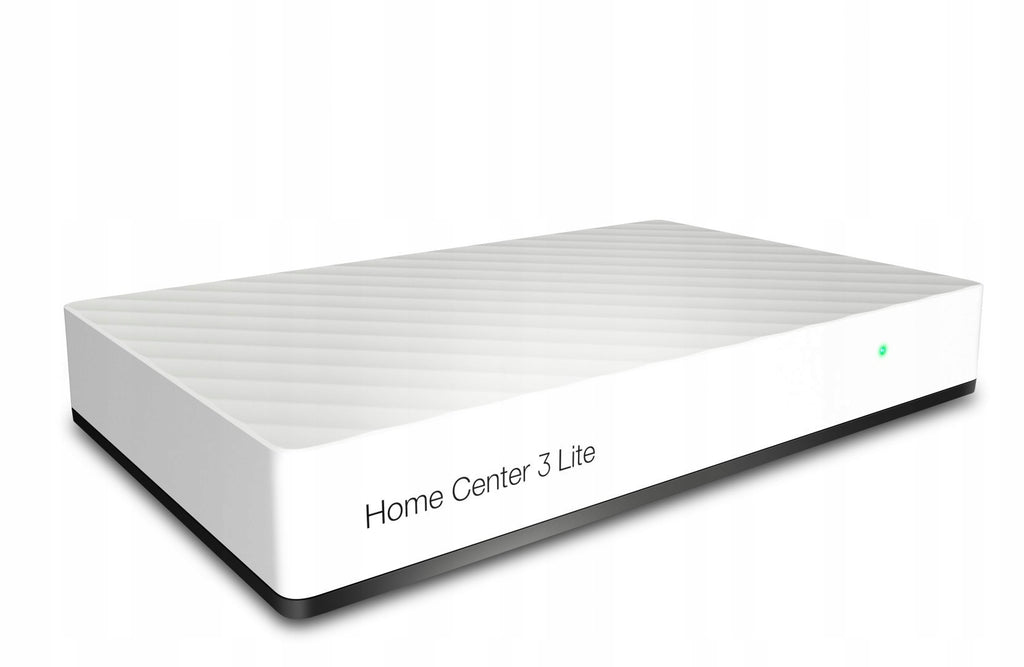

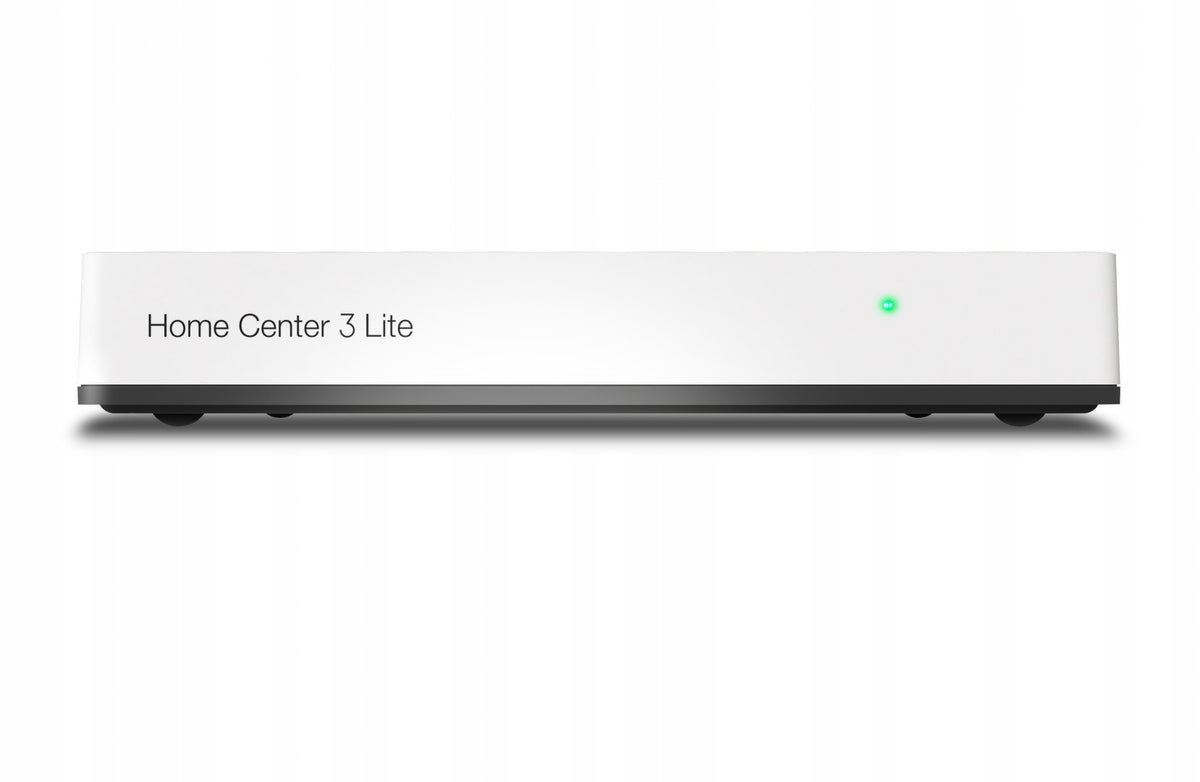

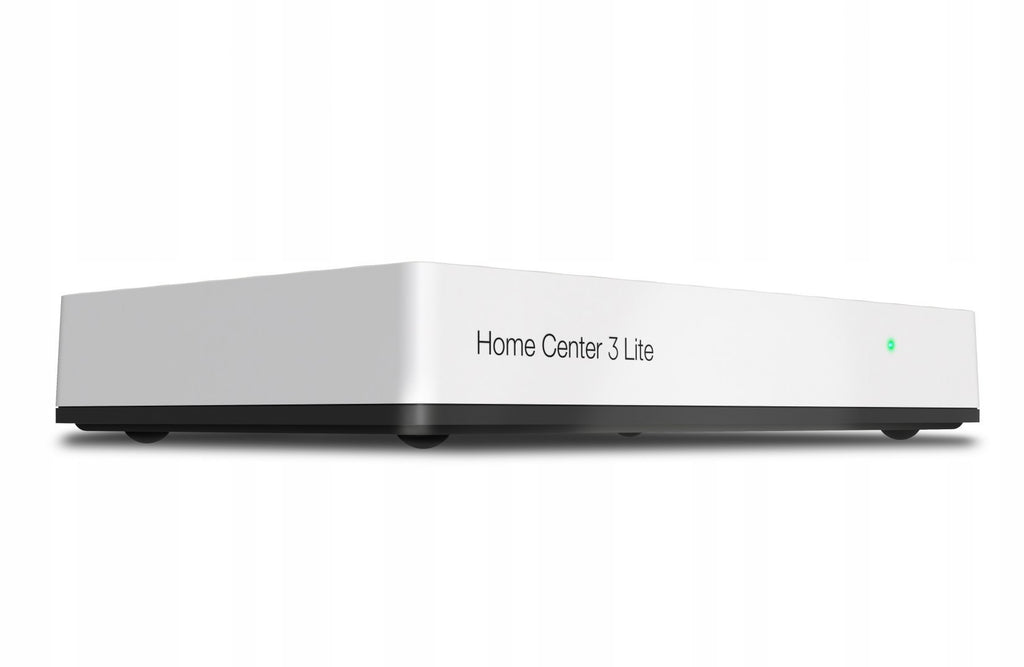

Valdymo pultas FIBARO Home Center Lite HC3L-001 EU

Trumpai apie prekę

Prekė: Valdymo pultas FIBARO Home Center Lite HC3L-001 EU. Kategorija: Centriniai blokai.

• Gamintojas: FIBARO
• Modelis: HC3L-001

The device was designed based on the solutions used in the Home Center 3 platform.

The control panel can be integrated with other products in Z-Wave technology, thanks to which you can easily control the lighting, roller shutters, temperature, alarm or watering system with the touch of a button, gesture or word.

The product is recommended for apartments and smaller, home building automation installations.

THE MOST IMPORTANT FEATURES OF THE PRODUCT

-- Wireless communication with Z-Wave 700 technology

-- Efficient hardware architecture

-- Solution designed for smaller building automation systems

-- Quick setup

-- Ability to create automation - block scenes and LUA

-- Highest data security

TECHNICAL SPECIFICATION

-- Single-Core ARM Cortex A7 900Mhz Processor

-- RAM 512 MB DDR3L

-- 4GB eMMC Flash disk capacity

-- USB1 (2.0)

-- 5V DC supply voltage, max. 1A (Power Supply Included)

-- WiFi network interface

-- Operating temperature 0 – 40°C

-- Compliance with EU standards

- RED Directive 2014/53/EU

- RoHS Directive 2011/65/EU, 2015/863

- IEC 62368-1:2014 standard

-- Radio protocol Z-Wave (700 series)

-- Wi-Fi 802.11 b/g/n protocol

-- Radio frequency 868.0-868.6 MHz, 869.7-870.0 MHz

-- 2400.0-2483.5 MHz Wi-Fi frequency

-- Permissible humidity max. 75% relative humidity (non-condensing)

-- USB micro B power connector

-- Dimensions 178 x 110 x 31mm

The smart home system built on the basis of the Home Center 3 Lite control panel gives the possibility of:

lighting control

control of roller shutters and gates

control of electrical equipment

heating control

monitoring of doors and windows

temperature monitoring

management of the sprinkler system

multimedia management

protection against flooding

protection against gases

protection against fire

protection against burglary
