Valdymo pultas riedančiam vartui PROXIMA, 230V, 433,92 MHz

Trumpai apie prekę

Prekė: Valdymo pultas riedančiam vartui PROXIMA, 230V, 433,92 MHz. Kategorija: Rinkiniai.

• Gamintojas: Proxima
• Modelis: Centrala SB

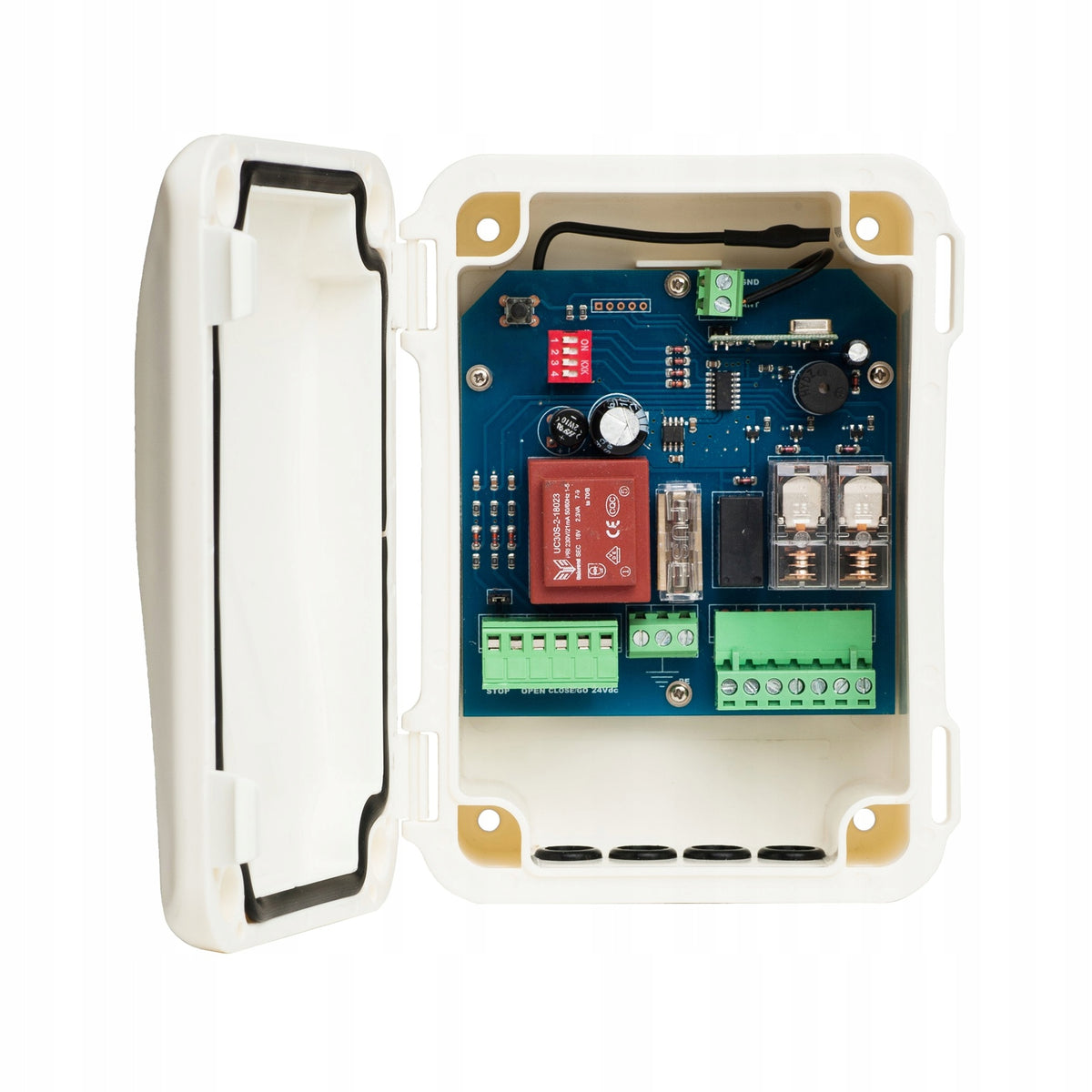

PROXIMA SB is a control panel for a roller shutter or roller gate, in which the 230V AC motor has internal limit switches.

It works with PROXIMA 433,92 MHz + radio with remote controls with HCS 433,92 MHz (analysis of the fixed part of the pilot code).

Note!!! - This SB control panel is ONLY compatible with PROXIMA remote controls with the PROXIMA radio path system

and WILL NOT cooperate in another radio route with pilots - e.g. NICE, FAAC, BENINCA, ELMES, GORKE, WIŚNIOWSKI and many more...,

In order for SB to cooperate with existing pilots (only selected models) - it is necessary to order SB with the appropriate radio route.

• Controller for roller shutter or rolling gate, in which the 230V AC motor has internal limit switches.
• 8 scenarios of remote control buttons.
• Output to connect the signal lamp.
• Input to connect the photocell.
• Inputs for buttons OPEN - STOP - CLOSE.
• Step-by-step button entry (simultaneous short-circuit input Open + Close).
• Auto closing and auto closing with shortening.
• Confirming with a buzzer to receive the pilot signal.
• The registered remote control can be cloned remotely.
• Built-in radio receiver.

Power supply: 230V AC 50 Hz

Lamp: 100W

Engine: 1kW induction 2 phase

Pilot memory: 25 433,92 MHz remotes

Protection class: IP54

Dimensions: 123 x 165 x 67 mm

Weight: 450 g

Characteristics:

- Rolling or sliding gate controller (with its own limit switches) with receiver,

designed for surface mounting (control panel version), in which there are 8 scenarios of remote control buttons.

- The control panel has outputs for local (manual) control and outputs for cooperation with a photocell.

- Automatic closing with shortening after cutting the photocell line - 4 scenarios.

- Lighting lamp (continuous light or warning intermittent operation) - 4 scenarios.

- Radio receiver (changeable remote control code KeeLoq - 433,92MHz),

Polish product by PROXIMA
