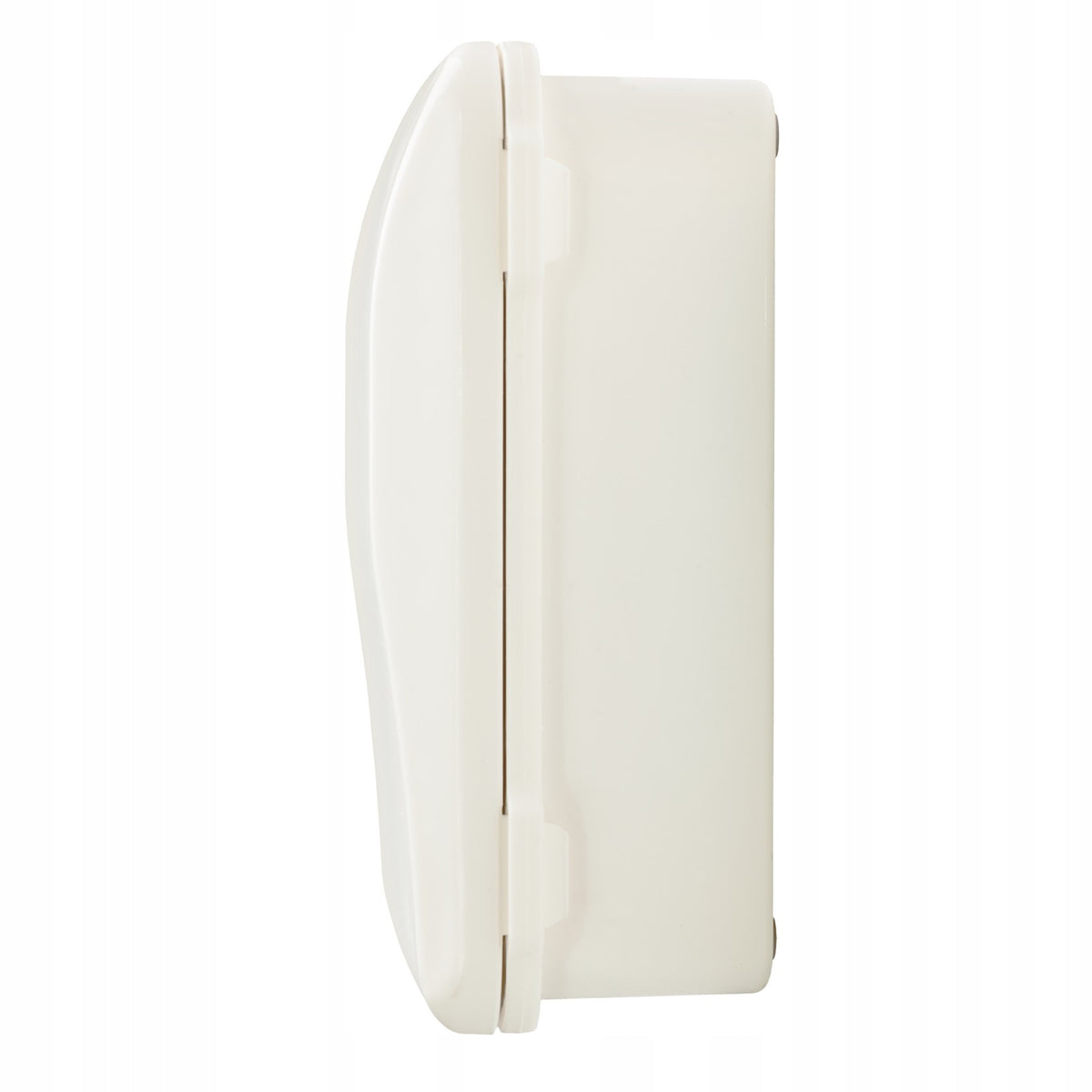

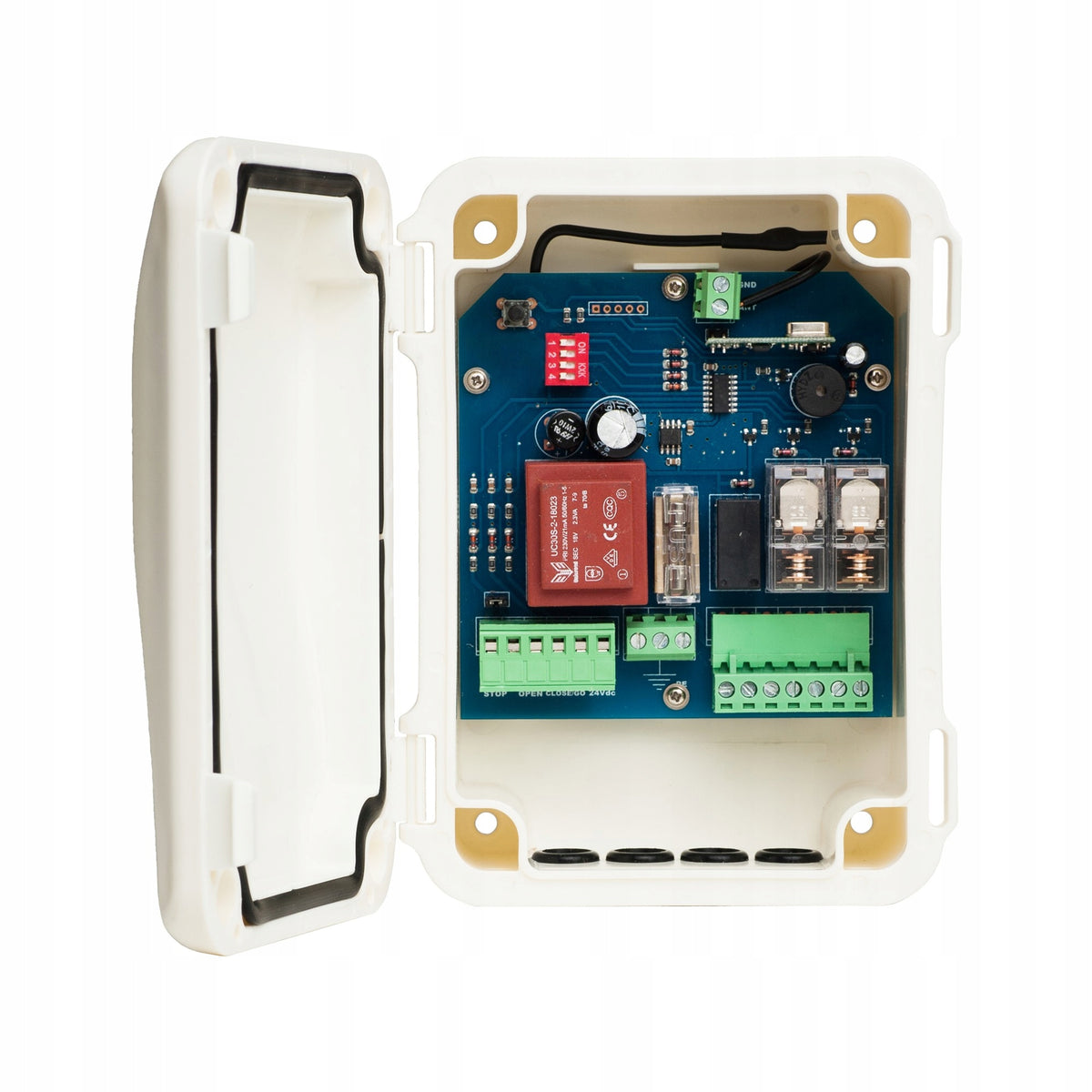

Valdymo pultas stumdomiems vartams SBK NC, 230V, PROXIMA 433,92 MHz

Trumpai apie prekę

Prekė: Valdymo pultas stumdomiems vartams SBK NC, 230V, PROXIMA 433,92 MHz. Kategorija: Rinkiniai.

• Gamintojas: Proxima
• Modelis: PROXIMA SBK NC

PROXIMA SBK NC is a control panel for sliding gate, for two-phase motor 230V AC with external NC limit switches.

It works with PROXIMA 433,92 MHz + radio with remote controls with HCS 433,92 MHz (analysis of the fixed part of the pilot code).

• Controller for sliding gate, for two-phase motor 230V AC with external limit switches NC.
• 8 scenarios of remote control buttons.
• Output to connect the signal lamp.
• Input to connect the photocell.
• Inputs for buttons OPEN - STOP - CLOSE.
• Step-by-step button entry (simultaneous short-circuit input Open + Close).
• Auto closing and auto closing with shortening.
• Confirming with a buzzer to receive the pilot signal.
• Programmable partial opening time with remote control - gate function 4 - 240 s.
• The registered remote control can be cloned remotely.
• Built-in radio receiver.
• When the power is turned on, the buzzer gives the maximum number of remote controls - 25.

Power supply: 230V AC 50 Hz

Lamp: 100W

Engine: 1kW induction 2 phase

Pilot memory: 25 433,92 MHz remotes

Protection class: IP54

Dimensions: 123 x 165 x 67 mm

Weight: 450 g

Polish product by PROXIMA
