Valdymo pultas Thessla Green Air Control Panel ++ su naujausia programine įranga

Trumpai apie prekę

Prekė: Valdymo pultas Thessla Green Air Control Panel ++ su naujausia programine įranga. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Thesslagreen
• Modelis: Air++

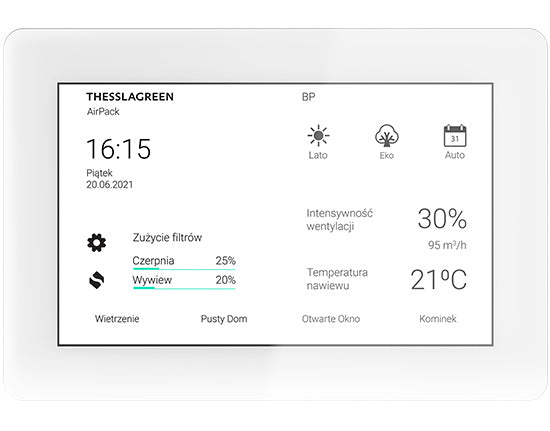

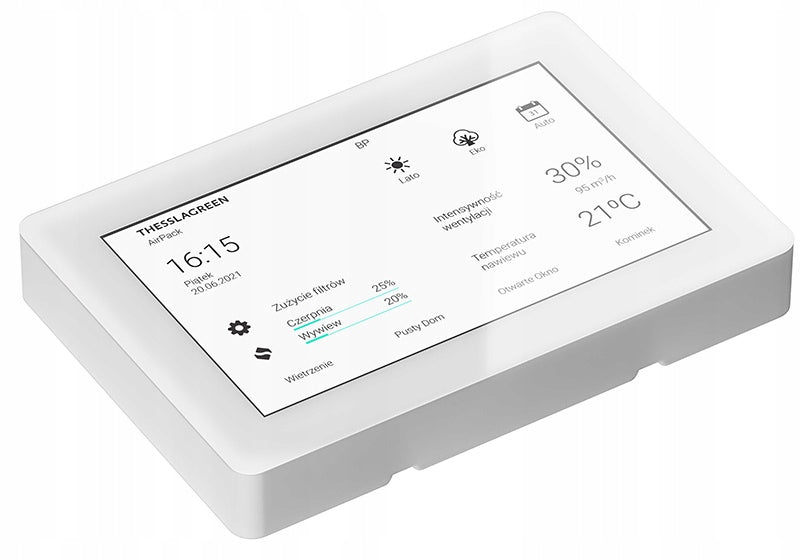

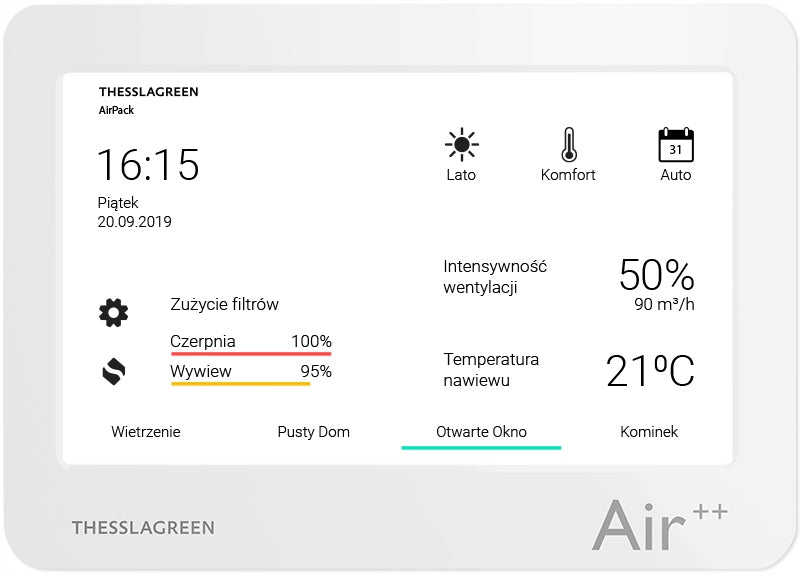

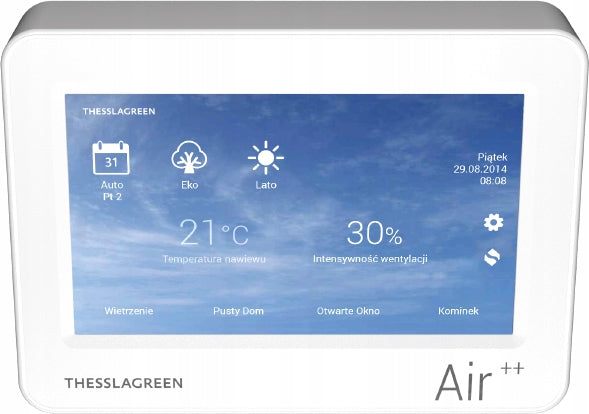

Air++ is a colorful, 4.3” remote touch panel designed for wall mounting. The panel allows you to operate all functions of the control system.

As standard, the panel is supplied with a 4x2x0,5 UTP cable terminated with RJ45 connectors in standard B with a length of 10 m.

Note - the presented model fits the control panels manufactured after 10.2019.

You will apply it to:

• AirPack4
• AirPack Home
• AirPack
• Particle+ air purifier

The panel offers the following operating modes:

Manual mode

• The ventilation unit operates continuously with the set ventilation intensity.
• You set the timer time to start the Weathering function and its intensity.

Automatic mode

• The ventilation unit operates according to a weekly schedule specifying the intensity of ventilation for individual days and time intervals within each day.
• You can freely modify the schedule settings.
• You can define separate schedules for Summer and Winter respectively.
• You can set up to four time intervals and the start of the Weathering function each day.

Momentary mode

• The ventilation unit operates for a specified period of time with freely set values of ventilation intensity and / or supply air temperature.
• You can ask the ventilation intensity or supply air temperature* on the panel at any time. From the moment of setting, the Momentary mode with set values will be implemented.
• If the change is made at the time of the active Automatic mode, it is valid until the end of the period of time in which it was introduced or until another mode (Automatic or Manual) is selected.
• If the change is made during Manual mode, it is valid until another mode (Automatic or Manual) is selected.
• You can change the Momentary mode setting at any time.

Eco and Comfort Function

• If the installation is equipped with channel heat exchangers integrated with the GT automation system, the device operates in the Comfort or Eko function.
• Activation of the Comfort function activates the operation of heat exchangers. The control panel strives to maintain the set temperature of the supply air.
• Using the Eko function in the control panel disables the operation of channel heat exchangers. The control panel does not strive to maintain the set temperature of the air supplied to the rooms. The device realizes ventilation of rooms with the highest possible efficiency of heat recovery.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Thesslagreen
Parametry	Kind	switchboard
Parametry	Product weight with unit packaging	0.15 kg
Parametry	Manufacturer code	Air++
Parametry	Packaging status	original
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A
Parametry	Certificates of conformity	CE
