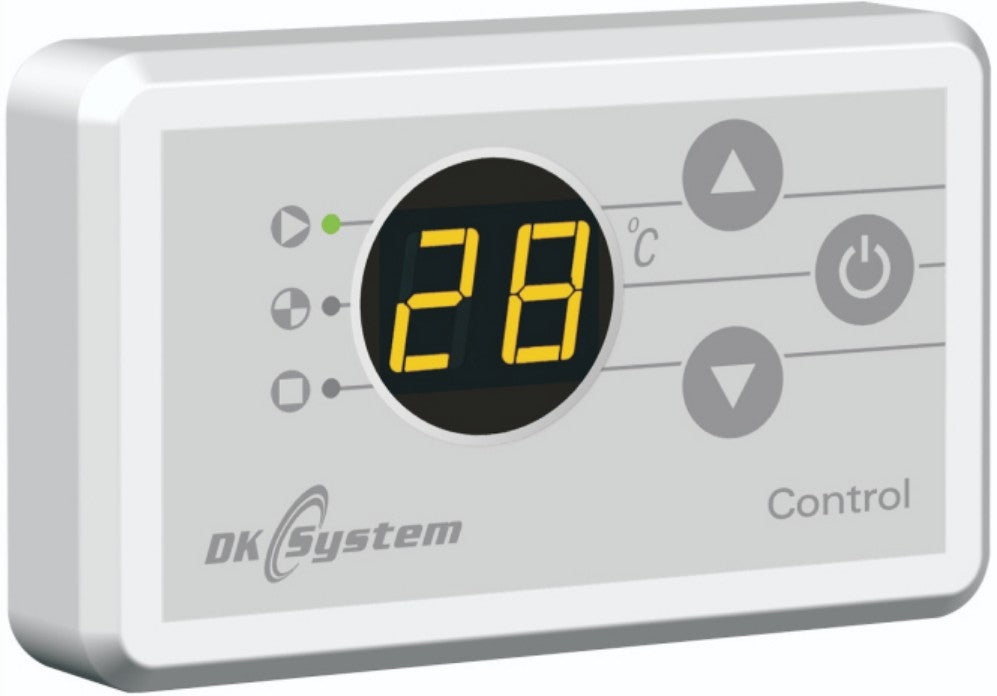

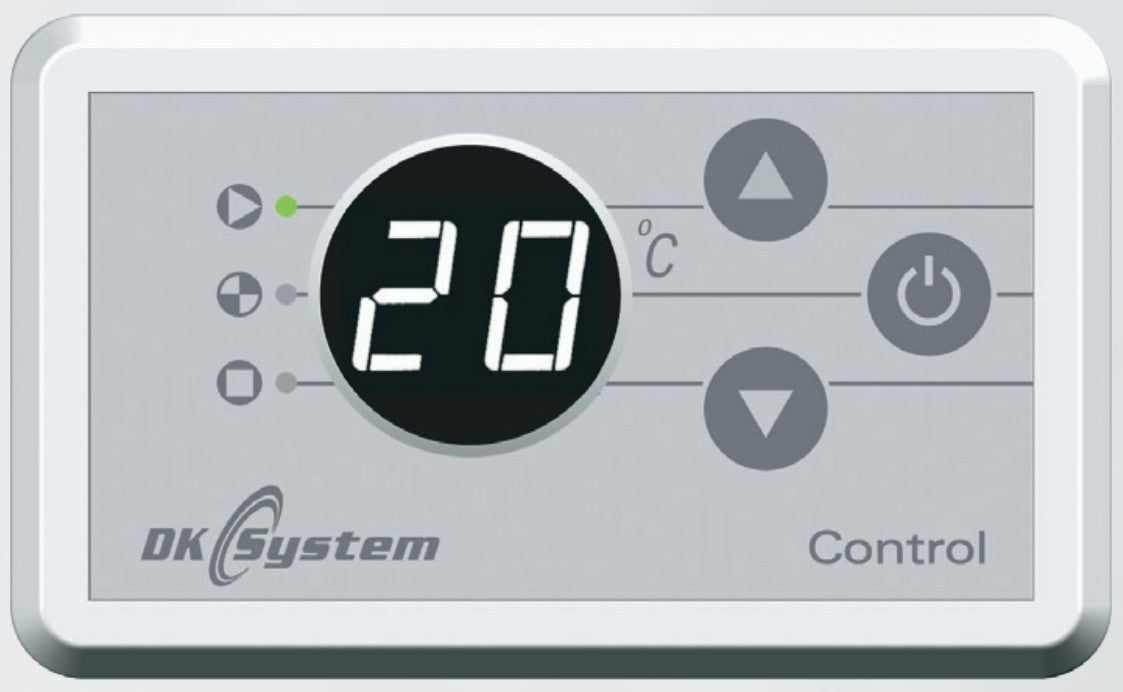

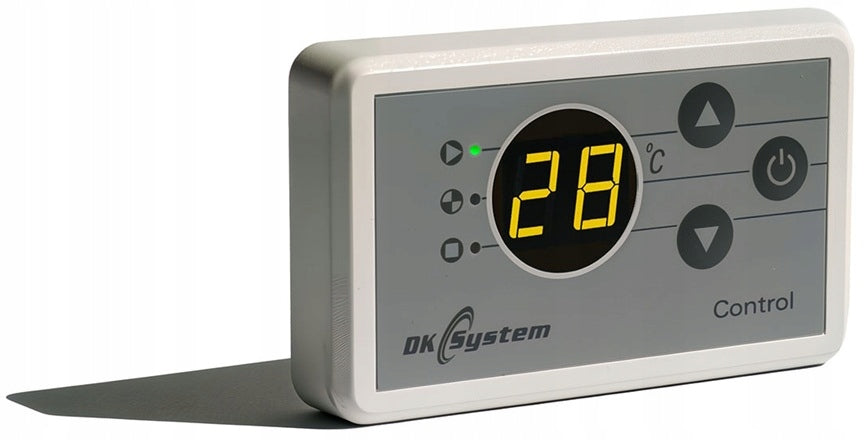

Valdymo skydelis DK SYSTEM katilo arba siurblio valdikliui

Trumpai apie prekę

Prekė: Valdymo skydelis DK SYSTEM katilo arba siurblio valdikliui. Kategorija: Rinkiniai.

• Gamintojas: DK System
• Modelis: 109011

DK SYSTEM CONTROL ROOM PANEL FOR CONTROL

BOILER OR PUMP CONTROLLER

Control

Peace Panel for Series 200 and Newer

✔ The CONTROL control panel is designed to work with selected regulators of DK System.

Panel Works with Regulators

✔ DELTA200

✔ DELTA 200 3D

✔ DELTA 200 DUO

✔ UNISTER

✔ ECOSTER 200

✔ EKOSTER 300, 400, 420 CLASSIC

✔ MASTER 500, CLASSIC ECO CLASSIC ECO V.2, EKOSTER 430

Attention:

✔ Only the cable provided by the manufacturer should be used to connect the regulator together with the control panel.

✔ The use of other cables and any interference with the original cable may cause reading errors and damage to electronic components; in such situations, the total costs of repair and transport are borne by the user.

✔ Control panel does not work with DK System regulators with RS extension.

Panel has the following functions

✔ constant indication of the measured temperature

✔ central heating pump operation signalling

✔ audible alarm informing about exceeding the temperature

✔ possibility of remote change of the desired temperature

✔ signaling of other parameters depending on the regulator with which the panel currently cooperates

✔ communication cable included (10 m)

Technical data

✔ Temperature range from - 9 °C to + 99 °C

✔ Sound signal temperature setting range from + 50 °C to + 99 °C

✔ Rated supply voltage 8V - 12V

✔ Relative humidity < 95 %

✔ Degree of protection IP 40

✔ Insulation class II

✔ Regulator dimensions 106 x 65 x 20 mm

✔ Mounting hole spacing 60 mm

✔ Ambient temperature from 0 °C to + 40 °C

Space of Mounting Holes

Specifications
