Valdymo skydelis TOUCH PANEL DISPLAY PRO 120 SUPLA

Trumpai apie prekę

Prekė: Valdymo skydelis TOUCH PANEL DISPLAY PRO 120 SUPLA. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sonoff
• Modelis: NSPANEL120-PRO-CZ-SUPLA

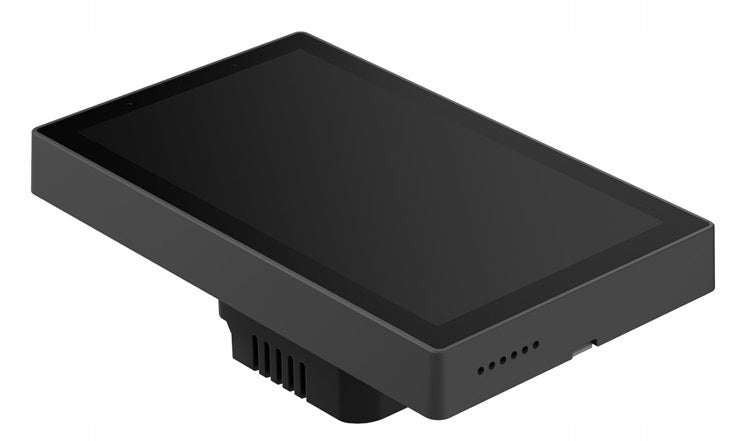

TOUCH PANEL DISPLAY Wall Panel PRO 120 SUPLA Home Control

Specifications:

• Application supporting : SUPLA
• Support : Touch panel
• Connectivity : Wi-Fi IEEE 802.11 b/g/n 2,4 GHz
• Power supply : network 230V

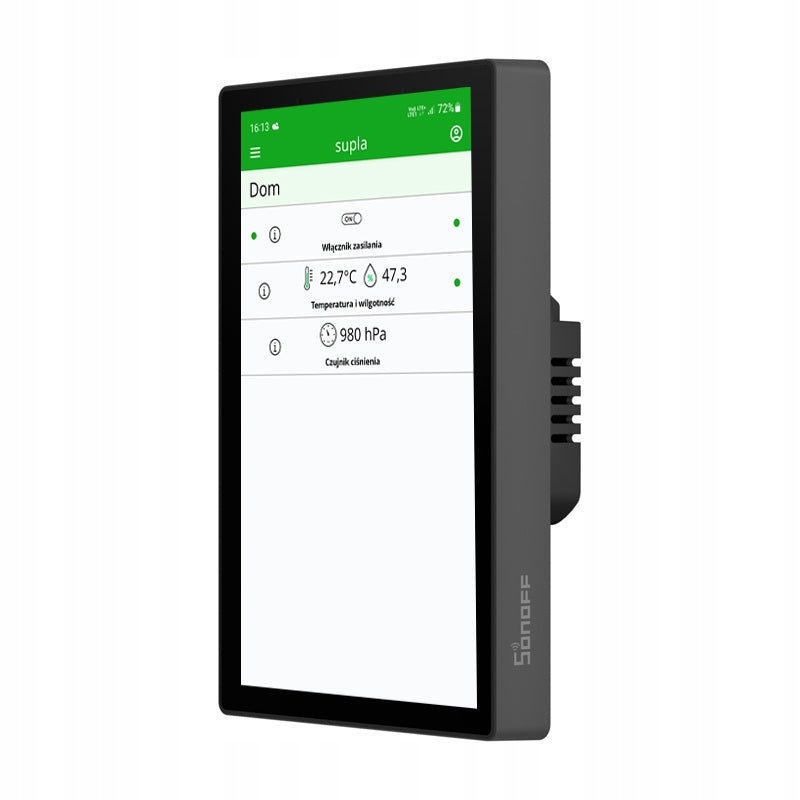

We present you the Touch Panel for the Supla application.

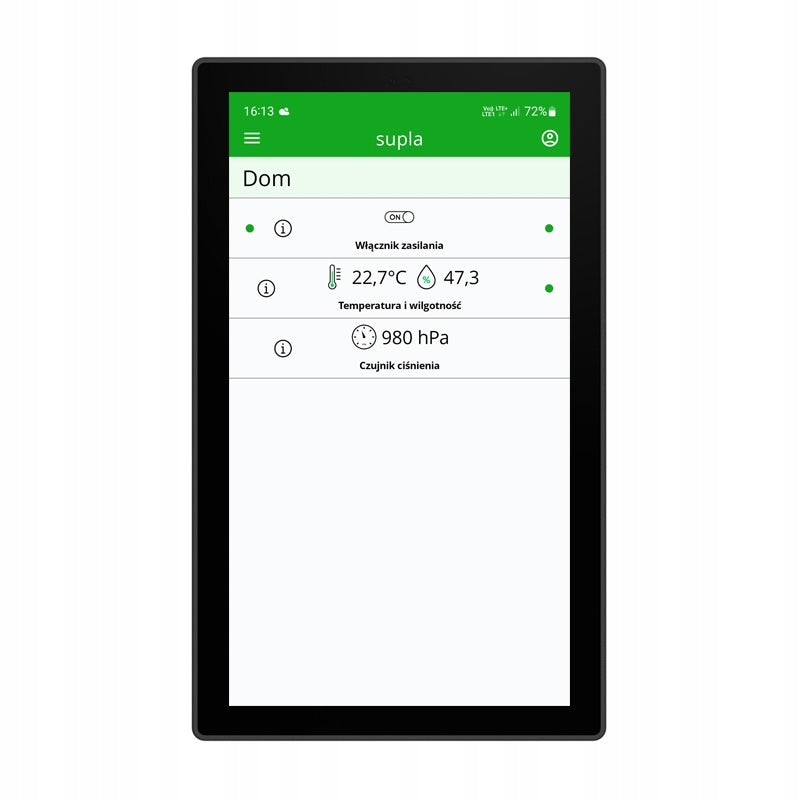

This product will allow you to operate the Supla application directly from the touch screen.

You no longer need to search for your phone to do something in the Supla app.

Now you and your household can operate the Supla app conveniently from anywhere in your home.

The panel can be mounted in a flush-mounted dimmable can.

The panel fits a standard flush-mounted electrical box, so it can be installed in place of a traditional switch.

An additional option is to use a freestanding base / base (to be purchased separately) and place the panel anywhere, e.g. on a desk, on a shelf or anywhere where it will always be "at hand".

Additional screen blanking feature:

The panel has an additional installed app to extinguish in the display excitation.

Excitation of the display is triggered by a built-in camera - motion detection in front of the panel lights up the display in the panel.

The display is extinguished after the pre-set time.

With the purchased product you will receive instructions!!

You will find a lot of valuable advice in it, including :

• How to add a device to SUPLA system.
• Information about device configuration.

The instructions are constantly updated and new topics and advice are added!!

As soon as the shipment is sent - the instructions will be sent by e-mail.

Specifications of the product sold:

• Name : NS Panel 120PB PRO
• Color: black
• Voltage : 100-240V AC 50/60Hz
• Maximum power consumption : 5W max, 150mA
• Screen diagonal : 3.95”
• Resolution : 480 x 480
• Audio output : 7Ω, 1W
• CPU : Quad-core ARM Cortex-A35 CPU
• GPU : Mali-G31GPU
• Dimensions : 86 x 86 x 39.5 mm
• Weight : 180 g
• Material: PC V0, CRS, tempered glass
• Operating systems : Android, iOS
• Wi-Fi : IEEE 802.11 b/g/n 2.4GHz
• Bluetooth : BT2.1+EDR，BT 3.0，BT4.2
• Zigbee : IEEE 802.15.4 (Zigbee 3.0)
• Working temperature: 0°C ~ 40°C
• Working humidity: 5%-90% RH

This offer is for the following product:

• Sonoff NSPanel 120 Pro Black

This offer is for a product with factory-installed firmware. This offer is not for a ready-to-use, modified product with altered firmware.

The service of changing the firmware / uploading publicly available OpenSource code and adapting (modifying) the device is always performed after the device is purchased - at the customer's request. This service is performed free of charge. By purchasing, the buyer agrees to the adaptation (modification) of the device after purchase and to use the device with the consequences resulting from the modification.

The buyer can opt out of the modification and firmware installation by sending us a message after purchase.

The device may only be used for your own private use.

Supla software, the Supla logo, and the Supla name are the property of AC SOFTWARE SP. Z O.O.

The name Supla is used for informational purposes only. It is not intended to offer the sale of a Supla brand product. This offer is not for a Supla brand product.

In accordance with regulations, we must inform you: The buyer is aware of the risks associated with using this type of device. The buyer takes responsibility for connecting and using this device.

Safety and Installation:

• Device installation should be performed by individuals with appropriate qualifications.
• If using the device as a security measure, for certainty and safety, the device should not be the only security measure.

Source of OpenSource software:

• Supla : https://www.supla.org/pl/
• Supla Forum GUI-Generic Builder
