Vamzdžių blokatorių ieškiklis UNI-T UT661D

Trumpai apie prekę

Prekė: Vamzdžių blokatorių ieškiklis UNI-T UT661D. Kategorija: Detektoriai.

• Gamintojas: UNI-T
• Modelis: UT661D

UNI-T Pipeline blockage detector Uni-T UT661D

Uni-T UT661D Pipe Blockage Detector

Uni-T UT661D is a pipe blockage detector that allows you to quickly locate the location of a blockage inside the installation without having to dismantle the entire pipe section. The device works with plastic and metal pipes, and the 35 m long signal cable allows operation on longer sections of the installation. The maximum detection depth of up to 50 cm makes the model well suited for everyday diagnostics in hard-to-reach places.

Effective location of congestion and convenient operation

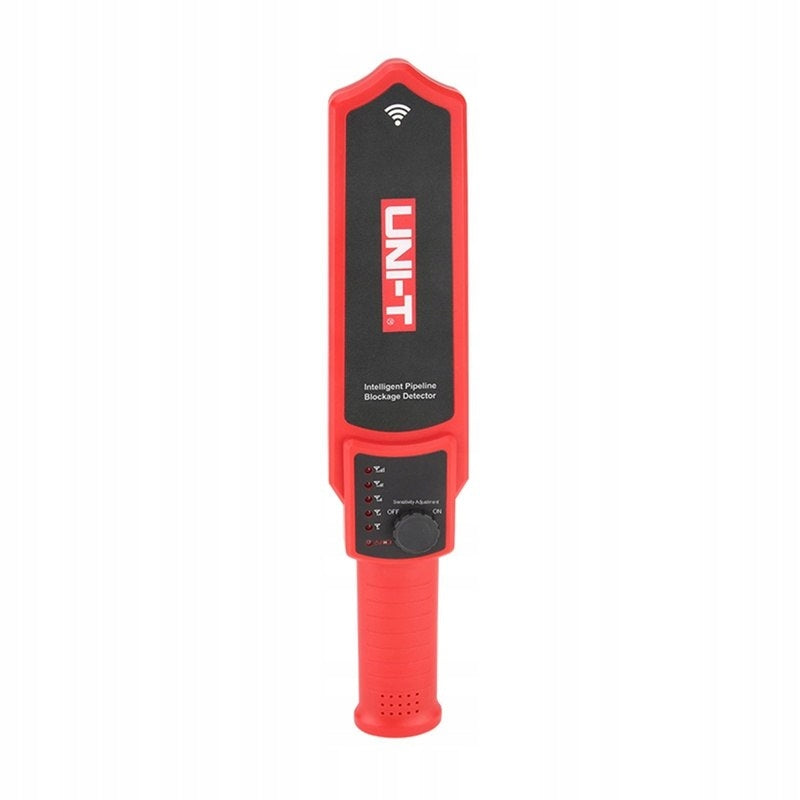

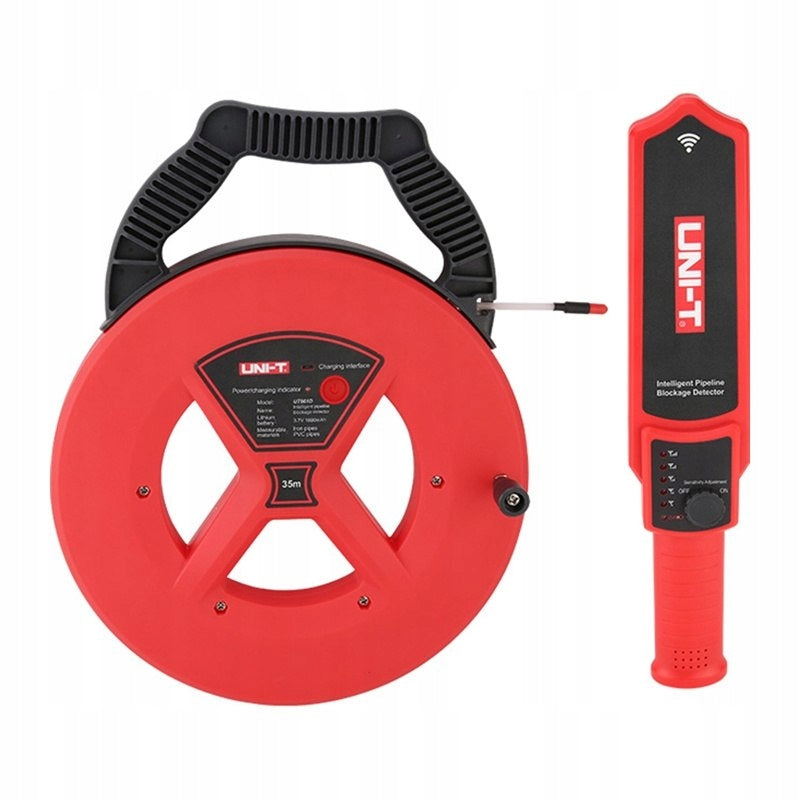

The UT661D model consists of a transmitter and a receiver, allowing you to more precisely determine the location of a blockage in a pipe. The device uses a sound and light signal, which helps to detect the problem location more quickly when working in various conditions. Additional advantages include a high sound output level, a low battery indicator and an IP67-rated probe, which increases safety and durability during use.

Ready for field work

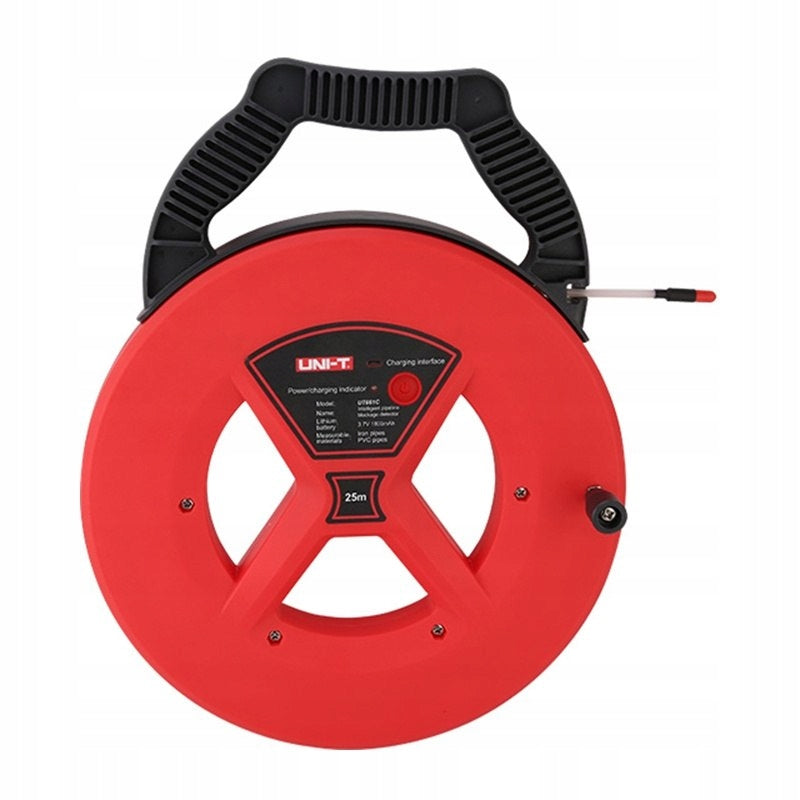

The transmitter and receiver use built-in 3.7V 1800mAh lithium batteries, and the battery life is up to 10 hours. The device can operate at temperatures ranging from -20°C to 60°C with humidity ranging from 10~80% RH, which increases its practicality in various working conditions. The set includes a charging cable and a probe set, so the model is ready to use immediately after preparing the equipment.

Included in the set

• Transmitter
• Receiver
• Charging cable
• Probe kit
• User manual
• Warranty card

Specification

Producer

Uni-T

Model

UT661D

Type

Pipeline blockage detector

Transmitter

Yes

Receiver

Yes

Signal cable

35 m

Maximum detection depth

50 cm

Materials of measured pipes

Plastic and metal pipes

Sound signal

Yes

Light signal

Yes

Low battery indicator

Yes

Probe water resistance class

IP67

Transmitter current in off state

< 2 µA< /td>

Transmitter operating current

230~310 mA

Receiver current in off state

< 2 µA< /td>

Receiver standby current

< 40 mA< /td>

Maximum operating current of the receiver

150~450 mA

Charging current

450~550 mA

Sound output test at 1 cm

93 dB

Sound output test at 0.5 m

75 dB

Battery life

10 hours

Operating temperature

-20°C~60°C

Working humidity

10~80% RH

Transmitter battery

Built-in 3.7V 1800mAh lithium battery

Receiver battery

Built-in 3.7V 1800mAh lithium battery

Color

Red and gray

Transmitter weight

1.42 kg

Receiver weight

0.26 kg

Transmitter dimensions

38 x 30 x 42 mm

Receiver dimensions

40 x 38 x 80 mm

Certificates

CE, RoHS

6935750566145
