Vamzdžių elektrinis presas REMS Power Press SE su 3 spaustuvais M, L-Boxx dėžė

Trumpai apie prekę

Prekė: Vamzdžių elektrinis presas REMS Power Press SE su 3 spaustuvais M, L-Boxx dėžė. Kategorija: Elektrinių įrankių rinkiniai.

• Gamintojas: Rems
• Modelis: 572113-3M

Universal, handy power tool for clamping connections in all commonly used systems. Terminal connections Ø10-108 (110) mm.

Instant, steady tightening. Automatic locking of clamping clamps. Complete range of REMS clamps for all commonly used clamping systems

Advantages of the system

Only one type of ring/clamp jaws for all REMS radial presses (except REMS Mini-Press ACC, REMS Mini-Press 22 V ACC) and corresponding radial presses from other manufacturers.

All clamp clamps marked with * have an additional connector (patent EP 1 223 008, Patent US 6,739,172) and also fit REMS Eco-Press hand-held radial presses. This makes storage costs easier and less expensive.

Clamps/Clamping rings for all commonly used systems

Complete range of REMS clamps/clamp rings for all commonly used clamping systems (pages 152 – 170). Clamps/clamp rings with high load capacity made of forged, malleable-hard and appropriately hardened special steel. Clamp/ring clamping contours. REMS are specific to each system and correspond to the contours of individual clamping systems. This ensures seamless compatibility and secure crimping.

Construction

Compact, strong, working well on construction sites. Small size neat form, drive device only 4,7 kg, therefore wide application, free hand, overhead, in tight positions. Secure attachment of clamps/clamp rings thanks to automatic locking. Also for suitable clamps/clamp rings from other manufacturers.

Impulse nature of crimping

Safety of work, function and movement. The complete closure of the clamp clamps means making an impeccable clamp. The clamping clamps remain closed until switched to return traffic. Thanks to this, it is possible to very easily visually check the correctness of the clamp (fully clamped clamps).

Drive

The multi-tone travel and pressure force is an instant and impeccable clamp. Longitudinal force 32 kN. High-performance electromechanical drive with efficient universal motor, 450 W, maintenance-free transmission and slip safety clutch, feed system – with trapezoidal thread spindle. Overload protection. Safe impulse switch

.

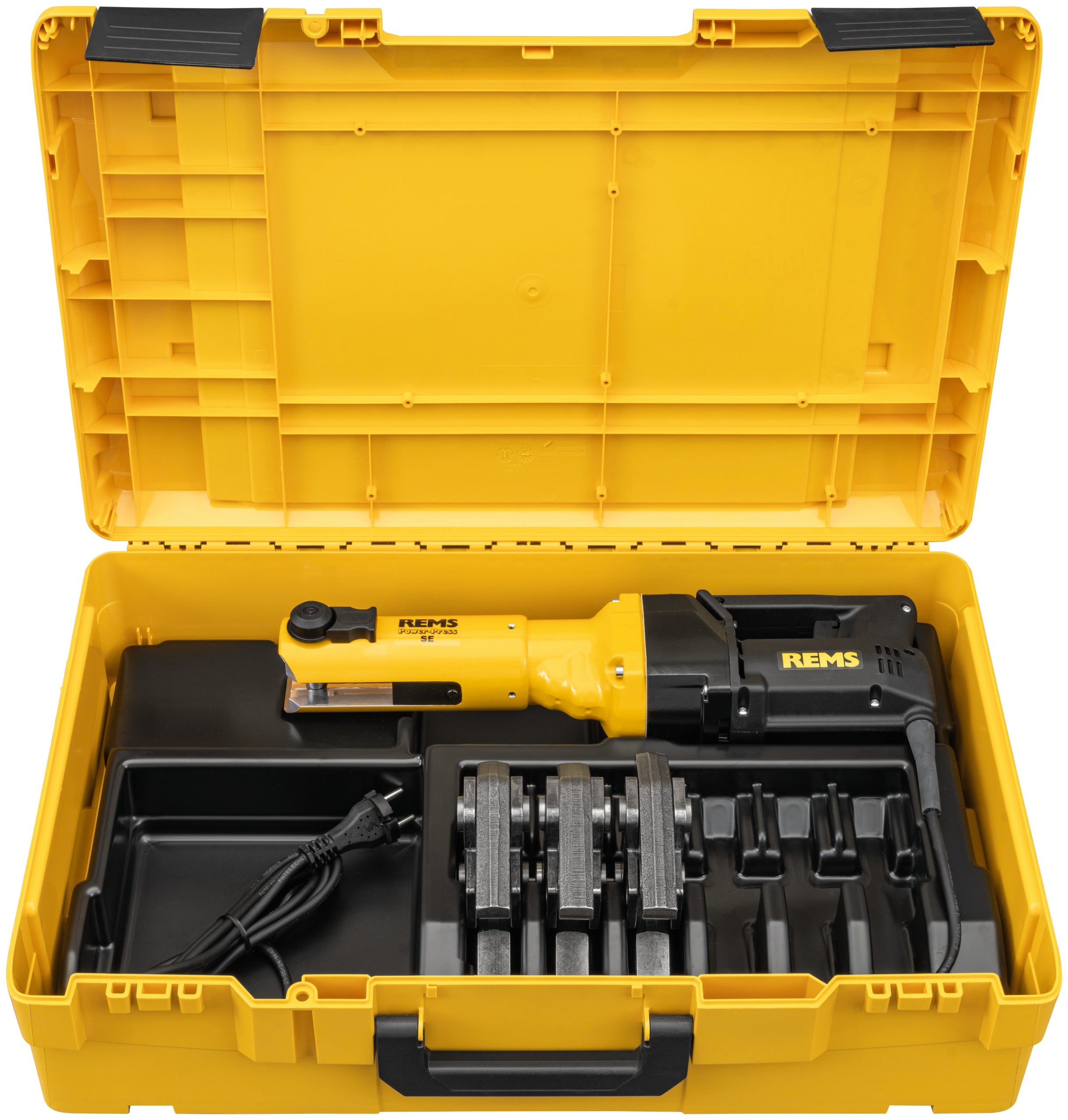

SCOPE OF DELIVERY:

• Electric radial press for clamping connections Ø 10 – 108 (110) mm, Ø ⅜ – 4". For the drive of REMS clamps/clamp rings and corresponding clamp/clamp rings from other manufacturers. Clamp attachment with automatic locking. Electromechanical drive with efficient universal motor 230 V, 50 – 60 Hz, 450 W, with maintenance-free transmission and slip safety clutch, feed system – with trapezoidal thread spindle. Overload protection Safe impulse switch. In the L-Boxx system case.
• 3 clamping clamps REMS profile M from the range M15-M18-M22-M28-M35
• User manual

Specifications
