Vamzdžių lenkimo įrankis aliuminio ir vario vamzdžiams, 6–22 mm, 1/4–7/8", 90°

Trumpai apie prekę

Prekė: Vamzdžių lenkimo įrankis aliuminio ir vario vamzdžiams, 6–22 mm, 1/4–7/8", 90°. Kategorija: Vamzdžių lenktuvai.

• Gamintojas: Sevico
• Modelis: F55

Pipe bending machine

Sevico - Model F55

✅ Ensure the highest quality of work with a professional crossbow bending machine. This complete tool kit is designed for HVAC installers, plumbers, and mechanics who require perfect, repetitive bending without deforming, wrinkles, or cracking the pipe walls. Thanks to the efficient ratchet mechanism, working with copper and aluminum pipes becomes fast and almost effortless.

✅ The most important advantages of the product:

• Precision without compromise: Specially shaped dies guarantee smooth bends with a radius that maintains full pipe throughput.
• High Pressure (10KN): The ratchet mechanism allows for high bending force with just one hand, which is crucial in tight spaces.
• Complete Service Tool-Kit: In one case you get everything you need: a bending machine, 7 dies, a professional cutter and a hail for finishing edges.
• Solid Construction: Dies made of high-strength plastic ensure stability and long-term durability.

📊 Technical specification:

🔹 Compatible materials - Copper, aluminum, thin-walled steel tubes.

🔹 Size range (7 dies included):

• Sizes in metric system - 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 19 mm, 22 mm
• Sizes in inches - 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8"

🔹 Maximum bending angle - 90°

🔹 Bending force - 10 KN

🔹 Pipe wall thickness - 0,5 mm – 1,2 mm

🔹 Pipe cutter - range 1/8" - 1-1/8" (3-28 mm).

🔹Sanding device - inside and outside the pipe

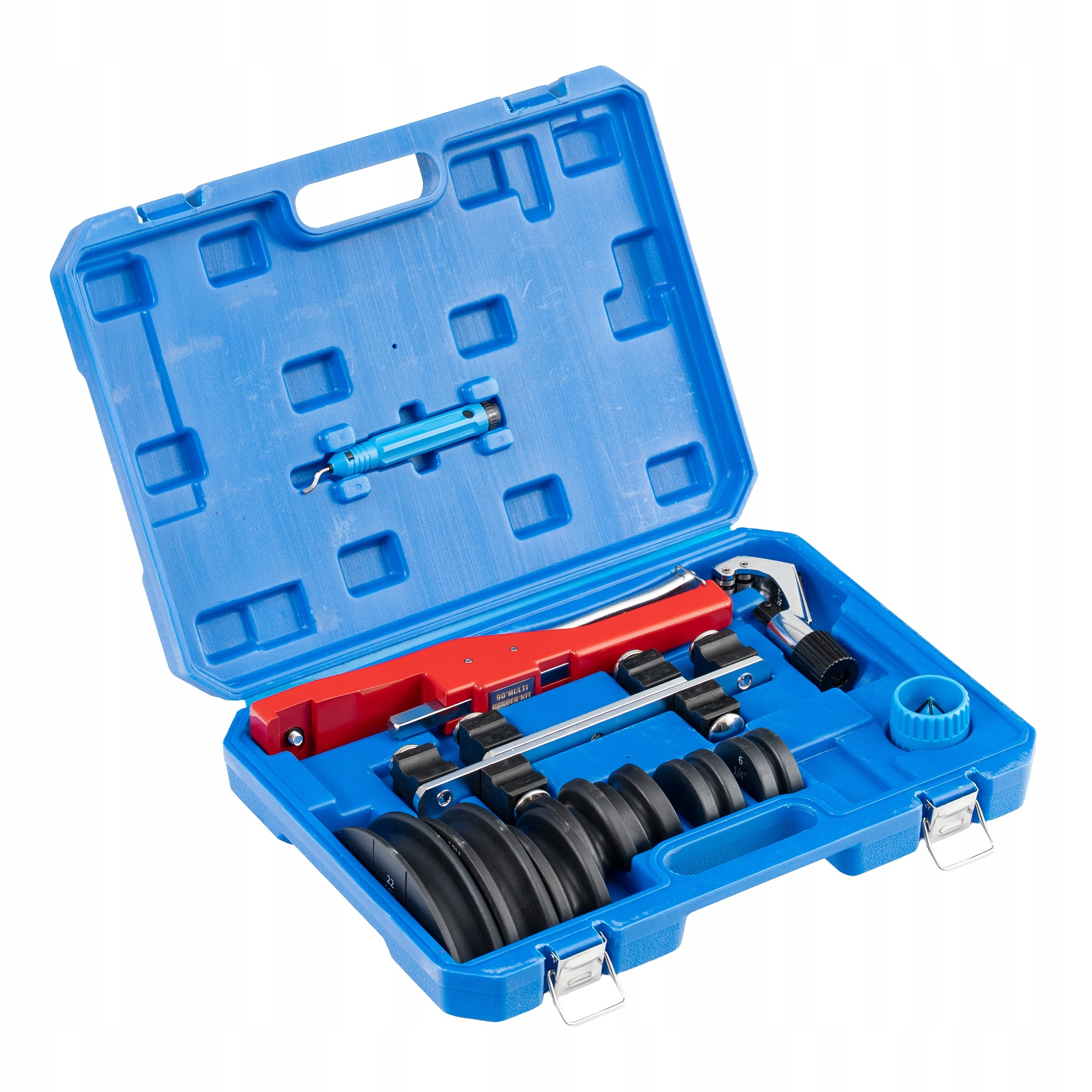

📦 Mobility and order – Transport case:

The whole set comes in a sturdy case made of durable plastic, which makes it easy to transport to the assembly site and protects the tools from damage.

🔵 Dimensions:

• Width: 42 cm
• Depth: 31 cm
• Height: 8,5 cm

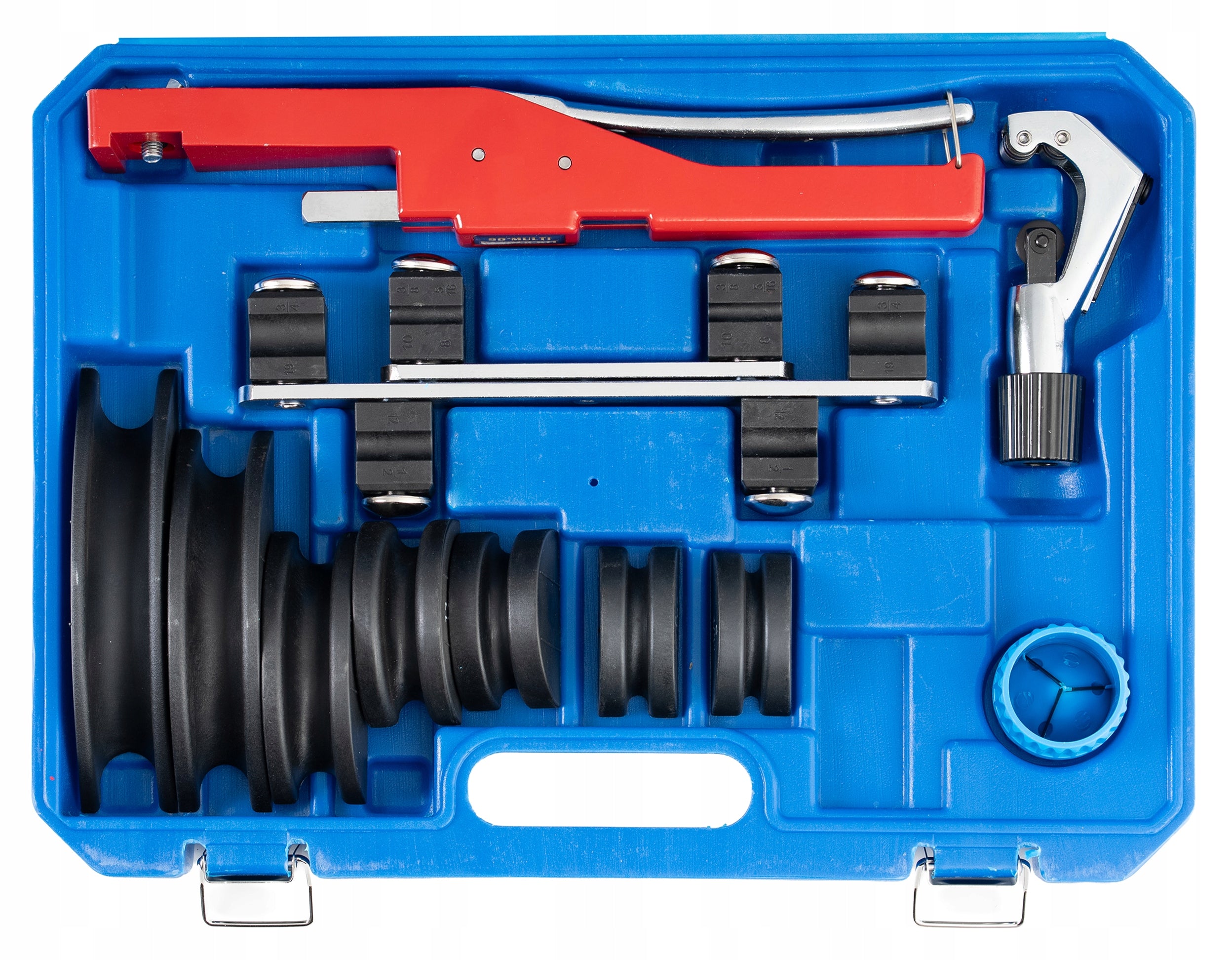

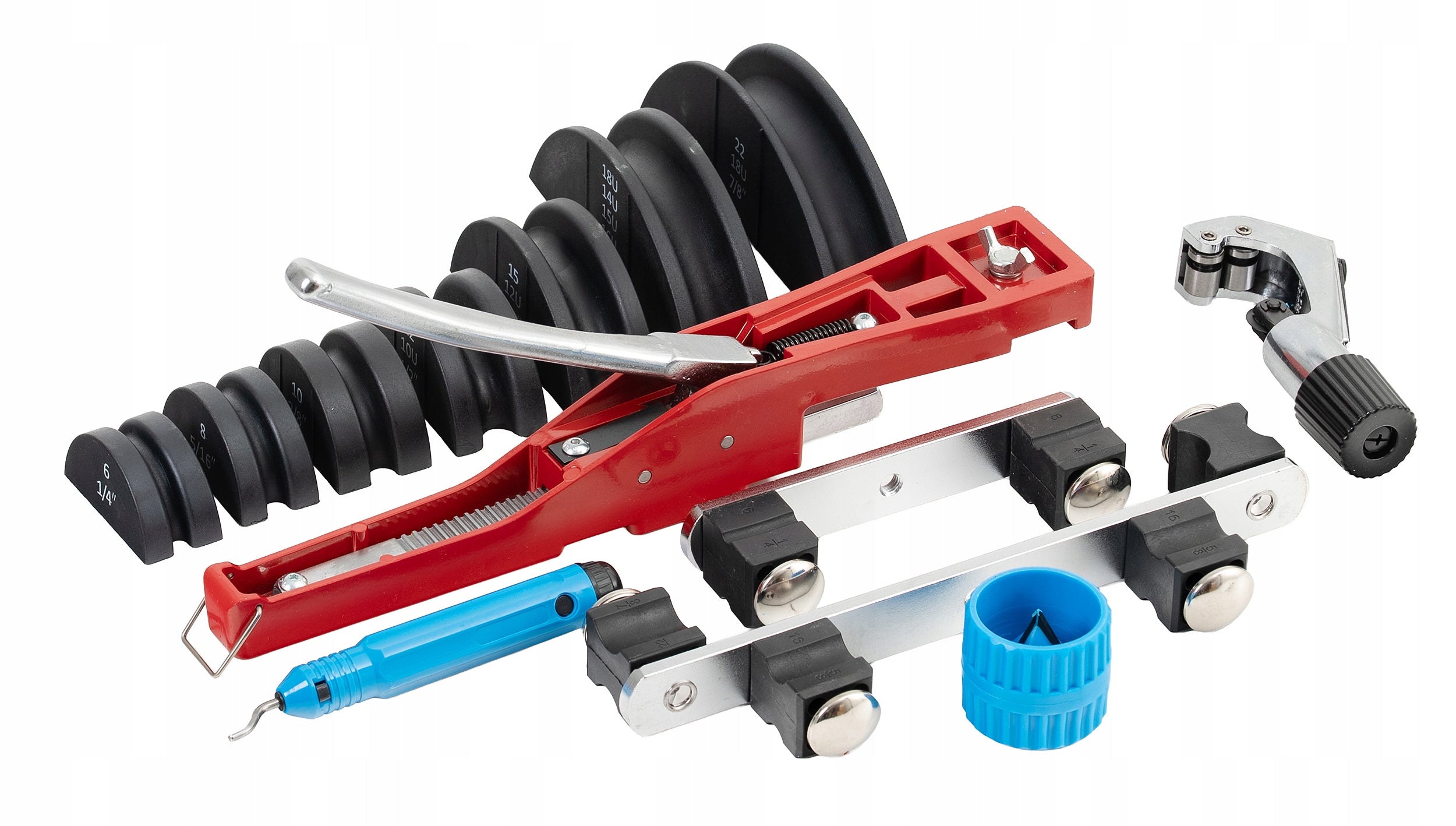

🛠 Contents of the set:

• Crossbow bending machine with ergonomic ratchet mechanism.
• 7 interchangeable bending jaws (6 mm to 22 mm).
• Professional pipe cutter 4-28mm (1/8" to 1-1/8").
• 2x Deburrer (grinder) for preparing the edges of pipes after cutting.
• Transport case with dedicated compartments.

💡 Practical advice

For best results and to extend the life of your kit, use our tips:

• Always use a grader: After cutting the pipe with a cutter, use the included grader to smooth the inside of the pipe. By removing burrs, you protect the bending die from scratches and ensure the perfect flow inside the installation.
• Mark the bending place: When measuring the installation, remember that the pipe “takes” some material on the arch when bending. It is worth doing a test bend on the pipe waste to feel the starting point of the device.
• Smooth movement is key: When operating the ratchet mechanism, make even, confident movements. Sudden are unnecessary at 10 KN, and the fluidity guarantees a perfectly smooth outer surface of the bend.
• Die cleanliness: Before replacing the die, make sure there are no metal filings on the mandrel and in the socket. A clean tool is a guarantee of no slack and the highest precision.

⚠ Safety

🔵 Protection measures: During work, it is recommended to use safety glasses and work gloves.

🔵 Purpose: Tool for soft metal pipes (copper, aluminum). Do not apply to hard steel.

🔵 Maintenance: The ratchet mechanism should be kept clean and periodically lubricated with light technical oil.
