Vamzdžių lenktuvas SWG-25, rankinis, 10–25 mm

Trumpai apie prekę

Prekė: Vamzdžių lenktuvas SWG-25, rankinis, 10–25 mm. Kategorija: Vamzdžių lenktuvai.

• Gamintojas: no brand
• Modelis: 147712

Description

Do you want to bend tubes easier and faster? Then try our manual tube bender. It is made of high-quality materials, with strong hardness and durability, and is capable of working on 7 different sizes of tubes, which is very convenient and labor-saving. Its compact size and lightweight allow you to easily take it around, and it will be your helpful assistant.

Key Features

Build to Last: Made of high-quality cast iron and steel, it is impact-resistant. The surface is sprayed and blackened for high strength, corrosion resistance, and extended service life.

Flexible Use: With 7 molds and 7 rollers, it is suitable for bending copper, aluminum, and stainless steel pipes with diameters ranging from 0.39in to 0.98in, and can meet a wide range of pipe installation and repair needs.

Outstanding Bending Capability: It supports bending from 0° to 180° to form U-shaped bends, allowing you to complete metal bending work with ease.

Work Assistant: It can dramatically reduce the time and cost of manual work, help you easily complete the bending work, and improve your work efficiency and accuracy.

Quick Installation: A simple structure, complete accessories, and a detailed manual allow you to install and start using it quickly.

Hassle-free Cleaning: The smooth surface and simple construction allow you to easily wipe away dust and residue with a damp towel (not included).

Easy Operation: You just need to fix the suitable molds and rollers on the main unit, then insert the tubes you need to bend and move the handle to do the bending.

Ideal Gift: With excellent performance, this product is a gift for family, friends, and loved ones, making their working or DIY projects safer and easier.

Details

U Molds: They ensure that each bend reaches the desired angle, making it easier to use with less effort.

Ergonomic Handle: It provides a more comfortable grip, making you less prone to fatigue even after long hours of work.

Smooth Edge: A smooth and burr-free edge not only makes it more comfortable to use but also cares for your skin.

Application

It can be used for bending 0.8-2mm copper, aluminum, stainless steel tubes, etc. It is widely used for heating and sanitary installations, automotive repair, home improvement, and DIY projects.

How to Use

1. Secure the base.

2. Select the appropriate mold and roller according to the required bending size.

3. Put the mold and host into the base shaft, and loosen the bolt and nut.

4. Put the roller into it and fixed.

5. Insert the pipe to be bent between the mold and the roller and set it into the mold lug holes.

6. Adjust the nut to fit the mold, tube, and roller.

7. Trigger the handle to bend.

Specification

Model: SWG-25

Material: Cast Iron, Steel

Color: Red, Black

Process: Plastic Spraying, Blackening

Operation Type: Manual

Assembly Required: Yes

Bending Range: 0-180°(U-shape)

Type: Manual Bender

Number of Molds: 7

Number of Rollers: 7

Applicable Pipe Thickness: 0.8-2.0mm/0.03-0.08in

Bending Pipe Diameter: 10-25mm/0.39-0.98in

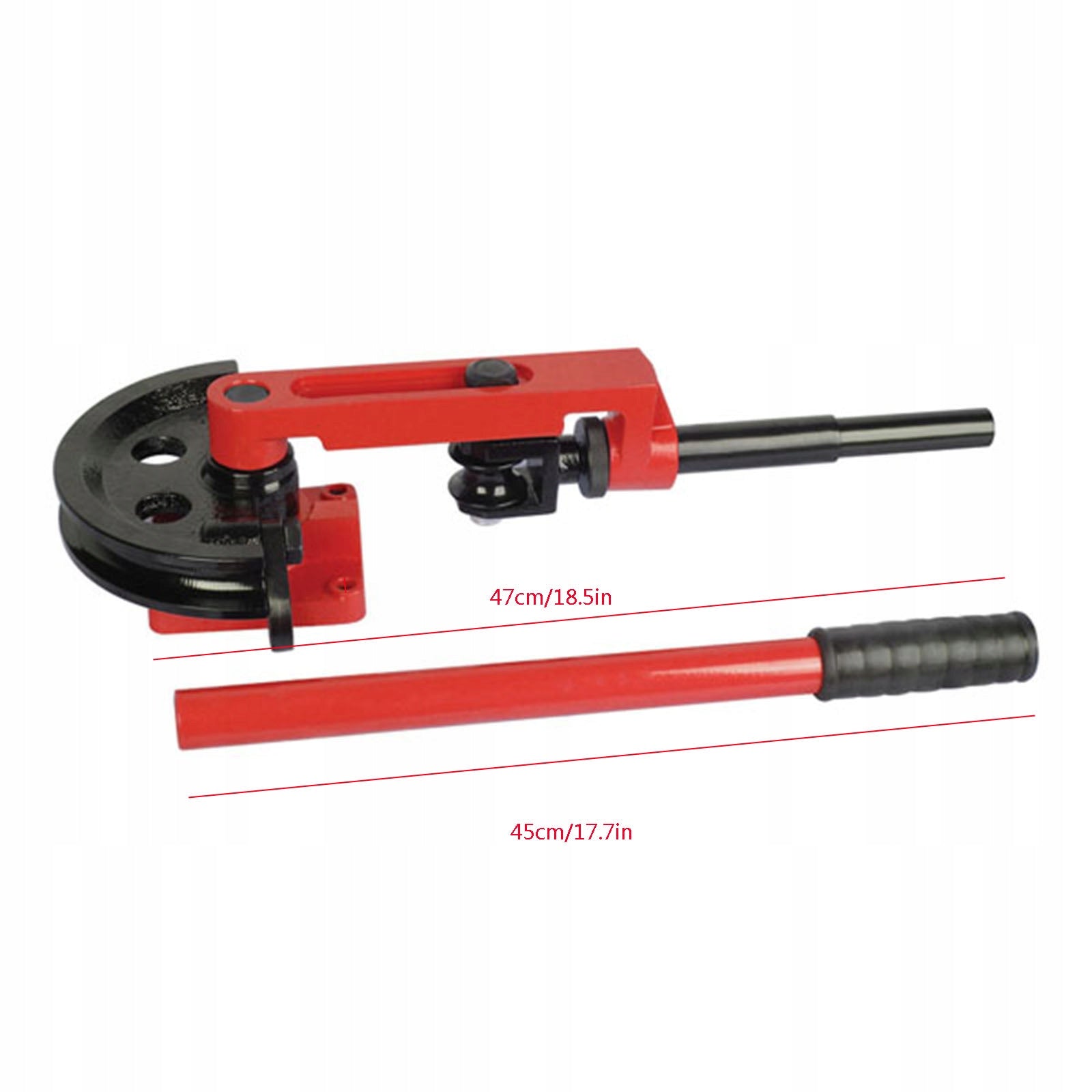

Handle Length: 45cm/17.7in

Main Body Length: 47cm/18.5in

Mold Size: φ10mm/ 3/8in, φ12mm/ 1/2in, φ14mm/ 9/16in, φ16mm/ 5/8in, φ19mm/ 3/4in, φ22mm/ 7/8in, φ25mm/ 1in

Package Size: 57*24.5*18cm/22.44*9.65*7.09in

Gross Weight: 23.14kg/51.01lbs

Net Weight: 20kg/44.09lbs

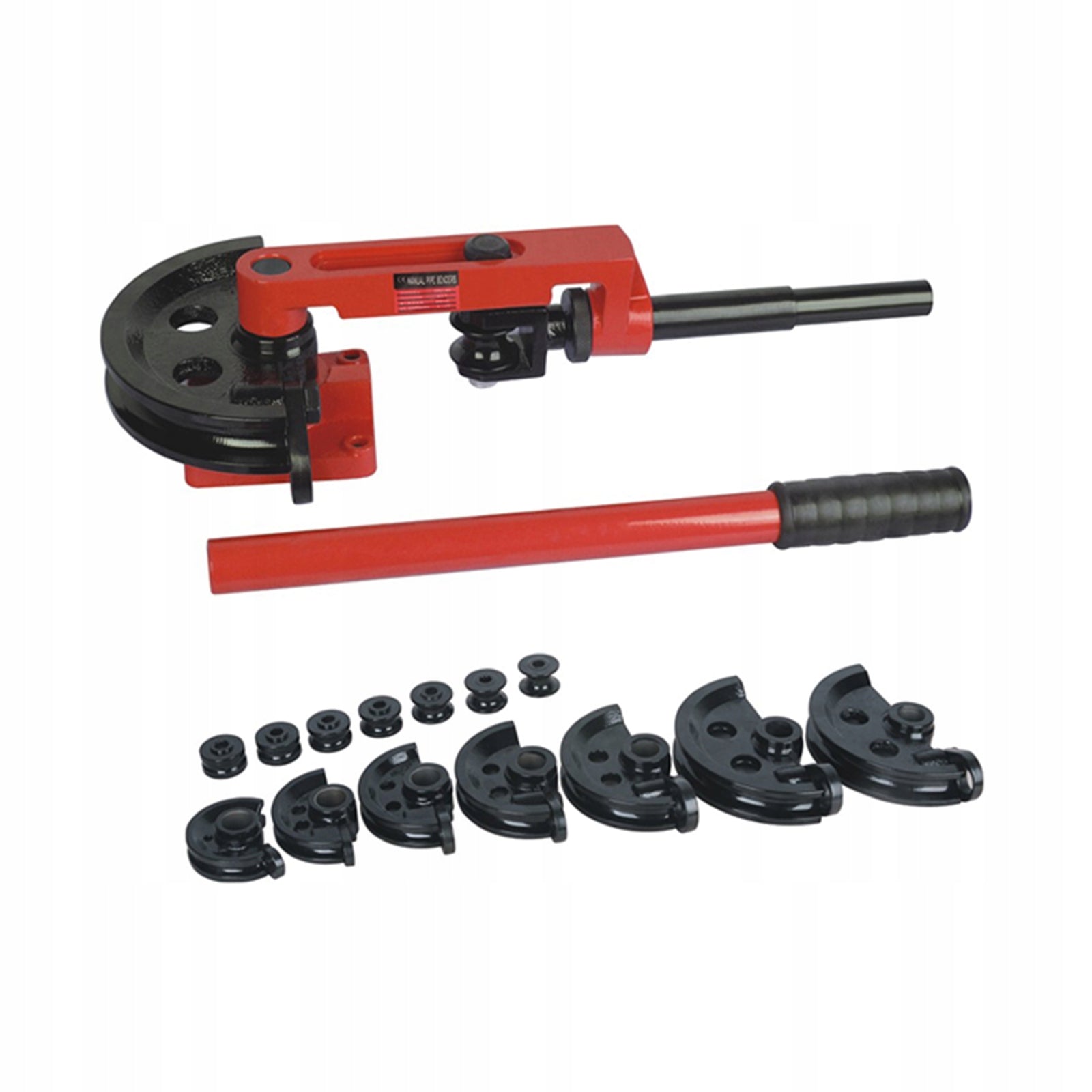

Package Included

1* Manual Bender Main Body

1* Handle

1* English Manual

7* Molds

7* Rollers

Notes

1. Please check compatibility carefully before purchasing.

2. Please wear protective gloves (not included) when operating to increase safety in use.

3. It can be used with a bench vise (not included).

4. Please read the instruction manual carefully before use and pay special attention to the safety tips inside.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
