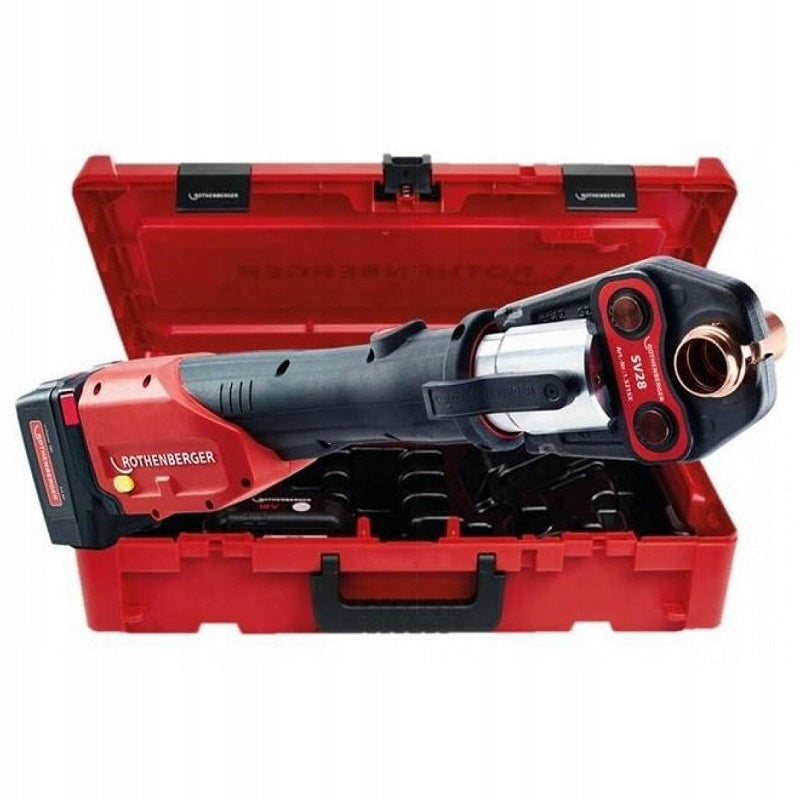

Vamzdžių presavimo įrankis Rothenberger ROMAX 4000 1000001840

Trumpai apie prekę

Prekė: Vamzdžių presavimo įrankis Rothenberger ROMAX 4000 1000001840. Kategorija: Elektrinių įrankių rinkiniai.

• Gamintojas: Rothenberger

Rothenberger Romax 4000 - battery-powered and optionally mains-powered electrohydraulic crimping machine for connectors up to Ø 110 mm (depending on the system) with a force of 32 - 34 kN.

Area of application:

• ROMAX 4000 is a fast, lightweight, handy and safe crimper. Ideal for construction work.

Advantages:

• Reliable - service threshold 40 thousand. terminals.
• Universal - fit jaws from other manufacturers
• Fast - Crimping cycle takes approx. 5 seconds. Piston automatically returns to the starting position after the process is complete
• Safe - CFT® guarantees the required clamping force. Automatic control of the process ensures that the piston returns to its initial position when the force necessary to tighten is reached. Secure lock prevents accidental jaw release
• Lightweight - Extremely light and balanced
• Robust and economical - Thanks to the high quality service period is 20 000 terminals. This secures continuous, economical work
• High operating temperature range - ROMAX 4000 works without problems in difficult conditions. Crimping is possible in the temperature range between -10°C and +60°C
• Powerful Battery - The standard 18-Volt 4.0 Ah Li-Ion battery allows for 240 terminals (28 mm stainless steel) on a single charge. No memory effect and no energy loss. Resistant to cold. Fast charging in AIR COOLED technology
• Practical design - Suitable for hard-to-reach areas
• In the suitcase ROCASE - New suitcase system Rothenberger - possibility of connecting
• LEDs make it easier to work in dark places.
• Automatic return - After the end of the cycle, the plunger returns to its starting position.

Technical data:

• Dimensions: 445 x 125 x 75 mm
• Weight: approx. 3.6 kg (without jaw)
• Clamp force: 32 kN
• Jaws: profile width 33 mm, fixing pin 14 mm
• Working range: Ø 12 - 110 mm (depending on the system)
• Head: 270° rotating
• Power supply: 18V/4.0Ah or 2.0Ah Li-ion battery or optional 230V, 50 - 60Hz power supply
• Operating temperature: -10°C to +60°C
• Battery life: Up to 240 terminals (28 mm stainless steel)
• Maximum supported diameters:

  Profile M - up to 54 mm

  Profile SV (V) - up to 110 mm

  Profile TH - up to 63 mm

  Profile U - up to 110 mm

  Profile G - up to 63 mm

The set includes:

• crimping machine ROMAX 4000
• 18V/4.0Ah Li-ion Battery
• fast charger
• ROCASE suitcase
• without clamping jaws

Specifications
