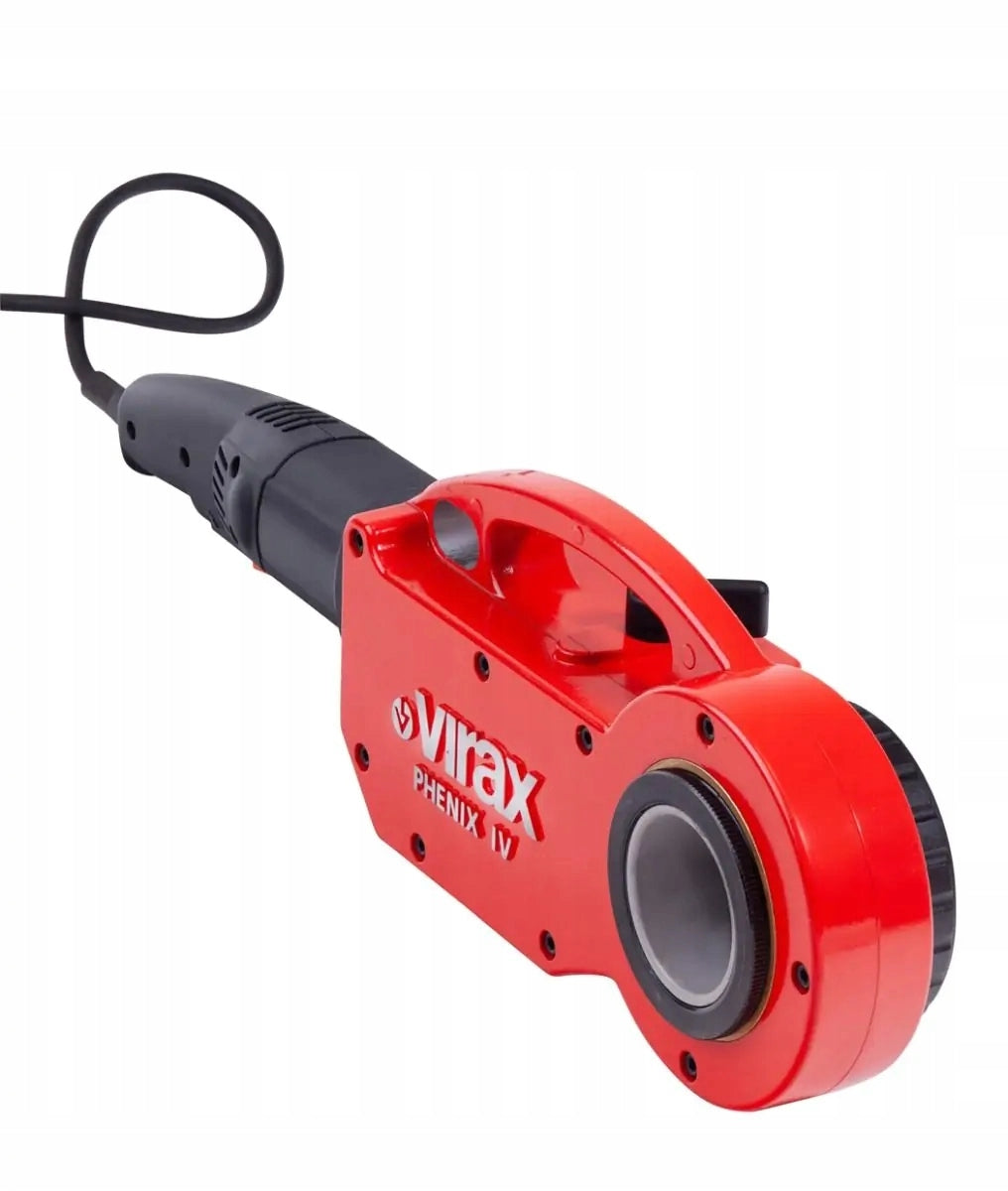

Vamzdžių sriegiklis Virax Phenix IV, 1/2–2", 137570 EXQ

Trumpai apie prekę

Prekė: Vamzdžių sriegiklis Virax Phenix IV, 1/2–2", 137570 EXQ. Kategorija: Elektrinių įrankių rinkiniai.

• Gamintojas: Virax
• Modelis: 137570

Super strong threader Virax Phenix III ? ? "-2"

Phenix IV threader designed for threading in BSPT right or NPT system depending on the knives used, on steel pipes from ? "up to 2", in the workshop or mobile at the customer's.

• For continuous operation thanks to a powerful and reliable universal motor with a power of 1010 W.
• Wide operating range thanks to cable length of 2,8 meters.

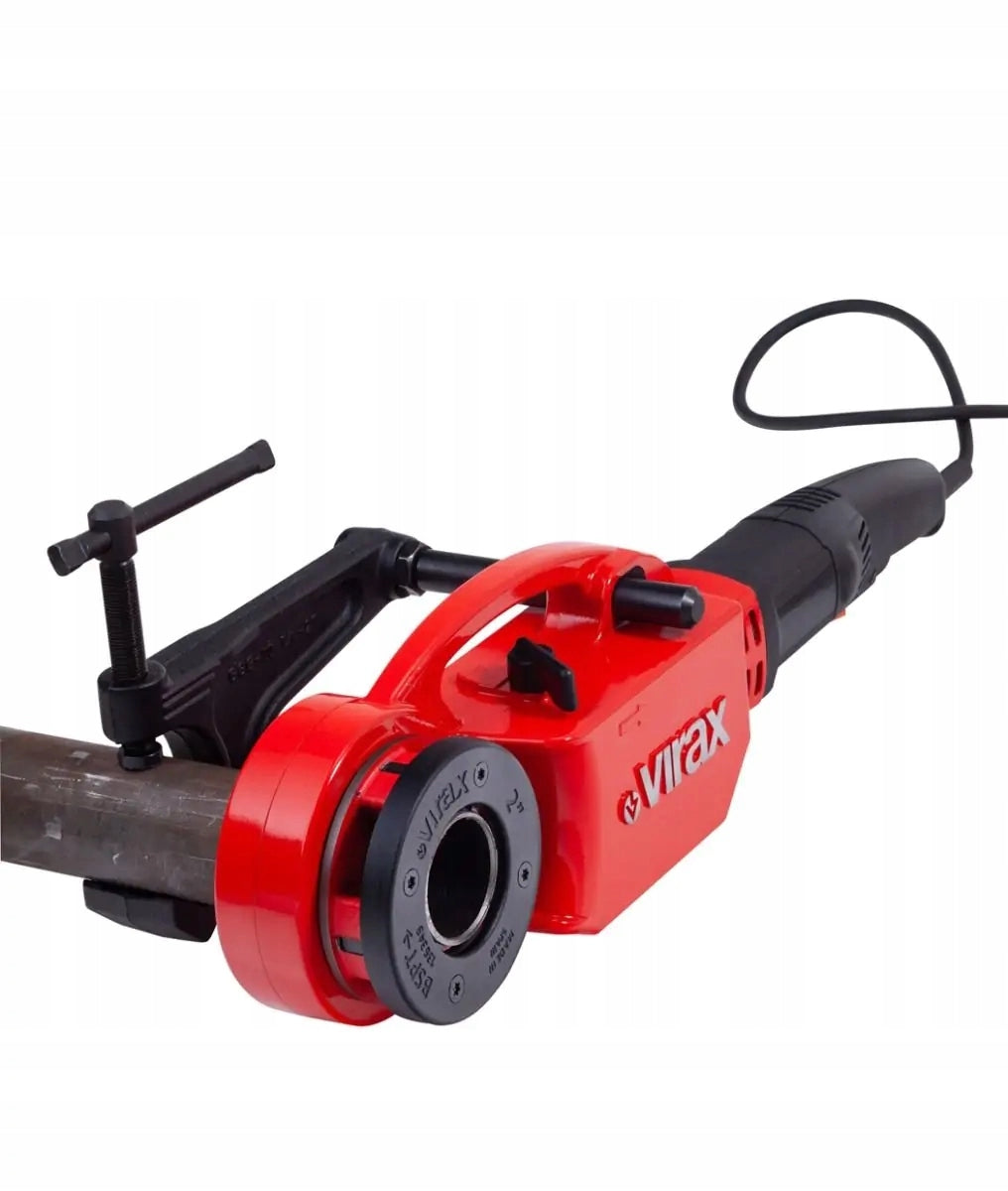

• Comfort and safety of use: locking vise with torque protection, preventing the machine from rotating during threading.
• Fast and secure locking system: for 1/4" to 1,1/4" heads with an easy, tool-free mounting adapter, ensuring excellent hold and no unintentional head ejection during threading.
• For 1,1/2" and 2" heads thanks to the safety ring integrated into the machine.
• Minimal wear, excellent service life thanks to transmissions with inductively hardened gears and drive shafts mounted on ball bearings

Technical data of the device:

• Scope of work BSPT ? 1/4" - 2";
• Scope of work NPT? 1/4" - 2";
• Power 1010W
• Threading speed 15 - 25 rpm;
• Return speed 58 rpm. (quick return) ;
• Product weight 6,6 kg.

Pipes must comply with EN 10255 S and EN 10255 W (former NFA 49115 and NFA 49145 series medium and strong); Only Light series lamps (or “Grade 1” and “Rate 2”) are not recommended

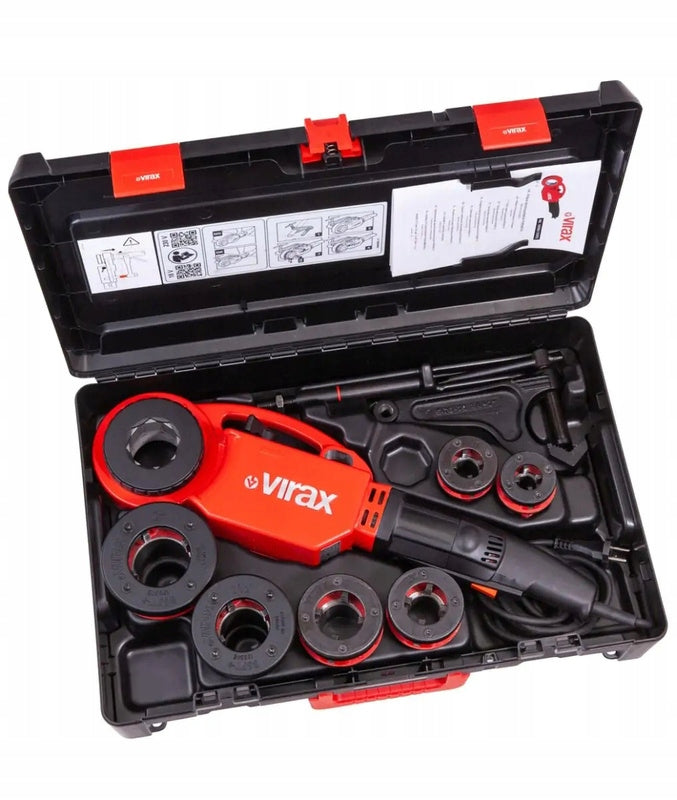

Scope of delivery:

• Phenix IV electric threader
• Vice blocking
• Adaptor head
• Case system Virabox
• BSPT R 1/2"
• BSPT R 3/4"
• BSPT R 1"
• BSPT R 1.1/4"
• BSPT R 1.1/2"
• BSPT R 2"

Specifications
