Vamzdžių suvirinimo aparatas NOWATECH ZERN-800 PLUS, max fi 160, dujoms ir vandeniui

Trumpai apie prekę

Prekė: Vamzdžių suvirinimo aparatas NOWATECH ZERN-800 PLUS, max fi 160, dujoms ir vandeniui. Kategorija: Sandarikliai.

• Gamintojas: Nowatech
• Modelis: ZERN-800PLUS

Electroresistance welding machine max fi 160 ZERN-800 PLUS NOWATECH

Novatech

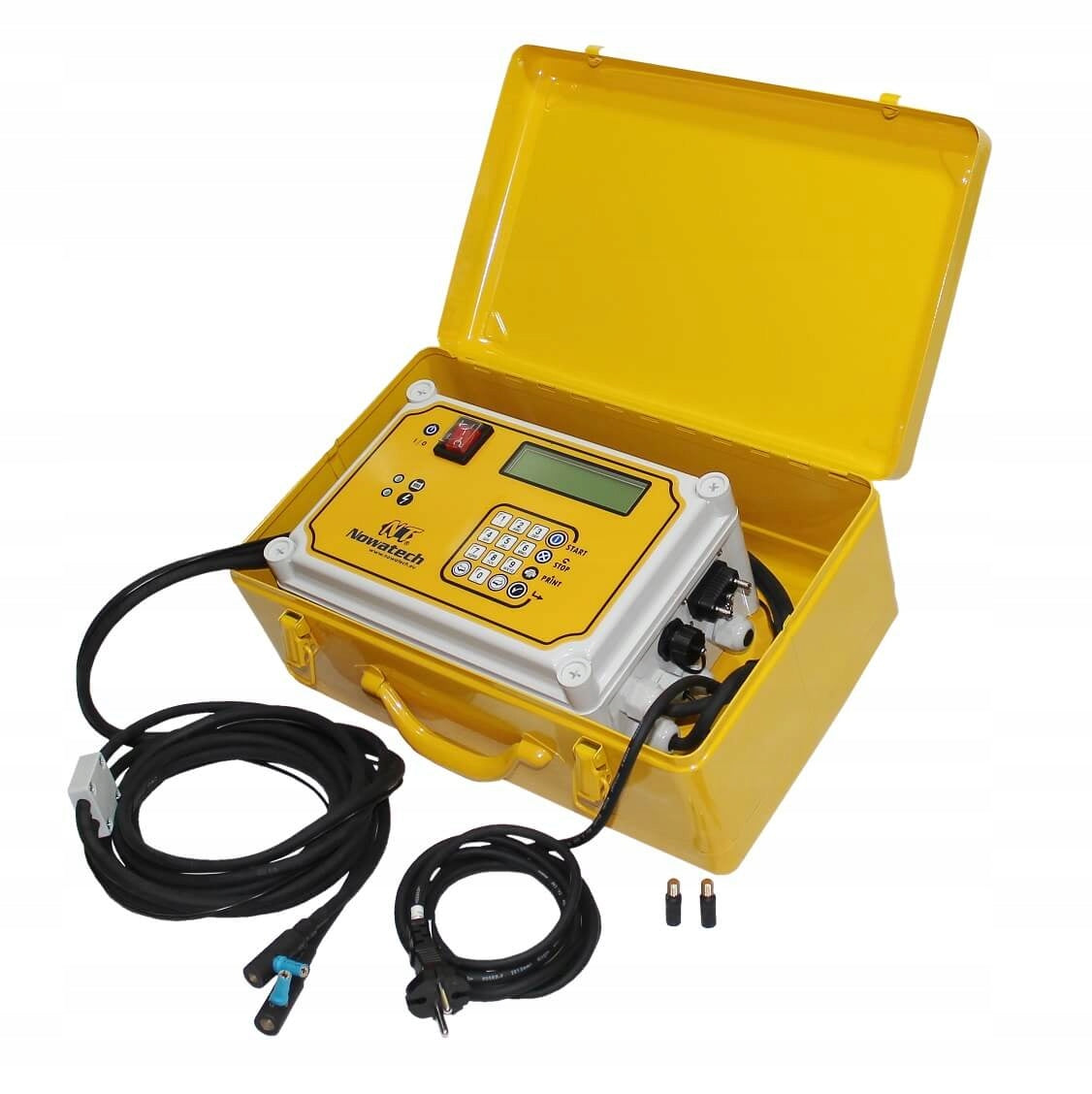

Electro-resistance welding machine NOWATECH ZERN-800 PLUS designed for welding electro-connectors and PE pipes with a diameter of up to 160 mm. Professional device used in the construction and service of water supply, gas and industrial installations. Robust construction, intuitive operation and high reliability make it perfect for PE network installers and contractors.

Electroresistance welding machine 1450W NOWATECH ZERN-800 PLUS

Universal devices for connecting thermoplastic pipes and fittings (PE, PP, PVDF, LDPE) by resistance method

using fittings such as muffs, tees, elbows, end caps, reductions, etc.

They are widely used in the construction and repair of failures of water supply, sewage systems, industrial installations, etc.

Automatic welding machines without welding parameters recording system.

• automatic control;

• optical and acoustic signalling of the welding process;

• automatic compensation of welding time depending on the ambient temperature;

• electronic control system that responds to changes in power supply parameters in real time;

• automatic setting of voltage and cycle times depending on the type of fitting;

• possibility of programming operating parameters:

(a) automatic mode using a barcode scanner;

(b) automatic mode by entering a digital barcode from the barcode;

c) manual (manual) mode by entering voltage and time parameters from the fitting;

d) "as last time" mode - automatic programming using the settings of the last weld.

ZEEN version welding machines, in addition to standard functions, are equipped with a module for recording parameters allowing to print the protocol

as a constructive. Printing is possible this way directly from the welding machine or after sending data to a PC on any desktop printer.

The device includes the last 400 welds. The following data shall be recorded in the minutes: No. welding, date, time, operator code, construction code,

welding voltage, welding time, cooling time and final evaluation of the welding. Software is supplied with the device along with cables for communication

with PC allowing data transmission and printing of as-built protocol.

TECHNICAL DATA

Approximate range of welded diameters: ~O160

Power supply: 230 V

Max. Fitting power: 1450W

Weight: 13kg

Dimensions: 390 x 240 x 160 mm

Welding voltage: 8 ÷ 44 V [setting every 0,1 V]

Welding time: 1 ÷ 9999 sec. [set every 1 sec. ]

Cooling time: 1 ÷ 999 min [setting every 1 min]

Temp. Operation: -5 ÷ + 40 °C

Angle Replacement Tips: O4, O4,7

Degree of protection: IP 54

Scanner - option

Memory: none

Possibility to print the protocol: no

Recommended generator set: 2,5 kW

Built-in battery: no

Possibility of data transmission on a pendrive: no

PC Communication: USB Cable

Automatic compensation of welding time depending on temp. Environment: yes

Calibration validity reminder: yes

Possibility of manual programming: yes

Available ports: USB type A, M12

Possibility of software update by the user: yes

• Brand: other|Novatech
• Condition: New
• EAN (GTIN): 02549156
• Manufacturer code: ZERN-800 PLUS
• Maximum power: 1450
• Power Supply: mains
