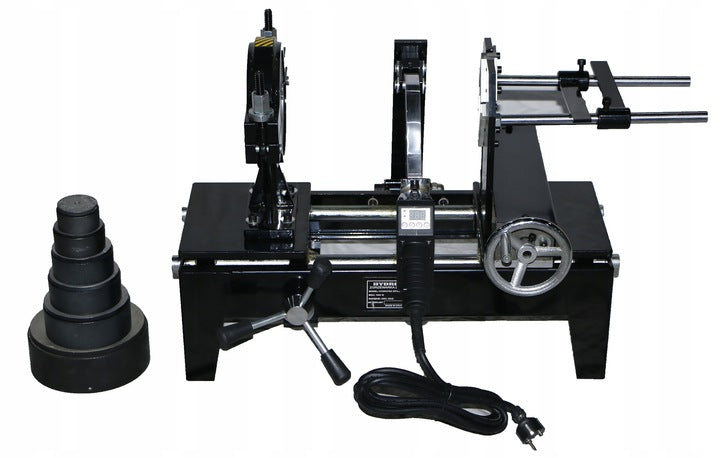

Vamzdžių suvirinimo aparatas POLYFUSION, 50–160 mm, profesionalus

Trumpai apie prekę

Prekė: Vamzdžių suvirinimo aparatas POLYFUSION, 50–160 mm, profesionalus. Kategorija: Sandarikliai.

• Gamintojas: Hydrotec
• Modelis: TG-50-160

Welding device for accurate connections of tubes and fittings with large diameters.

It is used for polyfusion welding of pipes and fittings with large diameters: Ø50, Ø75, Ø90, Ø110, Ø160,

It greatly facilitates the welding of larger elements, where sufficiently large longitudinal forces are required, both in the process of heating details and their joining.

Jaw handles fixing welded elements ensure their axial position and thus their exact mutual combination.

High welding precision: Ensures minimal deviation of the butt joint (≤ 0,2 mm).

Wide temperature range: Temperature control in the range of 0-300℃, ideal for a variety of materials and applications.

Low error tolerance: Temperature error of only ± 3 ℃, which guarantees the accuracy of the process.

Energy efficiency: Energy consumption of 1,5 kW at 230V, which makes the device energy efficient.

Versatility: Supports pipes of various diameters (DN50, DN63, DN75, DN90, DN110, DN160), which allows for use in various industries.

Accurate temperature control, safe operation and strong resistance to environmental conditions.

The heating plate is made of high-quality aluminum alloy, characterized by high thermal conductivity and strong antioxidant properties.

Sturdy construction, convenient and fast operation, never causing leaks.

The sockets are equipped with a unique high temperature resistant plastic (PTFE) coating, which ensures a long service life.

It can be used to connect plastic pipes and fittings of different diameters, thanks to the replaceable die head (specification: φ 50-160 mm).

Specifications
